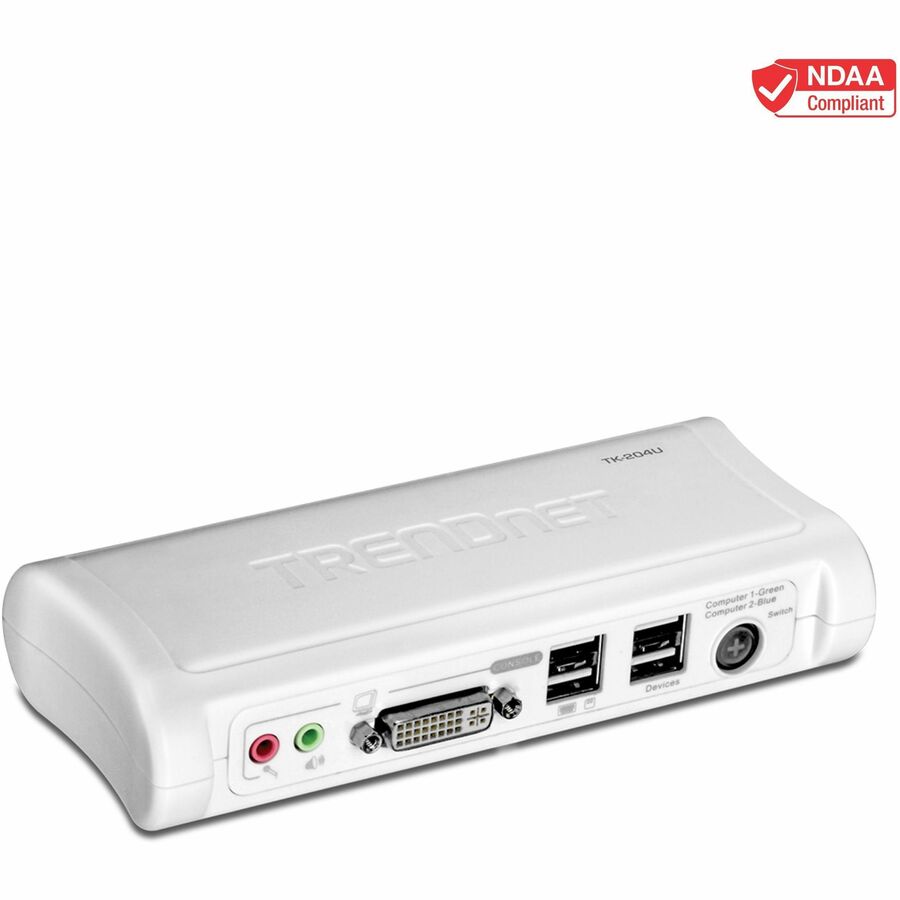

TRENDnet 2-Port DVI USB KVM Switch & Cable Kit with Audio, Manage Two PCs, 2 x USB Keyboard & Mouse Ports, 2 x Bonus USB 2.0 Ports, 2 Way Audio Support, TK-204UK

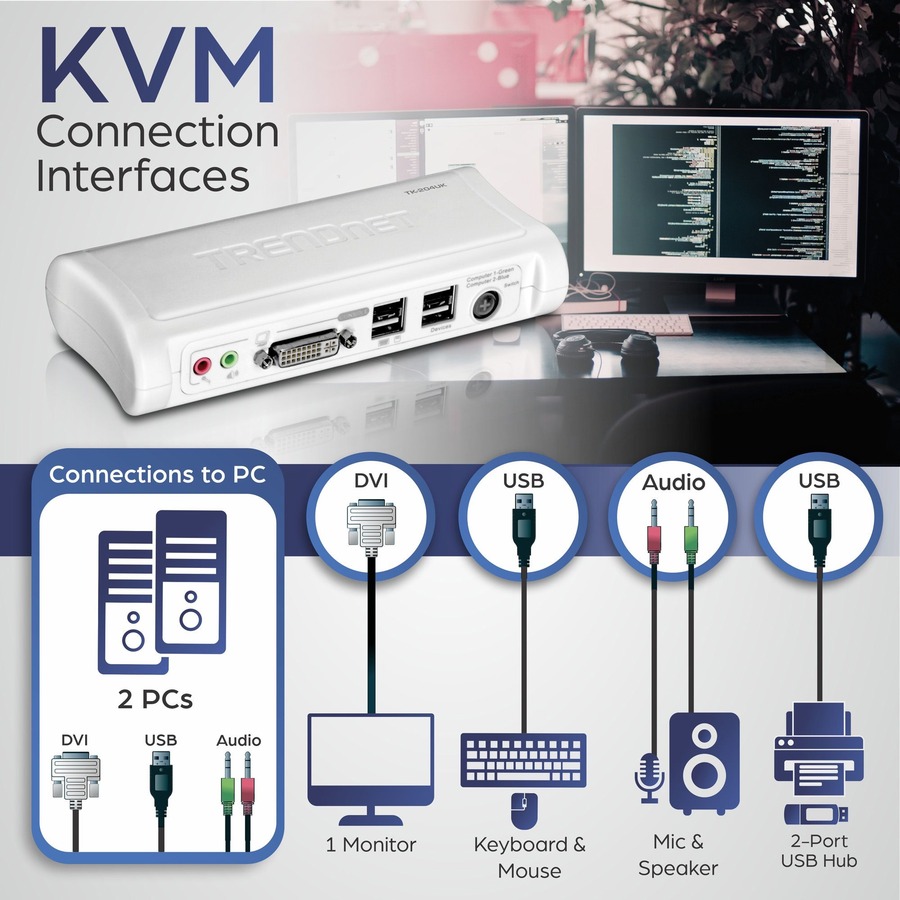

The 2-Port DVI USB KVM Switch Kit with Audio manages two computers with one set of console controls. Control two computers with DVI and USB ports at the touch of a button with one set of microphone/speakers, USB keyboard, USB mouse, and DVI monitor. Simply plug everything in to start sharing your HD DVI monitor with two Mac or Windows computers. No need for additional cabling, all required cables are included. Network printers, storage drives, flash drives and more by connecting to the two bonus USB ports on the front of the switch. Listen to music on one computer while working on the other. Switch between computer by pressing the convenient switch button or by programming shortcut Hotkey commands.

• 2 x USB keyboard and mouse ports

• 2 x bonus USB 2.0 ports

• 2-way audio support for uninterrupted multimedia experience across multi-platforms

• Independent simultaneous switching of both PC and audio channels

• Advanced keyboard and mouse support

• Multi-platform support for Windows, Mac, and Linux

• Hot-plug PCs without powering down the KVM switch (Window OS)

• Digital video resolution up to 1920 x 1200 and analog video resolution up to 2048 x 1536

• Integrated High-Bandwidth Digital Content Protection (HDCP) and Transition Minimized Differential Signaling (TDMS)

• No CD installation required-simply plug and go

• 2-year limited warranty

*For optimal performance, we recommend using a wired keyboard and mouse. Please go tohttp:/www.trendnet.com/downloadsto download the client switching software.

More from the Manufacturer

The 2-Port DVI USB KVM Switch Kit with Audio manages two computers with one set of console controls. Control two computers with DVI and USB ports at the touch of a button with one set of microphone/speakers, USB keyboard, USB mouse, and DVI monitor.

Simply plug everything in to start sharing your HD DVI monitor with two Mac or Windows computers. No need for additional cabling, all required cables are included. Network printers, storage drives, flash drives and more by connecting to the two bonus USB ports on the front of the switch. Listen to music on one computer while working on the other. Switch between computer by pressing the convenient switch button or by programming shortcut Hotkey commands.

2 x USB keyboard and mouse ports

2 x bonus USB 2.0 ports

2-way audio support for uninterrupted multimedia experience across multi-platforms

Independent simultaneous switching of both PC and audio channels

Advanced keyboard and mouse support

Multi-platform support for Windows, Mac, and Linux

Hot-plug PCs without powering down the KVM switch (Window OS)

Digital video resolution up to 1920 x 1200 and analog video resolution up to 2048 x 1536

Integrated High-Bandwidth Digital Content Protection (HDCP) and Transition Minimized Differential Signaling (TDMS)

No CD installation required—simply plug and go

2-year limited warranty

*For optimal performance, we recommend using a wired keyboard and mouse. Please go to

http:/www.trendnet.com/downloads

to download the client switching software.

SPECIFICATIONS

Hardware

Connections

2 computers

Standard

DVI-I and DVI-D Compliant

USB 2.0 compliant

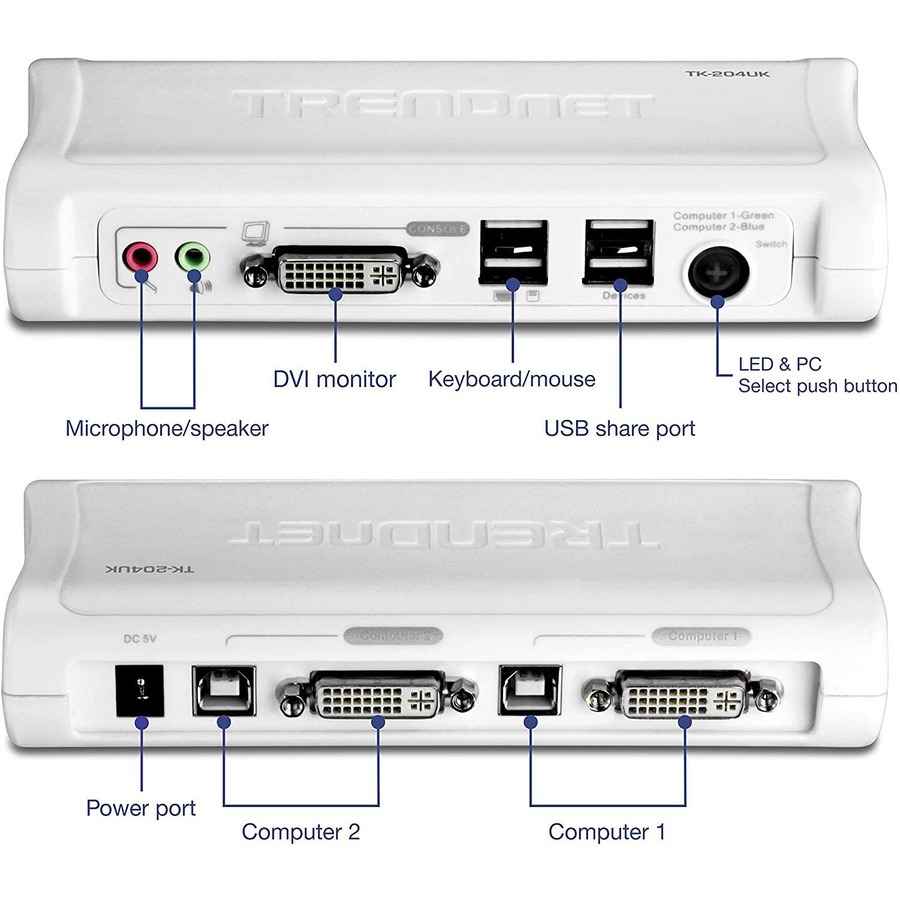

PC Port Connector

2 x USB type B

2 x DVI-I (integrated speaker/microphone support)

Console Port Connector

2 x USB type A (keyboard and mouse)

2 x USB type A (USB 2.0 devices)

1 x DVI-I single link

1 x 3.5 mm speaker jack

1 x 3.5 mm microphone jack

Cable

2 x detachable DVI/speaker and microphone combo cable

2 x USB type A to type B cable

PC Selection

Push button, keyboard Hotkey commands (Windows only)

LED

Green: Computer 1

Blue: Computer 2

VGA Resolution

1920 x 1200 (digital)

2048 x 1536 (analog)

Power

Input: 100~240 VAC, 50~60Hz

Output: 5V DC, 2A external power adapter

Dimensions

165 x 75 x 33 mm (6.5 x 3.0 x 1.3 in.)

Weight

160 g (5.6 oz)

Temperature

Operating: 0°C ~ 40°C (32° ~104°F)

Storage: -20°C ~ 60°C (-4° ~ 140°F)

Humidity

Max 90% (Non-condensing)

Certifications

CE, FCC

PACKAGE CONTENTS

TK-204UK

Quick Installation Guide

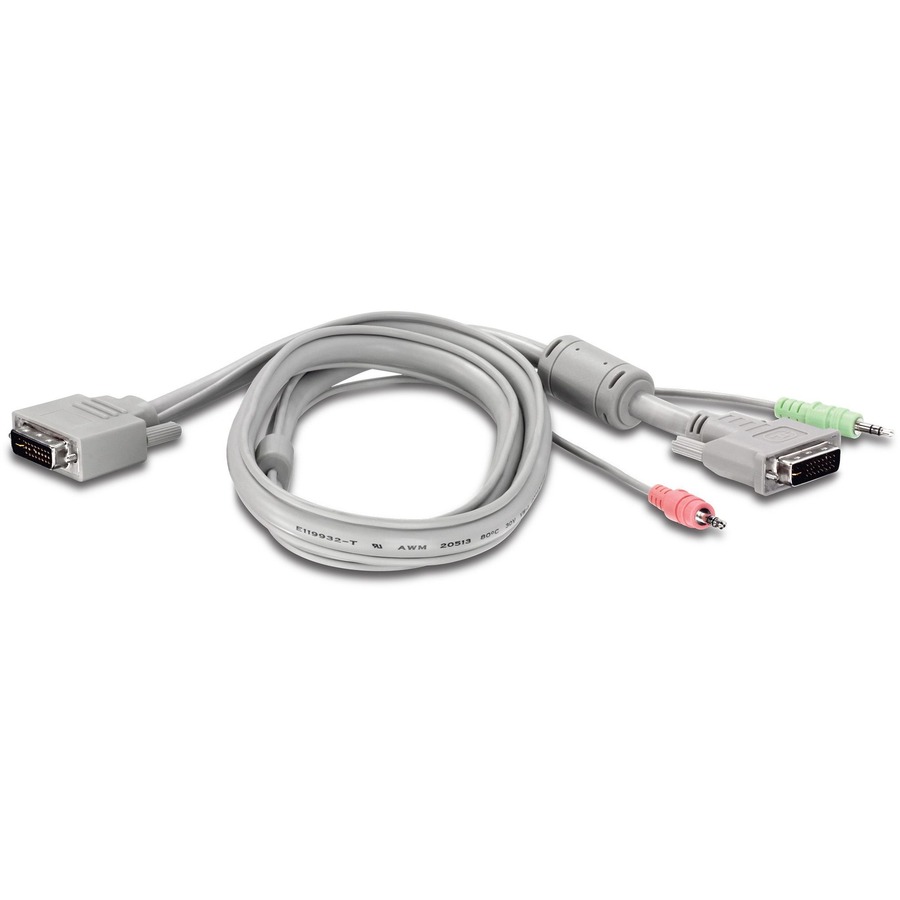

2 x DVI/Audio combo KVM cable (1.2 m/4 ft.)

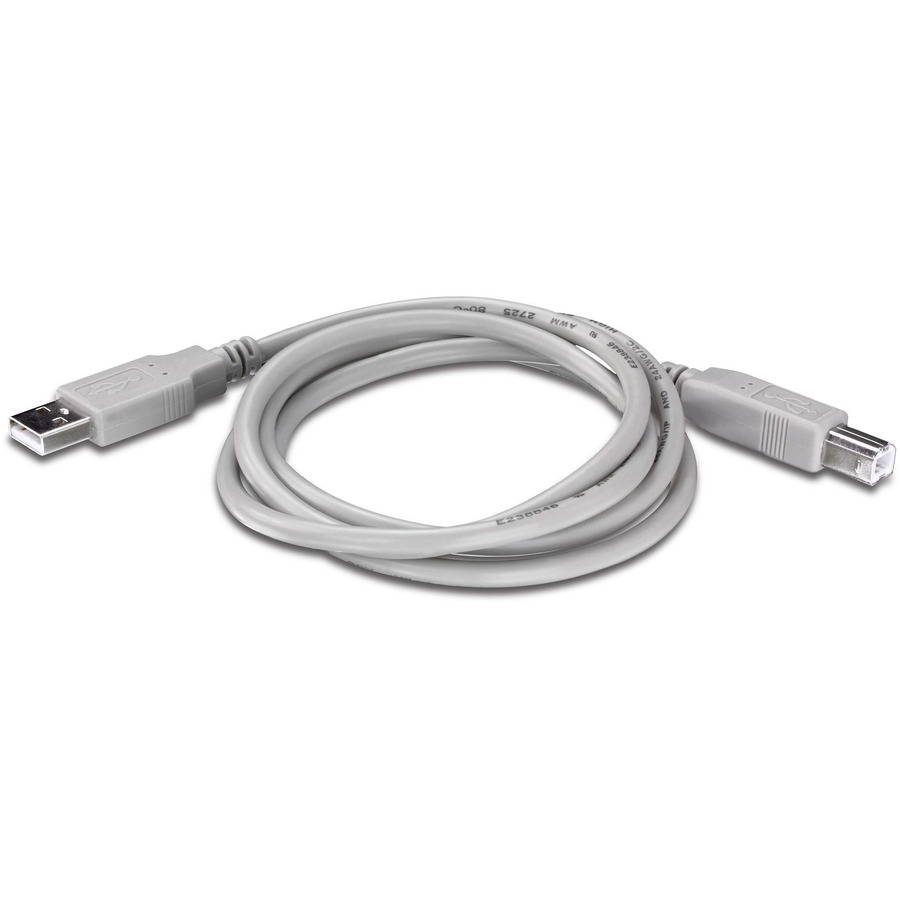

2 x USB type A to type B cable (1.2 m/4 ft.)

Power Adapter (5V DC, 2A)

*For optimal performance, we recommend using a wired keyboard and mouse. Please go to

http:/www.trendnet.com/downloads

to download the client switching software.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
