TRENDnet 2-Port HDMI KVM Switch, Control 2 Computers With One Set Of Console Controls, Full HD 1080P, HDMI And 3.5 mm Analog Audio, Monitor Switch, Windows And Mac KVM Switch Software, White, TK-215I

TRENDnet's 2-Port HDMI KVM Switch, model TK-215i, controls two computers (with an available HDMI port) with one set of console controls. No driver installation required, simply plug in the integrated cables to share two computers with a full HD 1080p display. The TK-215i supports HDMI and 3.5 mm analog audio and features an ergonomic computer toggle switch.

• Control two computers with one set of console controls

• Works with displays with an HDMI port

• Full HD 1080p resolution

• HDMI and 3.5 mm analog audio

• Fully integrated cabling

• Ergonomic computer toggle switch

• No CD installation

• USB Powered - No external power adapter

• NDAA compliant

More from the Manufacturer

TRENDnet's 2-Port HDMI KVM Switch, model TK-215i, controls two computers (with an available HDMI port) with one set of console controls. No driver installation required, simply plug in the integrated cables to share two computers with a full HD 1080p display. The TK-215i supports HDMI and 3.5 mm analog audio and features an ergonomic computer toggle switch.

2-Port HDMI KVM Switch

Control two computers with one set of console controls

Works with displays with an HDMI port

Full HD 1080p resolution

HDMI and 3.5 mm analog audio

Fully integrated cabling

Ergonomic computer toggle switch

No CD installation

USB Powered - No external power adapter

Computers

Control up to 2 computers

1080p HD

Supports full HD 1080p (progressive 1920 x 1080 pixels) with a 60 Hz refresh rate

2-Way Audio

Full audio support through HDMI cable connections with optional 3.5 mm microphone and speaker jacks

Toggle Switch

Use the integrated 1.5 m (5 ft.) cable to position the toggle switch in the most ergonomic location

Console Connectors

Emulation Technology supports advanced USB keyboard and mouse designs

HDMI Display

HDMI 1.3 with HDCP support

Computer Ports

Requires free USB and HDMI ports from connected computer

Integrated Cables

All required cables are integrated

Switch Software

Windows

and Mac

based KVM switch software to define hot keys and create auto-scan intervals

SPECIFICATIONS

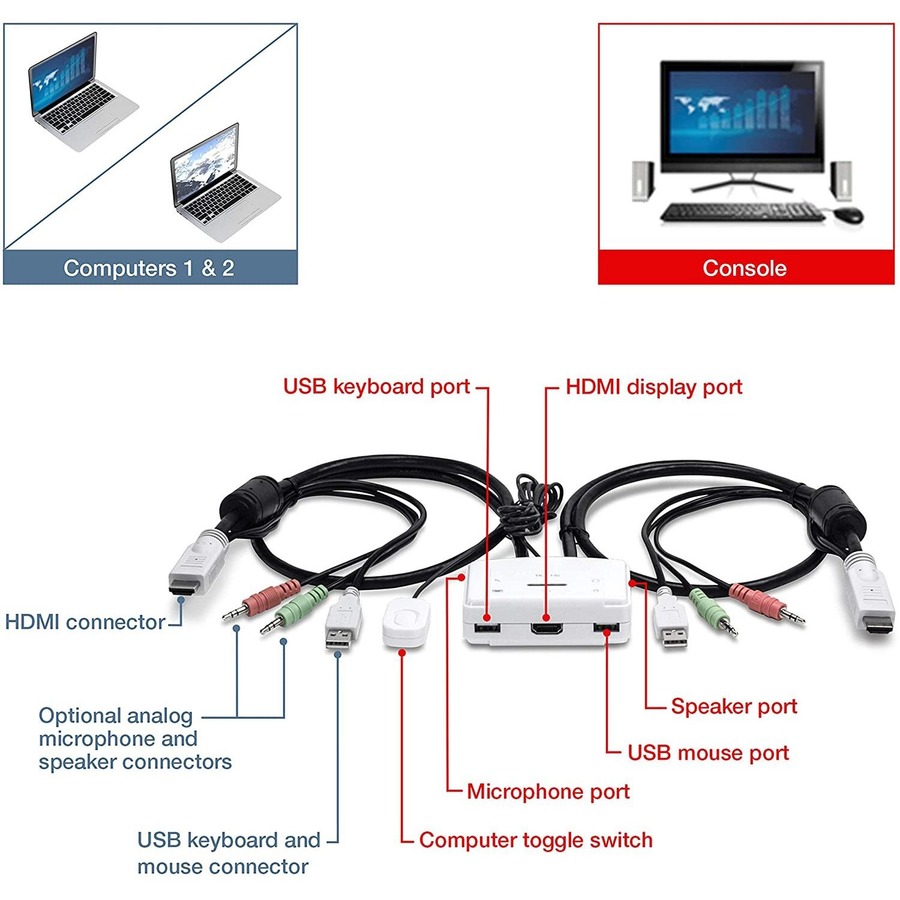

Console Port on KVM

Keyboard: USB

Mouse: USB

Monitor: HDMI 1.3 (19-pin)

Speaker jack: 3.5 mm

Microphone jack: 3.5 mm

Computer Connections (up to 2)

Keyboard / mouse: USB 2.0 type A

Monitor: HDMI 1.3 (19-pin)

Speaker jack: 3.5 mm

Microphone jack: 3.5 mm

Monitor Resolution

1920 x 1080 @ 60 Hz

Audio Support

5.1 Audio support over HDMI cables

Analog audio over speaker and microphone jacks

LED

Computer 1 and Computer 2

Switching Control

One touch toggle switch

Keyboard hot key commands

KVM Switch Software

Supported OS

Windows

and Mac

Operating Temperature

0 – 40 °C (32 – 104 °F)

Operating Humidity

Max. 90 % non-condensing

Dimensions

Unit: 85 x 58 x 28 mm (3.3 x 2.3 x 1.1 in.)

Integrated Cable: 85 cm (3 ft.)

Toggle switch: 150 cm (5 ft.)

Weight

350 g (12.3 oz.)

Warranty

2 year limited

Certifications

CE

FCC

PACKAGE CONTENTS

TK-215i

Quick Installation Guide

CD-ROM (Utility & User's Guide)

*For optimal performance, we recommend using a wired keyboard and mouse. Please go to

http:/www.trendnet.com/downloads

to download the client switching software.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
