TRENDnet 2-Port Dual Monitor DisplayPort KVM Switch With Audio, 2-Port USB 2.0 Hub, 4K UHD Resolutions Up To 3840 x 2160, Connect Two DisplayPort Monitors, Dual Monitor KVM Switch, Black, TK-240DP

TRENDnet's 2-Port Dual Monitor DisplayPort KVM Switch, model TK-240DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-240DP is designed for dual monitor systems with USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.

• CONTROL TWO COMPUTERS: This 2-port Dual monitor DisplayPort KVM 1. 2 KVM switch allows you to control two computers with one set of console controls and is designed for use with Dual DisplayPort systems. The KVM switch is designed to connect two DisplayPort monitors. [Recommended for use with DisplayPort monitors and graphic cards with DisplayPort]

• REQUIRED CABLING: Must use this KVM switch with 2 x TK-CP06 TRENDnet DisplayPort, USB, and Audio KVM Cable Kits (Sold Separately) plus 2 x High Quality DisplayPort Cables

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant KVM Switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TK-240DP 2-Port Dual Monitor DisplayPort KVM Switch is backed and supported with 2 years of TRENDnet Manufacturer Protection.

• USB 2. 0 HUB: The KVM switch is designed with two additional USB ports to connect storage drives and printers between computers.

• USB MOUSE and KEYBOARD: True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs with the KVM switch.

• DEVICE INTERFACE: Keyboard: USB Type A, Mouse: USB Type A, Monitors: 2 x DisplayPort 1.2, 2-port USB 2. 0 Hub, Speaker jack: 3. 5mm, Microphone jack: 3. 5mm

• 4K UHD RESOLUTION: This 2-port KVM switch enables you to experience up to 4K UHD resolutions 3840 x 2160 @ 60Hz and up to 2560 x 1440 @144 Hz

• AUDIO SUPPORT: The dual monitor KVM switch provides full audio support with 3. 5mm Microphone and speaker jacks that maximize work station productivity

• HOT KEYS: Hot Key command shortcuts

More from the Manufacturer

Overview

TRENDnet's 2-Port Dual Monitor DisplayPort KVM Switch, model TK-240DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-240DP is designed for dual monitor systems with USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.

2-Port Dual Monitor DisplayPort KVM Switch

Dual Monitor DisplayPort™ 1.2 KVM

3.5mm speaker and microphone connections

Designed for use with Dual DisplayPort systems

Supports 4K UHD resolutions up to 3840 x 2160 @ 60Hz

Up to 2560 x 1440 @ 144Hz

2-Port USB 2.0 hub for storage devices and printers

Required cabling (TK-CP06) sold separately

No CD installation required

NDAA / TAA compliant (U.S. and Canada only)

DisplayPort Monitor

Designed for connection of two DisplayPort monitors

4K UHD resolution

Supports resolution up to 4K UHD (3840 x 2160)

Up to 1920 x 1080 @ 144Hz

Up to 1920 x 1200 @ 144Hz

Up to 1920 x 1440 @ 144Hz

Up to 2560 x 1440 @ 144Hz

Up to 3440 x 1440 @ 60Hz

Up to 3840 x 2160 @ 60Hz

USB 2.0 hub

Two additional USB ports for connecting storage drives and printers

4K UHD

Supports resolution up to 4K UHD (3840 x 2160)

Up to 1920 x 1080 @ 144Hz

Up to 1920 x 1200 @ 144Hz

Up to 1920 x 1440 @ 144Hz

Up to 2560 x 1440 @ 144Hz

Up to 3440 x 1440 @ 60Hz

Up to 3840 x 2160 @ 60Hz

Audio support

Full audio support maximizes workplace productivity

USB mouse & keyboard

True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

DisplayPort Monitor

Designed for connection of two DisplayPort monitors

Computer

Control up to 2 computers

Casing

Sturdy metal housing

USB 2.0 hub

Two additional USB ports for connecting storage drives and printers

Keyboard Shortcuts

Keyboard shortcut for commands

2-Port Dual Monitor DisplayPort KVM Switch, TK-240DP | TRENDnet

TRENDnet's 2-Port Dual Monitor DisplayPort KVM Switch allows you to control two computers with one set of console controls. The TK-240DP is designed for dual monitor systems with USB mouse and keyboard connections; it also includes a bonus two-port USB hub. Experience up to 4K UHD resolutions with TRENDnet’s TK-240DP.

SPECIFICATIONS

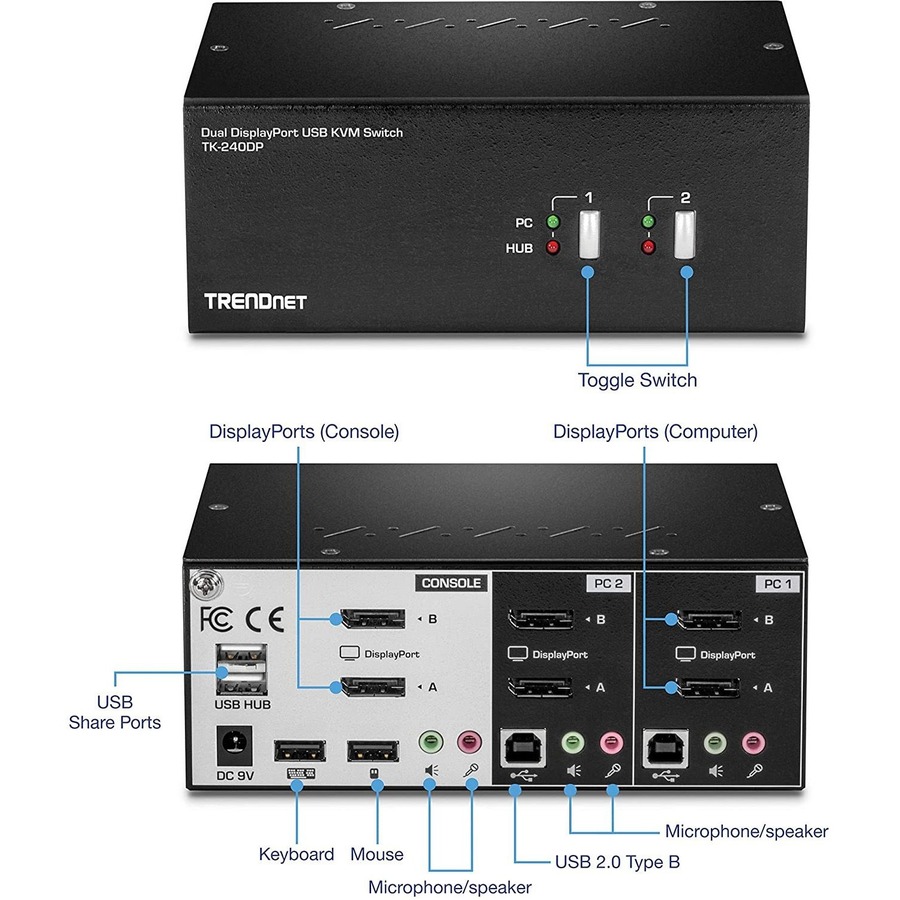

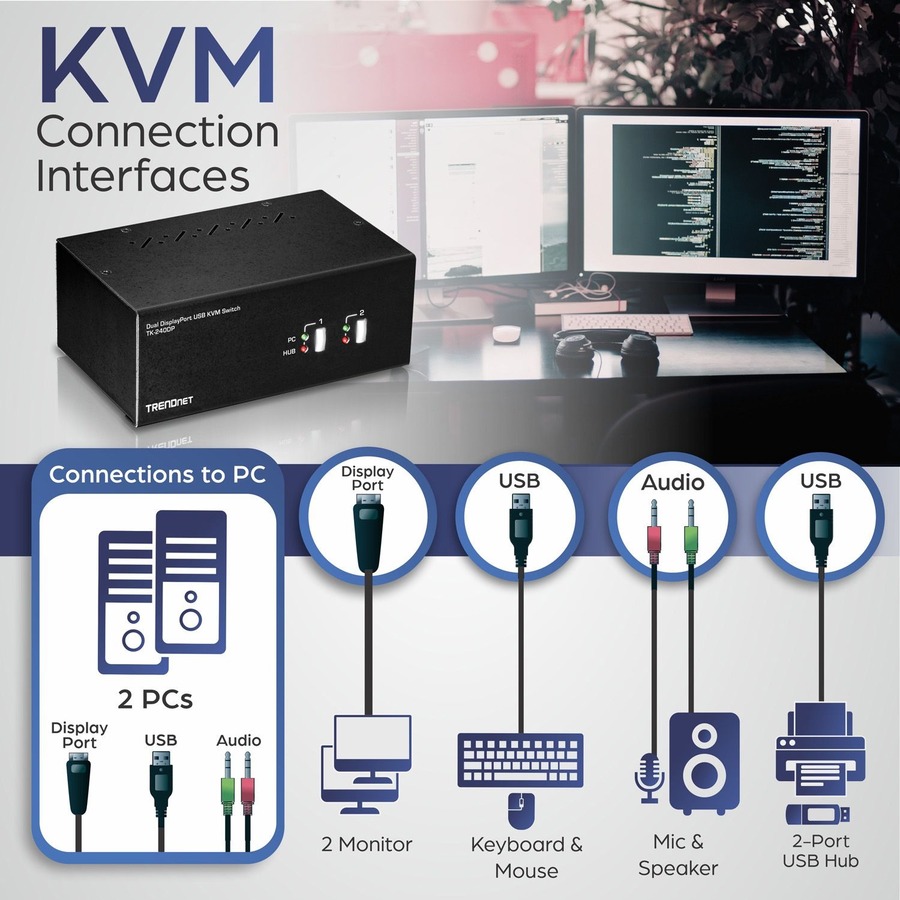

Console Port Connectors

Keyboard: USB Type A

Mouse: USB Type A

Monitors: 2 x DisplayPort 1.2

2-port USB 2.0 Hub

Speaker jack: 3.5mm

Microphone jack: 3.5mm

KVM Port Interface (up to 2)

Keyboard/Mouse: USB Type B

Monitors: 2 x DisplayPort 1.2

Speaker jack: 3.5mm

Microphone jack: 3.5mm

Computer Interface (up to 2)

Keyboard/Mouse: USB Type A

Monitors: 2 x DisplayPort 1.2

Speaker jack: 3.5mm

Microphone jack: 3.5mm

Monitor Resolution

Up to 1920 x 1080 @ 144Hz

Up to 1920 x 1200 @ 144Hz

Up to 1920 x 1440 @ 144Hz

Up to 2560 x 1440 @ 144Hz

Up to 3440 x 1440 @ 60Hz

Up to 3840 x 2160 @ 60Hz

Switching Control

Front panel push buttons

Keyboard hot key commands

Operating Temperature

0° – 40° C (32° – 104° F)

Operating Humidity

Max. 90% non-condensing

Power

Input: 100 – 240V AC, 50/60Hz, 0.8A

Output: 9V DC, 2A external power adapter

Max. consumption: 0.7W

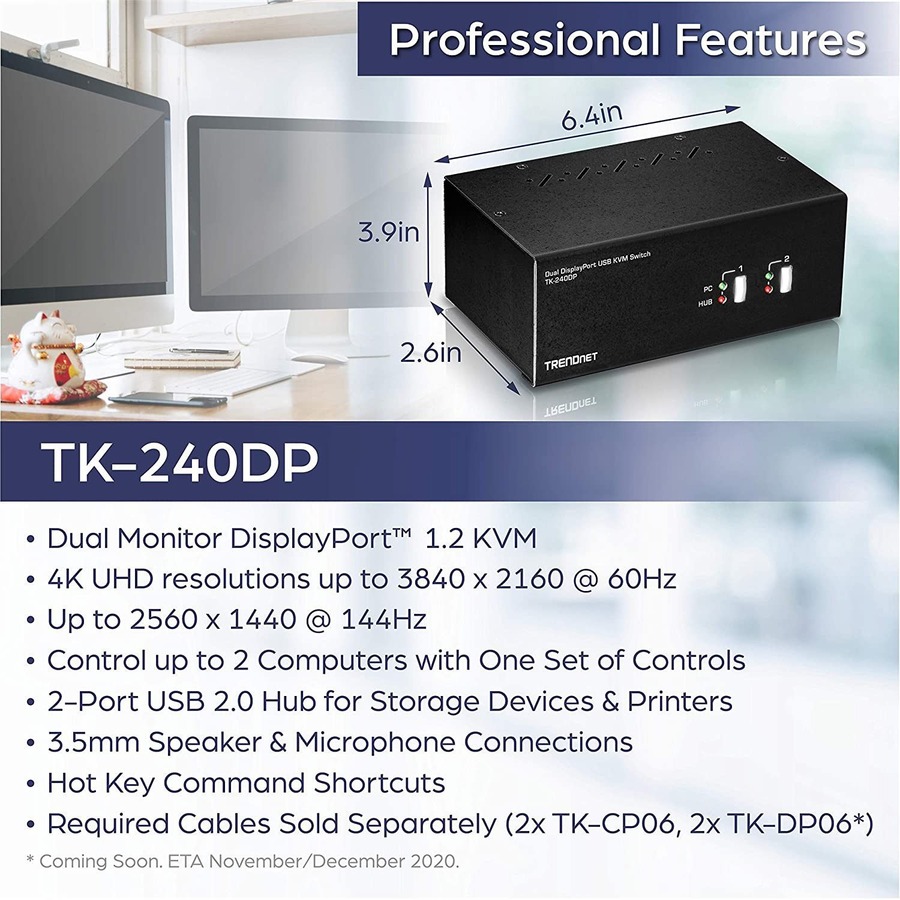

Dimensions

163 x 100 x 66mm (6.4 x 3.9 x 2.6 in.)

Weight

750g (1.65 lbs.)

Certifications

CE

FCC

Warranty

2 year

PACKAGE CONTENTS

TK-240DP

Quick Installation Guide

Power adapter (9V DC, 2A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
