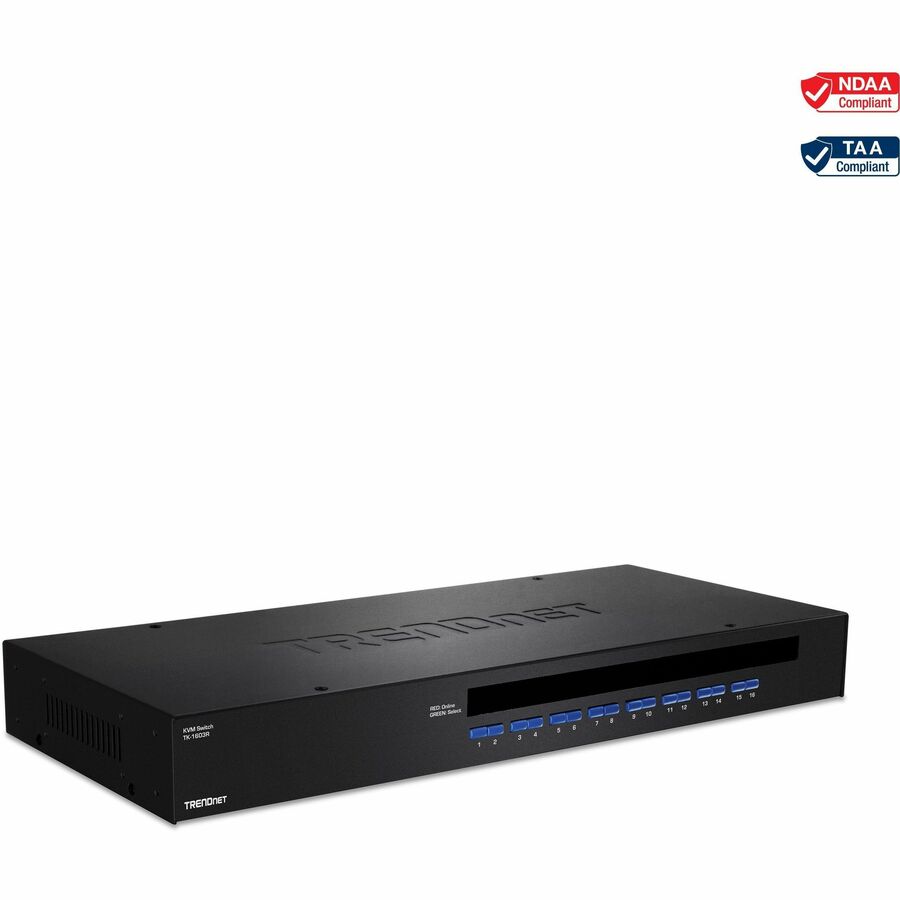

TRENDnet 16-Port Rack Mount USB KVM Switch, VGA and USB Connection, Supports USB and PS/2, Auto-Scan, Device Monitoring, Audible Feedback, Plug and Play, Hot Pluggable, Rack Mountable, Black, TK-1603R

The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.

• PC & CONSOLE PORT INTERFACE: PC: 16 x VGA HDB 15-pin (female); Console: 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Mouse; 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Keyboard; 1 x VGA HDB 15-pin (female)

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TK-1603R 16-Port Rackmount KVM Switch is backed and supported with 2 years of TRENDnet Manufacturer Protection.

• NDAA COMPLIANT: With our NDAA compliant KVM Switch, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• MANAGE MULTIPLE PC'S: This 16-Port KVM Switch enables you to control and manage up to 16 computers or servers with just one set made up of a keyboard, monitor and mouse.

• SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS

• VIDEO QUALITY: The 16 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution

• CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)

• USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.

• FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management

• RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19? (1U) rack mount design

More from the Manufacturer

The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.

TRENDnet's 16-Port Rackmount VGA KVM Switch, model TK-1603R, lets you manage multiple computers with just one set of keyboard, monitor, and mouse. This rackmount KVM switch supports USB and PS/2 interface on the console side, and USB only on the PC side. Popular hardware platforms such as Windows, Linux, and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port Rackmount KVM Switch is the perfect choice for managing multiple PC's.

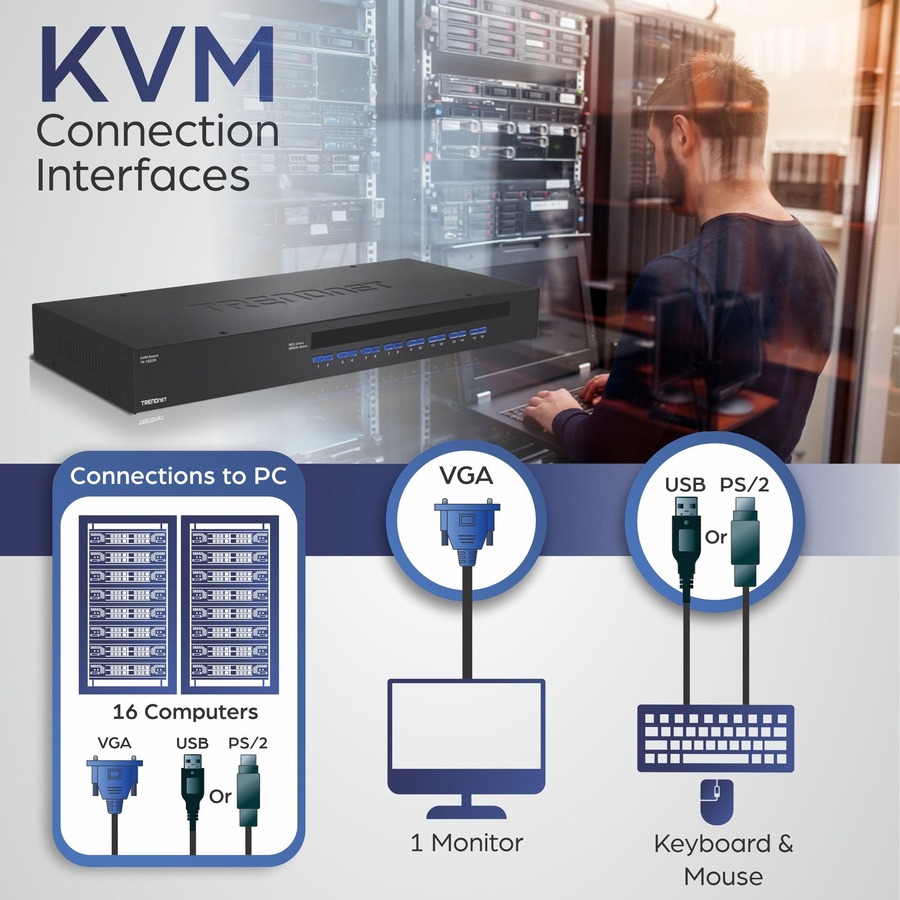

KVM Interface

USB and PS/2 interface on the console side and USB only on the PC side mouse and keyboard connections.

Video Resolution

Supports up to 2048 x 1536 VGA resolution.

16-Port KVM

Manage up to 16 computers with this rackmount KVM switch.

16-Port KVM

Manage up to 16 computers with this rackmount KVM switch

VGA Monitor

Designed to connect to a monitor's VGA port

Video Resolution

Supports up to 2048 x 1536 VGA resolution

USB and PS/2 Console Support

Supports both USB and PS/2 console connections

USB Client Interface Support

USB PC-side interface supports USB only for mouse and keyboard connections to each computer (cables sold separately, TK-CU06/TK-CU10/TK-CU15)

Rackmount Design

Sturdy metal 19” rackmount design

Hot Keys

Hot-key commands available

SPECIFICATIONS

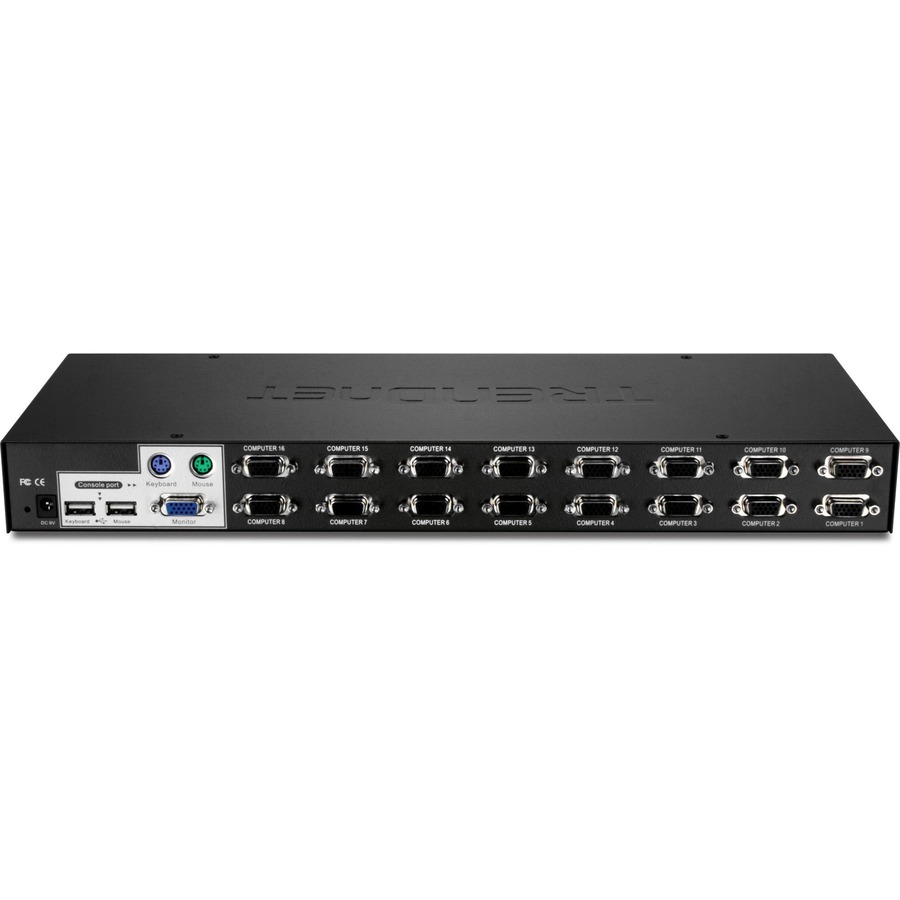

Console Port Connectors

Keyboard: USB Type A, PS/2

Mouse: USB Type A, PS/2

Monitors: VGA

Computer Interface (up to 16)

Keyboard/Mouse: USB Type A

Monitors: VGA

Monitor Resolution

2048 x 1536

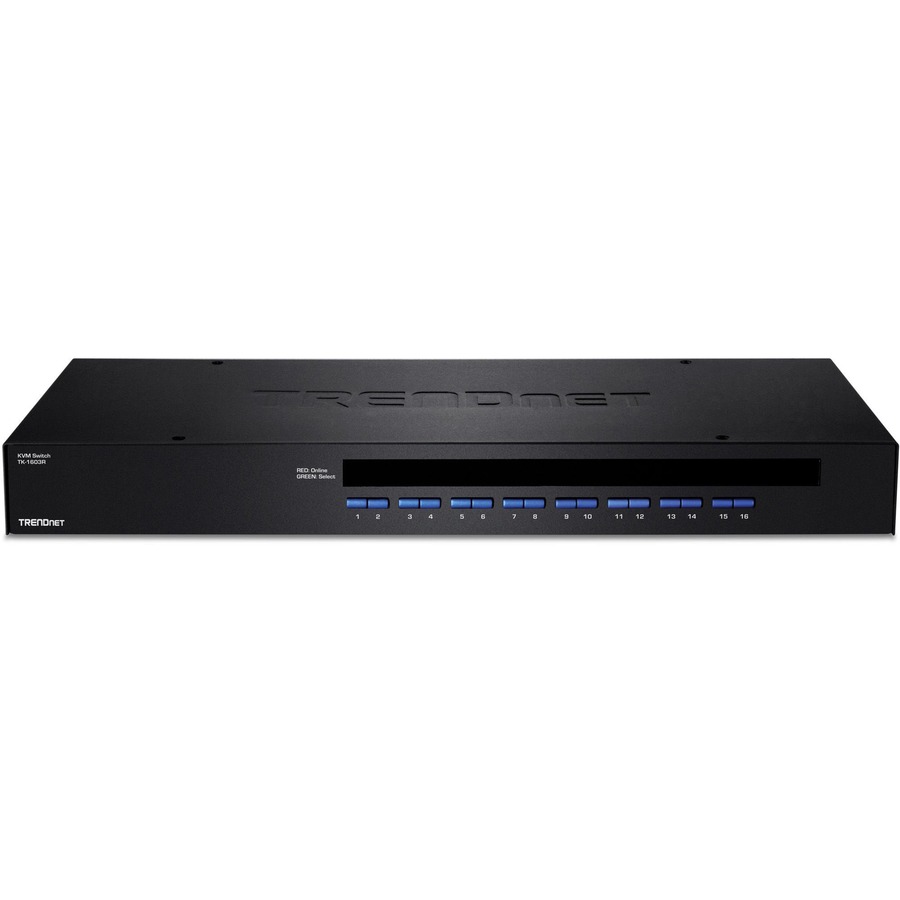

Switching Control

Front panel push buttons

Keyboard hot key commands

Operating Temperature

0° – 40° C (32° – 104° F)

Operating Humidity

Max. 80 % non-condensing

Power

Input: 100 - 240V AC, 50/60Hz, 0.8A

Output: 9V DC, 1A external power adapter

Max. consumption: 0.7W

Dimensions

407 x 165 x 45mm (16 x 6.5 x 1.8 in.)

Weight

2kg (4.5 lbs.)

Certifications

CE

FCC

Warranty

2 year

PACKAGE CONTENTS

TK-1603R

Quick Installation Guide

Power adapter (9V DC, 1A)

Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

16-Port Rackmount KVM Switch

Controls up to 16 computers or servers

Console port supports both USB and PS/2 for keyboard and mouse interfaces

USB only for PC side mouse and keyboard connections

Supports Windows®, Linux®, Mac OS® and more

Supports up to 2048 x 1536 VGA resolution

Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds

Keyboard status restored when switching between computers

LEDs display for easy status monitoring

Audio notification for port switching confirmation (enable/disable)

Keyboard hot-key command or push button switching

Plug & Play and Hot-Pluggable

Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)

Standard 19” (1U) rackmount design

2 year warranty

NDAA / TAA compliant (U.S. and Canada only)
