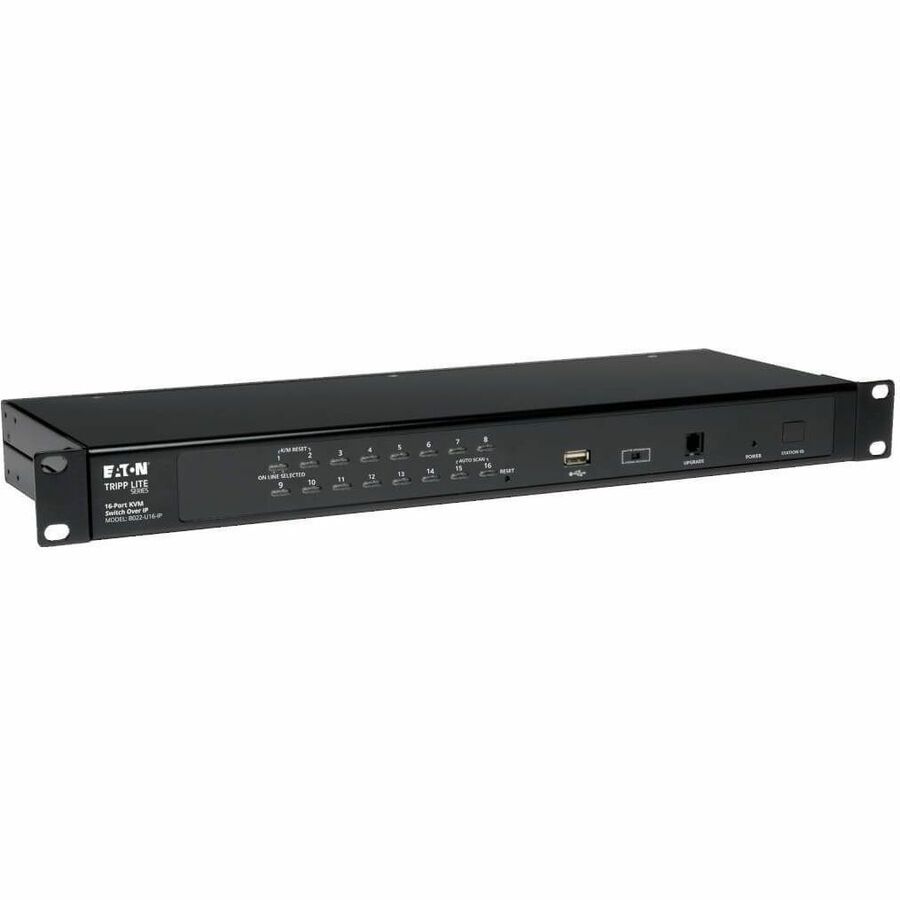

Tripp Lite by Eaton 16-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U

The B022-U16-IP NetDirector® 16-Port 1U Rack-Mount IP KVM Switch is the smart solution for controlling up to 16 computers or servers from one monitor, keyboard and mouse, all from the next room, next door, or the next continent. The B022-U16-IP takes up just 1U of rack space and works with all major operating systems. Built-in IP access allows you to control computers via LAN, WAN or the Internet. Just log on to a Web browser using the Windows- or Java-based browser client, and navigate the user-friendly interface in English, Spanish, French, German or Japanese. You can also access the KVM Switch without a browser if you prefer. The advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 @ 60 Hz with 24-bit color depth at the remote console. Panel Array Mode allows you to remotely monitor multiple ports at the same time. Compatible with both USB and PS/2 connections using the included cable kits, the KVM Switch allows you to select a connected computer using on-console pushbuttons or keyboard hotkey commands. It also supports both IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol. Advanced encryption technologies, such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES, keep your important data secure. The KVM Switch supports RADIUS and LDAP/S remote authentication. Three levels of security allow you to delegate proper access to approved personnel, and you can create up to 64 separate accounts. More from the Manufacturer

Access Servers from Around the World, Simplifies IT Tasks & Lasting Reliability

Built-in IP access allows you to control computers via LAN, WAN or the Internet. Just log on to a Web browser using the Windows or Java-based browser client and navigate the user-friendly interface in English, Spanish, French, German or Japanese. You can also access the KVM Switch without a browser. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and other functions necessary for managing a high-density data center.

The advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 with 24-bit color depth at the remote console. This KVM Switch allows you to select a connected computer using on-console pushbuttons, keyboard hotkey commands or the OSD. The auto-scan mode automatically sequences through all active ports accessible to the user, and panel array mode lets you monitor multiple ports at the same time. To reduce the amount of data traveling over the network, you can view remote sessions in black and white. This switch supports both IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol.

The B022-U16-IP has a rugged steel housing and premium connectors that are built to last. The firmware is upgradable using the included cable to ensure software remains up to date.

Broad Compatibility, Built-in Security & 3-Year Warranty

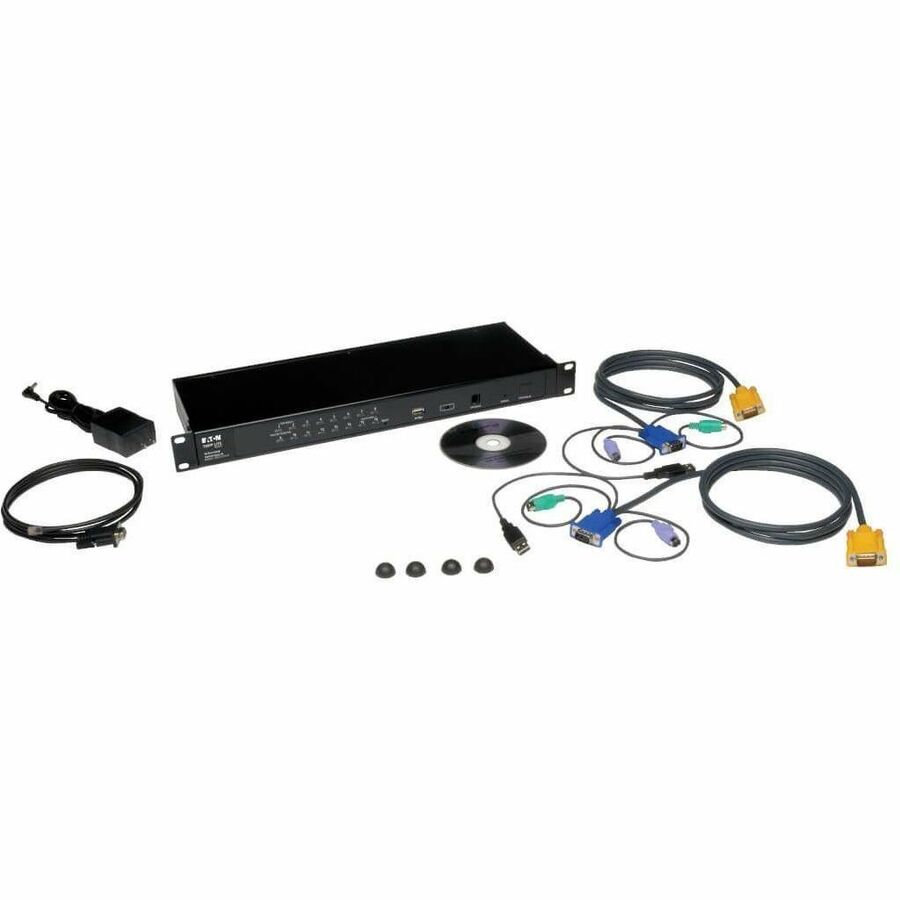

The B022-U16-IP supports both PS/2 and USB connections using a P778-Series combo cable kit (a combo cable kit is required for each connected computer; two combo kits are included with the switch). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows and Linux operating systems.

The B022-U16-IP supports RADIUS and LDAP/S remote authentication. Advanced encryption technologies such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES keep your important data secure. The B022-U16-IP lets you create up to 64 user accounts with 3 levels of password protection (administrator, user and select) to prevent unauthorized persons from gaining access to connected servers. IP remote access is further protected with security features, including password protection, advanced 128-bit SSL and HTTPS encryption, bandwidth-optimized video and detailed activity logging.

For peace of mind, the B022-U16-IP comes with a three-year product warranty. This switch is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
