DIN Rail - 52 V DC @ 4.61 A Output - 240 W - 1 Fan(s) - 94% Efficiency
$182.17
Special order — we expect to receive stock the week of Sep 7–13 and will process your delivery right after.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

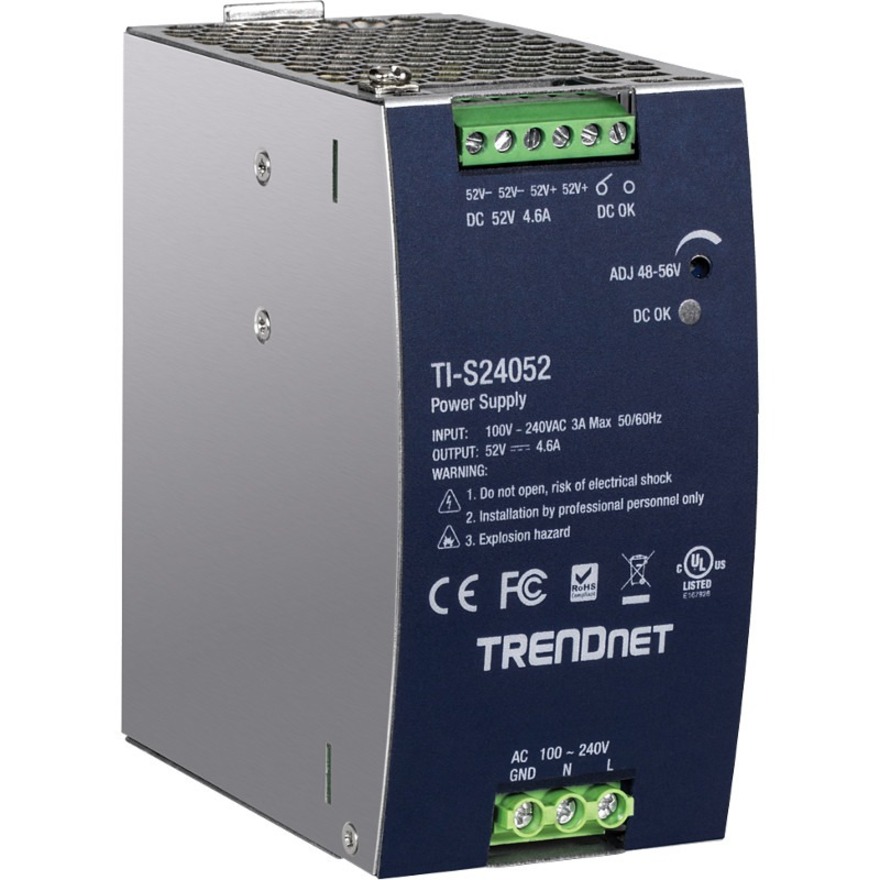

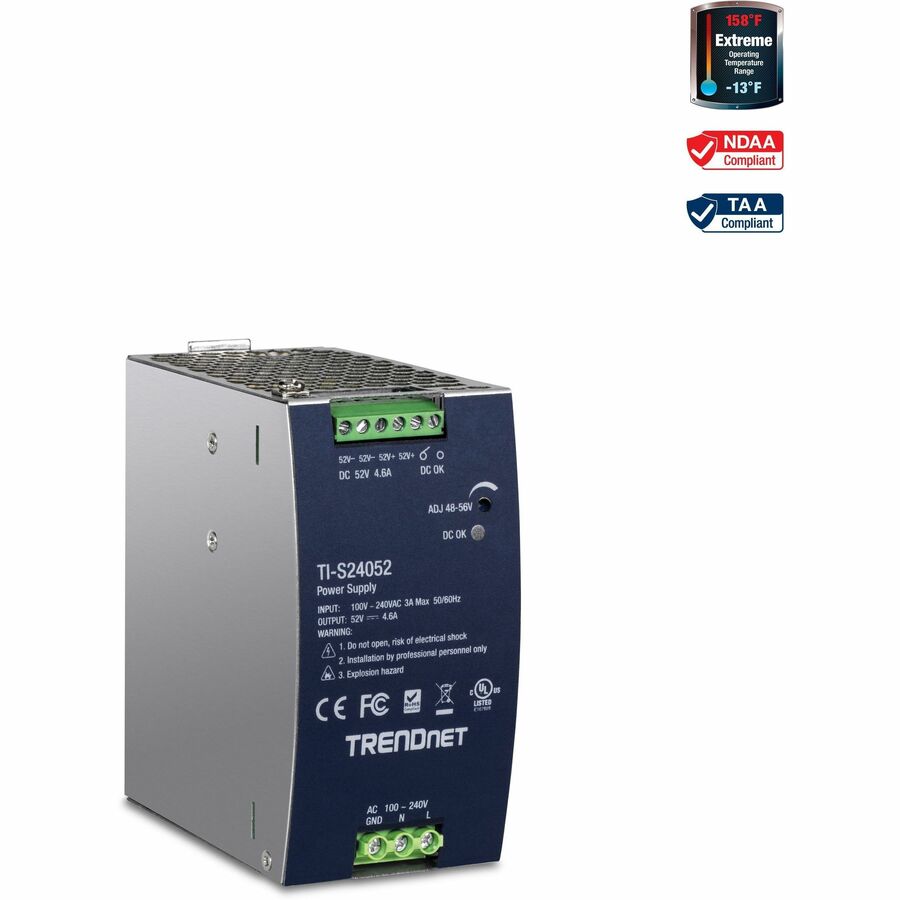

TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S24052, supplies up to 240W (52V DC, 4.61A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This industrial power supply supports active PFC to help eliminate unusable reactive power, and comes with an integrated DIN-Rail mount. It also supports protections for overload, short circuit, over voltage, over current, and over temperature. The industrial power supply is designed for industrial environments with an operating temperate range of -25° - 70° C (-13° - 158° F).
• DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 3.15A 127 - 370V DC; Output: 240W, 48 - 56V, 0 - 4.6A; DIN-rail: TS-35/7.5 or 15
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant DIN-Rail Power Supply, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-S24052 240W, 52V DC, 4.61A AC to DC DIN-Rail Power Supply with PFC Function is backed and supported with 1 year of TRENDnet Manufacturer Protection.
• 240W POWER: The UL508 approved industrial power supply provides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points.
• INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
• PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
• PASSIVE COOLING: The industrial power supply cools itself by natural air convection

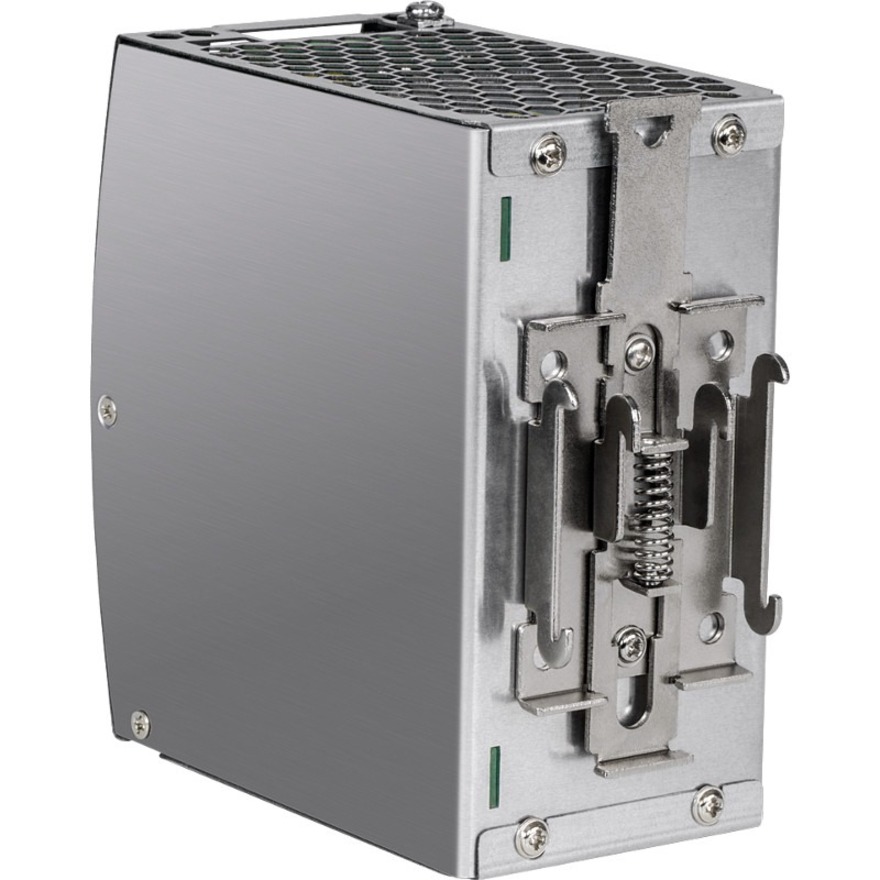

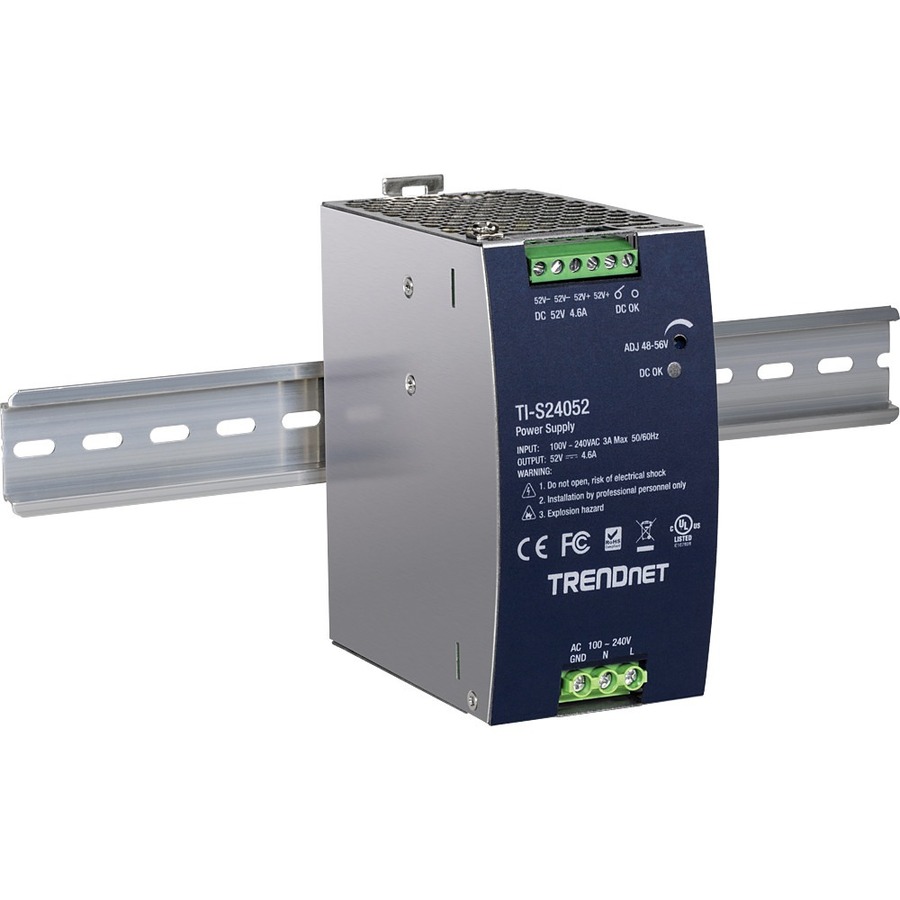

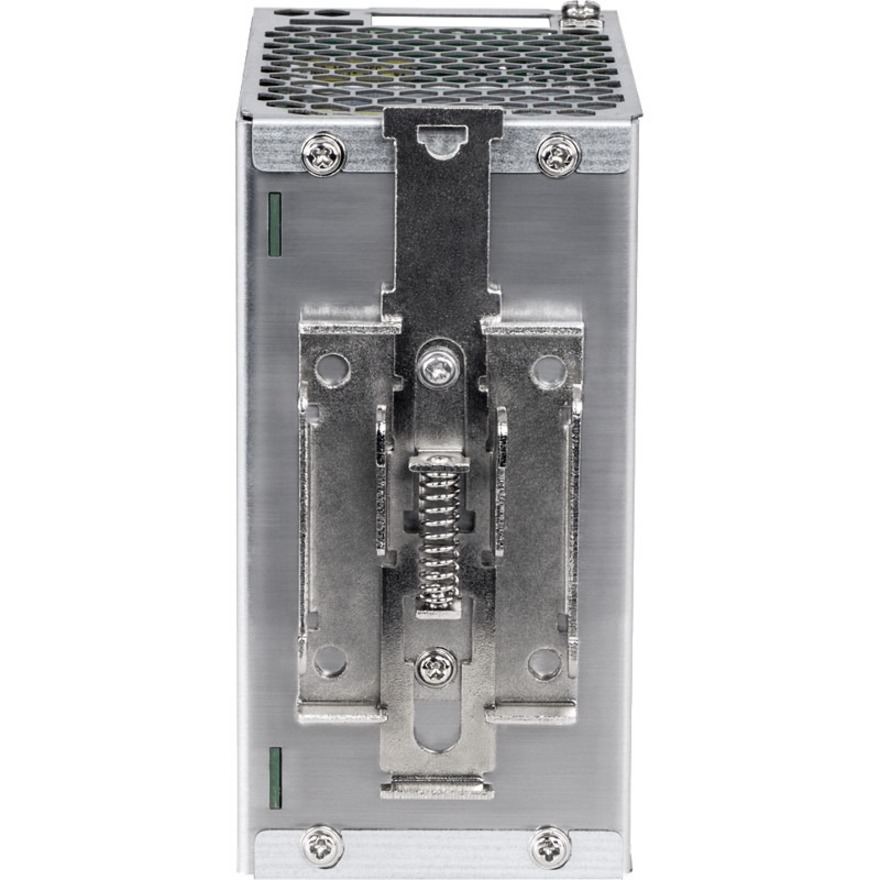

• DIN-RAIL MOUNT: Metal enclosure with integrated DIN-Rail mount
• 150% Peak Load Capability; UL 508 approved
More from the Manufacturer
TRENDnet’s AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S24052, supplies up to 240W (52V DC, 4.61A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This industrial power supply supports active PFC to help eliminate unusable reactive power and comes with an integrated DIN-Rail mount. It also supports protections for overload, short circuit, over voltage, over current, and over temperature. The industrial power supply is designed for industrial environments with an operating temperate range of -25° – 70° C (-13° – 158° F).
• Industrial power supply with integrated DIN-Rail mount
• Provides up to 240W of power (52V DC, 4.61A)
• Supported output voltage 48 – 56V DC • High efficiency 94% and low power dissipation
• 150% peak load capability • Built-in active Power Factor Controller (PF > 0.98)
• Cooling by natural air convection
• Protections: Overload, short circuit, over power, over voltage, over current, over temperature
• UL 508 approved
• Built-in DC OK relay contact
• -25° – 70° C (-13° – 158° F) wide operating temperature range
Industrial Applications
Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
240W Power
Provides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points.
Wide Operating Temperature
Designed for industrial environments with an operating temperature range of -25° – 70° C (-13° – 158° F).
Active PFC
Built-in active Power Factor Controller (PFC, PF > 0.98) helps eliminate unusable reactive power
Protections
Built-in active Power Factor Controller (PFC, PF > 0.98) helps eliminate unusable reactive power
Passive Cooling
The industrial power supply is cooled by natural air convection
Electro Magnetic Emission/Immunity
EN 55032
BS EN 55032
EN IEC 61000-3-2
BS EN IEC 61000-3-2
EN 61000-3-3
BS EN 61000-3-3
EN 55035
BS EN 55035
AS/NZS CISPR 32
FCC CFR Title 47, Part 15, Subpart B
ICES-003 Issue 7
Safety Certifications
EN 62368-1
BS EN 62368-1
CB IEC 62368-1
UL 62368-1, 2014-12-1, CAN/CSA C22.2 No.62368-1-14, 2014-12
SPECIFICATIONS
Interface
Input: 90 – 264V AC, 47 – 63Hz, 3.15A 127 – 370V DC
Output: 240W, 48 – 56V, 0 – 4.6A
DIN-rail: TS-35/7.5 or 15
Housing
DIN-rail mount
Power LED indicator
Special Features
DC OK relay contact
150% peak load capacity
Protection functions
Short circuit
Over power
Over voltage
Over current
Over temperature
Protection type: shutdown and self-recovery
Operating Temperature
-25° – 70° C (-13° – 158° F)
Operating Humidity
Max. 90% non-condensing
MTBF
200,000 hours @ 25° C
Dimensions
63 × 124 × 114mm (2.5 x 4.9 x 4.5 in.)
Weight
844g (1.86 lb.)
Certifications
CE
FCC
UL 530470
CB IEC 62368
Warranty
1 year
PACKAGE CONTENTS
TI-S24052
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Limited Warranty: 1 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-S24052 |
| Brand Name | TRENDnet |
| Product Name | 240W 52V DC 4.61A AC to DC DIN-Rail Power Supply with PFC Function |
| Product Type | Proprietary Power Supply |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 2.5" |
| Width | 4.9" |
| Depth | 4.5" |
| Weight (Approximate) | 1.86 lb |
| Power Description | |
| Output Voltage | 52 V DC |
| Output Voltage Detail | 52 V DC @ 4.61 A |
| Output Current | 4.61 A |
| Output Power | 240 W |
| Technical Information | |
| Efficiency | 94% |
| Number of Fans | 1 |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
