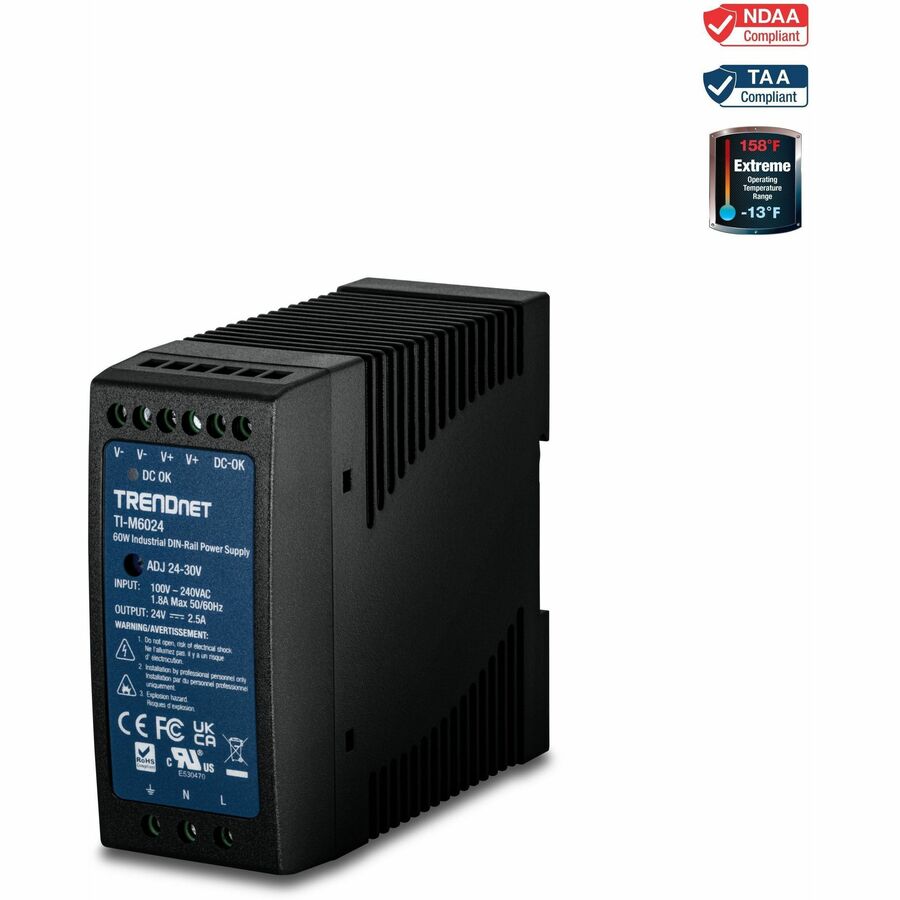

TRENDnet TI-M6024, 60W, 24V DC, 2.5A AC to DC DIN-Rail Power Supply

TRENDnet's AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrialequipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Railmount, and short circuit, over power, and overload current protection.

• DEVICE INTERFACE: Input: 100 - 240V AC, 47 - 63Hz, 1.8A 120 - 370V DC; Output: 60W, 24 - 30V, 0 - 2.5A; DIN-Rail:TS-35/7.5 or 15

• 60W POWER: The power supply provides up to 60W of power (24V DC, 2.5 A)

• OUTPUT VOLTAGE: 24 - 30V DC

• HOUSING: IP30 Rated DIN-Rail Mount

• OPERATING TEMPERATURE: The IP30 Rated housing provides an extreme -20 to 70 °C (-4 to 158 °F) operating temperature range

• PEAK LOAD CAPABILITY: 150% peak load capability

• COOLING METHOD: Natural air convection is used to cool the 60W power supply

• PROTECTION FUNCTIONS: Short circuit/overload/over voltage/over current protection with a self-recovery protection type.

• UL 62368 Approved

• ADDITIONAL FEATURES: 100% full load burn-in test; Built-in DC OK relay contact

More from the Manufacturer

TRENDnet’s AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrial

equipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Rail

mount, and short circuit, over power, and overload current protection

FEATURES

Industrial Applications

Power network devices for

manufacturing, general industrial,

warehousing, surveillance, and

corporate applications.

60W Power

Provides up to 60W (24V DC, 2.5A) for

devices, such as switches, injectors,

and access points.

Wide Operating Temperature

Designed for industrial environments

with an operating temperature range of

25° – 70° C (-13° – 158° F).

60 Watt Power

Provides up to 60 watts (24V, 2.5A)

of power for devices, such as

switches, network cameras, and

access points

Overload Protection

Overload/short circuit/over voltage protection

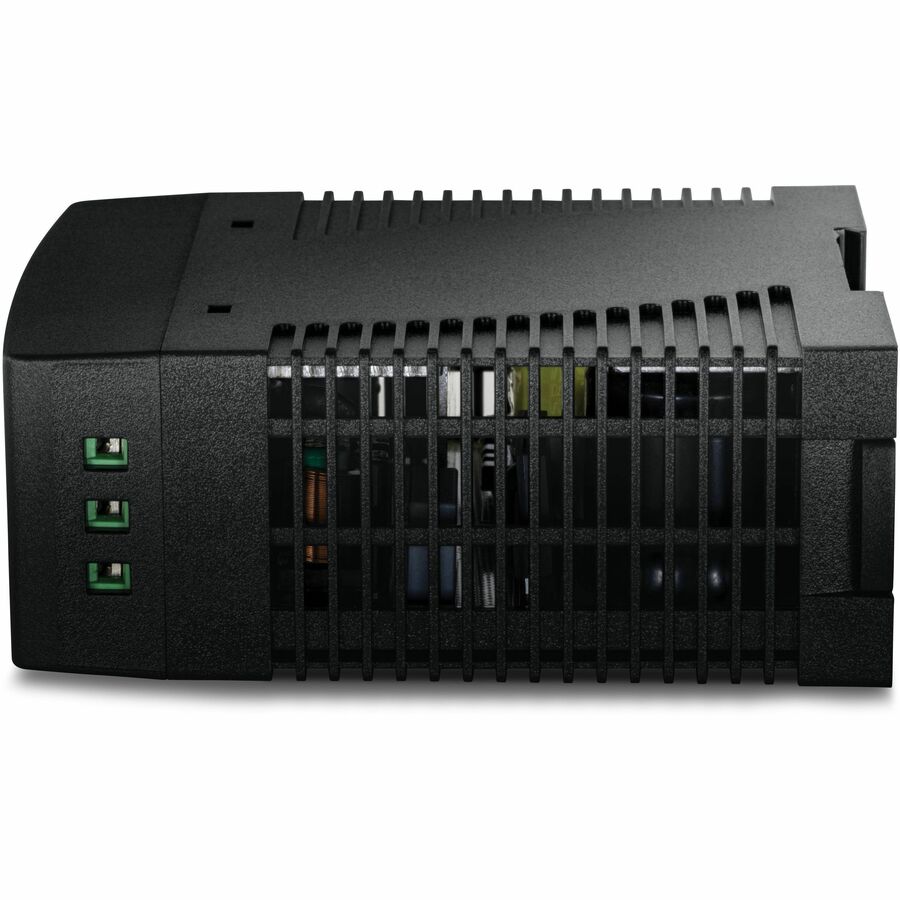

Passive Cooling

Cooling by free air convection

Full Load Test

This power supply undergoes a

100 % full load burn-in test

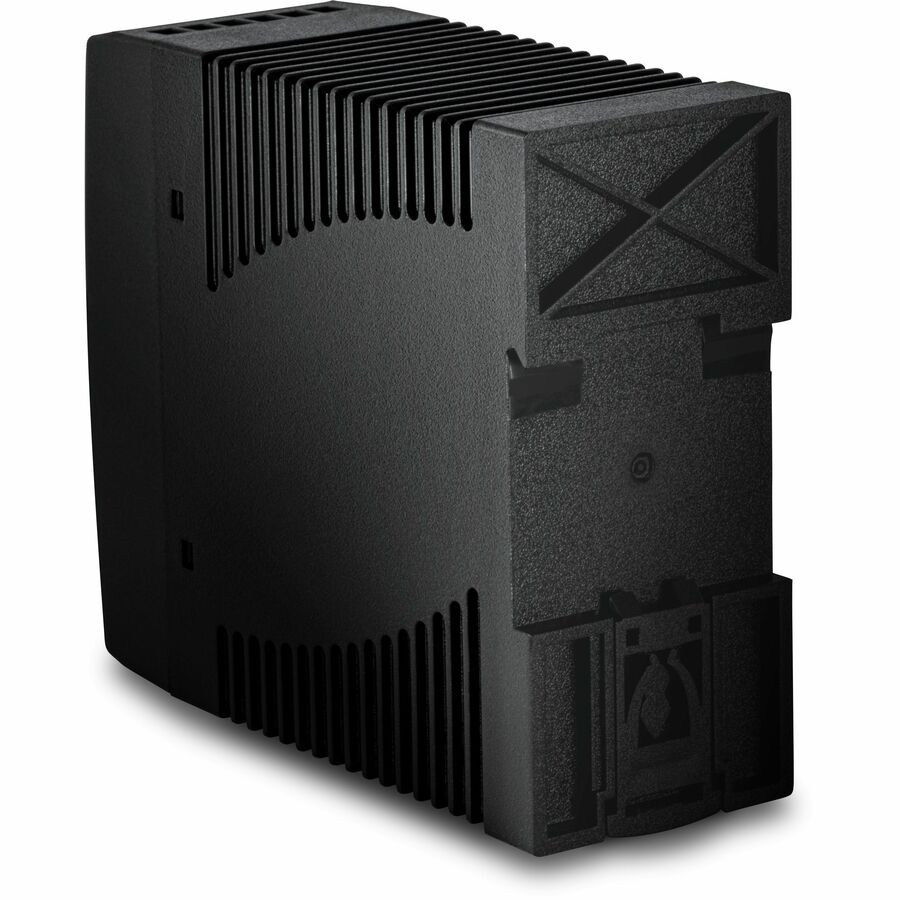

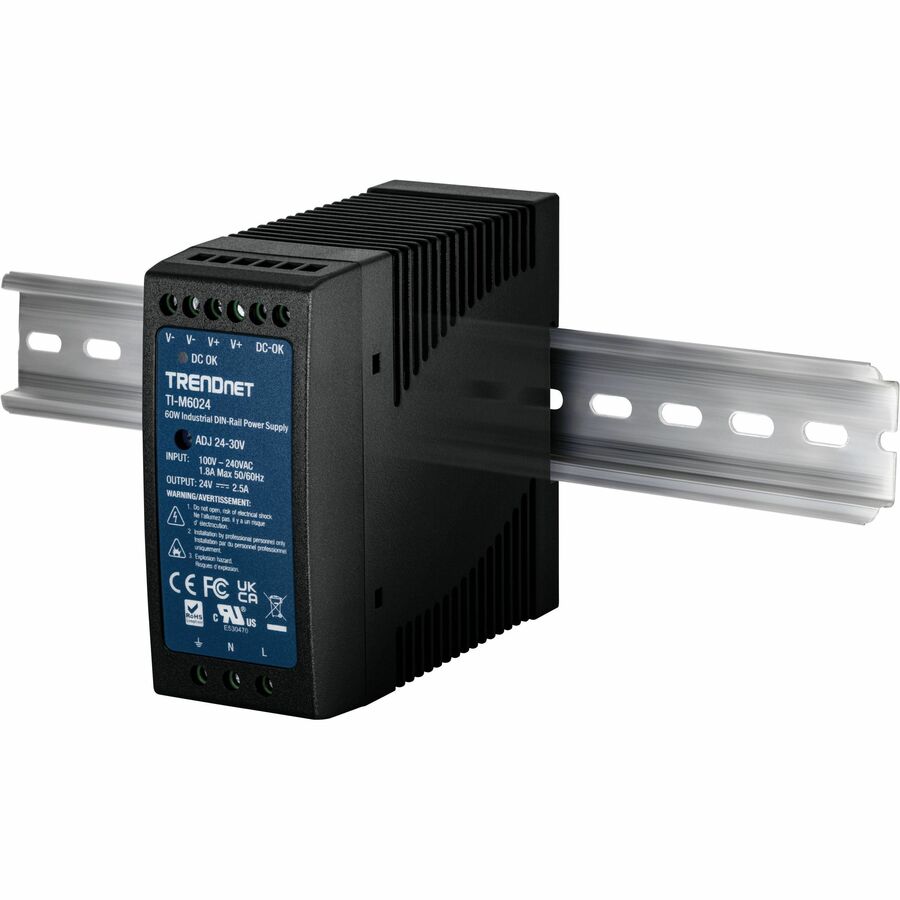

DIN-Rail Mount

Sturdy enclosure with

integrated DIN-ail

mount

Safety Certifications

Certified for UL62368-1 and CB

IEC 62368

Electro Magnetic Emission/ Immunity

Compliance to EN 55032, EN

61000-3-3, and EN 55035

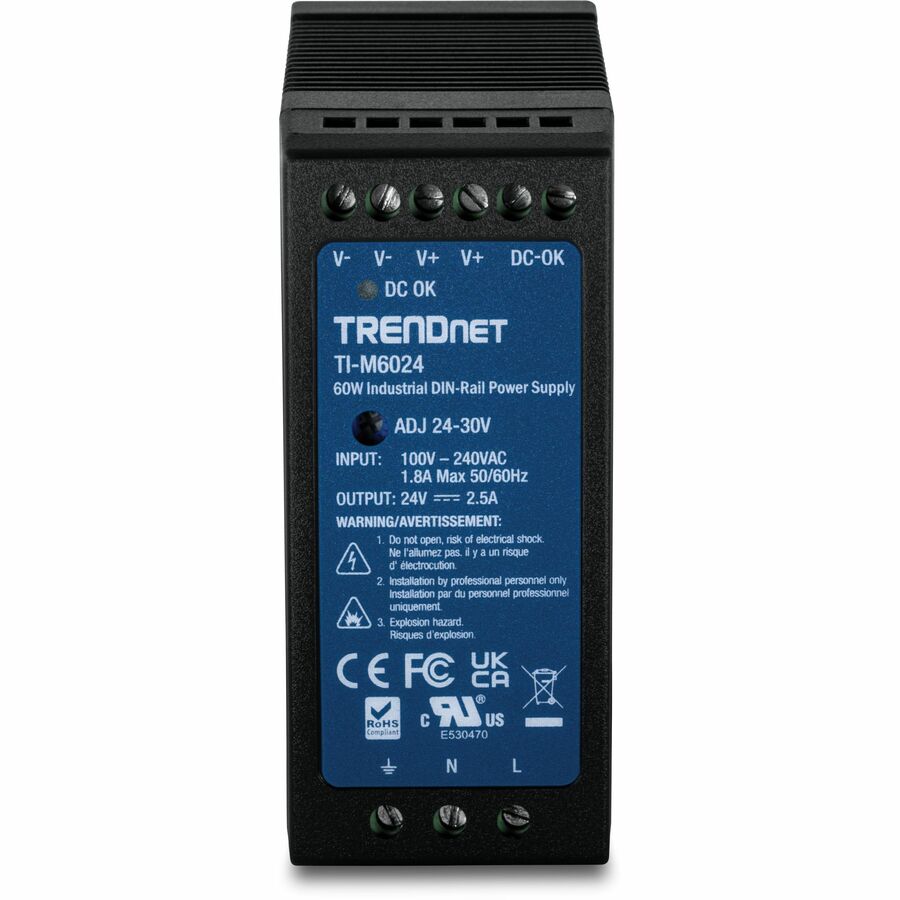

LED Indicator

LED indicator confirms power to

the unit

SPECIFICATIONS

Interface

Input: 100 – 240V AC, 47 – 63Hz, 1.8A 120 – 370V DC

Output: 60W, 24 – 30V, 0 – 2.5A

DIN-Rail: TS-35/7.5 or 15

Housing

DIN-Rail mount

Power LED indicator

Special Features

DC OK relay contact

150% peak load capacity

Protection functions

Short circuit

Over power

Over voltage

Over current

Protection type: self-recovery

Operating Temperature

-25° – 70° C (-13° – 158° F)

Operating Humidity

Max. 95% non-condensing

MTBF

200,000 hours @ 25° C

Dimensions

105 x 91 x 40mm (4.1 x 3.5 x 1.6 in.)

Weight

267g (0.58 lb.)

Certifications

CE

FCC

LVD

UL 62368

CB IEC 62368

Warranty

1 year

PACKAGE CONTENTS

TI-M6024
