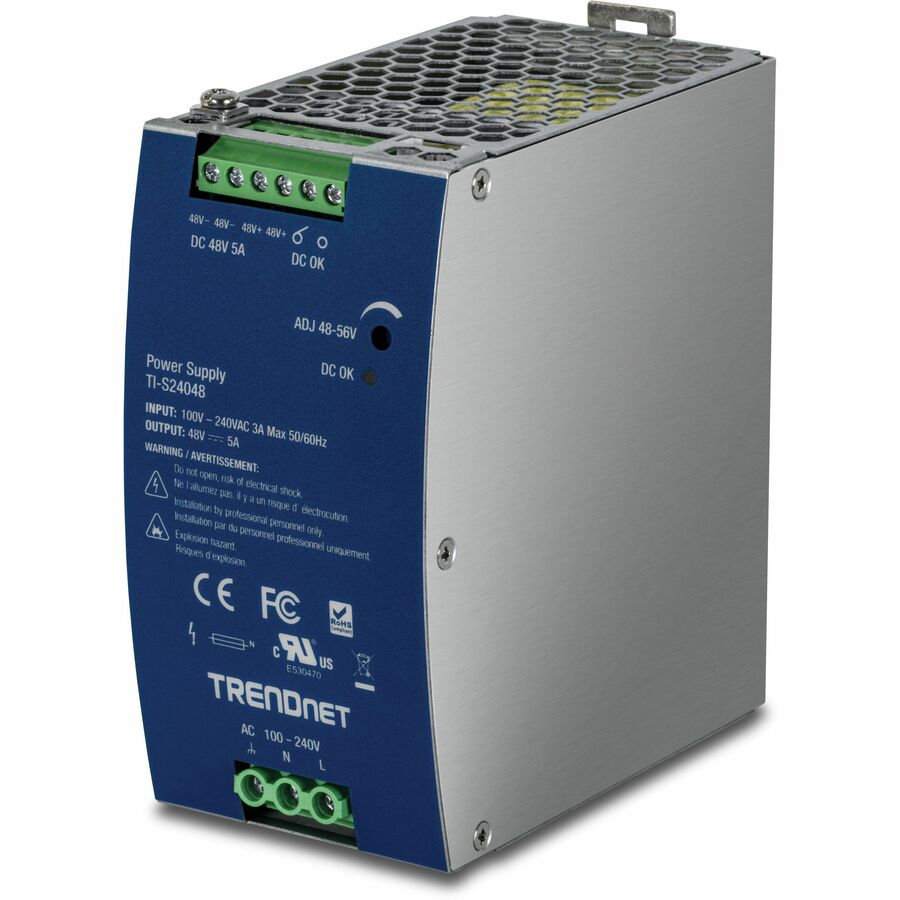

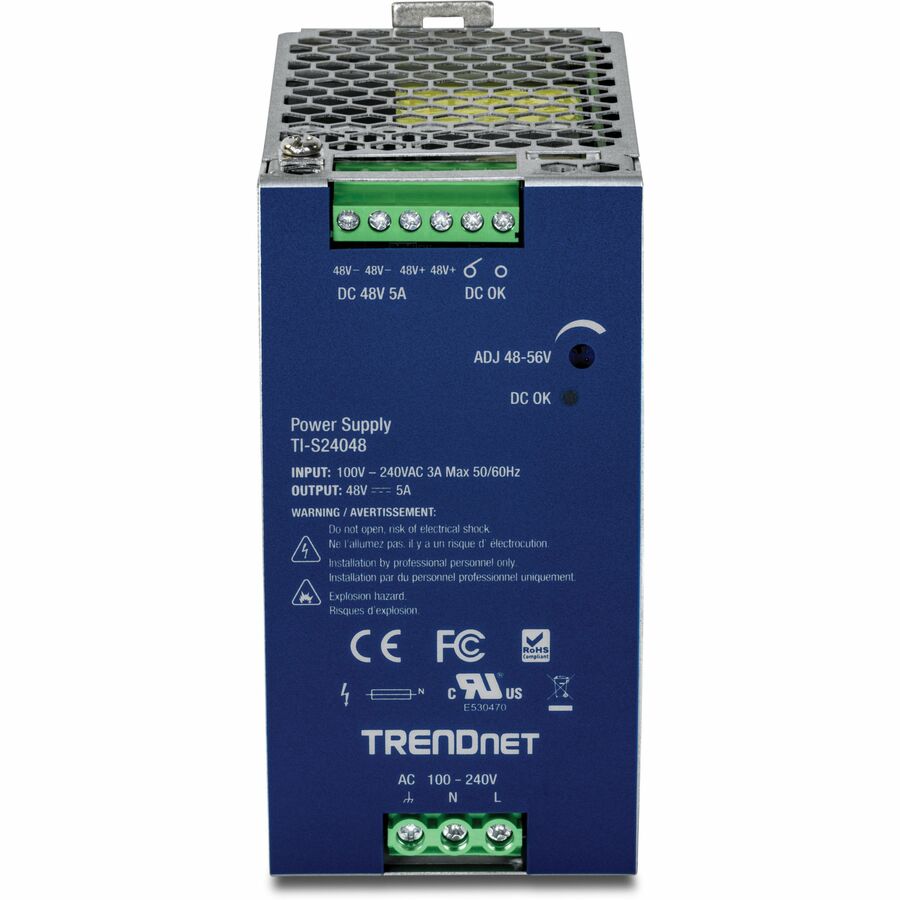

TRENDnet 240W, 48 - 56V DC, 5A AC to DC DIN-Rail Power Supply with PFC Function, TI-S24048, 150% Peak Load Capability, UL 62368 Certified

TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S24048, supplies up to 240W (48V DC, 5A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-Rail mount, and overload current protection.

• Industrial strength power supply with integrated DIN-Rail mount| UL 62368 Certified| 150% Peak Load Capability

• MANUFACTURER PROTECTION: We stand by the quality of our products. The TI-S24048 240W Industrial DIN-Rail Power Supply is backed and supported with 1 year of TRENDnet Manufacturer Protection.

• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.

• 240 WATT POWER: Provides up to 240 Watts (48 V, 5 A) of power for PoE devices such as switches, network cameras, and access points

• INDUSTRIAL HOUSING: Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° -

158° F).

• ACTIVE PFC: The built-in active Power Factor Controller (PFC, PF>0.96) helps eliminate unusable reactive power

• DIN RAIL MOUNT: This power supply has an integrated DIN-Rail mount

• OVERLOAD PROTECTION: Overload/short circuit/over voltage/over temperature protection

• FULL LOAD TEST: This power supply undergoes a 100 % full load burn-in test

• PASSIVE COOLING: Cooling by natural air convection

More from the Manufacturer

TRENDnet’s AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S24048, supplies up to 240W (48V DC, 5A) of

power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This DIN-Rail power supply comes with

active PFC, an integrated DIN-Rail mount, and overload current protection.

240W Power

Provides up to 240W (48V DC, 5A) of power for PoE devices, such as switches, injectors, and access points.

Active PFC

Built-in active Power Factor Controller (PFC, PF > 0.96) helps eliminate unusable reactive power

Protection

Overload, short circuit, over voltage, over current, and over temperature protection

Passive Cooling

Cooling by natural air convection

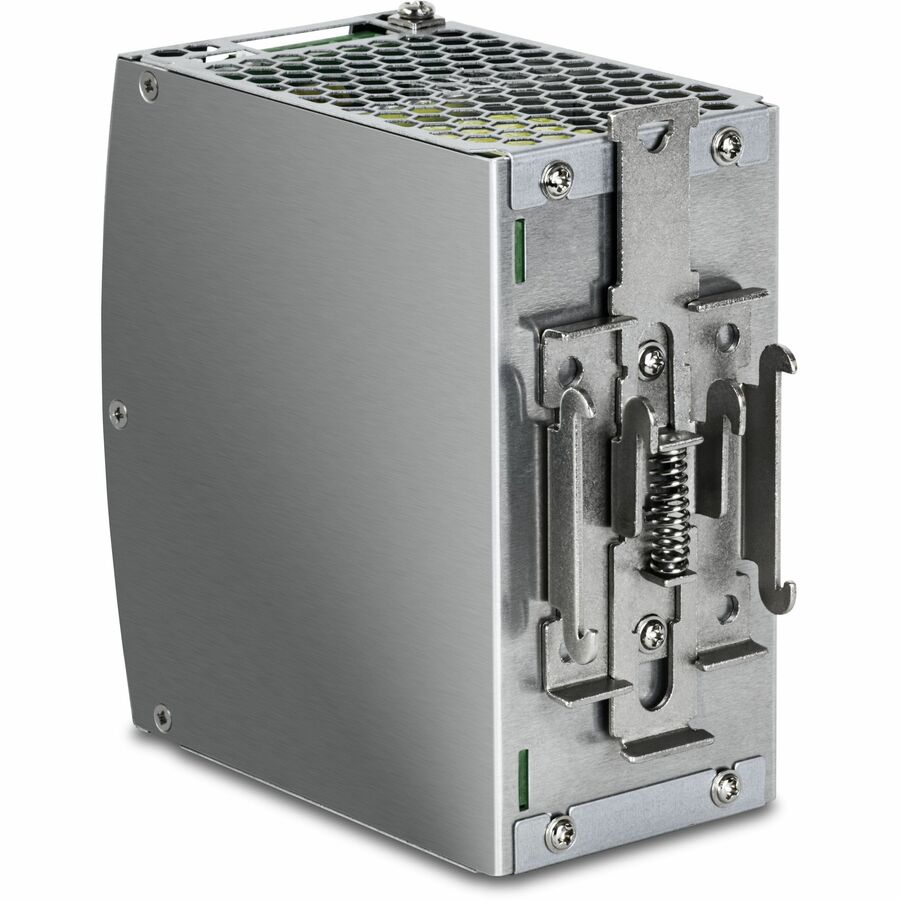

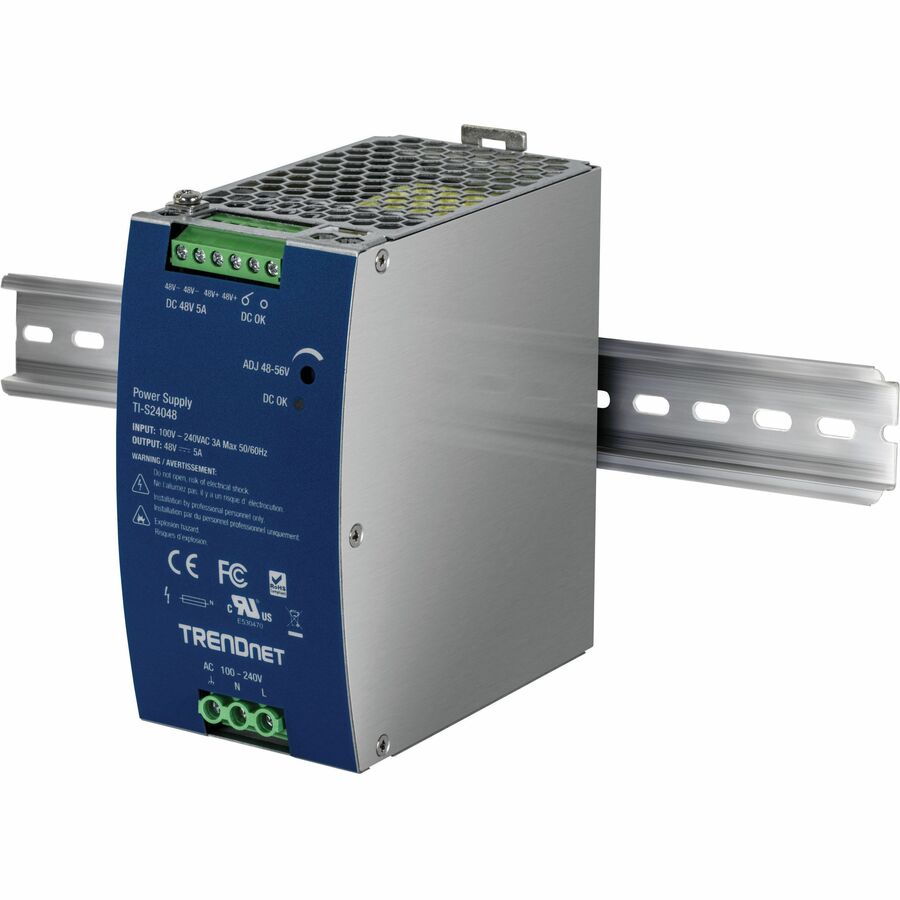

DIN-Rail Mount

Metal enclosure with integrated DIN-Rail mount

Wide Operating Temperature

Designed for industrial environments with a wide operating temperature range of -25° – 70° C (-13° – 158° F)

Safety Certifications

UL 62368-1 certified

Electro Magnetic Emission/Immunity

Certified for CE EMC, FCC, IC and UKCA

LED Indicator

LED indicator confirms power to the unit

SPECIFICATIONS

Interface

AC Input: 90 – 264V AC, 47 – 63Hz, 3A

DC Input: 127 – 370V DC

Output: 240W, 48 – 56V, 0 – 5A

DIN-rail: TS-35/7.5 or 15

Housing

DIN-rail mount

Power LED indicator

Special Features

DC OK relay contact

150% peak load capacity

Protection functions

Short circuit

Over power

Over voltage

Over current

Over temperature

Protection type: self-recovery when fault condition removed

Operating Temperature

-25° – 70° C (-13° – 158° F)

Operating Humidity

Max. 95% non-condensing

MTBF

522,900 hours @ 25° C

Dimensions

63 x 125 x 114mm (2.5 x 4.9 x 4.5 in.)

Weight

830g (1.83 lb.)

Certifications

CE

FCC

LVD

UL 62368-1

CB IEC 62368-1:2014

Warranty

1-year

PACKAGE CONTENTS

TI-S24048

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
