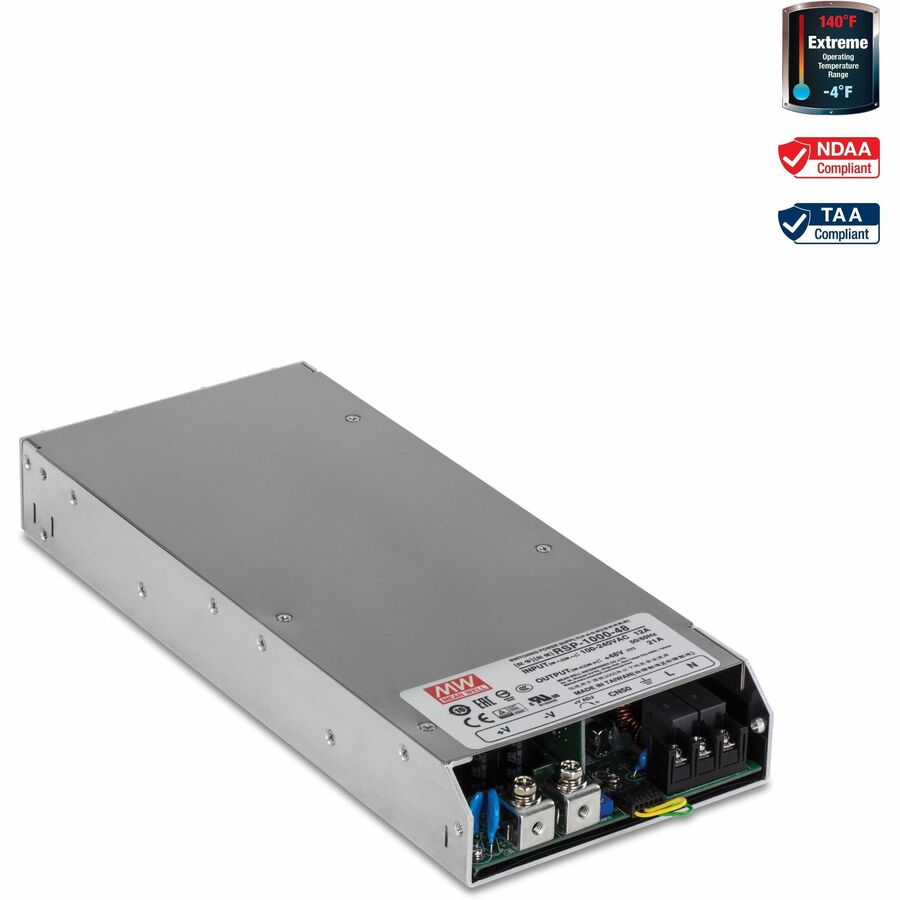

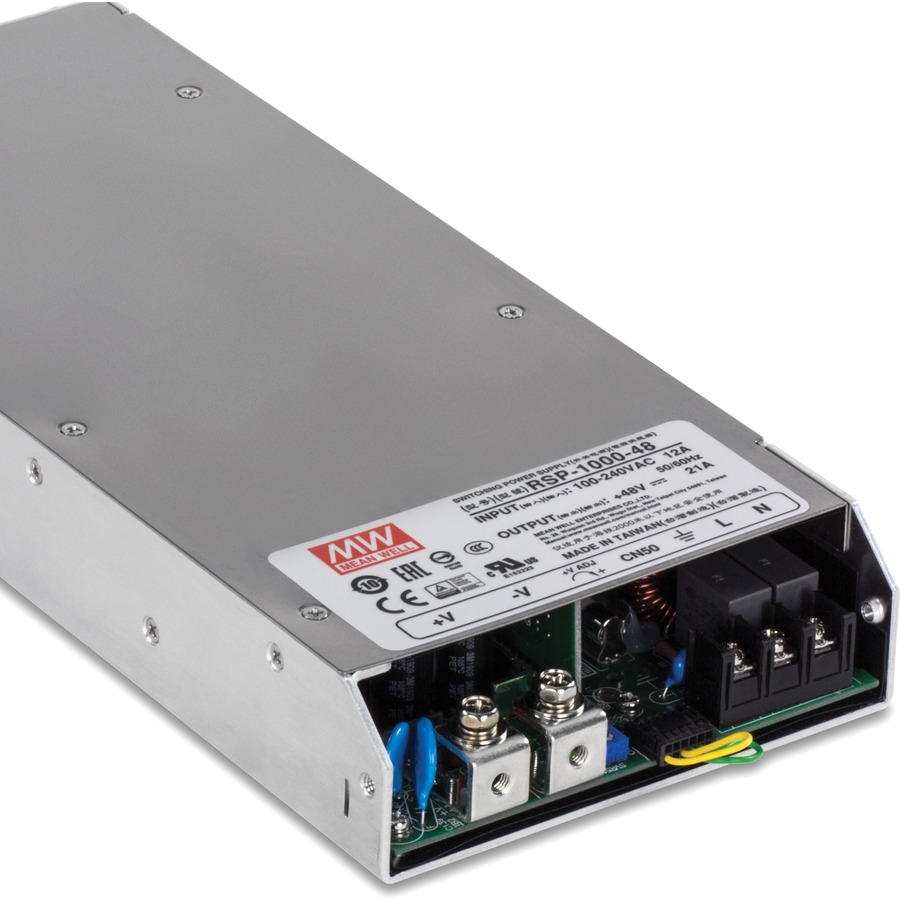

1000W, 48V DC, 21A AC to DC Industrial Power Supply
$628.19*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Sep 28 and Nov 2, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
TRENDnet's AC to DC Industrial Power Supply, model TI-RSP100048, supplies up to 1000W (48V DC, 21A) of power to industrial equipment, such as PoE switches and WiFi access points. This industrial power supply comes with active PFC and overload current protection.
• DEVICE INTERFACE: Input: 100 - 240V AC, 50/60Hz, 12A; Output: 1008W, 48V, 21A; 2 x Active cooling fans; Compatible 19? 4U rack mounting bracket (Model Number: TI-R4U); Power LED indicator
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Power Supply, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-RSP1000481000W, 48V DC, 21A AC to DC Industrial Power Supply with PFC Function is backed and supported with 1 year of TRENDnet Manufacturer Protection.
• INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
• 1000W POWER: Provides up to 1000W (48V DC, 21A) of power for PoE devices such as switches, network cameras, and access points
• EXTREME OPERATING TEMPERATURE: Designed for industrial environments with an operating temperature range of -20° - 60° C (-4° - 140° F)
• PROTECTIONS: Short circuit, overload, over voltage, over temperature
• ACTIVE PFC: Built-in active Power Factor Controller helps eliminate unusable reactive power
• High efficiency 94% and low power dissipation; Built-in active Power Factor Controller
More from the Manufacturer
Overview
TRENDnet's AC to DC Industrial Power Supply, model TI-RSP100048, supplies up to 1000W (48V DC, 21A) of power to industrial equipment, such as PoE switches and WiFi access points. This industrial power supply comes with active PFC and overload current protection
Industrial Applications
Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications
1000W Power
Provides up to 1000W (48V DC, 21A) of power for PoE devices such as switches, network cameras, and access points
Operating Temperature
Designed for industrial environments with an operating temperature range of -25° – 70° C (-13° – 158° F)
1000W Power
Provides up to 1000W (48V DC, 21A) of power for PoE devices, such as switches, network cameras, and access points
Active PFC
Built-in active Power Factor Controller helps eliminate unusable reactive power
Protection
Overload, short circuit, over voltage, and over temperature protection
Full Load Test
Power supply undergoes a 100% full load burn-in test
Operating Temperature
Designed for industrial environments with an operating temperature range of -20° – 60° C (-4° – 140° F)
Safety Certifications
Certified for UL 508 and TUV EN60950-1
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
Vibration Resistant
Rated for vibration (IEC 60068-2-6)
SPECIFICATIONS
Interface
Input: 100 – 240V AC, 50/60Hz, 12A
Output: 1008W, 48V, 21A
Housing
Power LED indicator

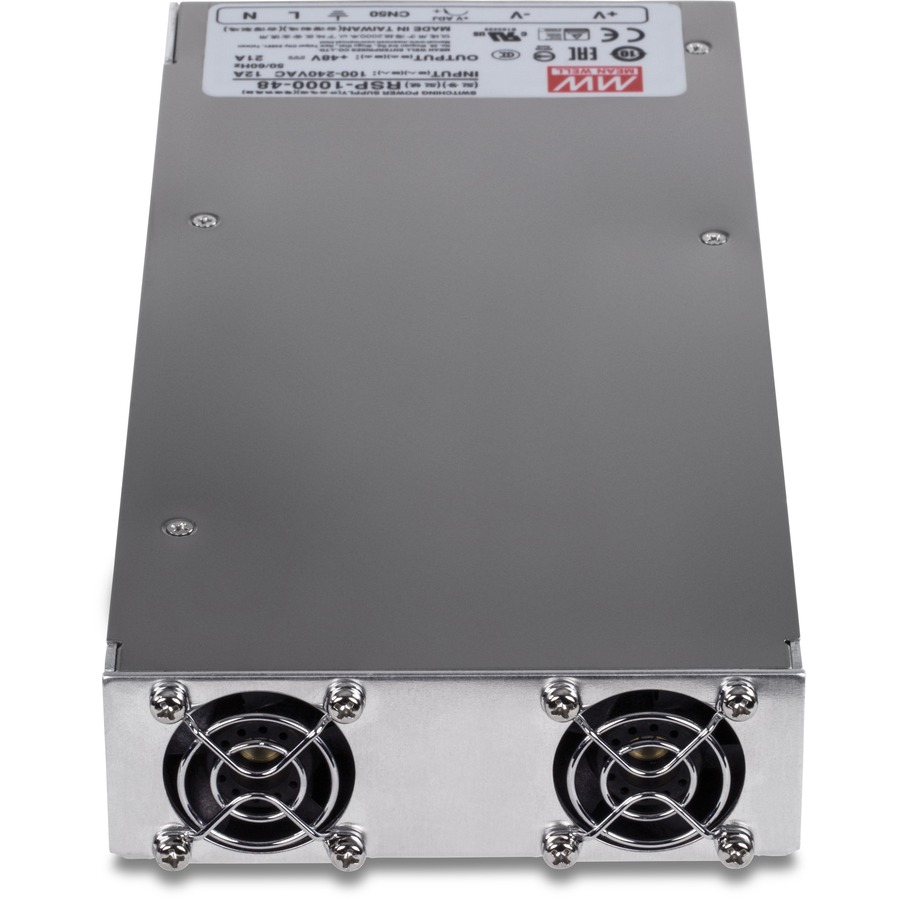

2 x Active cooling fans
Compatible 19” 4U rack mounting bracket (Model Number: TI-R4U)
Special Features
Remote Sense compensates voltage drop on load, up to 0.5V
Remote ON-OFF control
DC OK relay contact
Output Voltage Programming 40 – 110% of nominal power output voltage (PV/remote voltage programming/remote adjust/margin programming/dynamic voltage trim)
Current Sharing with Remote Sense (up to 4 total units to provide higher output power)
Short circuit/overload/over voltage/over temperature protection
Protection type: constant currant limiting, shutdown and repower
Operating Temperature
-20° – 60° C (-4° – 140° F)
Operating Humidity
20 – 90% non-condensing
MTBF
313,100 hours
Dimensions
295 x 127 x 41mm (11.6 x 5 x 1.6 in.)
Weight
1.74kg (3.83 lb.)
Certifications
CE
UL 508CB 60950-1
TUV EN60950-1
Warranty
1 year
PACKAGE CONTENTS
TI-RSP100048
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-RSP100048 |
| Brand Name | TRENDnet |
| Product Model | TI-RSP100048 |
| Product Name | 1000W, 48V DC, 21A AC To DC Industrial Power Supply With PFC Function |
| Product Condition | New |
| Product Type | Power Supply |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 3" |
| Width | 8" |
| Weight (Approximate) | 3.84 lb |
| Power Description | |
| Output Voltage | 48 V DC |
| Technical Information | |
| Efficiency | 94% |
| Number of Fans | 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
