DIN Rail - 52 V DC @ 2.89 A Output - 150 W - 1 Fan(s) - 93% Efficiency
$114.07
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Sep 28 and Nov 2, then process your delivery right after.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

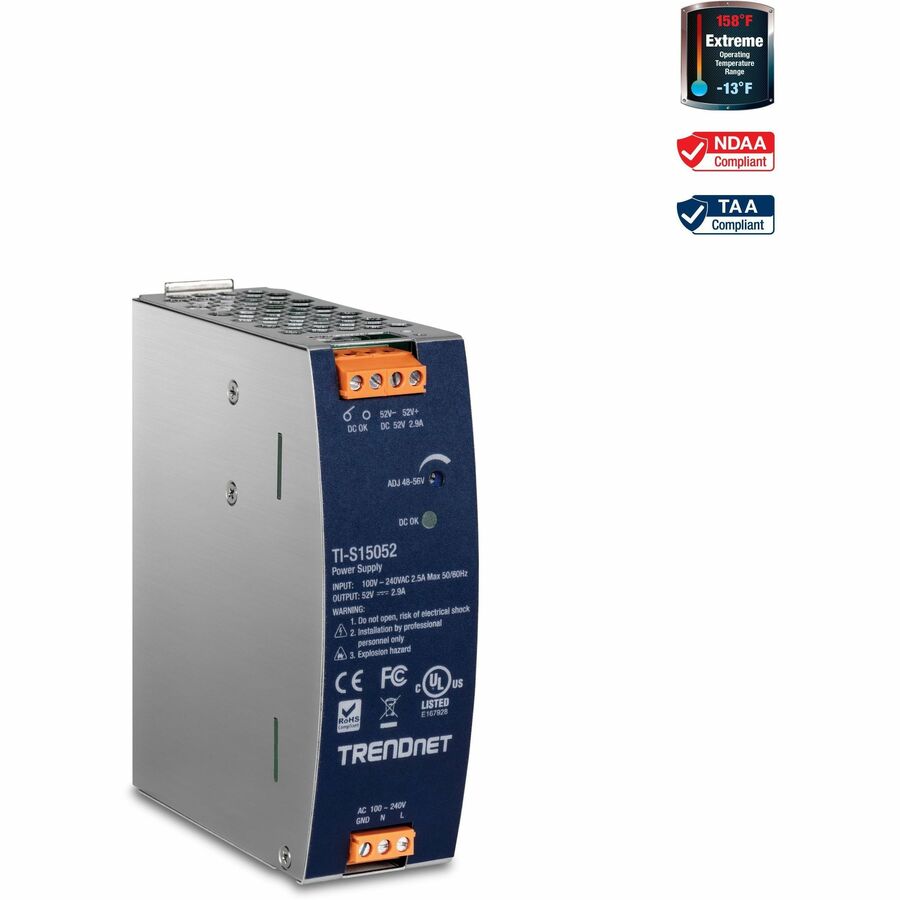

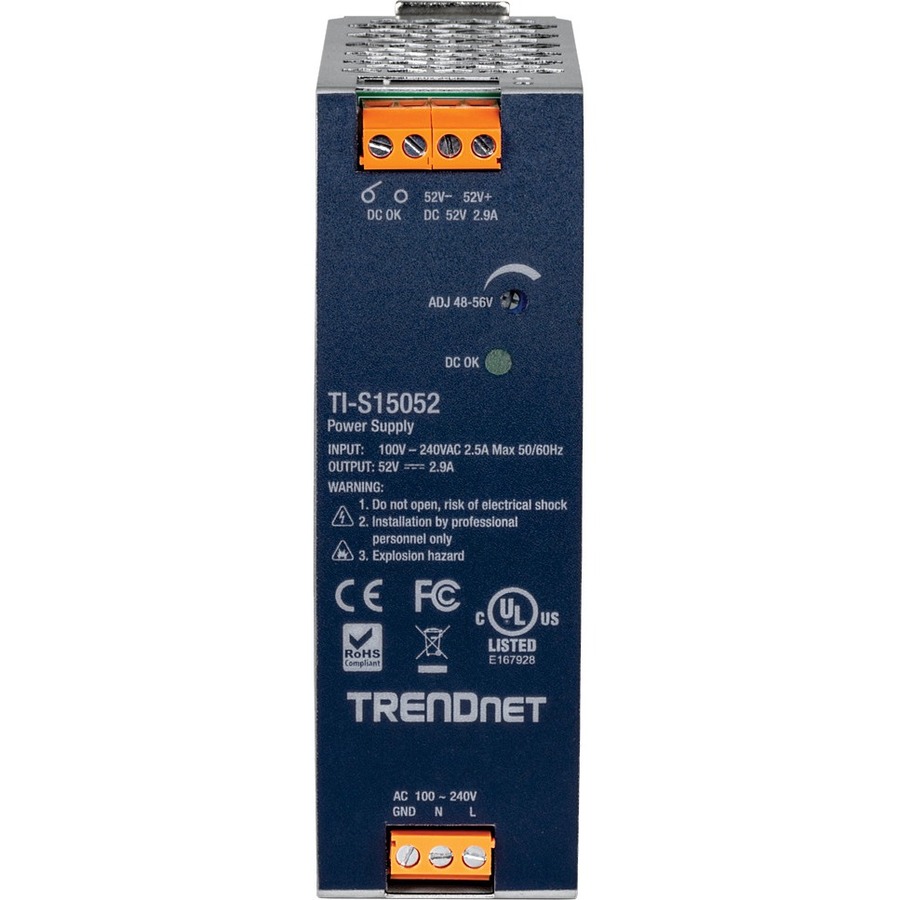

TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S15052, supplies up to 150W (52V DC, 2.89A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, overload current protection.
• DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 1.8A 127 - 370V DC; Output: 150W, 48 - 56V, 0 - 2.9A; DIN-rail: TS-35/7.5 or 15
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-S15052 150W, 52V DC, 2.89A AC to DC DIN-Rail Power Supply with PFC Function is backed and supported with 1 year of TRENDnet Manufacturer Protection.
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant DIN-Rail Power Supply, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• 150W POWER: The UL508 approved industrial power supply provides up to 150W (52V DC, 2.89A) of power for PoE devices, such as switches, injectors, and access points.
• INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
• PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
• PASSIVE COOLING: The industrial power supply cools itself by natural air convection
• DIN-RAIL MOUNT: Metal enclosure with integrated DIN-Rail mount
• WIDE OPERATING TEMPERATURE: Designed for industrial environments with a wide operating temperature range of -25° - 70° C (-13° - 158° F)
More from the Manufacturer
TRENDnet’s AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S15052, supplies up to 150W (52V DC, 2.89A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, overload current protection.
150W, 52V DC, 2.89A AC to DC DIN-Rail Power Supply with PFC Function
Industrial power supply with integrated DIN-Rail mount
Provides up to 150W of power (52V DC, 2.89A)
Supported output voltage 48 – 56V DC
High efficiency 93% and low power dissipation
150% peak load capability
Built-in active Power Factor Controller (PF > 0.96)
Cooling by natural air convection
Protections: Overload, short circuit, over power, over voltage, over current, over temperature
UL 508 approved
Built-in DC OK relay contact
-25° – 70° C (-13° – 158° F) wide operating temperature range
NDAA / TAA compliant
FEATURES
Industrial Applications
Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
150W Power
Provides up to 150W (52V DC, 2.89A) of power for PoE devices, such as switches, injectors, and access points.
Wide Operating Temperature
Designed for industrial environments with an operating temperature range of -25° – 70° C (-13° – 158° F).
150W Power
Provides up to 150W (52V DC, 2.89A) of power for PoE devices, such as switches, injectors, and access points
Active PFC
Built-in active Power Factor Controller (PFC, PF > 0.96) helps eliminate unusable reactive power
Protection
Overload, short circuit, over voltage, over current, and over temperature protection
Passive Cooling
Cooling by natural air convection

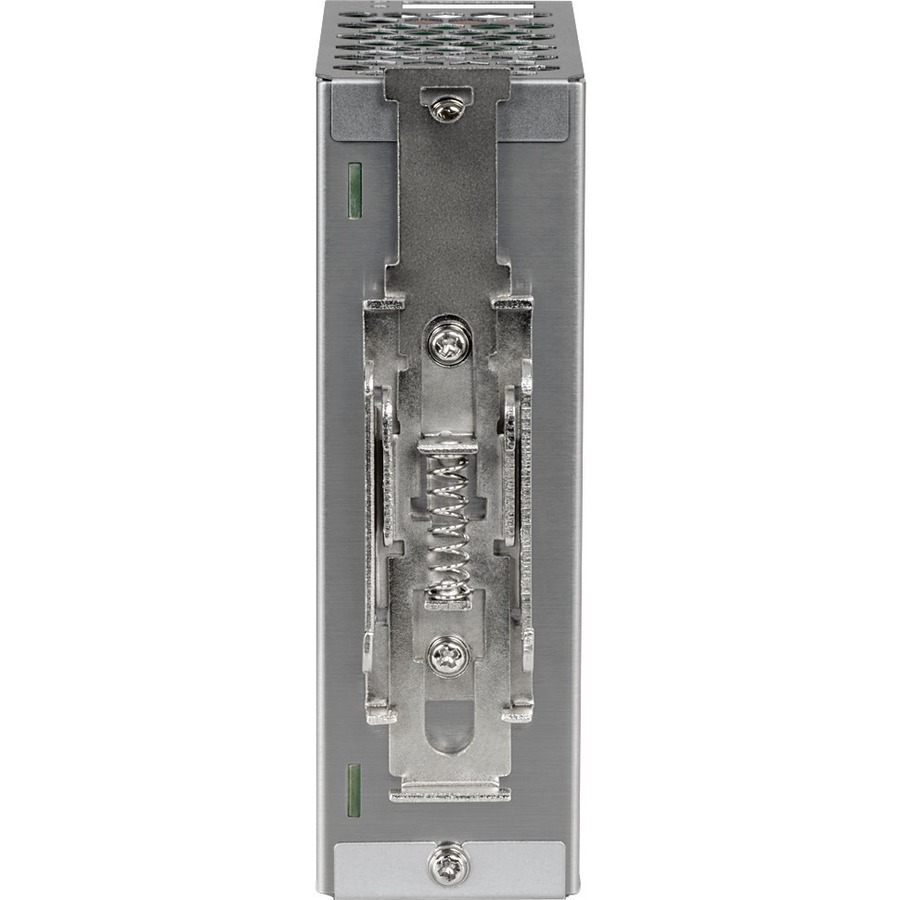

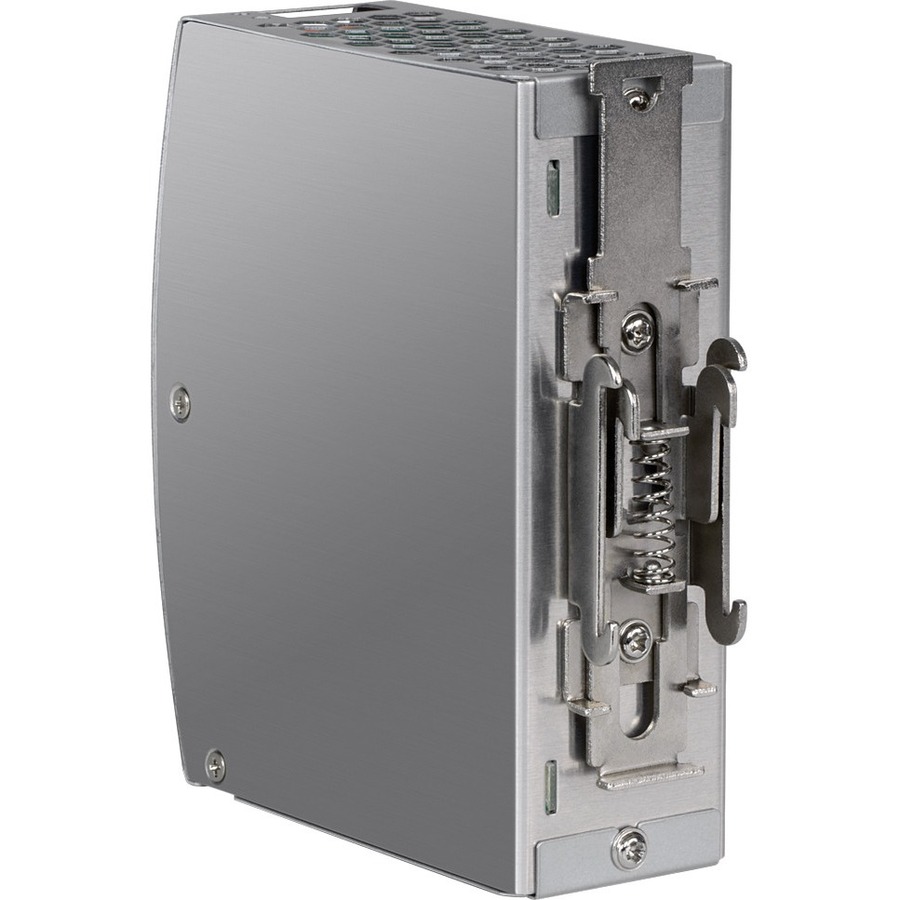

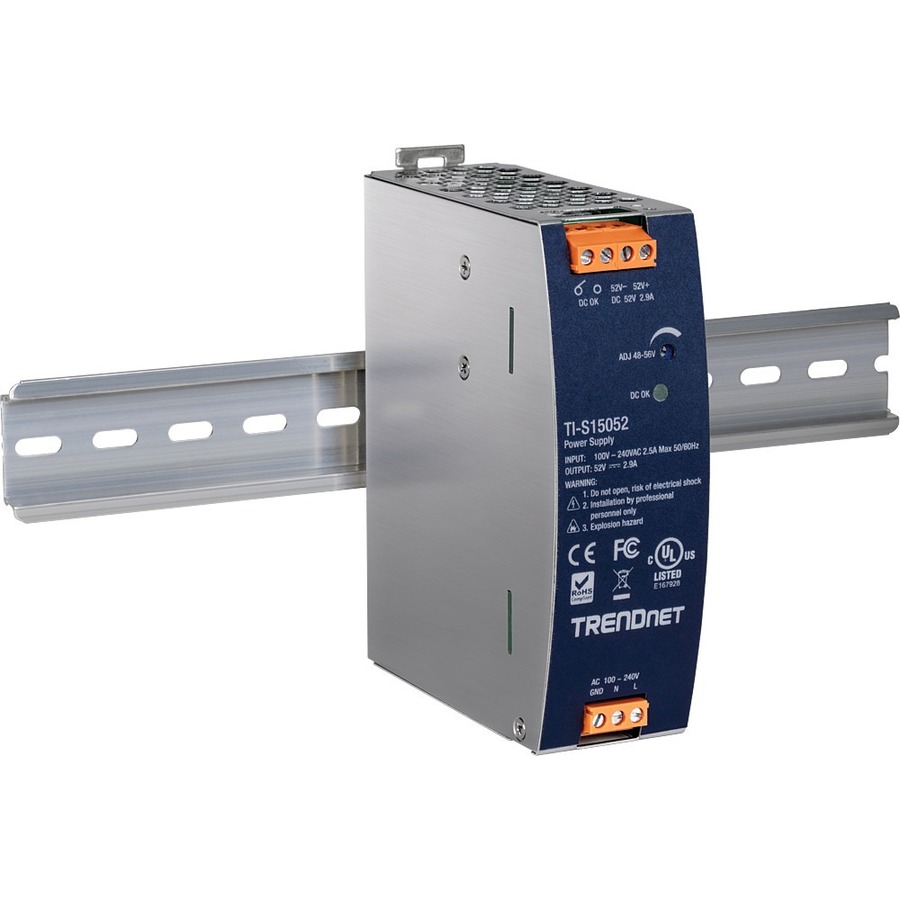

DIN-Rail Mount
Metal enclosure with integrated DIN-Rail mount
Wide Operating Temperature
Designed for industrial environments with a wide operating temperature range of -25° – 70° C (-13° – 158° F)
Safety Certifications
EN 62368-1
BS EN 62368-1
CB IEC 62368-1
UL 530470, 2014-12-1, CAN/CSA C22.2 No.62368-1-14, 2014-12
Electro Magnetic Emission/Immunity
EN 55032
BS EN 55032
EN IEC 61000-3-2
BS EN IEC 61000-3-2
EN 61000-3-3
BS EN 61000-3-3
EN 55035
BS EN 55035
AS/NZS CISPR 32
FCC CFR Title 47, Part 15, Subpart B
ICES-003 Issue 7
SPECIFICATIONS
Interface
Input: 90 – 264V AC, 47 – 63Hz, 1.8A 127 – 370V DC
Output: 150W, 48 – 56V, 0 – 2.9A
DIN-rail: TS-35/7.5 or 15
Housing
DIN-rail mount
Power LED indicator
Special Features
DC OK relay contact
150% peak load capacity
Protection functions
Short circuit
Over power
Over voltage
Over current
Over temperature
Protection type: shutdown and self-recovery
Operating Temperature
-25° – 70° C (-13° – 158° F)
Operating Humidity
Max. 95% non-condensing
MTBF
200,000 hours @ 25° C
Dimensions
40 x 125.2 x 102mm (1.6 x 4.9 x 4 in.)
Weight
542g (1.19 lb.)
Certifications
CE
FCC
UL 530470
CB IEC 62368
Warranty
1 year
PACKAGE CONTENTS
TI-S15052
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Limited Warranty: 1 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-S15052 |
| Brand Name | TRENDnet |
| Product Model | TI-S15052 |
| Product Name | 150W 52V DC 2.89A AC to DC DIN-Rail Power Supply with PFC Function |
| Product Type | Proprietary Power Supply |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 4.9" |
| Width | 1.6" |
| Depth | 4" |
| Weight (Approximate) | 1.19 lb |
| Power Description | |
| Output Voltage | 52 V DC |
| Output Voltage Detail | 52 V DC @ 2.89 A |
| Output Current | 2.89 A |
| Output Power | 150 W |
| Technical Information | |
| Efficiency | 93% |
| Number of Fans | 1 |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
