Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Power Supplies
Overview

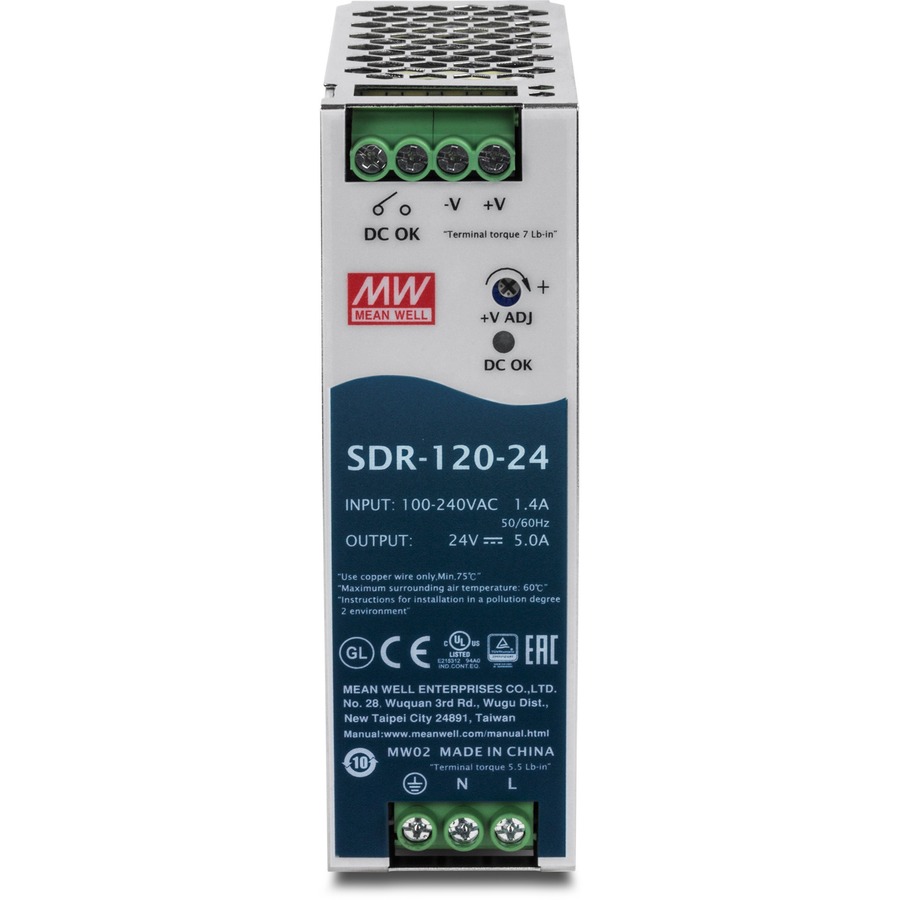

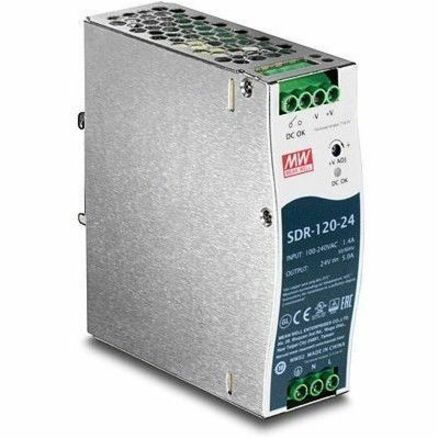

TRENDnet's AC to DC Industrial DIN-Rail Power Supply, model TI-S12024, supplies up to 120W (24V DC, 5A) of power to industrial equipment such as PoE switches, network cameras, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection. More from the Manufacturer
TRENDnet’s AC to DC Industrial DIN-Rail Power Supply, model TI-S12024, supplies up to 120W (24V DC, 5A) of power to industrial equipment such as PoE switches, network cameras, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection
Overview
Industrial Applications
Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications
120W Power
Provides up to 120W (24V DC, 5A) of power for PoE devices such as switches, network cameras, and access points
Operating Temperature
Designed for industrial environments with an operating temperature range of -25° – 70° C (-13° – 158° F)
LED Indicator
LED indicator confirms power to the unit
Active PFC
Built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power
Full Load Test
This power supply undergoes a 100% full load burn-in test

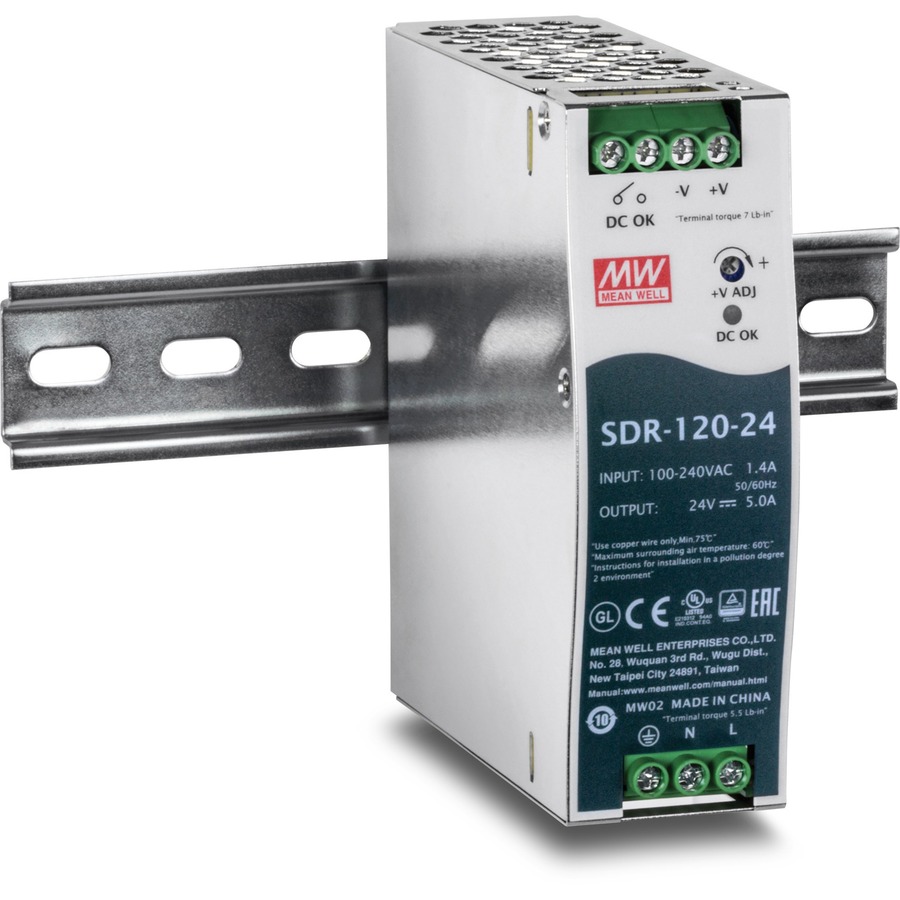

DIN-Rail Mount

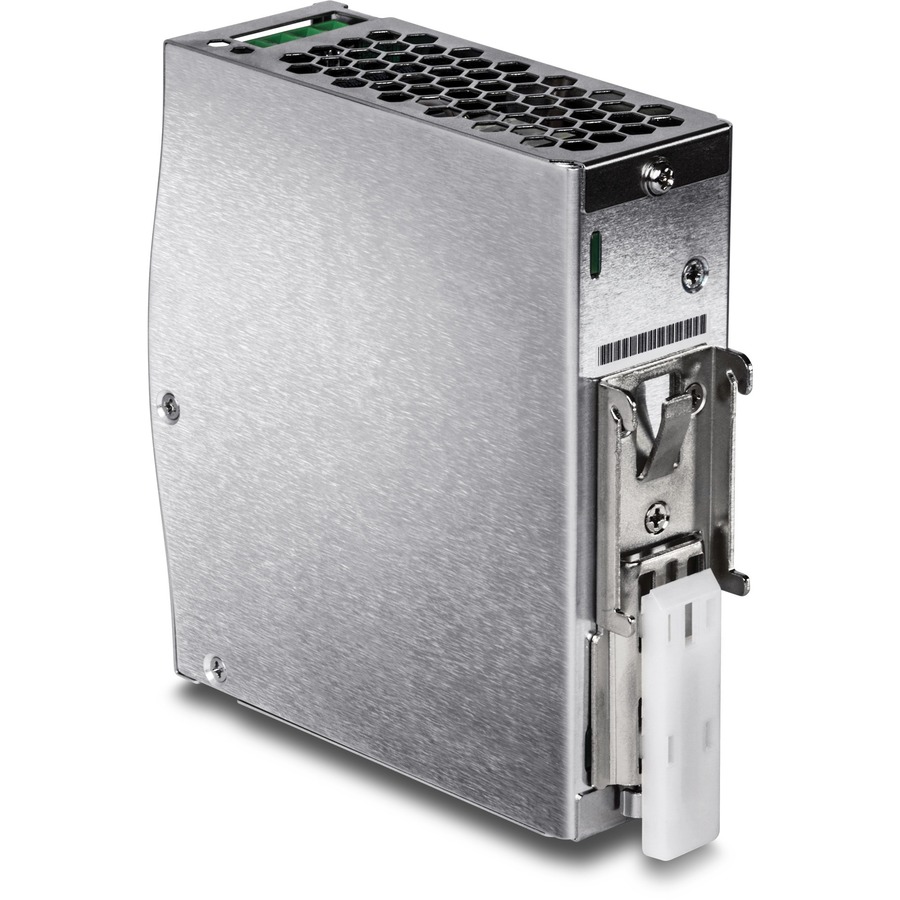

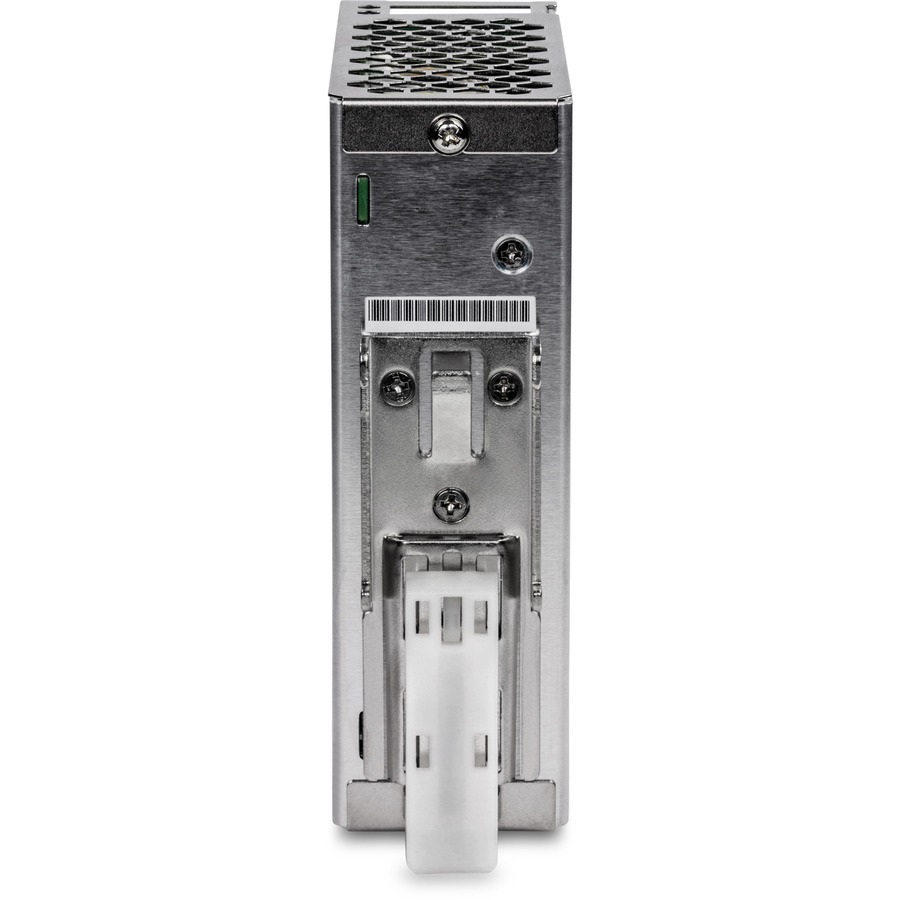

Metal enclosure with integrated DIN-rail mount
Warranty
Limited Warranty: 3 Year
Highlights
Industrial power supply with integrated DIN-rail mount
Provides up to 120W of power (24V DC, 5A)
High efficiency 91% and low power dissipation
150% peak load capability
Built-in active Power Factor Controller (PF > 0.93)
Cooling by free air convection
Protections: Short circuit, overload, over voltage, over temperature
UL 508 approved
Built-in DC OK relay contact
100% full load burn-in test
-25° - 70° C (-13° - 158° F) operating temperature range
Videos
Industrial Switches
Specifications
General Information
Manufacturer
TRENDnet
Manufacturer Part Number
TI-S12024
Brand Name
TRENDnet
Product Name
24V 120W Output Industrial
Product Condition
New
Product Type
Power Supply
Physical Characteristics
Form Factor
DIN Rail Mountable
Height
3"
Width
7"
Weight (Approximate)
1.48 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Output Voltage
24 V DC
Output Voltage Detail
24 V DC @ 5 A
Output Current
5 A
Output Power
120 W
Technical Information
Efficiency
91%
Warranty
Limited Warranty
3 Year
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
