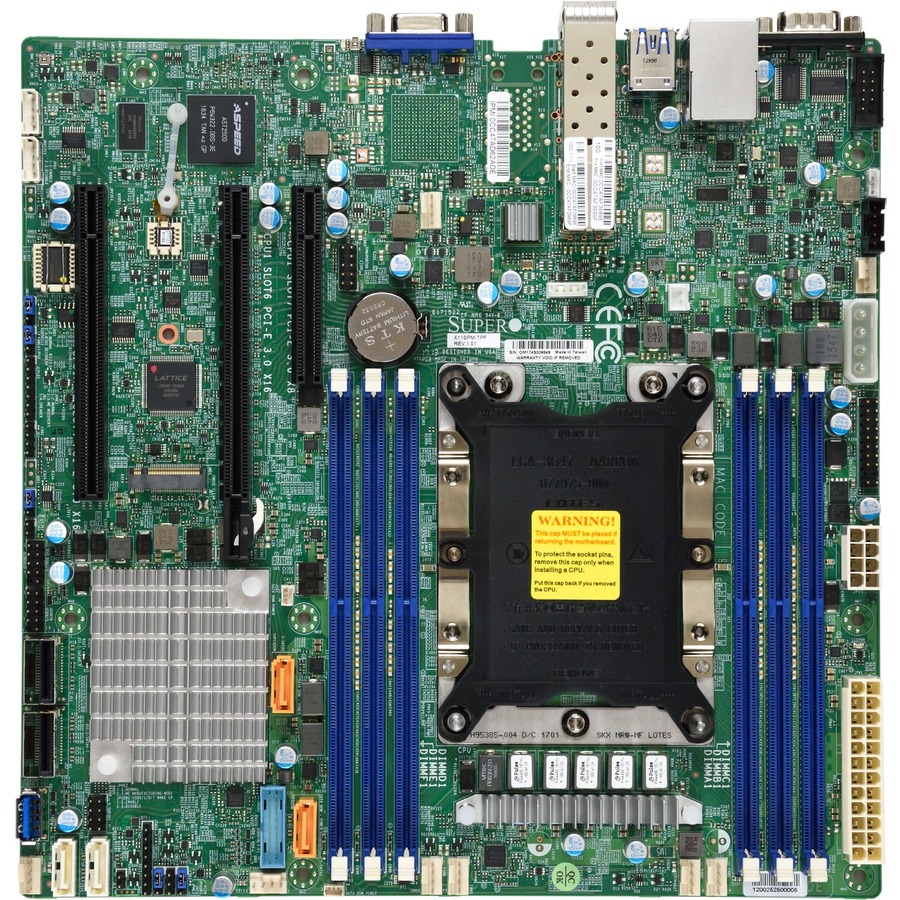

Supermicro X11SPM-TPF Server Motherboard - Intel C622 Chipset - Socket P LGA-3647 - Micro ATX
Xeon Processor Supported - 768 GB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 6 x Memory Slots - 12 x SATA Interfaces
- SKU
- MBD-X11SPM-TPF-O
- Category
- Motherboards
MSRP$593.33
$549.74
Save 7%Back ordered — ships when restocked.
Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MBD-X11SPM-TPF-O
- Category
- Motherboards
Overview
UP Xeon® Motherboards - Socket P (LGA 3647)
BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)
Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.
Highlights
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supported 10 RAID levels provide data reliability and fault tolerance
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Server Motherboard
Specifications
| Product Type | Server Motherboard |
|---|---|
| Compatibility | Chassis: SC813MFTQC-350CB2 SC813MFTQC-R407CB SC113MFAC2-341CB SC113MFAC2-R606CB SC512F-350B SC823TQ-653LPB SC213LT-600LPB SC825TQC-R740LPB SC833T-653B |
| Manufacturer Part Number | MBD-X11SPM-TPF-O |
| Maximum Memory Supported | 768 GB |
| Packaged Quantity | 1 |
| Form Factor | Micro ATX |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SPM-TPF |
| Product Name | X11SPM-TPF Server Motherboard |
| Package Type | Retail |
| Processor Supported | Xeon |
| RAID Levels | 10, 5, 1, 0 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket P LGA-3647 |
| Brand Name | Supermicro |
| Memory Technology | DDR4 SDRAM |
| Width | 9.6" |
| Depth | 9.6" |
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| Number of Memory Slots | 6 |
| Graphics Controller Model | AST2500 |
| Audio Channels | 7.1 |
| Number of SATA Interfaces | 12 |
| Onboard Video | On-board Video Chipset |
| RAID Supported | Yes |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 3.0 Ports | 3 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | RDIMM, DIMM, LRDIMM |
| Total Number of Expansion Slots | 3 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 1 |
| Memory Speed Supported | 2666 MHz, 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz |
