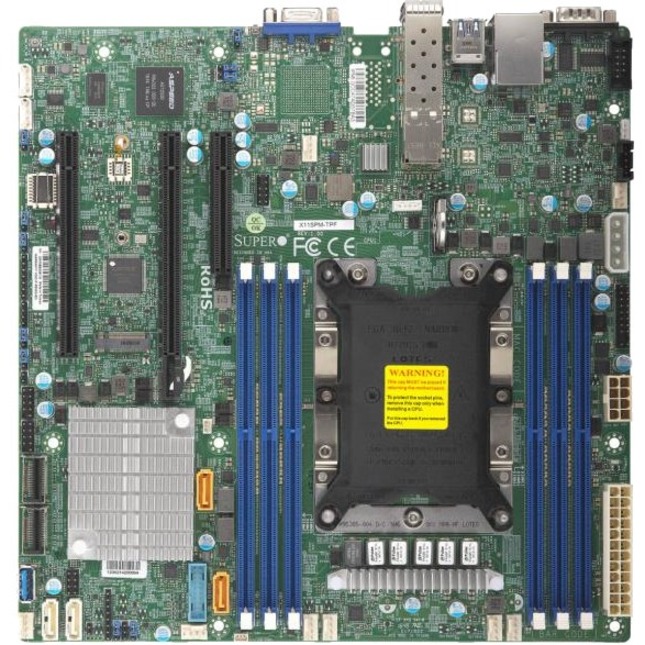

Supermicro X11SPH-NCTPF Server Motherboard - Intel C622 Chipset - Socket P LGA-3647 - ATX
Supermicro

Supermicro X11SPH-NCTPF Server Motherboard - Intel C622 Chipset - Socket P LGA-3647 - ATX

Xeon Processor Supported - 1 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 8 x Memory Slots - 10 x SATA Interfaces

SKU
MBD-X11SPH-NCTPF-O
Category
Motherboards

MSRP$773.33

$716.72

Save 7%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MBD-X11SPH-NCTPF-O
Category
Motherboards

Overview

UP Xeon® Motherboards - Socket P (LGA 3647)

BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)

Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.

Highlights

  • Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX server motherboard

Specifications

Product TypeServer Motherboard
Manufacturer Part NumberMBD-X11SPH-NCTPF-O
Maximum Memory Supported1 TB
Packaged Quantity1
Form FactorATX
ManufacturerSupermicro Computer, Inc
Product ModelX11SPH-NCTPF
Product NameX11SPH-NCTPF Server Motherboard
Package TypeRetail
Processor SupportedXeon
RAID Levels10, 5, 1, 0
Total Processor Supported1
Controller TypeSerial ATA/600, 12Gb/s SAS
Processor SocketSocket P LGA-3647
Brand NameSupermicro
Memory TechnologyDDR4 SDRAM
Width12"
Depth9.6"
Chipset ManufacturerIntel
Chipset ModelC622
Number of Memory Slots8
Graphics Controller ModelAST2500
Audio Channels7.1
Number of SATA Interfaces10
Onboard VideoOn-board Video Chipset
RAID SupportedYes
Number of PCI Express x4 Slots1
Number of PCI Express x8 Slots2
Number of PCI Express x16 Slots1
VGAYes
Total Number of USB Ports4
Number of USB 3.0 Ports2
Total Number of Onboard USB Ports9
Number of Onboard USB 3.0 Ports3
Total Number of PCI Express Slots4
Memory Form FactorRDIMM, DIMM, LRDIMM
Total Number of Expansion Slots4
10Gigabit EthernetYes
Number of M.2 Interfaces1
Memory Speed Supported2666 MHz, 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
