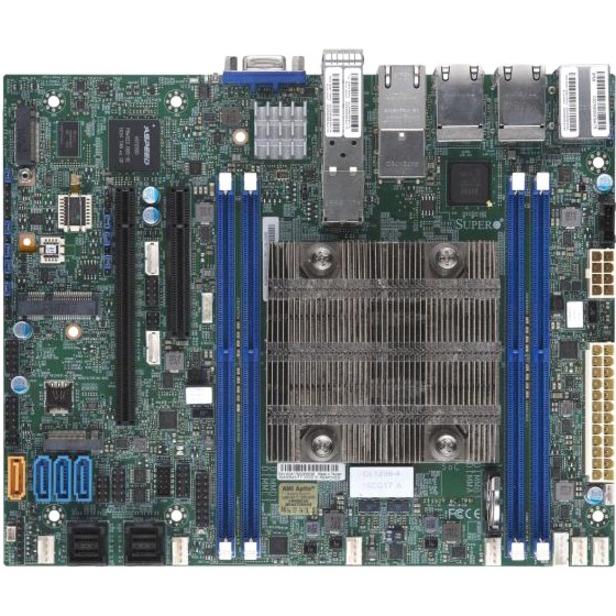

Supermicro X11SDV-4C-TP8F Server Motherboard - Intel Chipset - Socket BGA-2518 - Flex ATX
Xeon D-2123IT - 512 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 12 x SATA Interfaces
- SKU
- MBD-X11SDV-4C-TP8F-O
- Category
- Motherboards
MSRP$858.67
$795.75
Save 7%Back ordered — ships when restocked.
Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MBD-X11SDV-4C-TP8F-O
- Category
- Motherboards
Overview
UP Xeon® D-2100 Motherboards - Socket FCBGA 2518
X11SDV Embedded Boards / Xeon D SoC
Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® D System-on a-Chip (SoC) Family solutions with server-class reliability, availability and serviceability (RAS) features available in ultra-dense and low-power solutions. Xeon D combines the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. The solutions will be able to deliver optimized compute and storage for intelligent edge network appliances, mid-range networking, cold and warm storage environments such as storage and network security appliances, SMB storage servers, Hadoop, web hosting, controllers, dedicated compute nodes, and other similar applications.
Highlights
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Supported 10 RAID levels provide data reliability and fault tolerance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Flex ATX server motherboard
Specifications
| Product Type | Server Motherboard |
|---|---|
| Manufacturer Part Number | MBD-X11SDV-4C-TP8F-O |
| Maximum Memory Supported | 512 GB |
| Form Factor | Flex ATX |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SDV-4C-TP8F |
| Product Name | X11SDV-4C-TP8F Server Motherboard |
| Package Type | Retail |
| RAID Levels | 10, 5, 1, 0 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket BGA-2518 |
| Brand Name | Supermicro |
| Memory Technology | DDR4 SDRAM |
| Width | 9" |
| Depth | 7.3" |
| Chipset Manufacturer | Intel |
| Number of Memory Slots | 4 |
| Graphics Controller Model | AST2500 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 12 |
| Onboard Video | On-board Video Chipset |
| RAID Supported | Yes |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| VGA | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Total Number of Onboard USB Ports | 2 |
| Total Number of PCI Express Slots | 2 |
| Integrated Processor Type | Xeon |
| Integrated Processor Model | D-2123IT |
| Integrated Processor Core | Quad-core (4 Core) |
| Memory Form Factor | RDIMM, LRDIMM, DIMM |
| Total Number of Expansion Slots | 2 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 2666 MHz, 2400 MHz, 2133 MHz |
