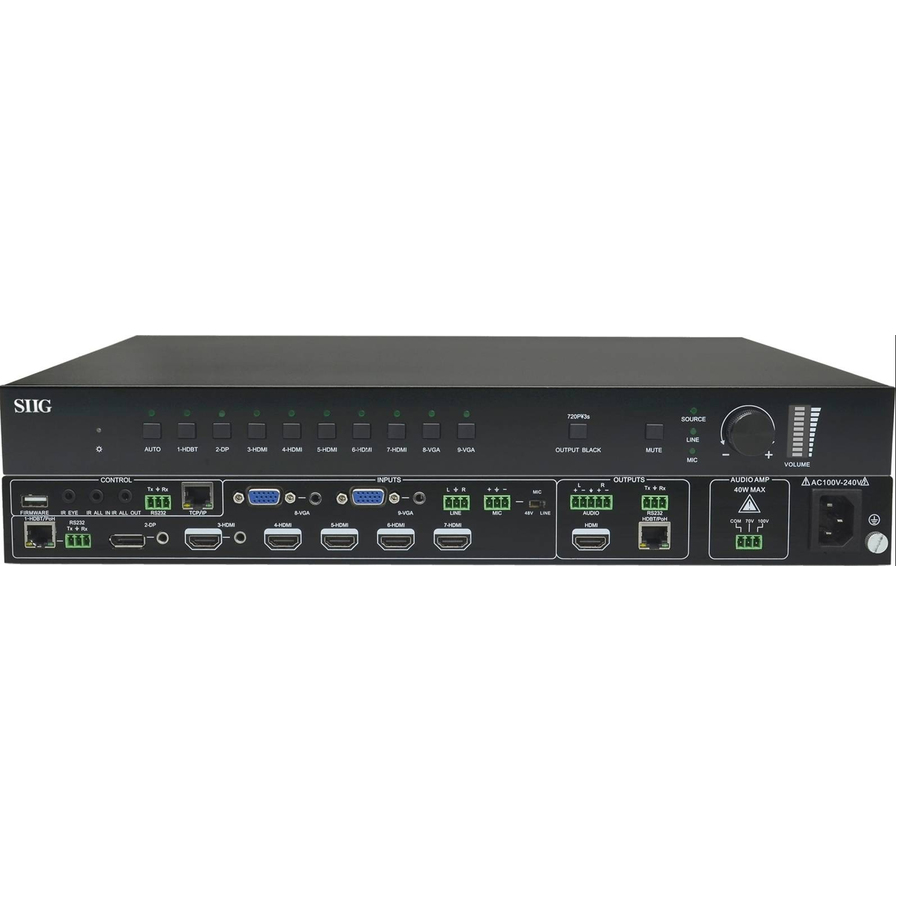

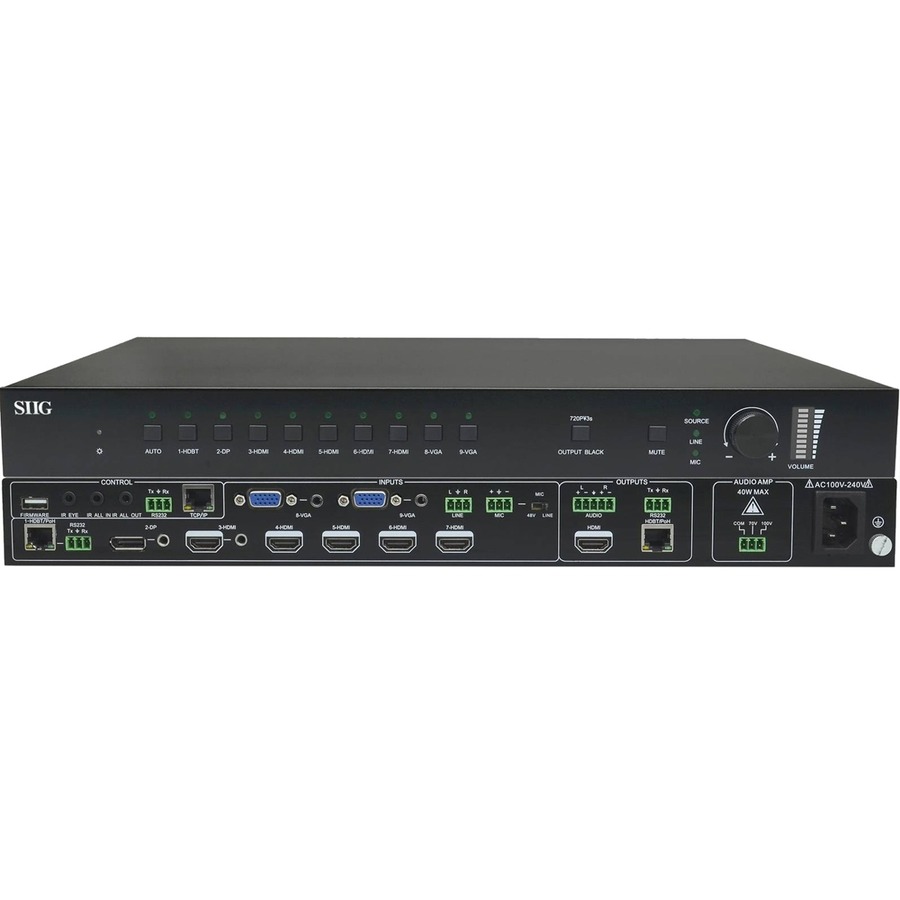

SIIG 9x1 HDBaseT 4K Scaler Switcher
SIIG

SIIG 9x1 HDBaseT 4K Scaler Switcher

4096 x 2160 - 4K - Twisted Pair - 9 x 1 - Display - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort

SKU
CE-H24311-S1
Category
Video Switchboxes

MSRP$2,899.00

$1,330.83

Save 54%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H24311-S1
Category
Video Switchboxes

Overview

Allows you to select and switch between any of the 9 source devices (1 DisplayPort, 5 HDMI, 2 VGA, 1 HDBaseT) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio and IR control

• Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously

• Output resolution can be selected between720p, 4K @60Hz YUV 4:2:0, or 4K @30Hz YUV 4:4:4

• Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p

• Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p

• Device switching controllable via push buttons, IR remote, RS232 and GUI

• Supports Bi-directional IR control and RS232 pass-through

More from the Manufacturer

Highlights

  • Trouble free connection with display
  • Switch between 9 sources to a single display
  • Enjoy watching any class of content on 4096 x 2160 resolution

Specifications

Package Contents
  • 9x1 HDBaseT 4K Scaler Switcher
  • HDBaseT Receiver
  • IR Receiver
  • IR Emitter
  • IR Remote
  • Power Cord
  • 4 x Switcher Plastic Cushions
  • 4 x Receiver Plastic Cushions
  • 2 x Switcher Mounting Ears
  • 6 x Screws
  • 2 x Receiver Mounting Ears
  • 2 x Screws
  • 6 x 3-pin phoenix connectors
  • 5-pin phoenix connectors
  • 2 x RS-232 cable (3-pin to DB9)
  • User manual
Product TypeAudio/Video Switchbox
Device SupportedDisplay
Manufacturer Part NumberCE-H24311-S1
Limited Warranty3 Year
Weight (Approximate)7.72 lb
Connectivity TechnologyCable
Form FactorRack-mountable
ManufacturerSIIG, Inc
Product Name9x1 HDBaseT 4K Scaler Switcher
Brand NameSIIG
Country of OriginChina
Height1.7"
Width17.2"
Depth10.9"
Graphics Modes4K
Environmentally FriendlyYes
Maximum Video Resolution4096 x 2160
Maximum Operating Distance328.08 ft
Number of USB Ports1
DisplayPortYes
Number of HDMI Inputs5
Number of HDMI Outputs1
VGA InYes
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Displays Supported1
Number of Input Devices Supported9
Number of VGA Inputs2
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports3
Number of DisplayPort Inputs1
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
