Multi-in-one presentation switcher with video/audio recorder functions in one compact device - Five inputs (DisplayPort / 3x HDMI /USB-C) - Two HDMI and one HDBaseT outputs - Allows recording video/audio to USB flash drive or SD card and select recording storage device via slide switch and record button make this 5x3 Multi-Format Presentation Switcher & Recorder user-friendly to operate - ESD Protection
SKU
Category
Video Switchboxes
MSRP$1,288.99
$859.98*
Save 33%
In stock: 4
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine SIIG through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Video Switchboxes
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

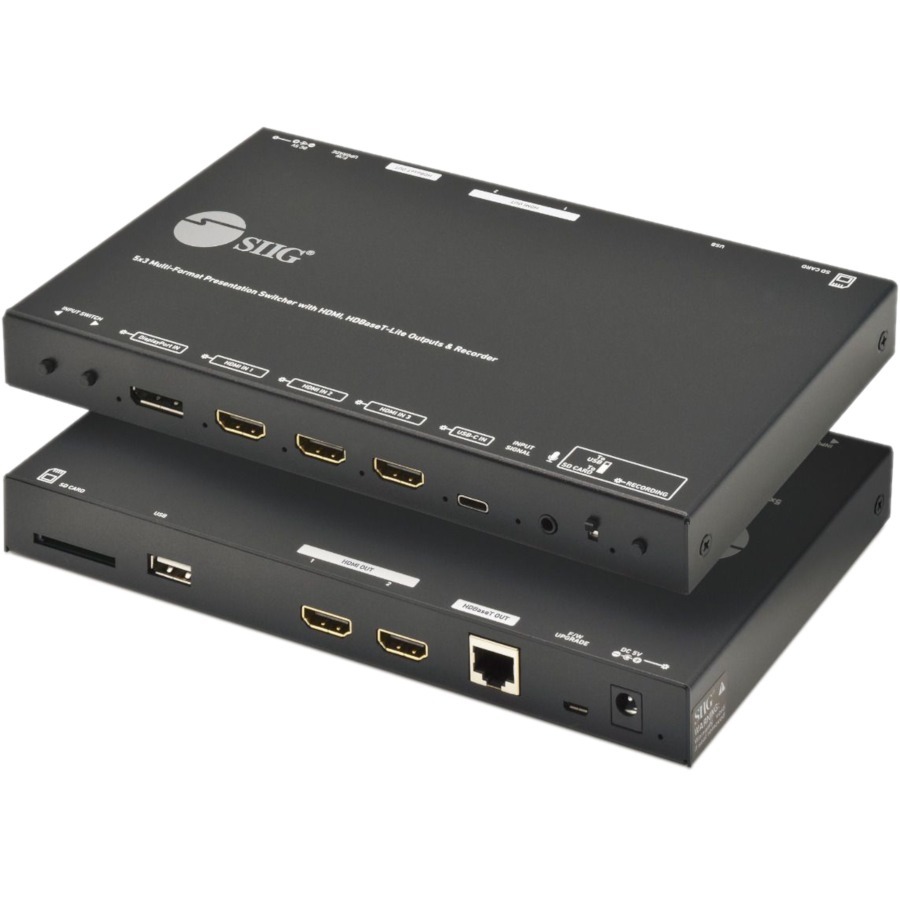

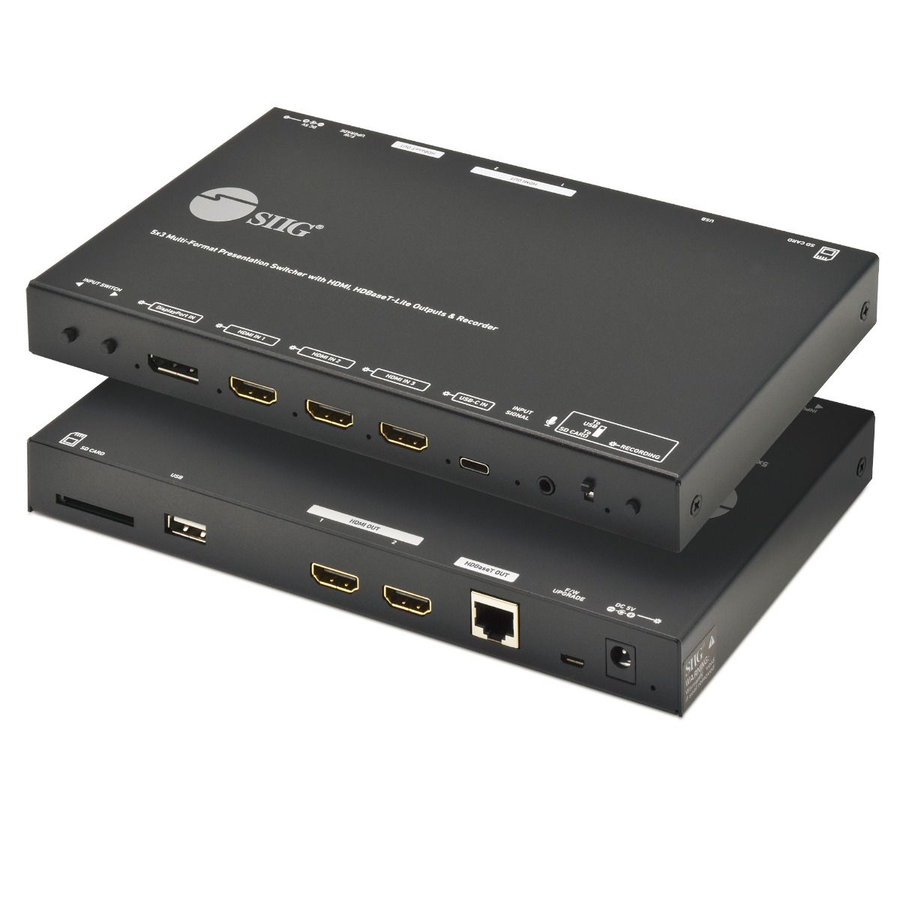

A multi-in-one presentation switcher with video/audio recorder functions in one compact device, five inputs (1 DisplayPort, 3 HDMI, 1 USB-C), two HDMI and one HDBaseT outputs, allows recording video and audio to USB flash drive or SD card
• Note : The adapter's USB-C input does not support smart phones
• Video Bandwidth up to 18Gbps
• Compliant with HDCP 2.2 and 1.4
• Input resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit
• Output resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit through HDMI and 4Kx2K@60Hz YUV 4:2:0 or 4K@30Hz YUV 4:4:4 8-bit via HDBaseT extender (not included)
• Support HDBaseT transmission distance up to 230ft (70m) from the HDMI source at Full HD 1080p 36-bit and 133ft (40m) at 4K@60Hz YUV 4:2:0
• Note : Requires HDBaseT Extender, sold separately
• Supports video and audio recording to the USB flash drive or SD memory card in the FAT32 and NTFS format.
• Note : DOES NOT record HDCP protected content
• Supports built-in and external microphone
• Supports xvYCC, x.v.Color and Deep color

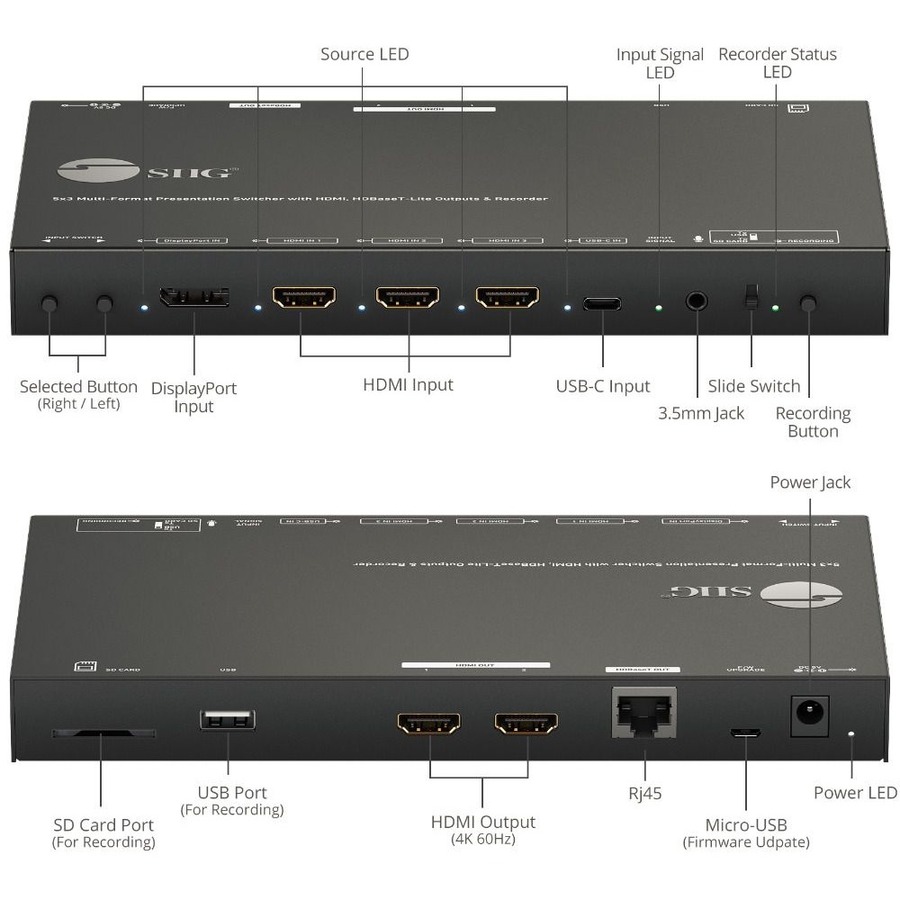

• Allows switching inputs by front panel push buttons
• Front Panel LED indicators allows for source selection status, input signal status, and recording status
