IR Remote RS232 - Downscaling Feature - TAA Compliant
MSRP$639.99
$329.10
Save 49%In stock: 20
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Allows you to connect up to four 4K HDMI source devices and independently distribute any source to any of the four 4K HDMI displays with Auto Video Scaling
• Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously

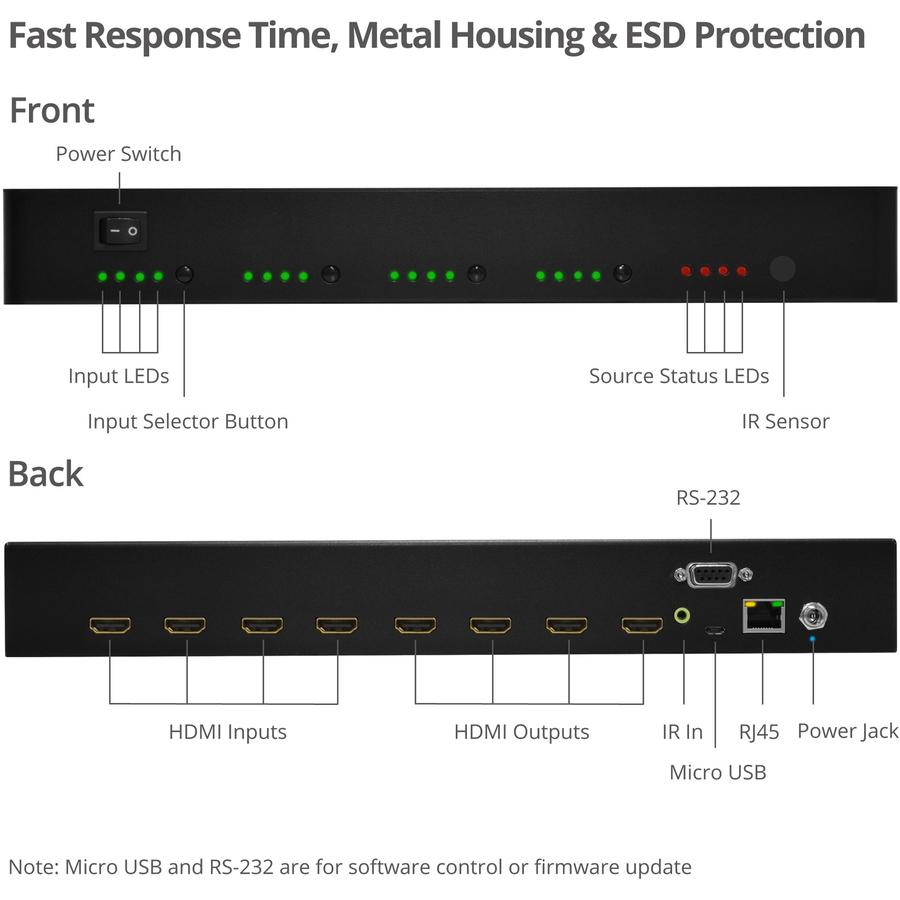

• Easily switch between HDMI source and display using push button, IR remote control, RS-232, and Ethernet control and cloud control
• Works with Amazon Alexa Echo voice control for convenient device and display switching

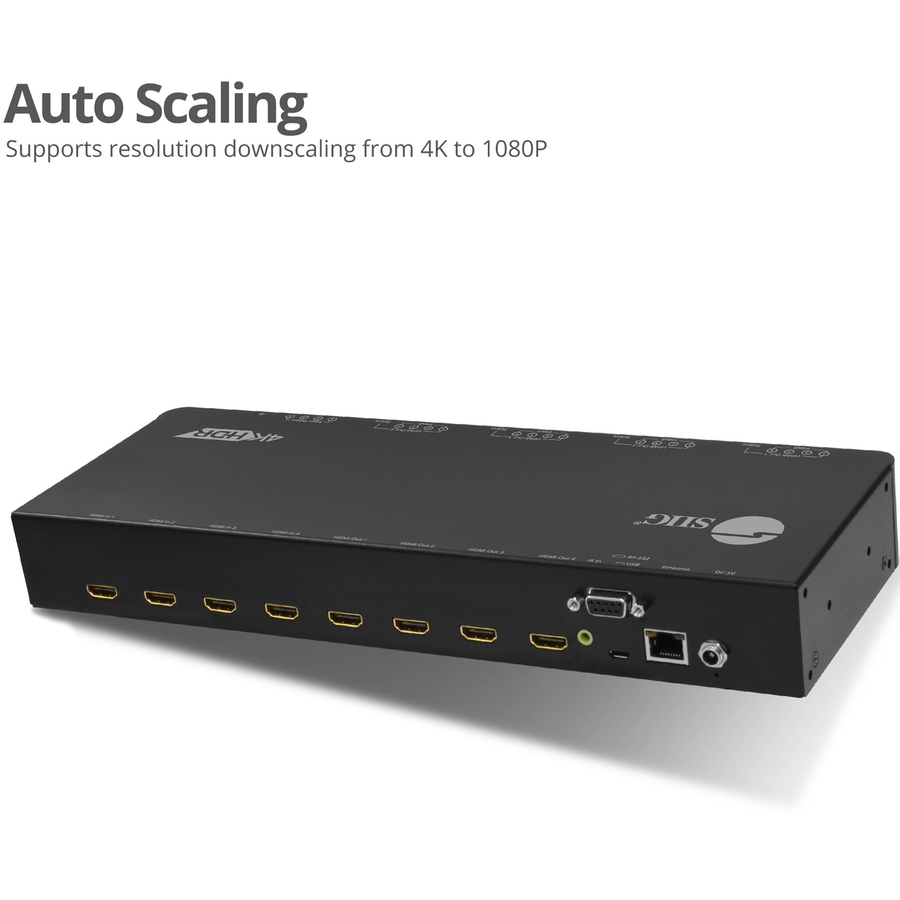

• Supports 4Kx2K to 1080p resolution down scaling, down scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
• Supports resolution up to 4Kx2K @60Hz YUV 4:4:4, 8bit and 4Kx2K @60Hz YUV 4:2:0 HDR 10bit
• Supports default EDID and EDID learning of the connected displays
• Fast HDMI link response time below 8 seconds when device switching
• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
• The included mounting ears allows easy and secure mounting on a wall or shelf
• Metal housing provides excellent RF shielding and heat dissipation for reliable performance and long life
More from the Manufacturer
4x4 HDMI 2.0 4K HDR Matrix Switch with Cloud Control
Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously
Easily switch between HDMI source and display using push button, IR remote control, RS-232, and Ethernet control and cloud control
Works with Amazon Alexa Echo voice control - Flexible source control options: 1) Push buttons, 2) IR remote, 3) RS-232 control, 4) IP control, 5) Cloud & Alexa Echo voice control, 6) Control4 Home Automation driver is available on our website
Supports 4Kx2K to 1080p resolution down scaling, down scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations
Supports resolution up to 4Kx2K @60Hz YUV 4:4:4, 8bit and 4Kx2K @60Hz YUV 4:2:0 HDR 10bit
Supports default EDID and EDID learning of the connected displays
Fast HDMI link response time below 8 seconds when device switching
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
The included mounting ears allows easy and secure mounting on a wall or shelf
Metal housing provides excellent RF shielding and heat dissipation for reliable performance and long life
Allows you to connect up to four 4K HDMI source devices and independently distribute any source to any of the four 4K HDMI displays with Auto Video Scaling, Alexa voice control, Control4 Smart Home Automation
Limited Warranty: 3 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H24W11-S1 |
| Brand Name | SIIG |

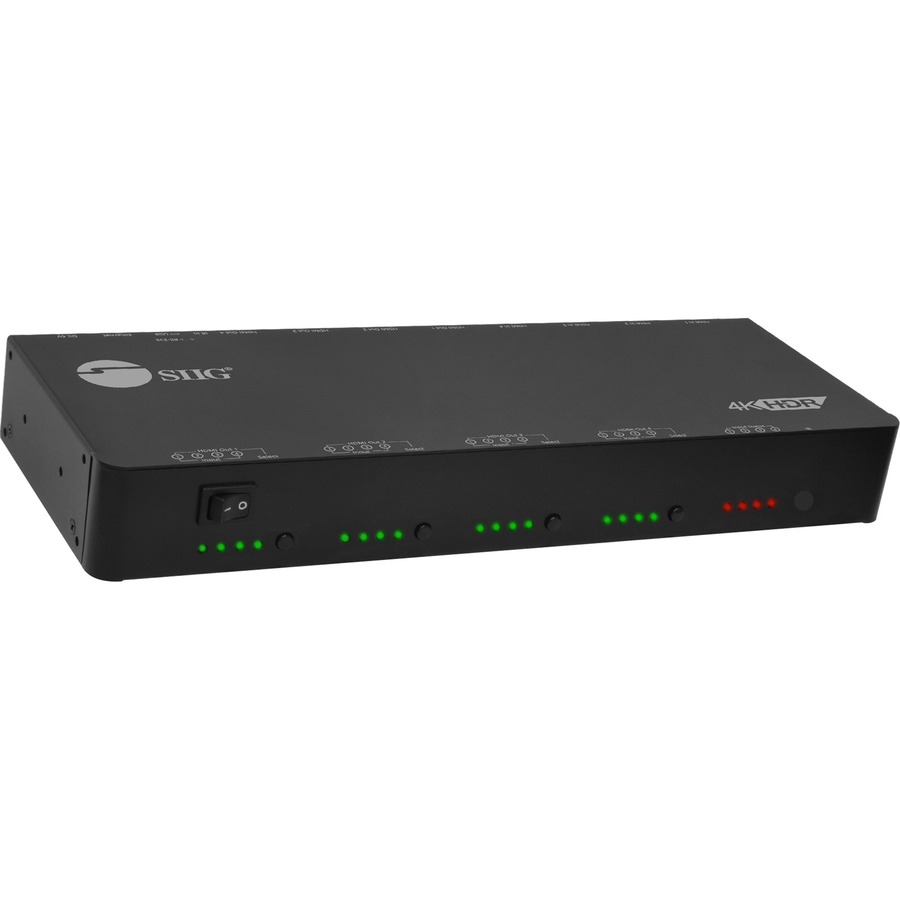

| Product Name | 4x4 HDMI 2.0 4K HDR Matrix Switch with Cloud Control |
| Product Type | Audio/Video Switchbox |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 4.3" |
| Depth | 14" |
| Weight (Approximate) | 2.58 lb |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Display, Gaming Console, Set-top Box, Blu-ray Disc Player, Notebook, Computer, Media Player, TV |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Modes | 4K |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |

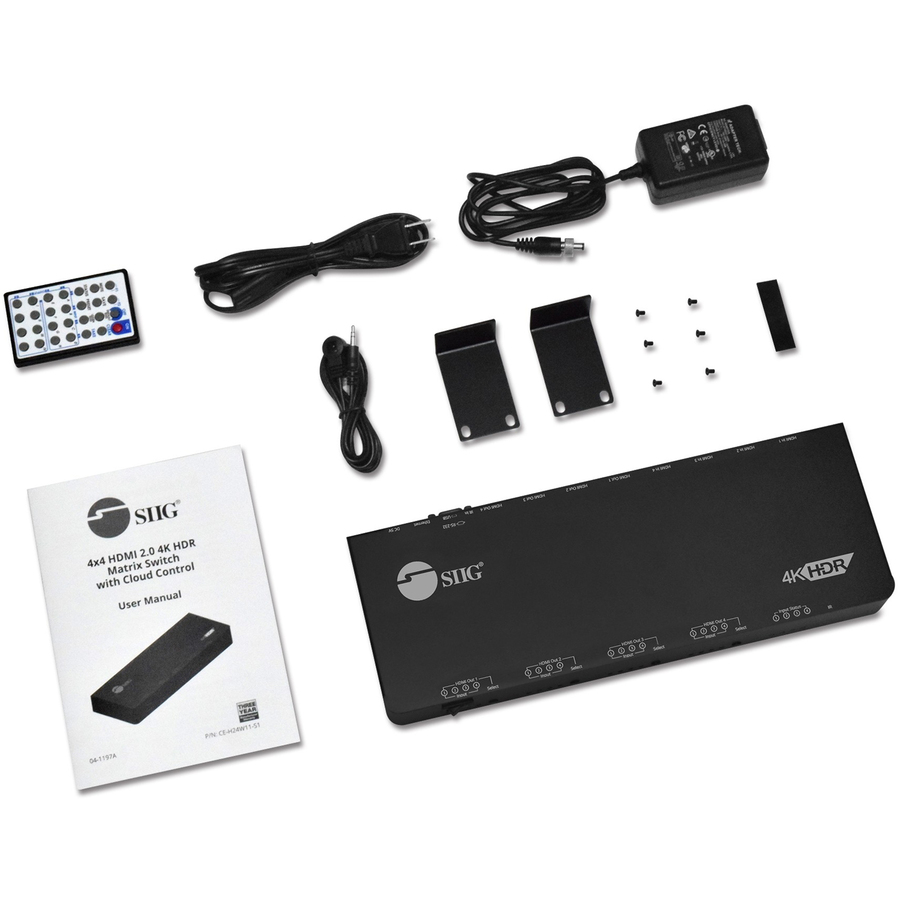

| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
