SIIG 4x1 Multi-Video HDMI 2.0, AirPlay, MiraCast, USB-C Presentation Switcher
SIIG

SIIG 4x1 Multi-Video HDMI 2.0, AirPlay, MiraCast, USB-C Presentation Switcher

4K - 4 x 1 - Display - 1 x HDMI Out

SKU
CE-H25Z11-S1
Category
Video Switchboxes

MSRP$799.99

$307.31

Save 62%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H25Z11-S1
Category
Video Switchboxes

Overview

Allows switching between 4 sources (1 Wireless Miracast/Airplay, 2 HDMI, 1 USB-C) to display on 1 HDMI display

• 4x1 18G presentation switcher with soft codec and wireless BYOD

• 4 Inputs: 1x Wireless (Miracast/AirPlay), 2x HDMI, 1x USB Type-C, and 1 HDMI output

• Supports HDMI 2.0b, HDCP 2.2, 4K @60Hz YUV 4:4:4, HDR 10, and Dolby Vision

• Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast

• 2x Type-B USB ports for host connection, and 2x Type-A USB ports for devices

• HDMI output audio extraction to balance analog audio

• Video source auto-switching

More from the Manufacturer

Highlights

  • Quickly switches both video and audio between sources without physical access
  • Trouble free connection with display
  • Connect single display to 4 sources

Specifications

Package Contents
  • 4x1 Multi-Video HDMI 2.0, AirPlay, MiraCast, USB-C Presentation Switcher
  • 1 x External Antenna
  • 1 x 3-pin Terminal Block to RS-232 Cable
  • 2 x Mounting Ears with Screws
  • 4 x Housing Rubber Pad Set
  • 5-pin Phoenix Connector
  • Power Adapter
  • Quick Start Guide
Product TypeAudio/Video Switchbox
Device SupportedDisplay
Manufacturer Part NumberCE-H25Z11-S1
Limited Warranty3 Year
Weight (Approximate)1.85 lb
Connectivity TechnologyWireless
Form FactorDesktop
ManufacturerSIIG, Inc
Product Name4x1 Multi-Video HDMI 2.0, AirPlay, MiraCast, USB-C Presentation Switcher
Brand NameSIIG
Country of OriginChina

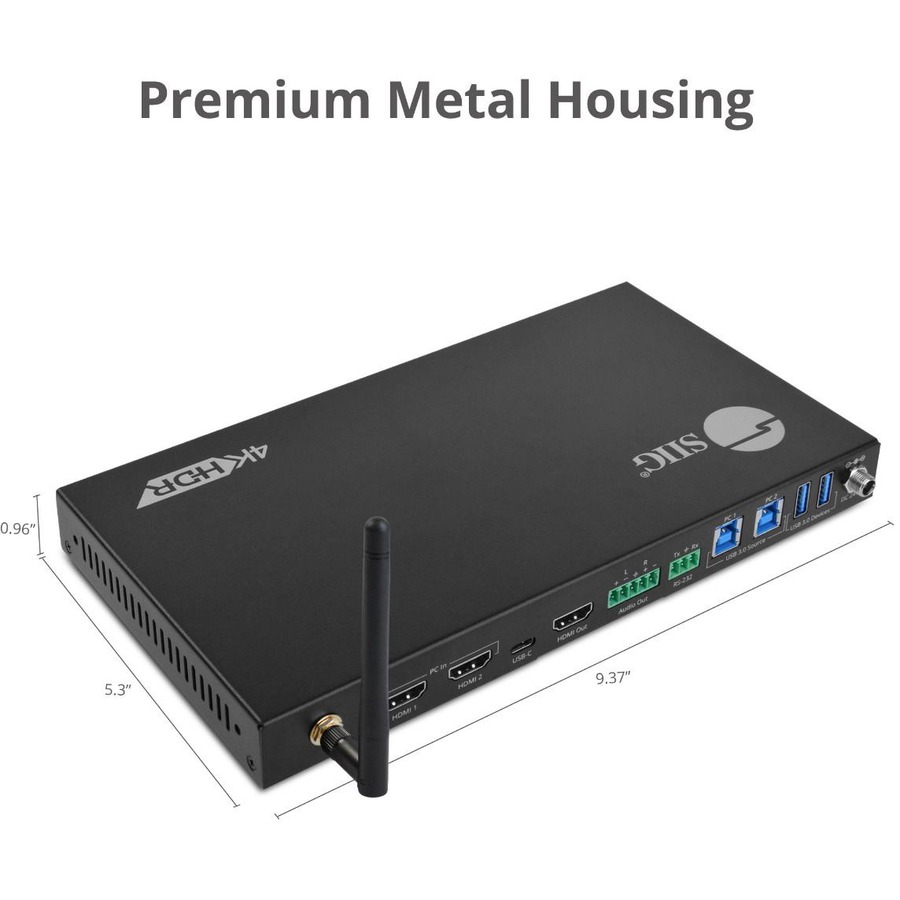

Height0.9"
Width5.3"
Depth9.3"
Graphics Modes4K
Environmentally FriendlyYes
Number of USB Ports6
Number of HDMI Inputs2
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Number of Displays Supported1
Number of Input Devices Supported4
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
