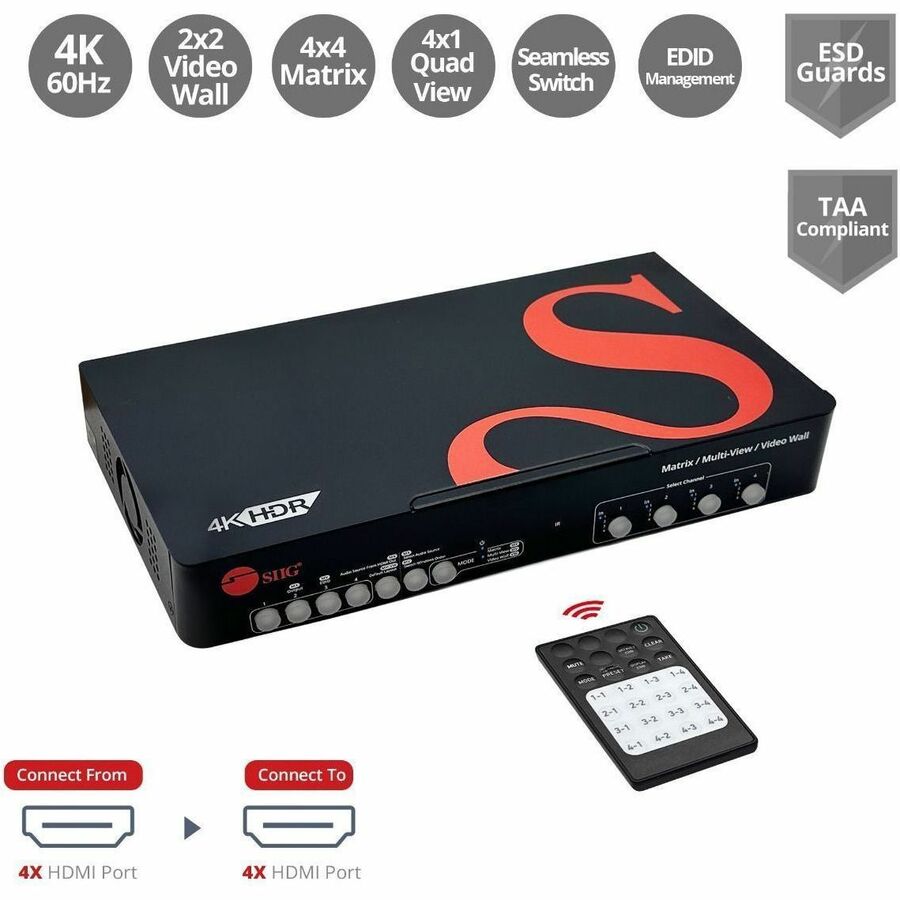

4x4 HDMI Matrix + Video Wall + Quad-Viewer Processor - 4K@60Hz HDR - HDCP 2.2 - Seamless Switching -1x2 / 1x3 / 1x4/ 2x1/ 2x2/ 3x1 and 4x1 Video Wall Modes - PIP and Five Quad-view Display Modes - EDID Management - Push Buttons - IR Remote Control - Software Control - TAA Compliant
$1,986.71
Special order — estimated available by September 10, 2026.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
4x4 HDMI Matrix + Video Wall + Quad-Viewer Processor, 4K@60Hz, HDCP 2.2, Seamless Switching, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1 and 4x1 Video Wall Modes, PIP and Five Quad-view Display Modes, EDID Management, Push Buttons, IR Remote Control, Software Control, TAA Compliant
Features 4X4 HDMI Seamless Switching Matrix
Allows any of 4 HDMI sources to be displayed on any of 4 HDMI displays, seamless switching ensures no switching delay and pictures loss during transitions
Video Wall Controller
Allows you to create a larger display by combining multiple displays, multiple video wall splicing modes include 1x2, 1x3, 1x4, 2x1, 2x2, 3x1 and 4x1, enjoy flexible display configurations, support image size and position adjustment through software for the splicing edge
Multi-Viewer
Multi-viewer mode can routes four ultra-high definition HDMI video sources to a single display at the same time, enhance your viewing experience with Picture-in-Picture (PIP) and five quad-view display mode options
High Performance
Immerse yourself in stunning visuals with support for the high resolutions including 4K@60Hz 4:4:4 8-bit HDR and 4K@60Hz 4:2:0 10-bit HDR, video bandwidth up to18 Gbps, HDCP 2.2 compliant
Multiple Control Options
Easily control via front panel buttons, IR remote control and software control through Micro-USB port
More from the Manufacturer
Overview
4x4 HDMI Matrix + Video Wall + Quad-Viewer Processor, 4K@60Hz, HDCP 2.2, Seamless Switching, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1 and 4x1 Video Wall Modes, PIP and Five Quad-view Display Modes, EDID Management, Push Buttons, IR Remote Control, Software Control, TAA Compliant

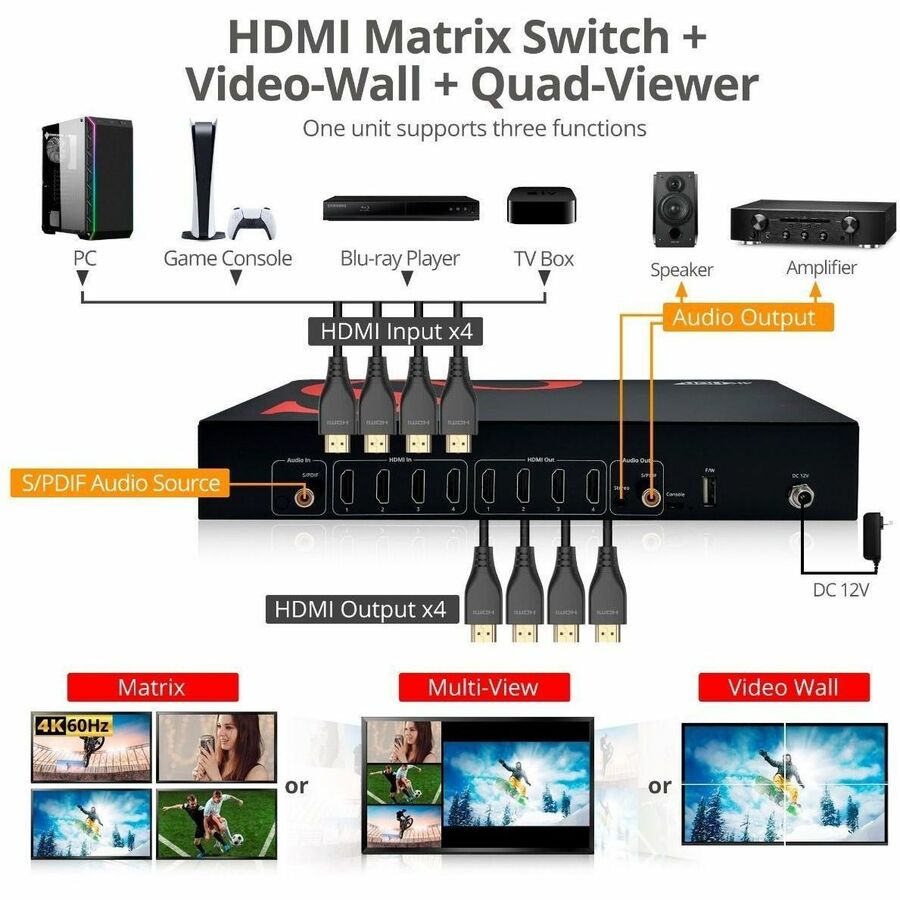

Note: One unit supports three functions, but only one function can be used at a time
Features
4X4 HDMI Seamless Switching Matrix
Allows any of 4 HDMI sources to be displayed on any of 4 HDMI displays, seamless switching ensures no switching delay and pictures loss during transitions
Video Wall Controller
Allows you to create a larger display by combining multiple displays, multiple video wall splicing modes include 1x2, 1x3, 1x4, 2x1, 2x2, 3x1 and 4x1, enjoy flexible display configurations, support image size and position adjustment through software for the splicing edge
Multi-Viewer
ulti-viewer mode can routes four ultra-high definition HDMI video sources to a single display at the same time, enhance your viewing experience with Picture-in-Picture (PIP) and five quad-view display mode options
High Performance
mmerse yourself in stunning visuals with support for the high resolutions including 4K@60Hz 4:4:4 8-bit HDR and 4K@60Hz 4:2:0 10-bit HDR, video bandwidth up to18 Gbps, HDCP 2.2 compliant
Multiple Control Options
Easily control via front panel buttons, IR remote control and software control through Micro-USB port
Simple and Easy to Understand Software Control Interface
Matrix / Quad-viewer and Video Wall Mode Settings
EDID and System Settings

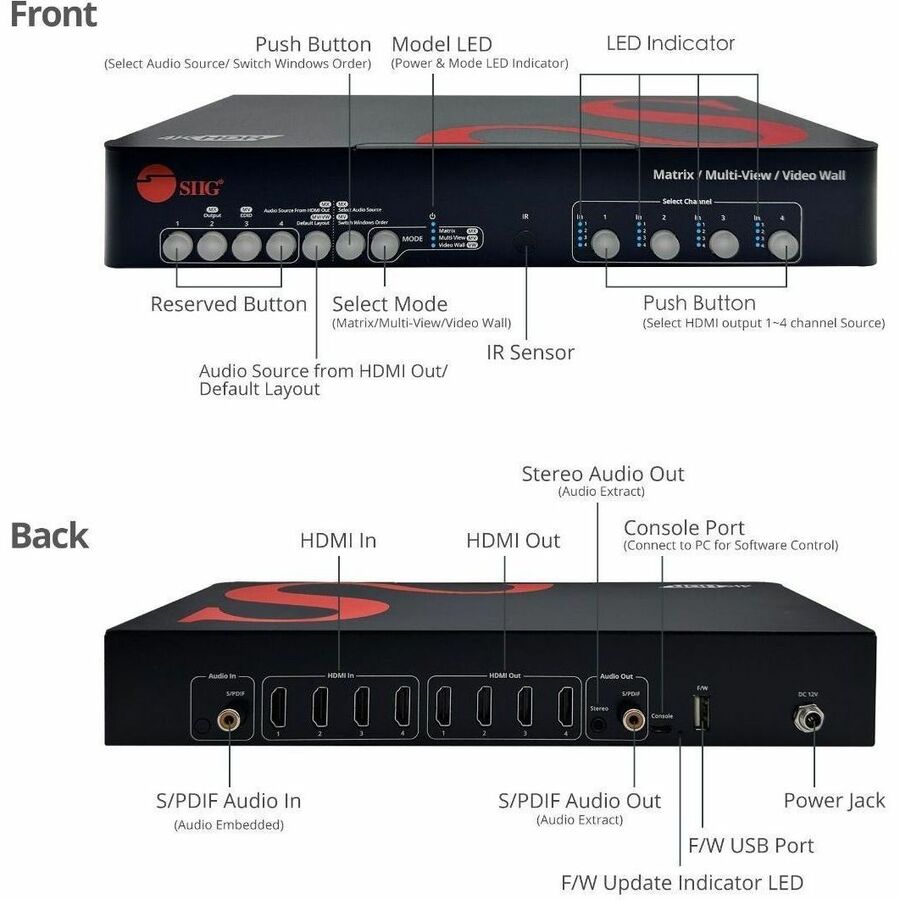

Multiple Connectivity Ports
Comes with four HDMI video input ports, four HDMI output ports, one S/PDIF audio in jack, one S/PDIF audio out jacks, one 3.5mm audio out jacks, one Micro USB for software control port, one USB-A for FW update port, four push buttons for reserved, three function buttons, four push buttons for video input selection or Select windows 1-4 source, one DC power jack (12V/3.33A)
EDID Management
Supports default HDMI EDID, learns the EDID of displays and user defined EDID, enhancing compatibility for a seamless experience, default EDID includes 4K@60 2ch, 4K@30 7.1ch, 1080p60 2ch, 1080p60 7.1ch
Audio Embedded and Audio Extract
Supports S/PDIF embedded, S/PDIF and 3.5mm stereo audio extract, 3.5mm supports 2ch, S/PDIF supports PCM 2.0, Dolby Digital, DTS. In addition, HDMI out support uncompressed 7.1ch & digital 7.1ch audio
Supports Firmware Upgrade
Firmware upgradable through USB drive for support of new features and technology enhancements
TAA Compliant
Completely manufactured in a TAA designed country
Limited Warranty: 3 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H27Q11-S1 |
| Brand Name | SIIG |
| Product Name | 4x4 HDMI 4K60Hz Matrix with Quad-Viewer & VideoWall |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Height | 1.7" |
| Width | 11.1" |
| Depth | 5.8" |
| Weight (Approximate) | 2.40 lb |
| Technical Information | |
| Number of Input Devices Supported | 4 |
| Device Supported | Display, Computer, Gaming Console, TV, Blu-ray Disc Player, Speaker |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Modes | 4K |
| Scan Format | 1080p |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
