SKU
AVS-HDMI2-8X8-R2
Category
Video Switchboxes
Overview

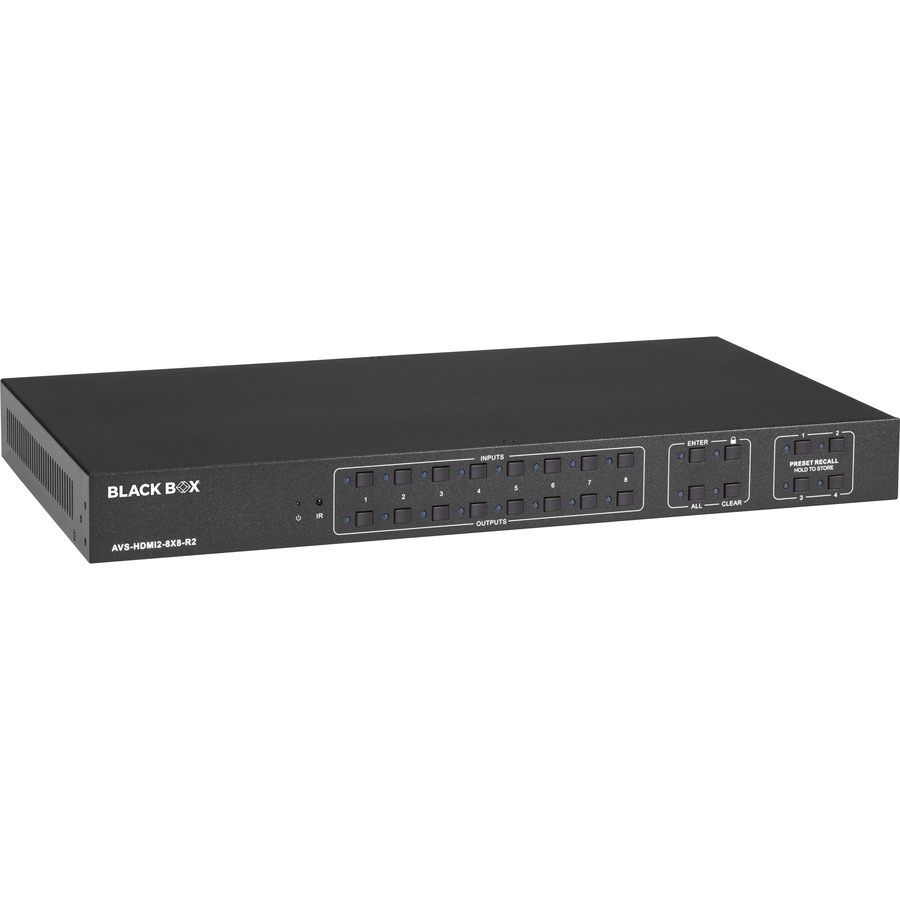

The Video Matrix Switch is a professional 4K HDMI 2.0 Matrix Switch with either 4 or 8 HDMI inputs, 4 or 8 HDMI outputs, and 4 or 8 SPDIF audio outputs. It is designed for switching HDMI 2.0 and HDCP 2.2 compliant signals. It also includes powerful EDID management to ensure reliable AV distribution and routing.
This capable switch supports 4K x 2K at 60 HZ 4:4:4 and 1080p 3D signals, and is compatible with HDMI 2.0, HDCP 2.2, and is backward compatible with the earlier versions. You can control the unit via the front panel, IR, RS-232, TCP/IP, and web-based GUI.
The matrix switch is designed to be the central component of an AV system. It is ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed.

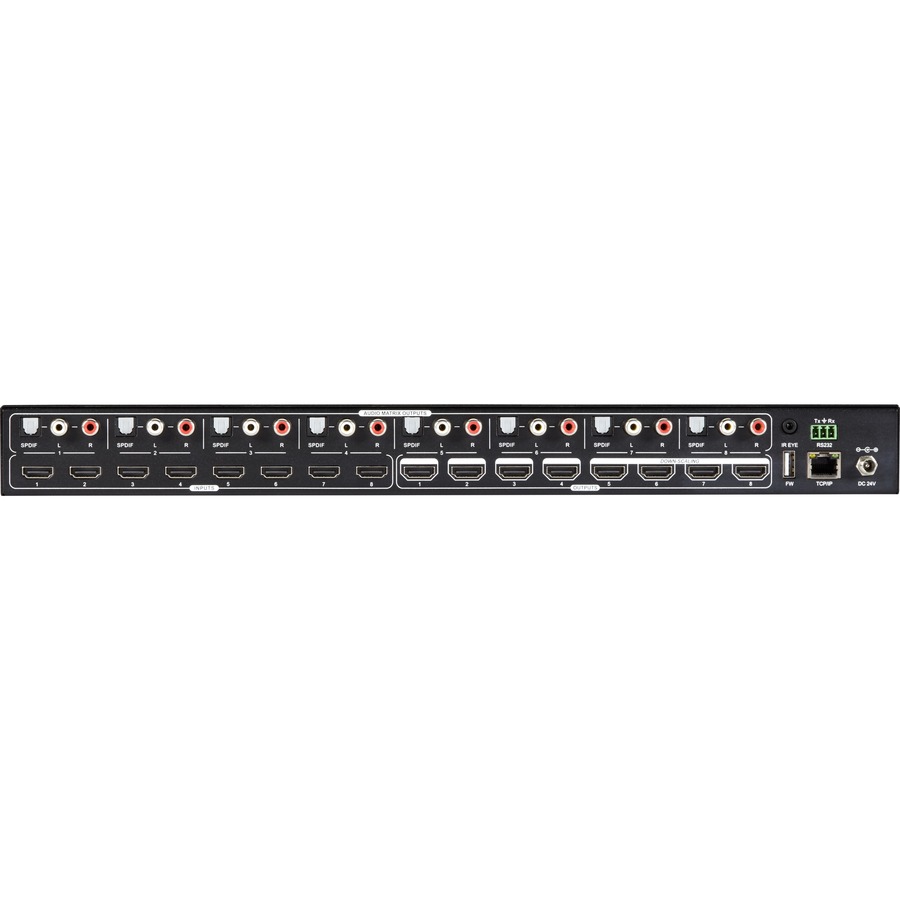

The switch supports audio via stereo audio ports, with ports for both L/R unbalanced audio as well as SPDIF.
Suitable for use with AOC cables (5V, 500mA, 2.5W).
Warranty
Limited Warranty: 3 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
SPDIF ports provide de-embedded HDMI audio output
Transmits 4K x 2K at 60 Hz 4:4:4 signal up to 16.4-ft via HDMI port
Provides powerful EDID management, built-in EDID can be invoked via DIP switch on rear panel, RS-232 common or web-based GUI

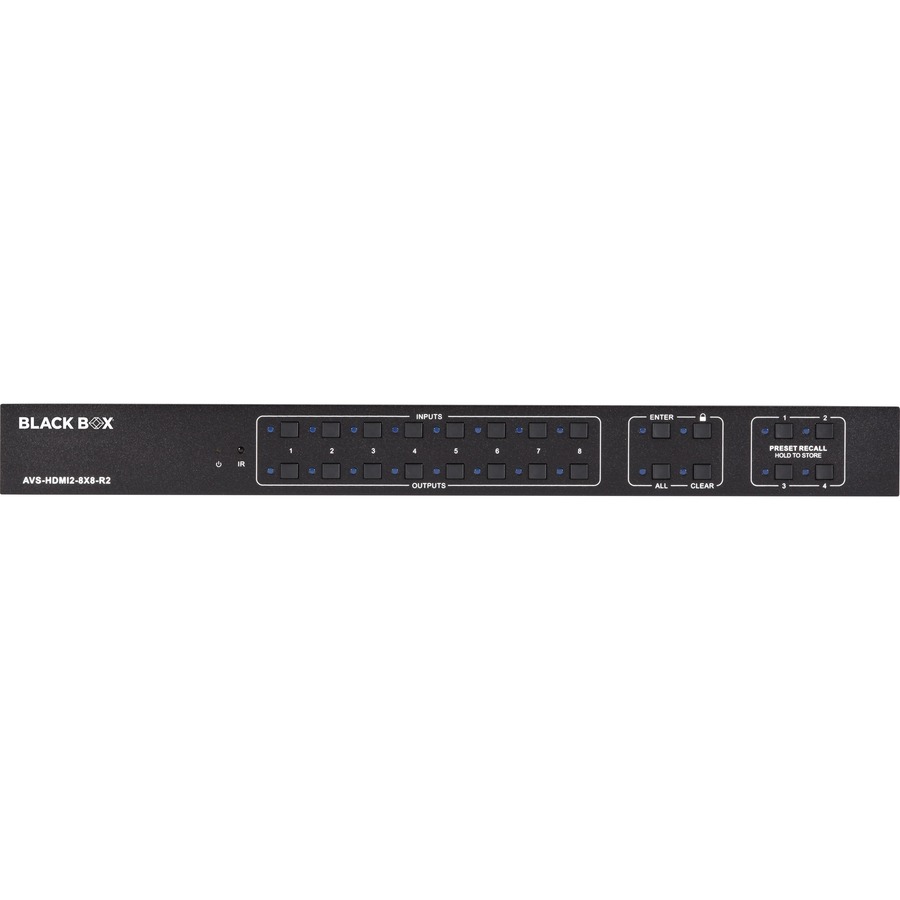

Controllable via front panel button, IR, RS232, TCP/IP or web-based GUI
LCD screen shows real-time I/O connection status
Convenient firmware upgrade through micro USB port
Easy installation with rackmounting design
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
AVS-HDMI2-8X8-R2
Brand Name
Black Box
Product Name
Video Matrix Switcher - HDMI 2.0
Packaged Quantity
1
Product Type
Audio/Video Switchbox
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
USB
Yes
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
1
Number of USB Ports
1
Number of HDMI Inputs
8
Number of HDMI Outputs
8
Media & Performance
Media Type Supported
Twisted Pair
Maximum Operating Distance
49.21 ft
Physical Characteristics
Form Factor
Rack-mountable
Height
1.7"
Width
17.2"
Depth
9.3"
Weight (Approximate)
6.61 lb
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
8
Device Supported
Display
Number of Displays Supported
8
Video
Graphics Modes
4K
Warranty
Limited Warranty
3 Year
Miscellaneous

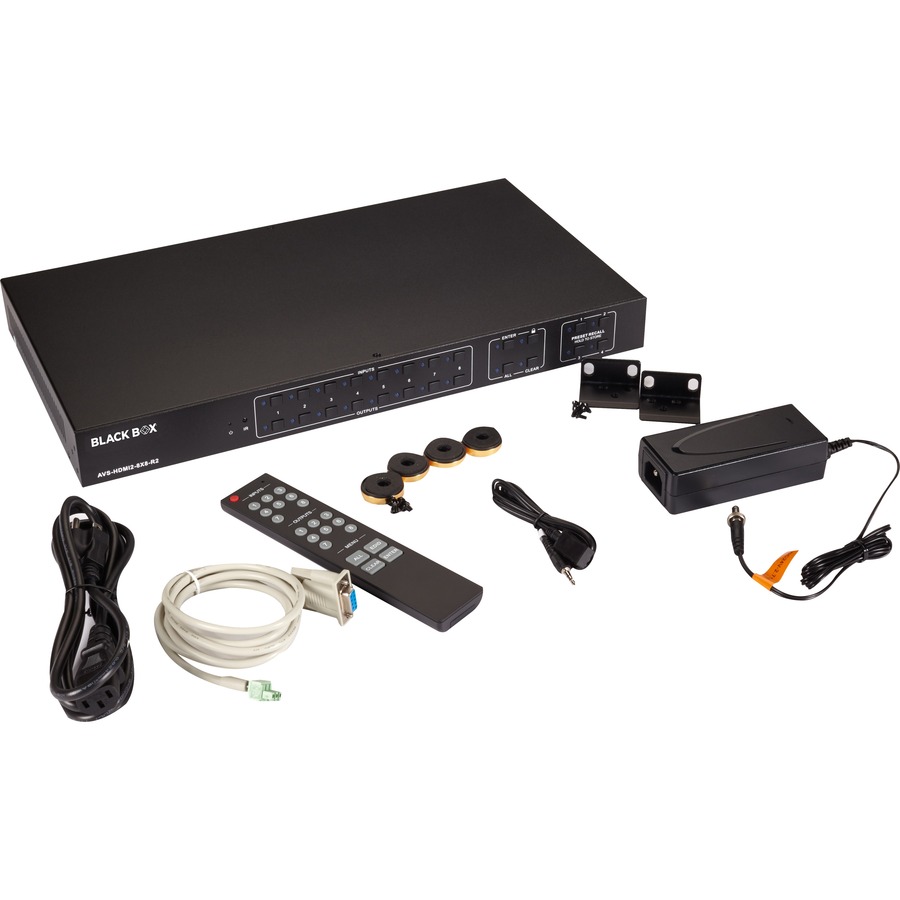

Package Contents
Video Matrix Switcher - HDMI 2.0
1 x IR Remote
1 x IR Receiver
1 x Power Adapter
1 x RS-232 Cable (3-pin to DB9)
2 x Mounting Ears
6 x Screws
4 x Plastic Cushions
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
