12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - JBOD RAID Level - 4 x4 SFF-8654 - 16 Total SAS Port(s) - 16 SAS Port(s) Internal - PC, Linux - Windows 10, Windows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, ... Supported Operating System
SKU
Category
SCSI/RAID Controllers
$1,899.85
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Lenovo through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
SCSI/RAID Controllers
Overview

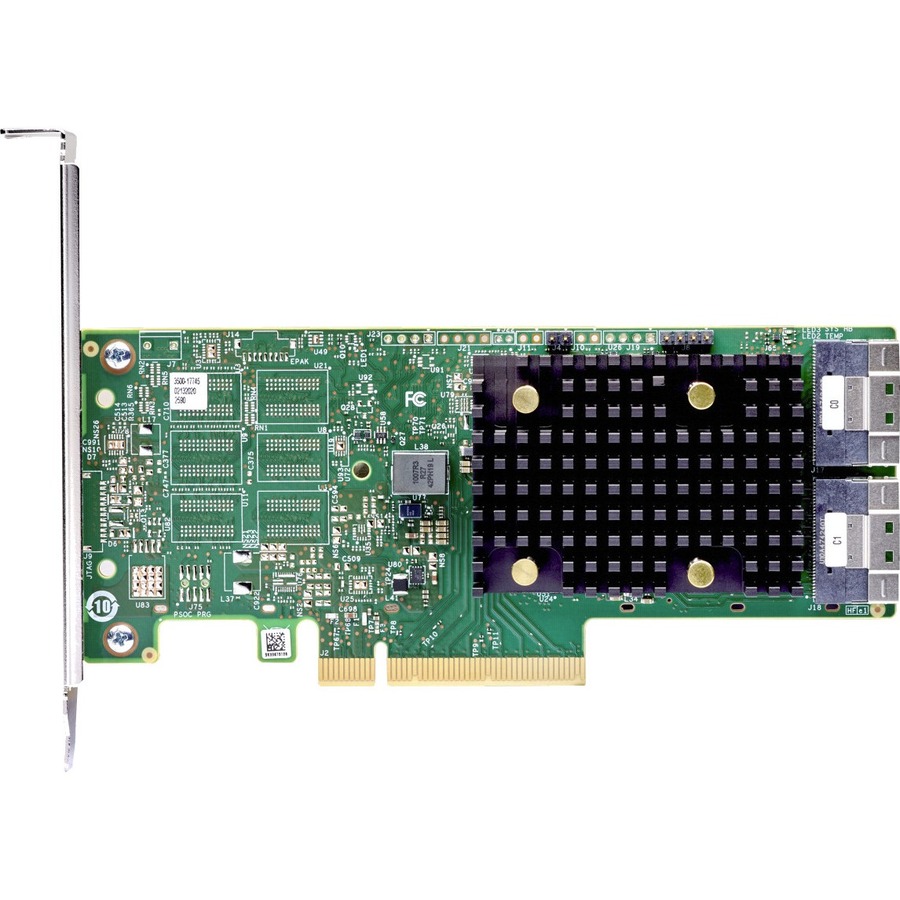

The ThinkSystem 440-8i and 440-16i SAS/SATA PCIe Gen4 12Gb HBAs are high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. The adapters integrate the latest enhancements SAS technology and offer 8 or 16 lanes of 12 Gbps SAS. The adapters are available in two form factors, low-profile PCIe and a custom form-factor design. The custom design adapter is cabled to an onboard PCIe 4.0 x8 port on the server and not occupy a standard PCIe slot.
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
SAS Controller offers maximum storage efficiency and convenience
12Gb/s SAS controller type allows safe and productive storage expandability with maximum reliability
JBOD RAID level for better cost-effectiveness and easy implementation with minimal effort required
Server device support for dependable storage expansion with optimal data transfer speed
Windows 10 OS support offers higher security with increased encryption options to better accommodate your needs
PCI Express 4.0 x8 host interface for reliable data transfer and enhanced performance
Plug-in Card form factor for added reliability and dependability
SAS Controller has a non-volatile memory which is beneficial for your PC storage expansion needs
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
4Y37A78602
Brand Name
Lenovo
Product Model
440-16i
Product Name
ThinkSystem 440-16i SAS/SATA PCIe Gen4 12Gb HBA
Product Type
SAS Controller
Interfaces/Ports
Total Number of SAS Ports
16
Number of SAS Ports (Internal)
16
SAS Connector Details
4 x4 SFF-8654
Physical Characteristics
Form Factor
Plug-in Card
Technical Information
Host Interface
PCI Express 4.0 x8
Controller Type
12Gb/s SAS
RAID Supported
No
RAID Levels
JBOD
Device Supported
Server
Operating System Supported
Windows 10, Windows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SuSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP4, Ubuntu 18.04.5 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 LTS, VMware ESXi 6.7, VMware ESXi 6.7 U1, VMware ESXi 6.7 U2, VMware ESXi 6.7 U3, VMware ESXi 7.0 U1, VMware ESXi 7.0 U2, VMware ESXi 7.0 U3
