12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - JBOD RAID Level - 2x Mini-SAS HD SFF8644 - 2 Total SAS Port(s) - 2 SAS Port(s) External - PC, Linux - Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 8.7, Red Hat Enterprise Linux 9.0, ...
SKU
Category
SCSI/RAID Controllers
$1,090.36
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Lenovo through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
SCSI/RAID Controllers
Overview

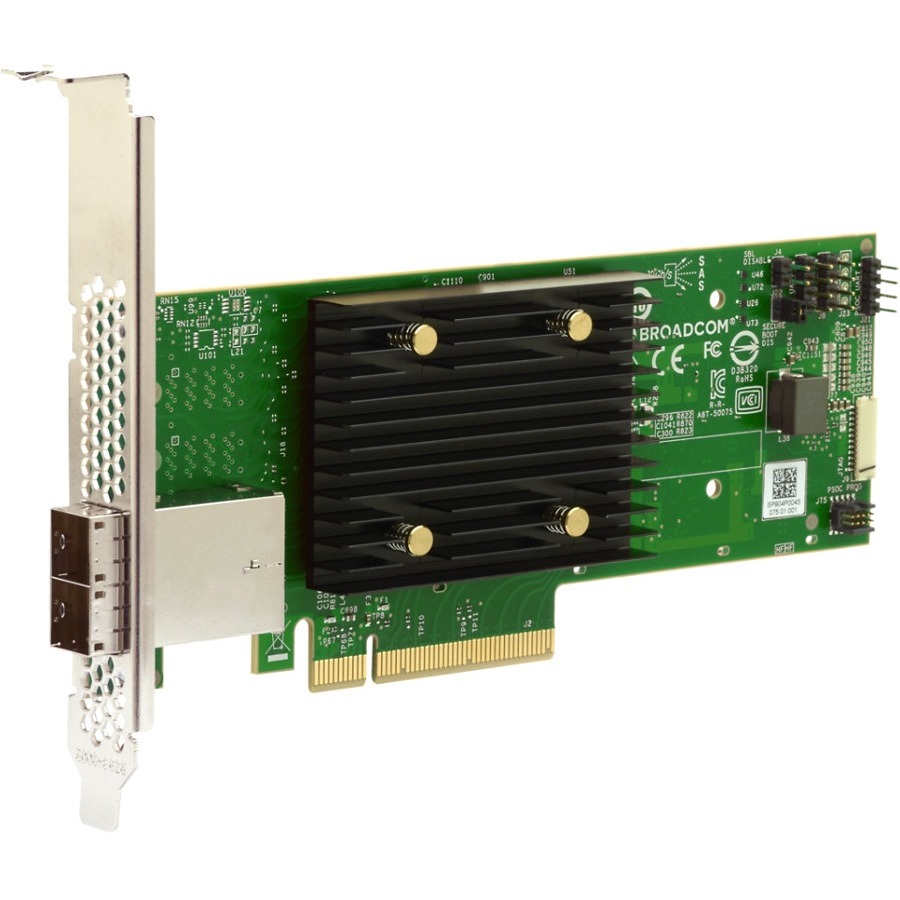

The Lenovo ThinkSystem 440-8e and 440-16e SAS/SATA 12Gb HBAs are high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapters provide either two or four x4 external mini-SAS HD connectors to provide connectivity to external storage devices such as ThinkSystem DE Series storage and LTO9 tape drives.
Warranty
Additional Warranty Information: The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapters assume the server's base warranty and any warranty service upgrade. Limited Warranty: 1 Year
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
SAS Controller is the single answer to all your desired storage needs
12Gb/s SAS controller type for faster, efficient data transfer rates with maximum dependability
JBOD RAID level for faster, dependable read and write performance for maximum storage productivity
Server device support for enhanced storage efficiency and productive data transfer capability
Windows Server 2019 OS support has improved security features for better reliance
The PCI Express 4.0 x8 interface provides smooth data transfer and outstanding performance
No cache memory for dependable, fast retrieval of information to ensure maximum convenience and usability
Plug-in Card form factor for added reliability and dependability
SAS Controller has a non-volatile memory which is beneficial for your PC storage expansion needs
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
4Y37A78837
Brand Name
Lenovo
Product Model
440-8e
Product Name
ThinkSystem 440-8e SAS/SATA PCIe Gen4 12Gb HBA
Product Type
SAS Controller
Interfaces/Ports
Total Number of SAS Ports
2
Number of SAS Ports (External)
2
SAS Connector Details
2x Mini-SAS HD SFF8644
Memory
Cache Memory
No
Physical Characteristics
Form Factor
Plug-in Card
Technical Information
Host Interface
PCI Express 4.0 x8
Controller Type
12Gb/s SAS
RAID Supported
No
RAID Levels
JBOD
Device Supported
Server
Operating System Supported
Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 8.7, Red Hat Enterprise Linux 9.0, Red Hat Enterprise Linux 9.1, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, Ubuntu 22.04 LTS, Windows Server 2016, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 8, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2
Warranty
Limited Warranty
1 Year
Additional Warranty Information
The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapters assume the server's base warranty and any warranty service upgrade.
Miscellaneous
Package Contents
ThinkSystem 440-8e SAS/SATA PCIe Gen4 12Gb HBA
Adapter with a Full-height (3U) Bracket Attached
Low-profile (2U) Bracket
Documentation Flyer
Platform Supported
PC, Linux
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
