12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - JBOD RAID Level - Four external x4 HD Mini-SAS connectors (SFF-8644) - 4 Total SAS Port(s) - 4 SAS Port(s) External
SKU
Category
SCSI/RAID Controllers
$1,407.26
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Lenovo through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
SCSI/RAID Controllers
Overview

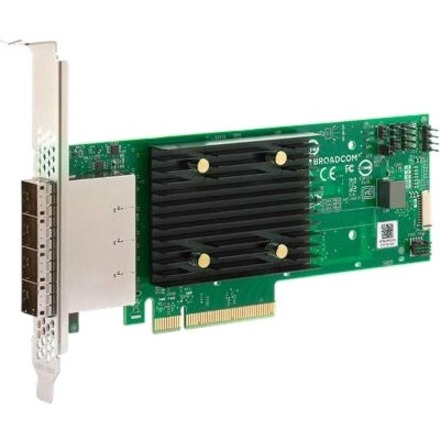

The Lenovo ThinkSystem 440-16e SAS/SATA 12Gb HBA is a high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapter provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.
Warranty
Limited Warranty: 1 Year
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
PCIe 4.0 x8 host interface
12Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3816 IOC design
PCI low profile, half-length form factor
16x 12Gbps SAS/SATA ports for connectivity to 16x internal drives
Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs
Connectivity for up to 1024 external SAS or SATA drives
Up to 12 Gbps throughput per port: Supports 12, 6, or 3 Gbps SAS speeds, Supports 6 or 3 Gbps SATA speeds
Four external x4 HD Mini-SAS connectors (SFF-8644)
Support for external storage systems and tape backup units
High performance architecture with very deep queue depth
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
4Y37A09724
Brand Name
Lenovo
Product Model
440-16e
Product Name
ThinkSystem 440-16e SAS/SATA PCIe Gen4 12Gb HBA
Product Type
SAS Controller
Interfaces/Ports
Total Number of SAS Ports
4
Number of SAS Ports (External)
4
SAS Connector Details
Four external x4 HD Mini-SAS connectors (SFF-8644)
Memory
Cache Memory
No
Physical Characteristics
Form Factor
Plug-in Card
Technical Information
Host Interface
PCI Express 4.0 x8
Controller Type
12Gb/s SAS
RAID Supported
No
RAID Levels
JBOD
Device Supported
Server
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
ThinkSystem 440-16e SAS/SATA PCIe Gen4 12Gb HBA
Adapter with a Full-height (3U) Bracket Attached
Low-profile (2U) Bracket
Documentation Flyer
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
