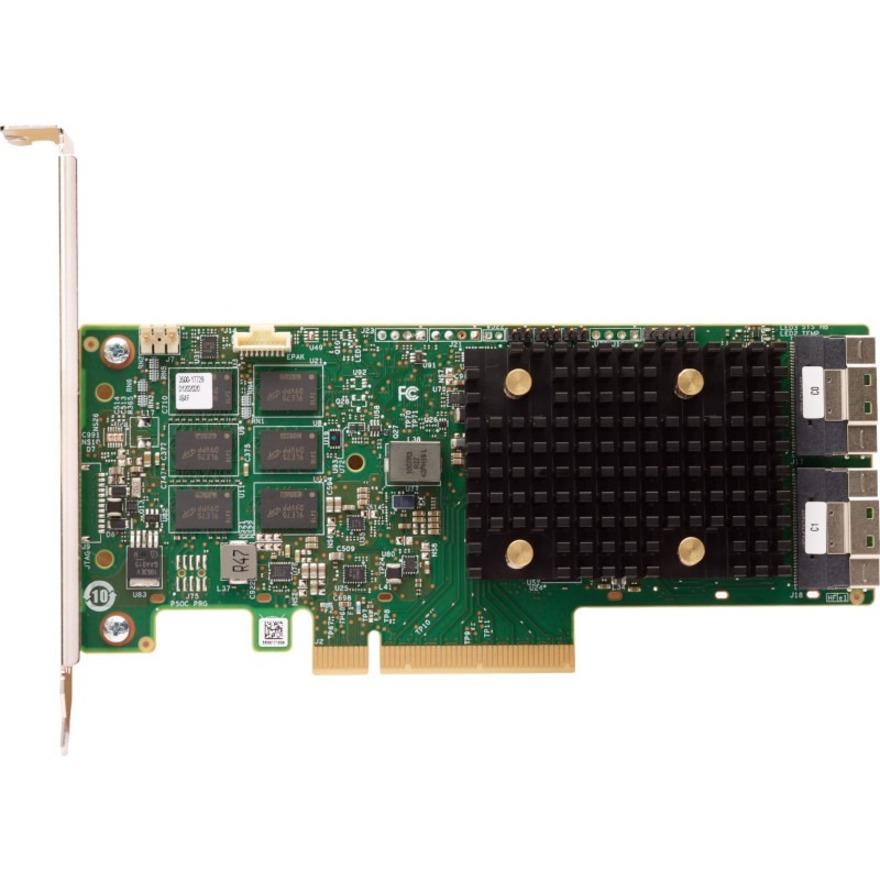

Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Internal Adapter
Lenovo

Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Internal Adapter

12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Level - Four x8 SFF-8654 - 16 Total SAS Port(s) - 16 SAS Port(s) Internal - 8 GB Flash Backed Cache

SKU
4Y37A09735
Category
SCSI/RAID Controllers

$5,370.59

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4Y37A09735
Category
SCSI/RAID Controllers

Overview

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.

Highlights

  • SAS Controller offers maximum storage efficiency and convenience
  • 12Gb/s SAS controller type for maximum storage expansion efficiency and optimal usability
  • 0 RAID level for easy, convenient configuration and better fault tolerance and redundancy
  • Windows Server 2016 OS support has improved security features for better reliance
  • The PCI Express 4.0 x8 interface provides smooth data transfer and outstanding performance
  • Flash Backed Cache data backup type effectively restores and saves your valuable data in case of system damage
  • 8 GB cache memory for convenient and quick access to the information to ensure maximum productivity
  • Plug-in Card form factor for your convenience and simplicity of usage

Specifications

Additional Warranty InformationThe adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades.
Host InterfacePCI Express 4.0 x8
Product TypeSAS Controller
Device SupportedServer
Manufacturer Part Number4Y37A09735
Limited Warranty1 Year
Form FactorPlug-in Card
ManufacturerLenovo Group Limited
Product Model940-16i
Product NameThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Internal Adapter
RAID Levels0, 1, 5, 6, 10, 50, 60, JBOD
Controller Type12Gb/s SAS
Product Series940
Brand NameLenovo
Operating System SupportedWindows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 12 SP5, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Environmentally FriendlyYes
RAID SupportedYes
Data Backup TypeFlash Backed Cache
Total Number of SAS Ports16
Number of SAS Ports (Internal)16
SAS Connector DetailsFour x8 SFF-8654
Cache Memory8 GB
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
