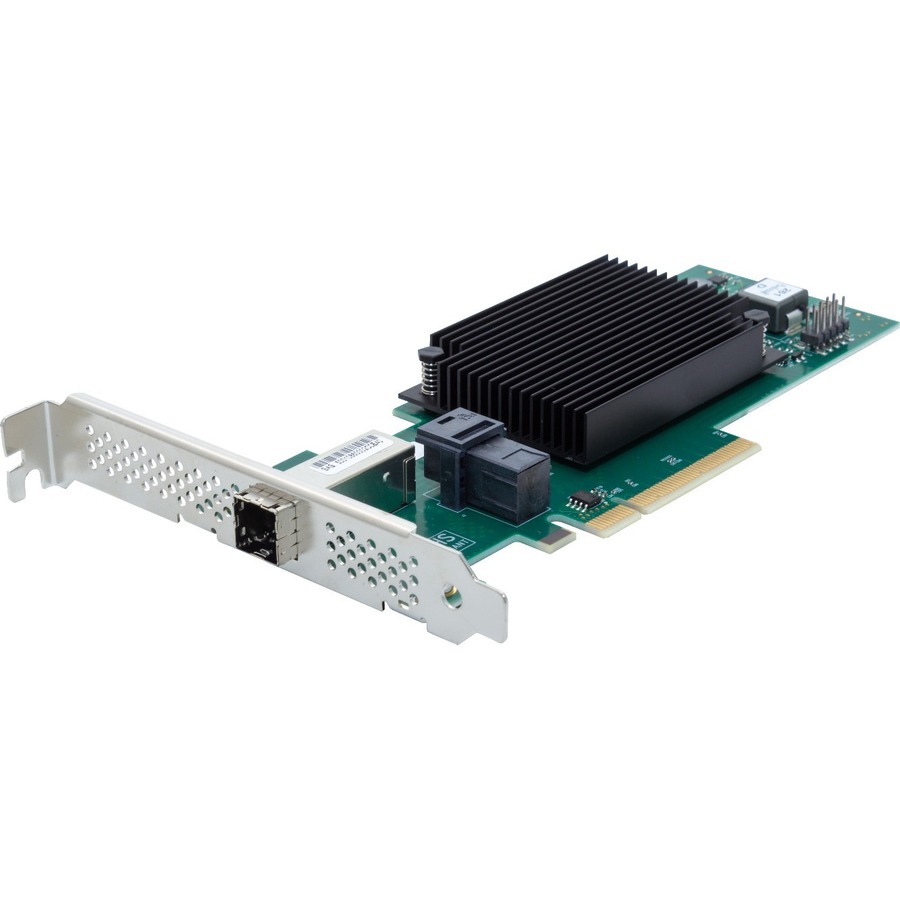

ATTO 4-Port External 4-Port Internal 12Gb/s SAS/SATA to PCIe 4.0 Host Bus Adapter
12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - 1 Mini SAS HD (x4) SFF 8644 External, 1 Mini SAS HD (x4) SFF 8643 Internal - 8 Total SAS Port(s) - 4 SAS Port(s) Internal - 4 SAS Port(s) External - PC, Mac, Linux
Genuine Atto Technology through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
SCSI/RAID Controllers
Overview
ATTO ExpressSAS® GT adapters prepare your workflow for the next evolution in PCIe 4.0 computing solutions. With extensive testing and qualifications, GT adapters performs flawlessly in transactional environments such as enterprise data center, business analytics, cloud computing, digital forensics, database applications, video on demand, broadcast and financial trading systems.
Warranty
Limited Warranty: 3 Year
Highlights
SAS Controller is the single answer to all your desired storage needs
12Gb/s SAS controller type for maximum storage expansion efficiency and optimal usability
Server device support for dependable storage expansion with optimal data transfer speed
Windows OS support offers a reliable and simplified user-interface
PCI Express 4.0 x8 host interface for reliable data transfer and enhanced performance
Plug-in Card form factor for added reliability and dependability
SAS Controller allows Mac apps to load much faster and without slowing down to ensure maximum productivity
Specifications
General Information
Manufacturer
Atto Technology
Manufacturer Part Number
ESAH-1244-GT0
Brand Name
ATTO
Product Line
ExpressSAS
Product Model
ESAH-1244-GT0
Product Name
4-Port External 4-Port Internal 12Gb/s SAS/SATA to PCIe 4.0 Host Bus Adapter
Product Type
SAS Controller
Interfaces/Ports
Total Number of SAS Ports
8
Number of SAS Ports (Internal)
4
Number of SAS Ports (External)
4
SAS Connector Details
1 Mini SAS HD (x4) SFF 8644 External, 1 Mini SAS HD (x4) SFF 8643 Internal
Physical Characteristics
Form Factor
Plug-in Card
Height
2.7"
Length
6.6"
Technical Information
Host Interface
PCI Express 4.0 x8
Controller Type
12Gb/s SAS
Device Supported
Storage System, Server
Operating System Supported
Windows, Linux, FreeBSD OS, illumos, macOS, Windows Server, SuSE Linux Enterprise Server, Red Hat Enterprise Linux, CentOS, Fedora
