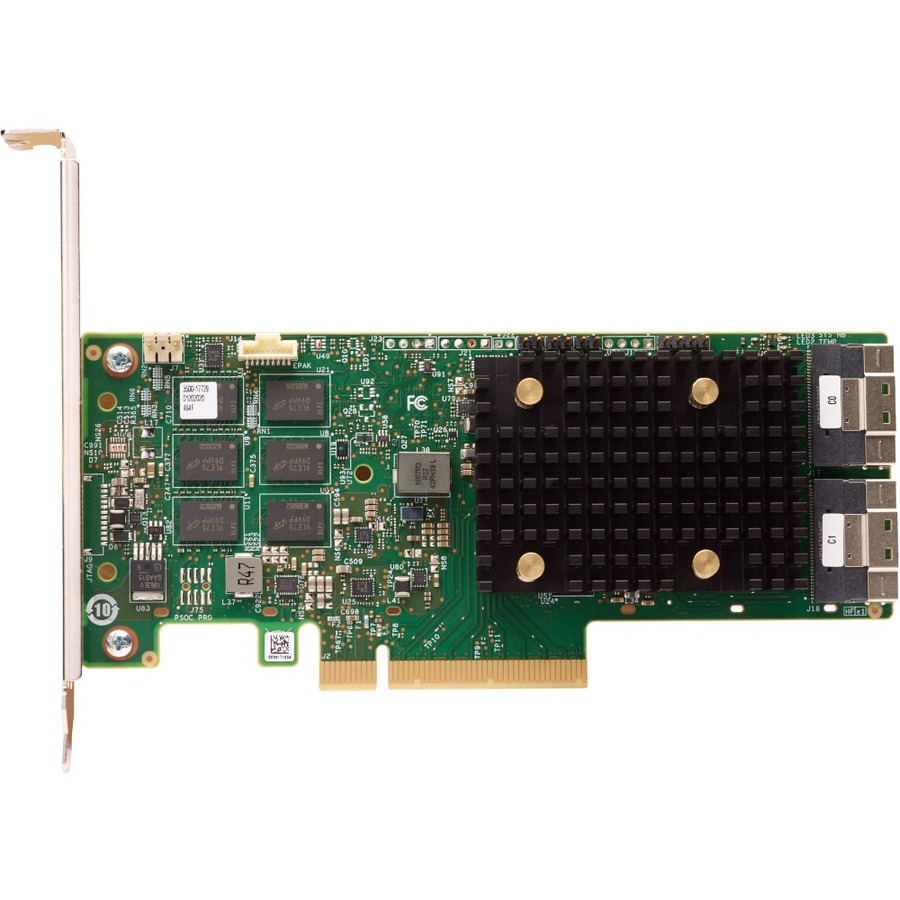

Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter
12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Level - Two x8 SFF-8654 - 16 Total SAS Port(s) - 16 SAS Port(s) Internal - PC - 8 GB Flash Backed Cache
- SKU
- 4Y37A09730
- Category
- SCSI/RAID Controllers
$6,101.95
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4Y37A09730
- Category
- SCSI/RAID Controllers
Overview
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
Highlights
- SAS Controller offers maximum storage efficiency and convenience
- 12Gb/s SAS controller type for faster, efficient data transfer rates with maximum dependability
- 0 RAID level for faster, dependable read and write performance for maximum storage productivity
- Windows Server 2016 OS support has improved security features for better reliance
- The PCI Express 4.0 x8 interface provides smooth data transfer and outstanding performance
- Flash Backed Cache data backup type effectively restores and saves your valuable data in case of system damage
- 8 GB cache memory makes data and information immediately available for your convenience to ensure maximum efficiency
- Plug-in Card form factor for your convenience and simplicity of usage
- SAS Controller provides an affordable storage expansion solution for your PC
Specifications
| Additional Warranty Information | The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades. |
|---|---|
| Host Interface | PCI Express 4.0 x8 |
| Product Type | SAS Controller |
| Device Supported | Server |
| Manufacturer Part Number | 4Y37A09730 |
| Platform Supported | PC |
| Limited Warranty | 1 Year |
| Form Factor | Plug-in Card |
| Manufacturer | Lenovo Group Limited |
| Product Model | RAID 940-16i |
| Product Name | ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Brand Name | Lenovo |
| Operating System Supported | Windows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.5, SuSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP4, VMware ESXi 7.0 U3, VMware ESXi 7.0 U2, VMware ESXi 7.0 U1, VMware ESXi 6.7 U3, VMware ESXi 6.7 U2, VMware ESXi 6.7 U1, VMware ESXi 6.7, Red Hat Enterprise Linux 8 |
| Environmentally Friendly | Yes |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | Two x8 SFF-8654 |
| Cache Memory | 8 GB |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
