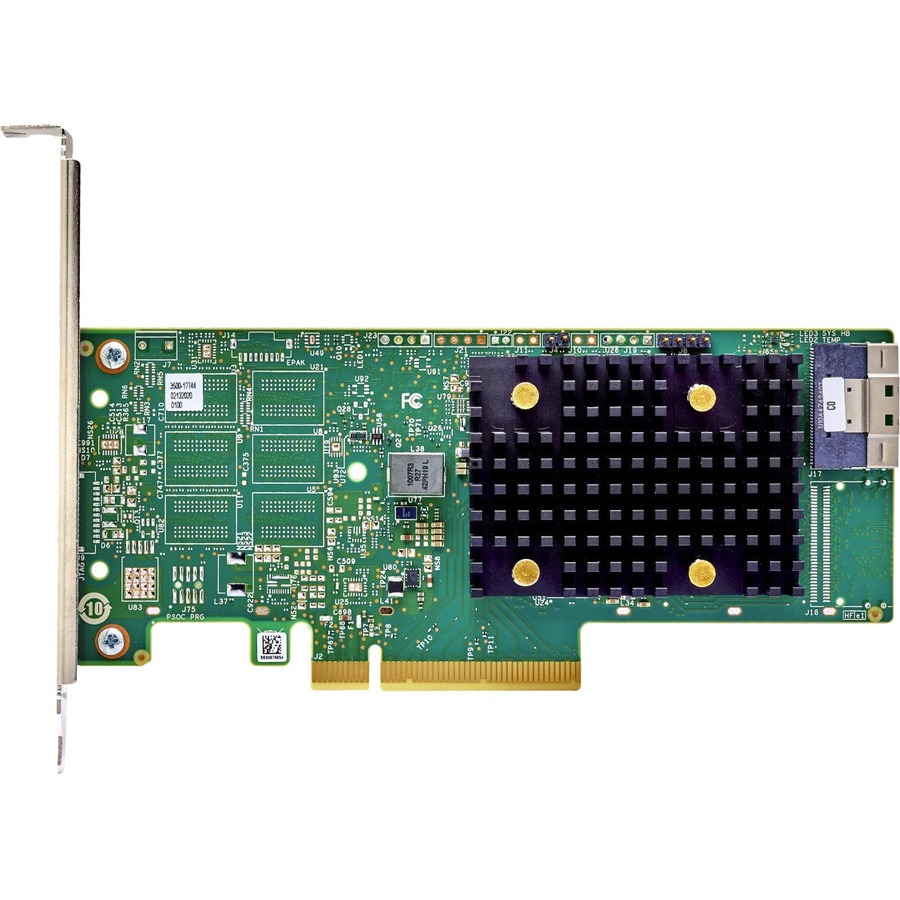

Lenovo ThinkSystem 440-8i SAS/SATA PCIe Gen4 12Gb HBA
Lenovo

Lenovo ThinkSystem 440-8i SAS/SATA PCIe Gen4 12Gb HBA

12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - JBOD RAID Level - 2 x4 SFF-8654 - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux

SKU
4Y37A78601
Category
SCSI/RAID Controllers

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4Y37A78601
Category
SCSI/RAID Controllers

Overview

The ThinkSystem 440-8i and 440-16i SAS/SATA PCIe Gen4 12Gb HBAs are high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. The adapters integrate the latest enhancements SAS technology and offer 8 or 16 lanes of 12 Gbps SAS. The adapters are available in two form factors, low-profile PCIe and a custom form-factor design. The custom design adapter is cabled to an onboard PCIe 4.0 x8 port on the server and not occupy a standard PCIe slot.

Highlights

  • SAS Controller is the single answer to all your desired storage needs
  • 12Gb/s SAS controller type for maximum storage expansion efficiency and optimal usability
  • JBOD RAID level for easy, convenient configuration and better fault tolerance and redundancy
  • Windows 10 OS support offers a reliable and simplified user-interface
  • PCI Express 4.0 x8 host interface for reliable data transfer and enhanced performance
  • Plug-in Card form factor for your convenience and simplicity of usage
  • SAS Controller allows quick retrieval of data files with maximum efficiency

Specifications

Host InterfacePCI Express 4.0 x8
Product TypeSAS Controller
Device SupportedServer
Manufacturer Part Number4Y37A78601
Platform SupportedPC, Linux
Form FactorPlug-in Card
ManufacturerLenovo Group Limited
Product Model440-8i
Product NameThinkSystem 440-8i SAS/SATA PCIe Gen4 12Gb HBA
RAID LevelsJBOD
Controller Type12Gb/s SAS
Brand NameLenovo
Operating System SupportedWindows 10, Windows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SuSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP4, Ubuntu 18.04.5 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 LTS, VMware ESXi 6.7, VMware ESXi 6.7 U1, VMware ESXi 6.7 U2, VMware ESXi 6.7 U3, VMware ESXi 7.0 U1, VMware ESXi 7.0 U2, VMware ESXi 7.0 U3
RAID SupportedNo
Total Number of SAS Ports8
Number of SAS Ports (Internal)8
SAS Connector Details2 x4 SFF-8654
