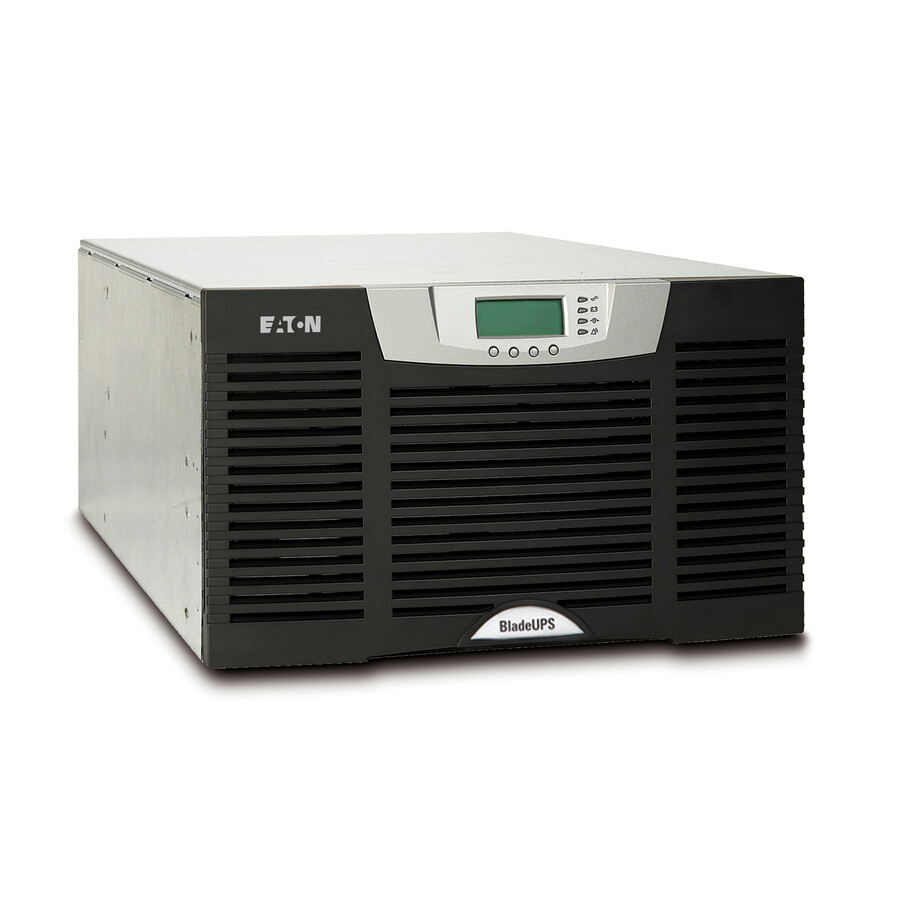

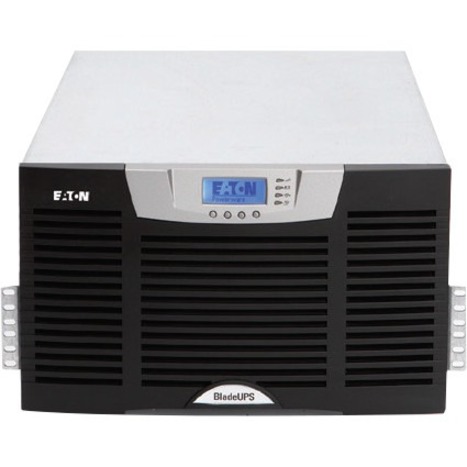

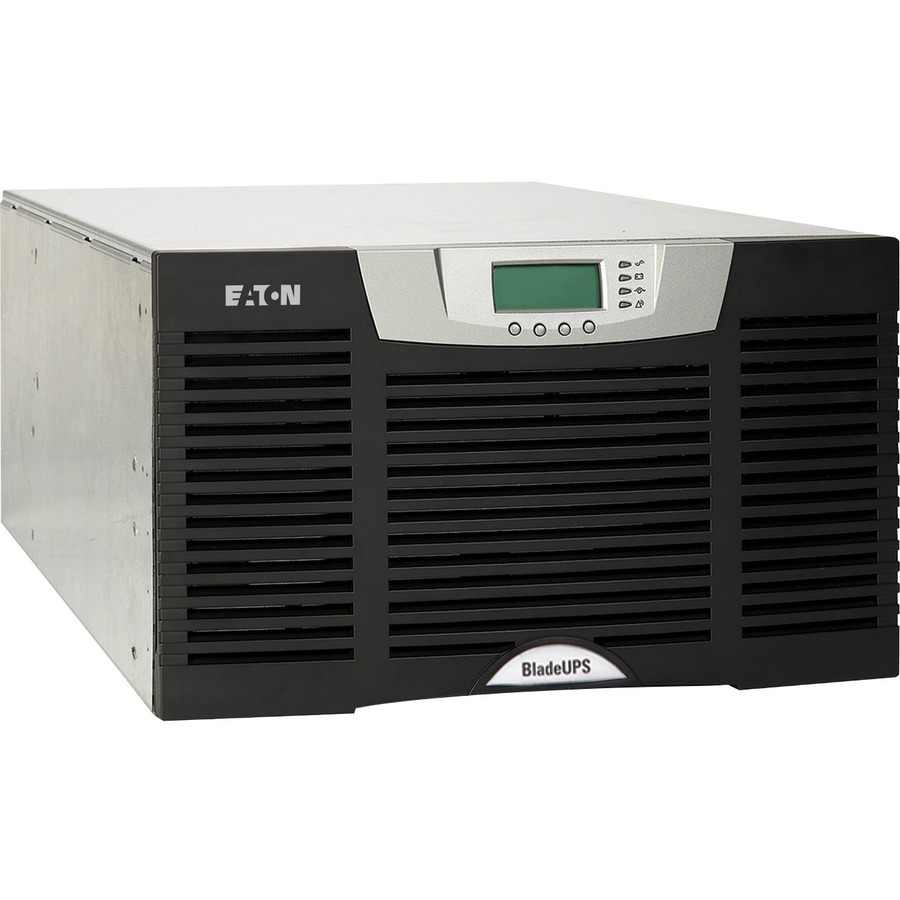

Eaton BladeUPS 24kW Rack-mountable UPS

19" Rack-mountable - 230 V AC Input - 208 V AC, 120 V AC Output - 1 x Hardwired Receptacle(s)

SKU: ZP222150XXXX100
Category: General Purpose UPS

MSRP$46,500.00

$37,741.93

Save 19%

Back ordered

Back ordered — ships when restocked.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: ZP222150XXXX100
Category: General Purpose UPS

Overview

Rackmount UPS

The Eaton BladeUPS is a revolutionary power quality solution that is scalable and modular. BladeUPS rackmount uninterruptible power supply expands power protection from 8 to 60 kW in a single 19-inch rack while reducing energy and cooling costs.

Eaton also offers BladeUPS Preassembled Systems , the same great product, just simplified. All you have to do is bring power to the unit and perform the simple start-up procedure. Top and bottom entry models are available.

Warranty

Limited Warranty: 1 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
24 kW load capacity - backup power for your valuable electronics
Hardwired receptacle type provides secure, reliable connection with added productivity
230 V AC input voltage for optimal performance with maximum usability
208 V AC output voltage for better reliance and maximum usability
Rack-mountable double conversion online ups allows a clutter-free, convenient usage with increased efficiency

Specifications

Package Contents	BladeUPS 24kW Rack-mountable UPS 1 x S-Series Rack on a heavy-duty shipping pallet with unloading ramp BladeUPS parallel bar and wireway 2 x BladeUPS modules installed in rack Intelligent Power Software CD BladeUPS Installation and User manual Rack hardware kit Front and rear rack aesthetic plates Installed 1 x WEB/SNMP/ModBus TCP - Power Xpert UPS card Comm card quick start guide Serial configuration cable USB Installed 1 x Maintenance Bypass Module
Product Type	Double Conversion Online UPS
Input Voltage	230 V AC
Manufacturer Part Number	ZP222150XXXX100
Limited Warranty	1 Year
Output Voltage	208 V AC, 120 V AC
Weight (Approximate)	1070 lb
Form Factor	Rack-mountable
Manufacturer	Eaton Corporation
Product Name	BladeUPS 24kW Rack-mountable UPS
Product Line	BladeUPS
Rack Height	19"
Brand Name	Eaton
Country of Origin	United States
Height	81.02"
Width	24.02"
Depth	42.01"
Receptacle Type	Hardwired
Environmentally Friendly	Yes
Load Capacity (Watt)	24 kW
Receptacle Detail	1 x Hardwired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
