1000VA/600W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
MSRP$579.95
$550.20
Save 5%In stock: 12
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

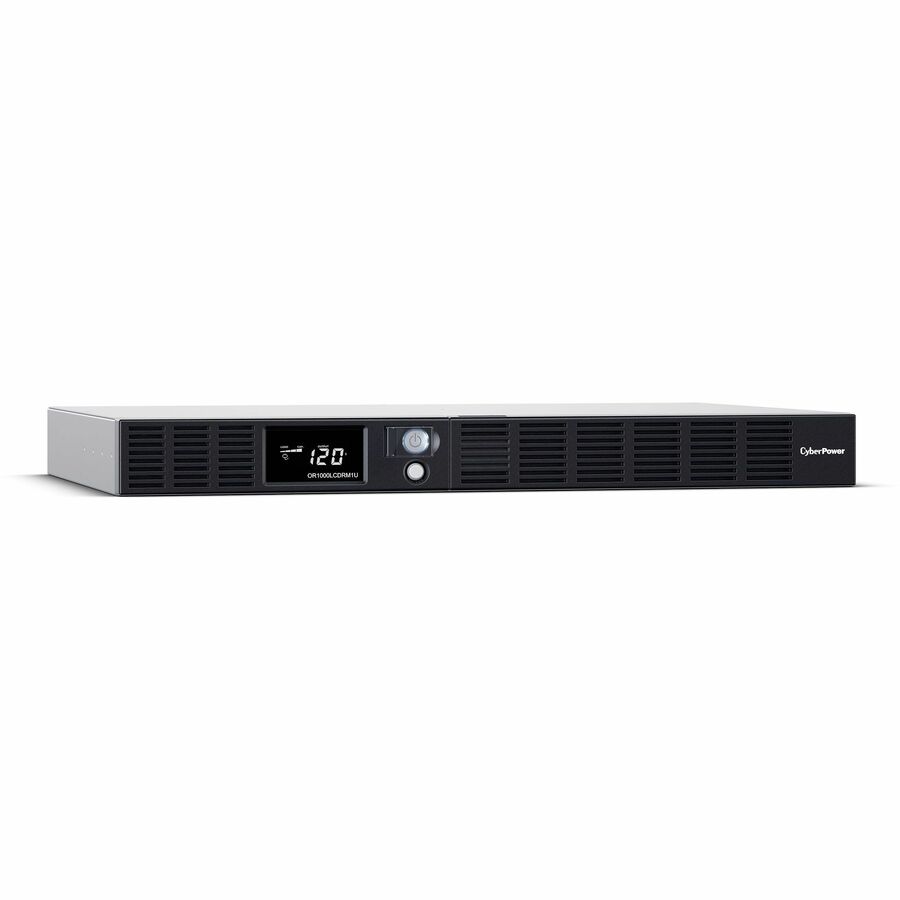

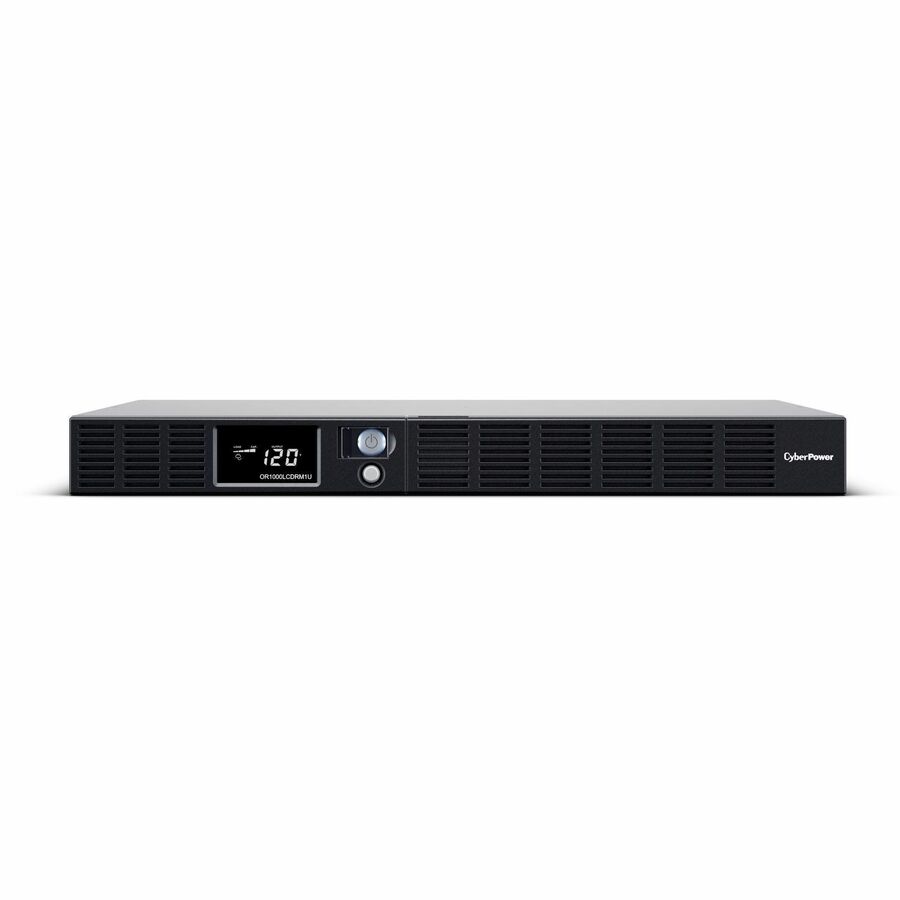

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
More from the Manufacturer
Why Do You Need a UPS System?
Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.
Workstations
Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.
Telecom/VoIP
Keep your communication lines open and running during power outages.
Corporate & Department Servers
Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.
How long will the UPS power my systems after the power goes out?
Run times vary based on the power required by connected devices. This system is estimated run for 13 minutes at half load, 3 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.
Can this UPS model be monitored over a network?
The OR1000LCDRM1U can be monitored over a network with the addition of the RMCARD205. It also comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
Can the batteries on this UPS be replaced?
Yes, this unit can have the batteries replaced. The replacement battery cartridge is the CyberPower RB0670X4.
Does this come with rackmount hardware?
Yes, all CyberPower rackmount units come with the necessary hardware to mount the UPS. However, the unit does not have to be mounted to work. It can operate in most well-ventilated environments within 32 °F to 104 °F (0 °C to 40 °C).
How do I mute the alarms?
Press and hold the menu button for three seconds to mute the alarm. Repeat this step to enable the alarms.
Additional Warranty Information: <p>CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.</p> Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Battery Information | |
|---|---|
| Number of Batteries | 4 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | On Unit: Power On Wiring Fault LCD Panel: Input Voltage Output Voltage Battery Capacity Load Level Runtime On Battery Overload Silent Mode |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 95°F (35°C) |
| Maximum Storage Elevation | 50000 ft |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR1000LCDRM1U |
| Brand Name | CyberPower |
| Product Series | Smart App LCD UPS |
| Product Model | OR1000LCDRM1U |
| Product Name | OR1000LCDRM1U Smart App LCD UPS Systems |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | Low Battery, Fault, Overload, Battery Mode |
| Physical Characteristics | |
| Product Color | Black |

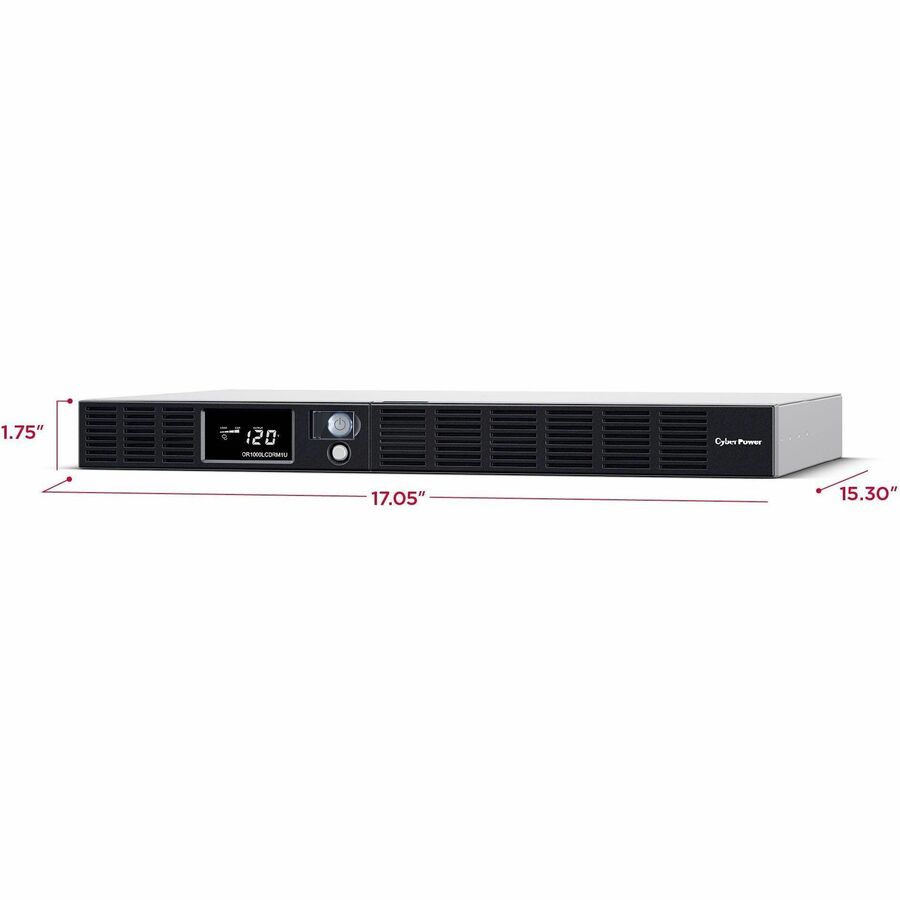

| Height | 1.75" |
| Width | 17.05" |
| Depth | 15.30" |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 30.20 lb |
| Power Description | |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 90 V AC - 140 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 1150 J |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |

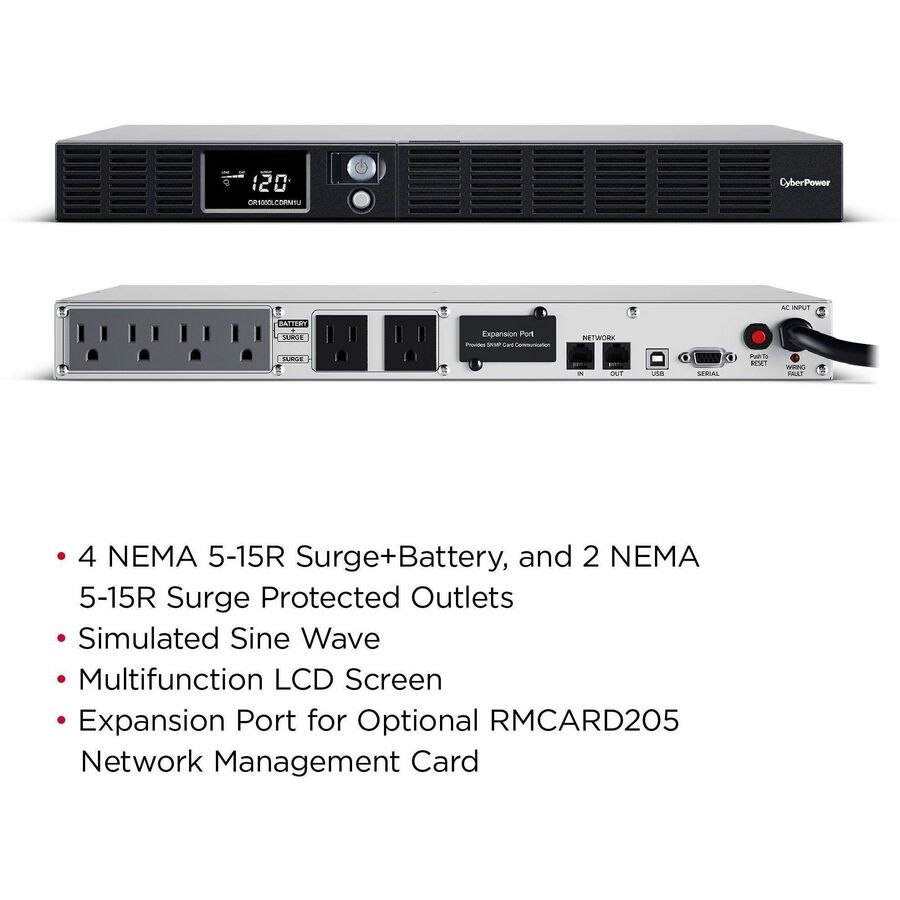

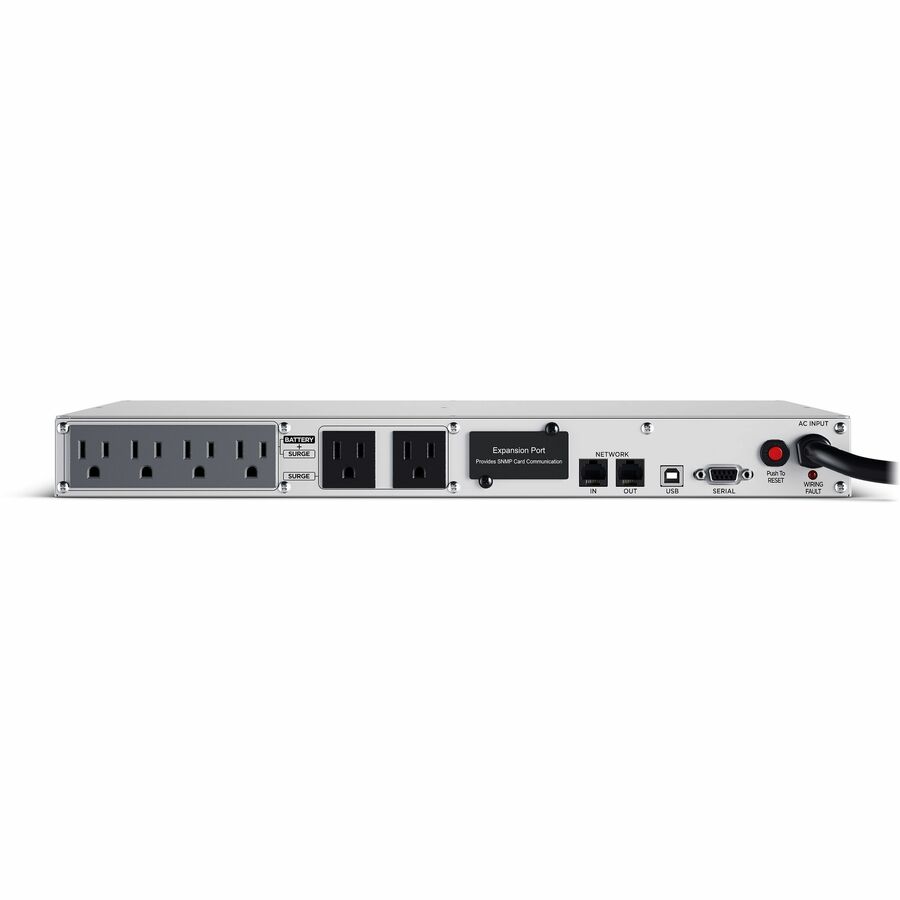

| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 8 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Application/Usage | Workstation, Server, Network Device, Telecommunication |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge. |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel Business Edition Software |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
