Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
SMX1500LCD
Category
General Purpose UPS
Overview

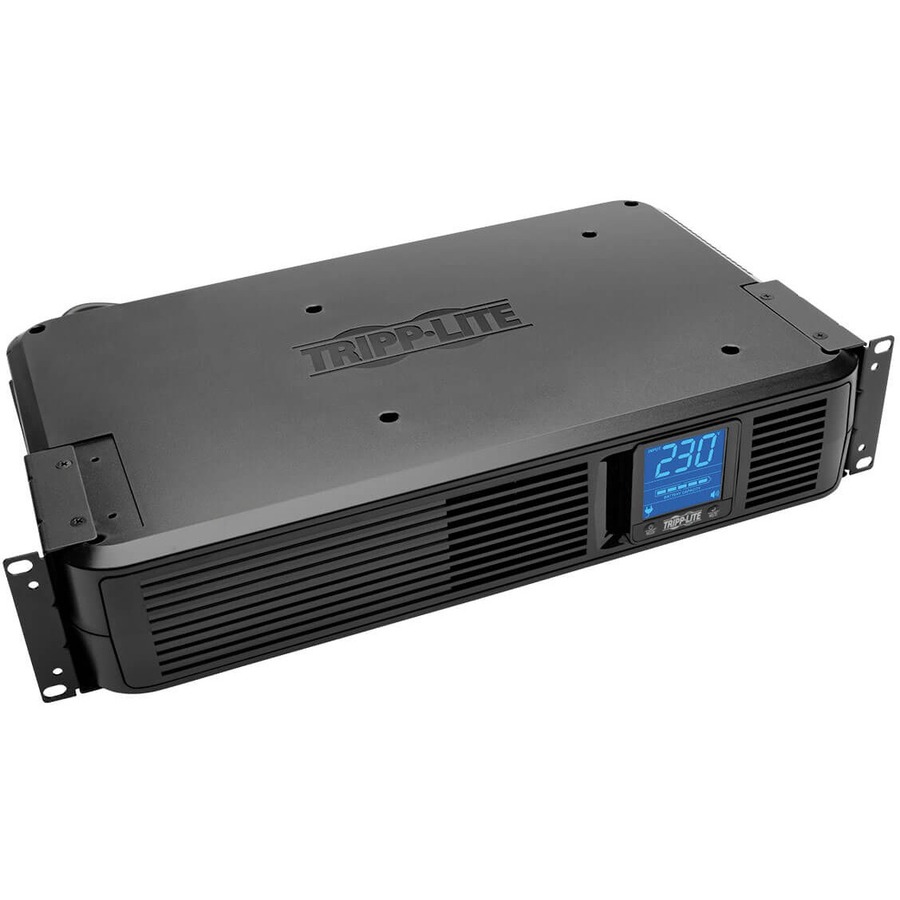

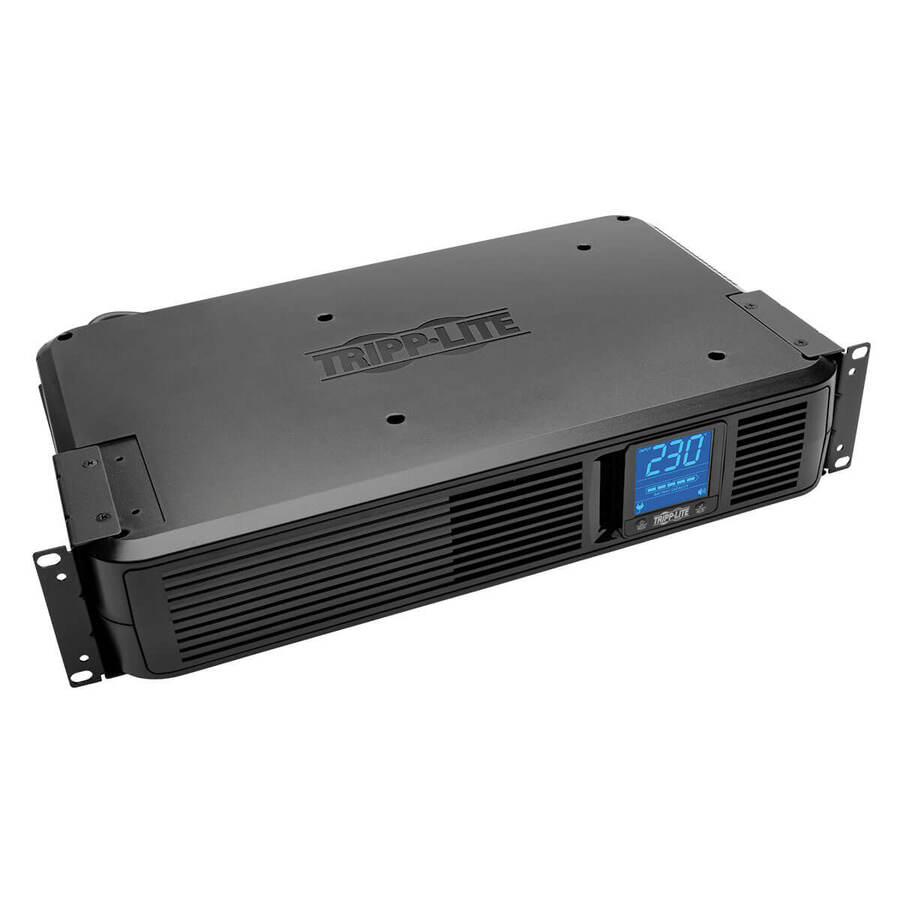

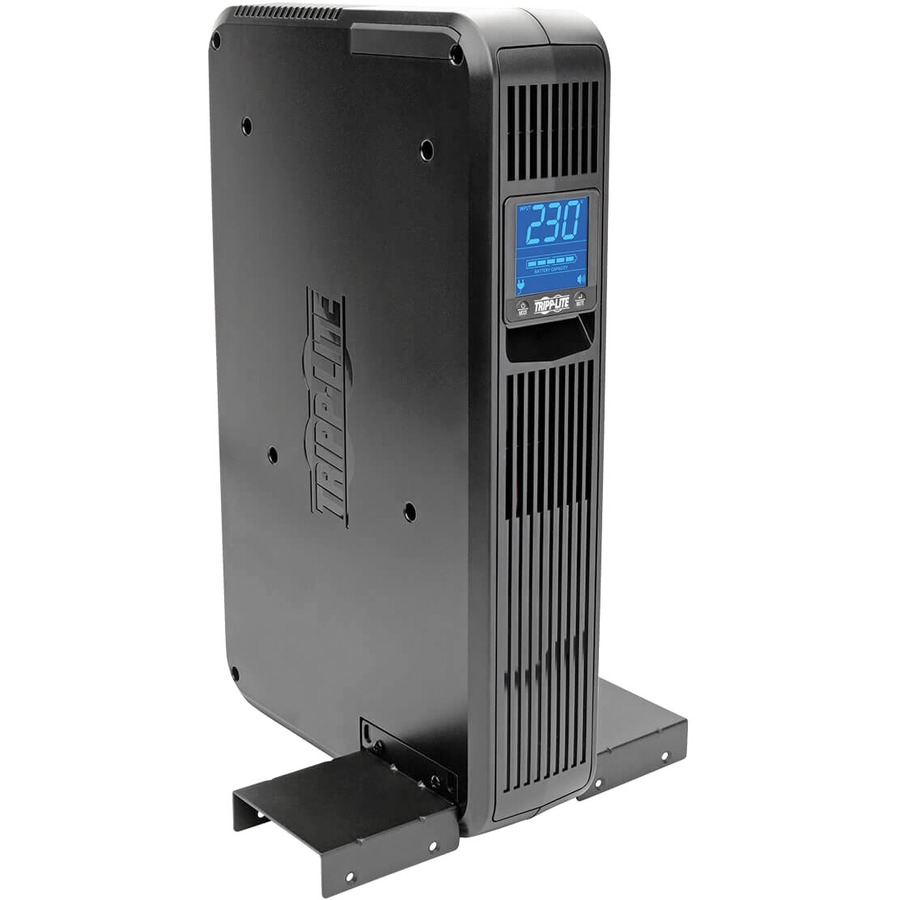

The SMX1500LCD SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, point-of-sale applications, VoIP systems and small business networks, the SMX1500LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

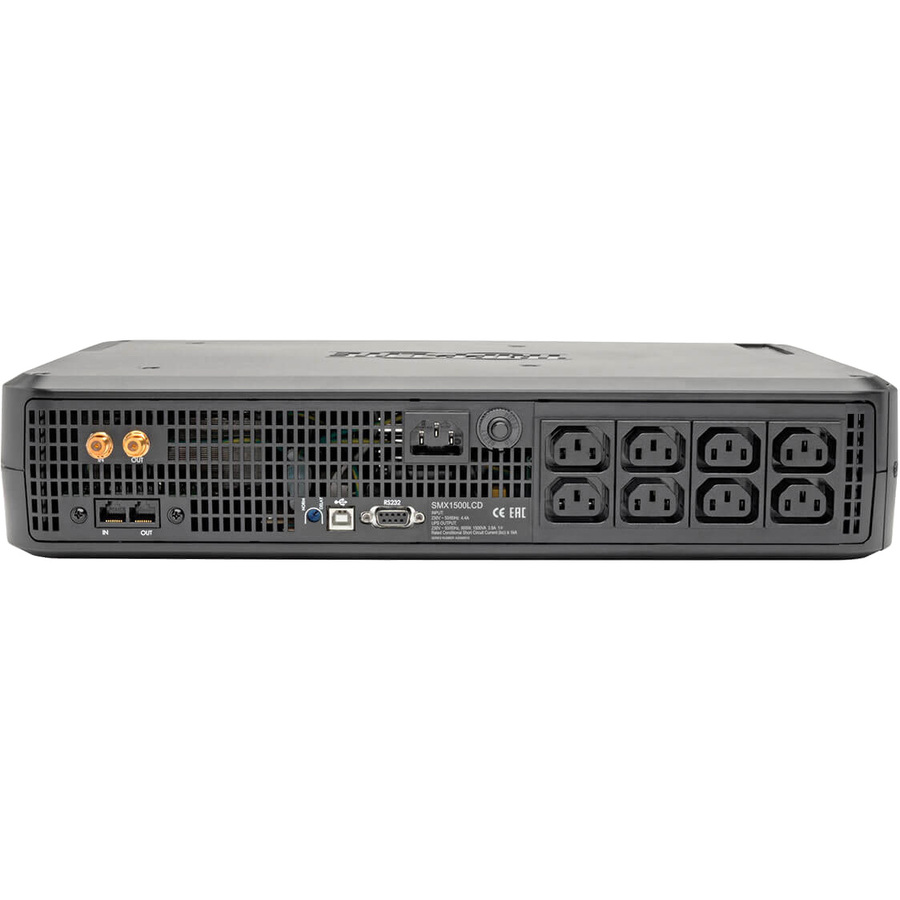

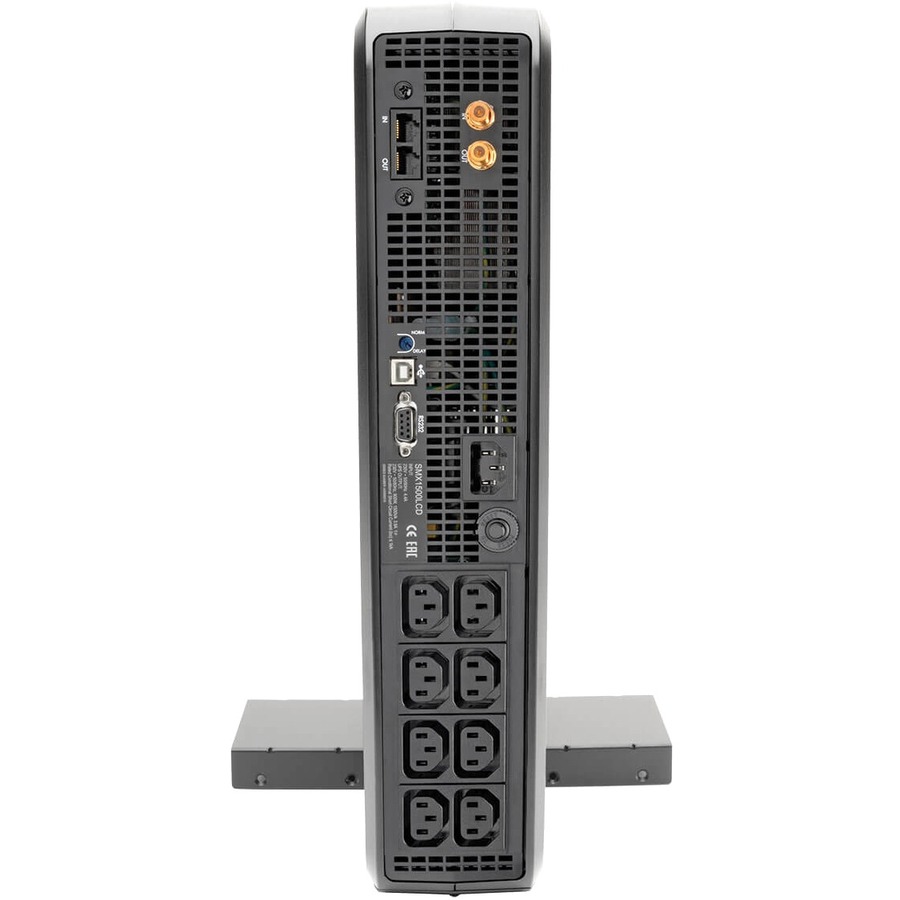

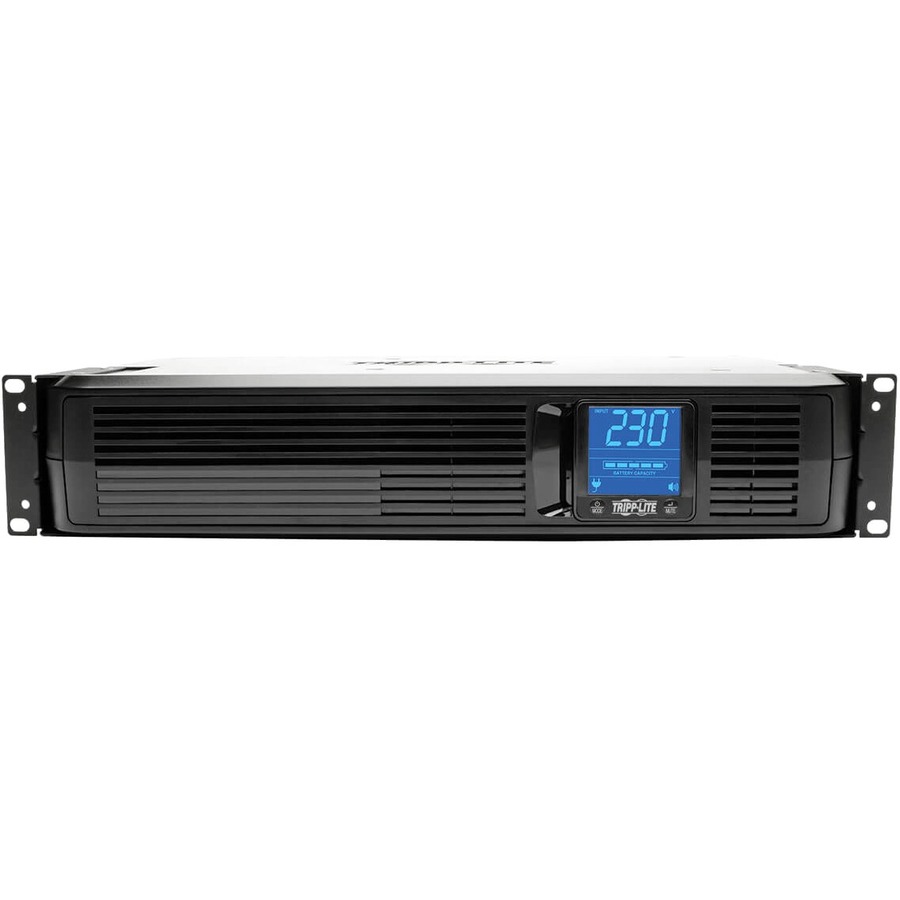

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 144V to 282V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. An 360-joule surge suppression rating protects your equipment from harmful power surges. USB communications port supports built-in power management and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Corrects under- and overvoltages from 144V to 282V
8 C13 outlets
Interactive LCD monitoring screen
Monitoring of power conditions via POWERALERT12
12 min. runtime at half load; 4.5 min. at full load
Specifications
Battery Information
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
4.50 Minute
Backup/Run Time (Half Load)
13 Minute
Typical Battery Recharge Time
8 Hour
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
SMX1500LCD
Brand Name
Tripp Lite series
Product Line
SmartPro
Product Model
SMX1500LCD
Product Name
SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
Product Type
Line-interactive UPS
Interfaces/Ports
Serial Port
Yes
USB
Yes
Physical Characteristics
Height
3.50"
Width
17.25"
Depth
10.50"
Rack Height
2U
Form Factor
Tower, Rack-mountable
Weight (Approximate)
33.40 lb
Power Description
Load Capacity (VA)
1500 VA
Load Capacity (Watt)
900 W
Input Voltage
220 V AC
Output Voltage
230 V AC
Technical Information
Plug/Connector Type
IEC 320 EN 60320 C14
Receptacle Type
IEC 60320 C13
Receptacle Detail
8 x IEC 60320 C13
Dataline Protection
RJ-11
Transfer Time
4 ms
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
