Eaton 5P 1000VA Tower UPS
Tower - 5 Minute Stand-by - 120 V AC Input - 100 V AC, 120 V AC, 125 V AC Output - Sine Wave, True Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R Receptacle(s) - RS-232, Network-M2 Card
- SKU
- 5P1000NC
- Category
- General Purpose UPS
MSRP$1,201.00
$748.68
Save 38%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 5P1000NC
- Category
- General Purpose UPS
Overview
Warranty
Additional Warranty Information: <p> 3 year on batteries with registration </p> Limited Warranty: 3 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- Experience higher efficiency with lower energy cost
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- 770 W load capacity - backup power for your valuable electronics
- 1000 VA load capacity provides sufficient backup during power failures

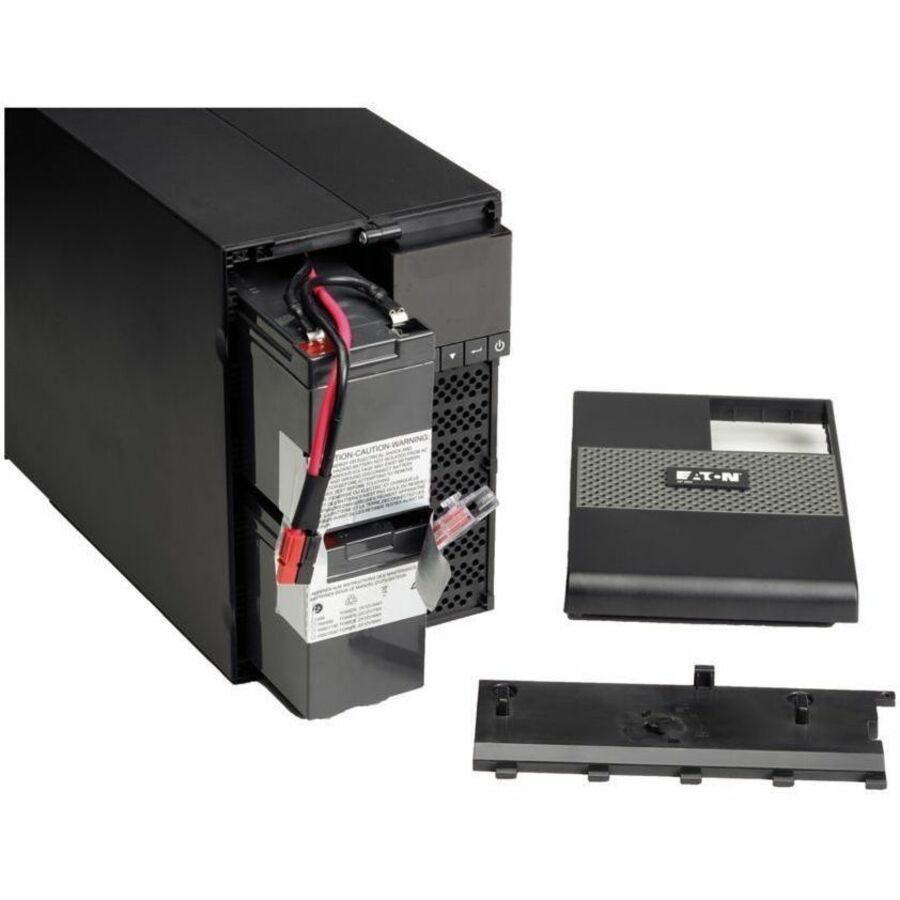

- Replaceable battery for reliable output for prolonged usage with maximum efficiency
- Lead Acid battery chemistry for your convenience and better usability
- NEMA 5-15P plug/connector type for convenient usage with added dependability
- NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
- 120 V AC input voltage for better reliance and maximum dependability
- 100 V AC output voltage for maximum dependability and added productivity
Specifications
| Additional Warranty Information | 3 year on batteries with registration |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |

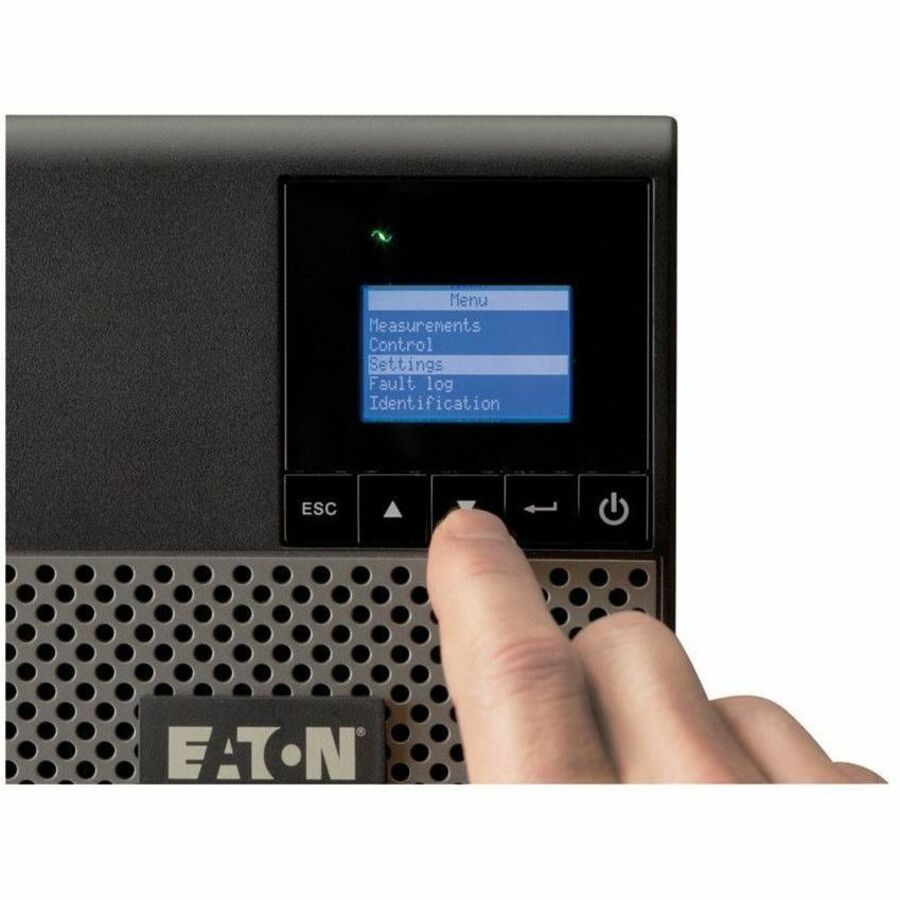

| Display | LCD |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | 5P1000NC |
| Limited Warranty | 3 Year |
| Output Voltage | 100 V AC, 120 V AC, 125 V AC |
| Weight (Approximate) | 25.30 lb |
| Features | Advanced Battery Management (ABM) |
| Form Factor | Tower |
| Manufacturer | Eaton Corporation |
| Product Model | 5P1000 |
| Product Name | 5P 1000VA Tower UPS |
| Network Management | RS-232, Network-M2 Card |
| Thermal Dissipation | 146.54 W |
| Waveform Type | Sine Wave, True Sine Wave |
| Product Series | 5P |
| Brand Name | Eaton |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 70 V AC - 153 V AC |
| Cord Length | 6 ft |
| Height | 9.10" |
| Width | 5.90" |
| Depth | 13.60" |
| Input Frequency | 47 Hz, 70 Hz, 50 Hz, 56.50 Hz, 60 Hz |
| Receptacle Type | NEMA 5-15R |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 12 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 770 W |
| Replaceable Battery | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Input Power Factor | 0.77 |
| Output Power Factor | 0.77 |

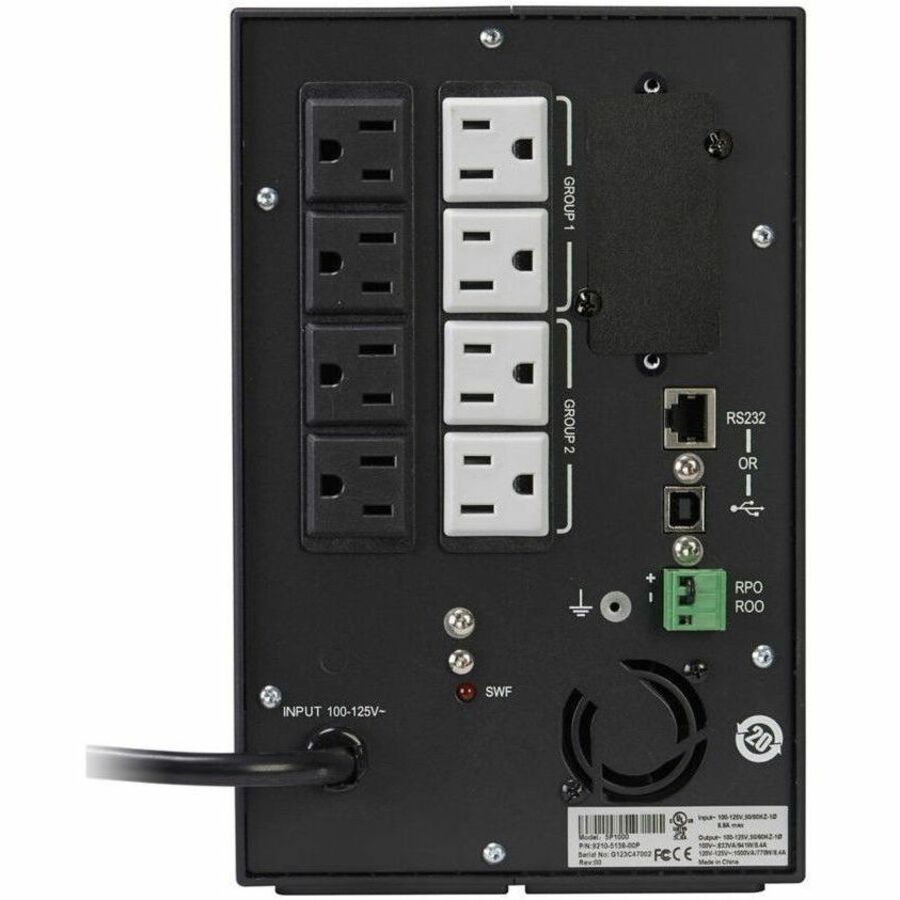

| Receptacle Detail | 8 x NEMA 5-15R |
| Efficiency Detail | 97% (AC Mode) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
