Tower - AVR - 12 Hour Recharge - 4.30 Minute Stand-by - 120 V Input - 120 V AC Output - Single Phase - Stepped Approximated Sine Wave - 4 x NEMA 5-15R Surge, 4 x NEMA 5-15R Receptacle(s) - 8 x Battery/Surge Outlet
MSRP$316.00
$212.99
Save 33%Back-ordered — ships when restocked.
Special order — estimated available by September 17, 2026.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

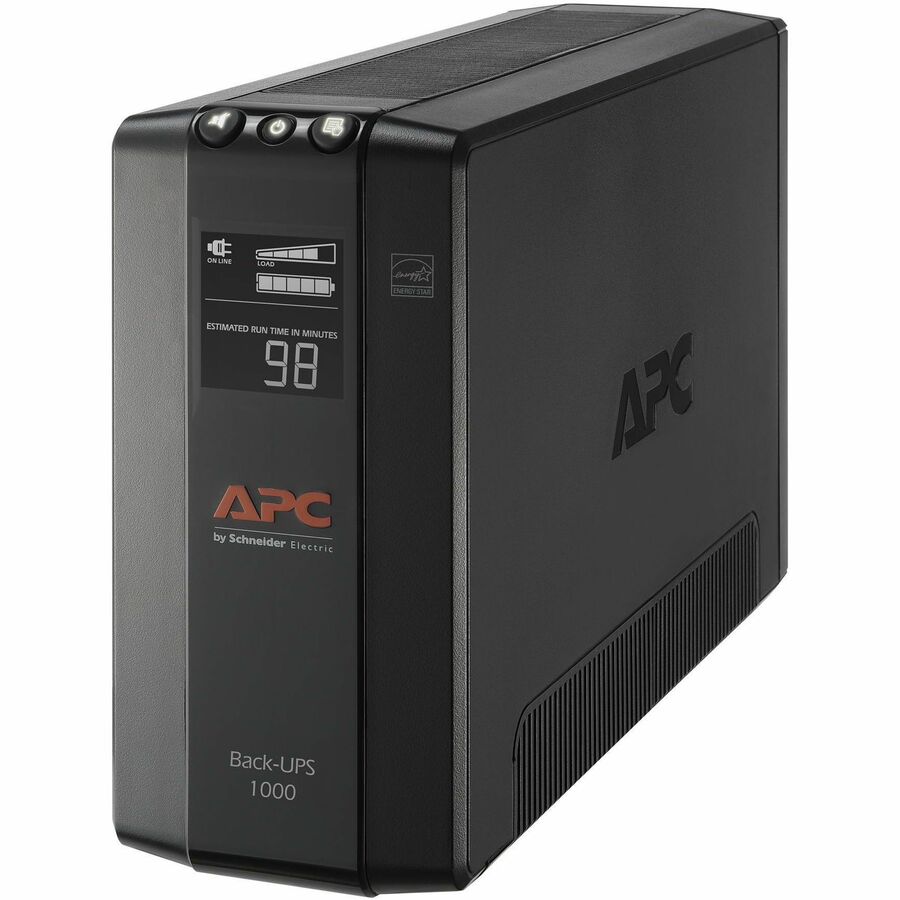

Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro Compact 1000VA. APC Back-UPS Pro Compact provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. This compact tower UPS is designed for workstations, monitors and network devices. Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations so connected devices receive consistent power. The APC compact tower UPS is significantly smaller and lighter than other tower models, allowing for convenient use and installation while still providing quality power protection. With 8 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 600w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD Display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This computer backup offers lifetime guaranteed surge protection with a $250,000 equipment protection policy. Package Contains UPS, USB cable and user manual
More from the Manufacturer
Why do you need a Back-UPS?
Hot Spots
UPS management
Power, Mute, and Display buttons.
LCD interface
Quick and easy-to-read LCD provides information on the utility and UPS status.
In/Out Ethernet surge-protected ports
Use an Ethernet cable to connect a cable modem to the IN port, and connect a computer to the OUT port.
USB and serial data port
Connect to PowerChute Serial Shutdown for UPS management.
Circuit breaker button
Enables quick recovery from overloads.
Battery Backup and Surge Protected Outlets
8 NEMA 5-15R outlets: 4 with battery backup and surge, 4 surge only.
FAQ
How long will this UPS power my system when the power goes out?
Runtimes of any UPS will vary based on the amount of power required by your connected devices.
Will the UPS automatically switch off from the battery backup when power is restored?
Yes, when adequate power is restored to the UPS and is within the operating voltage range of the UPS, it will revert to passing utility power to connected electronics.
My UPS is on, but my power button is blinking and beeping.
The battery needs to be connected first. Please read the user manual for instructions on connecting the battery.
Can I plug the UPS into an extension cord, or does it have to be plugged into a wall outlet?
To get the best power available, your UPS should be plugged directly into the wall outlet. Plugging your UPS into a surge protector may cause the UPS to go to the battery often when it usually should remain offline.
Is this UPS battery user-replaceable?
Yes, It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Comparison Table
Additional Warranty Information: Battery: 12 month(s)|UPS: 36 month(s) Limited Warranty: 3 Year
| Additional Warranty Information | Battery: 12 month(s)|UPS: 36 month(s) |
|---|---|
| Application/Usage | Computer, Electronic Equipment, Router, Modem, Storage Device, Gaming Console, Home, Business |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 120 V |
| Manufacturer Part Number | BX1000M |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 15.87 lb |
| Dataline Protection | Coax, RJ-45 |
| Form Factor | Tower |
| Status Indicators | LCD Status Display: UPS status Load and battery bar graphs |
| Input Current | 15 A |
| Manufacturer | Schneider Electric SA |
| Product Name | Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V |
| Product Line | Back-UPS Pro |
| Surge Energy Rating | 1103 J |
| Thermal Dissipation | 14.21 W |
| Waveform Type | Stepped Approximated Sine Wave |
| Brand Name | APC |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 88 V AC - 139 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery, Overload |
| Country of Origin | Philippines |
| Cord Length | 6 ft |
| Height | 7.48" |
| Width | 3.58" |
| Depth | 12.20" |
| Input Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Battery Energy | 504 kJ |
| Maximum Operating Temperature | 104°F (40°C) |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Backup/Run Time (Full Load) | 4.30 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 600 W |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| AVR | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Operating Humidity | 0% - 95% |
| Number of Battery & Surge Outlets | 8 |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 12 Hour |
| Product Color | Black |
| Receptacle Detail | 4 x NEMA 5-15R Surge, 4 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
