Tower - 16 Hour Recharge - 3 Minute Stand-by - 120 V Input - 120 V AC Output - Single Phase - Stepped Approximated Sine Wave - 5 x NEMA 5-15R, 5 x NEMA 5-15R Surge Receptacle(s) - 10 x Battery/Surge Outlet
MSRP$356.00
$273.96
Save 23%In stock: 300
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

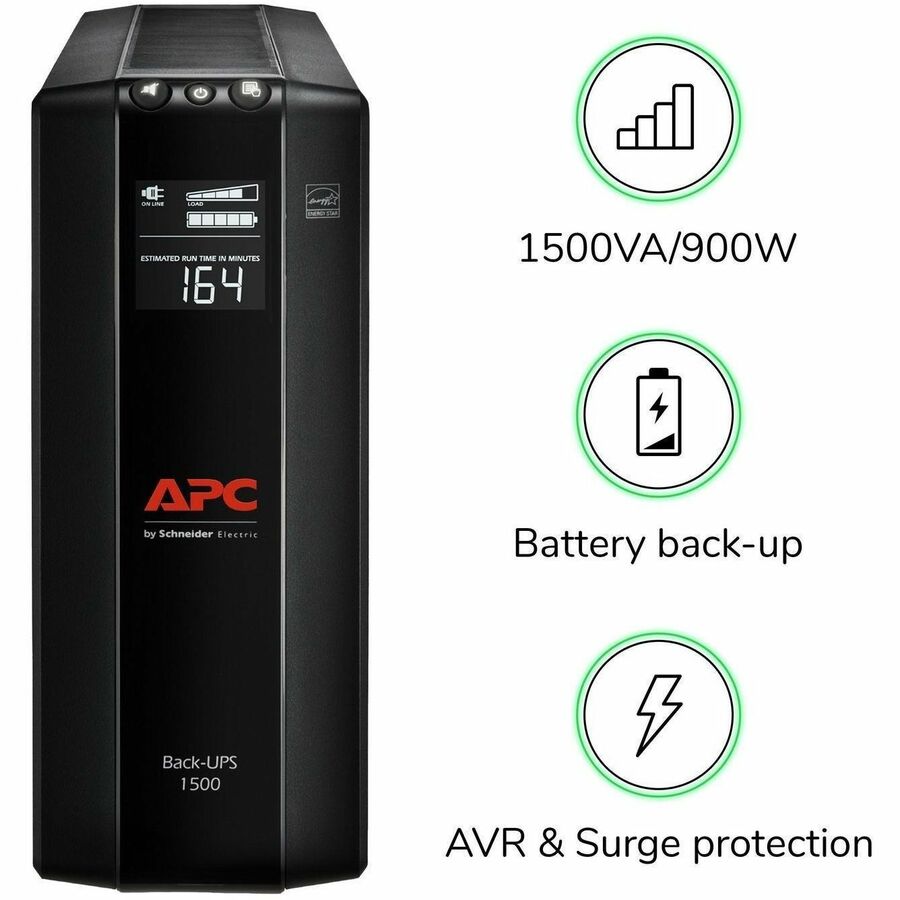

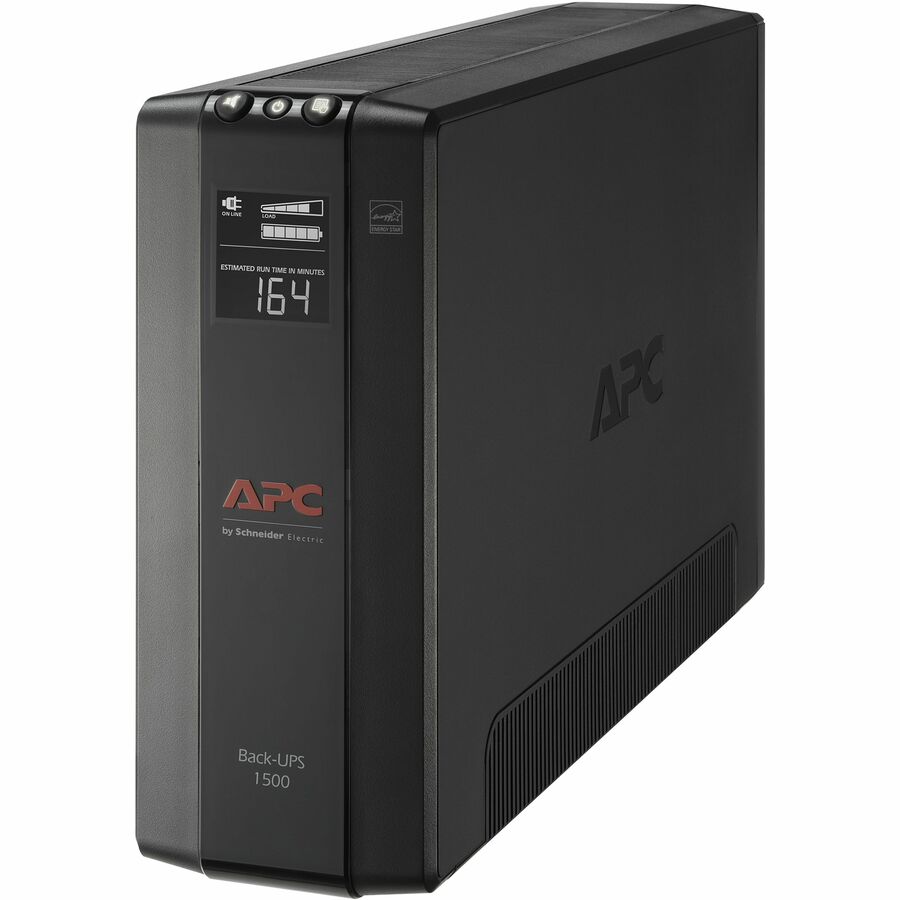

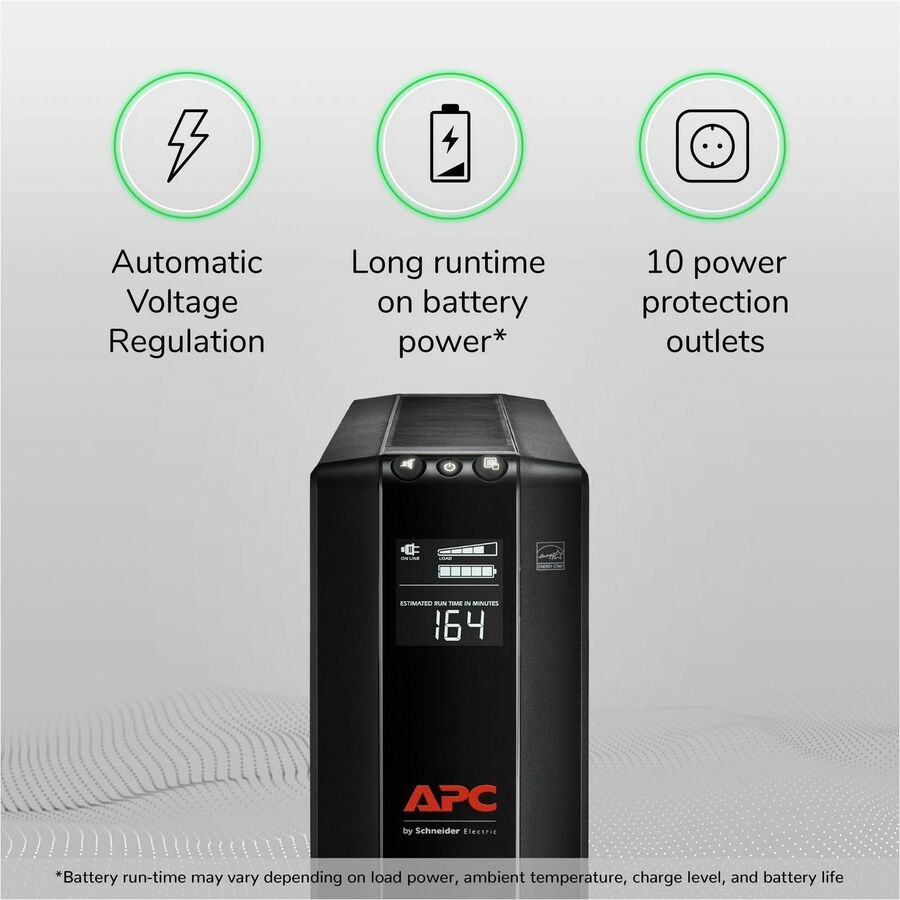

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 1500VA tower UPS has 10 total outlets, 5 of which are battery backup, and 5 that are surge protection only. The UPS has a surge energy rating of 789 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 3-year warranty and CE product certification.
More from the Manufacturer
Why do you need a Back-UPS?
Hot Spots

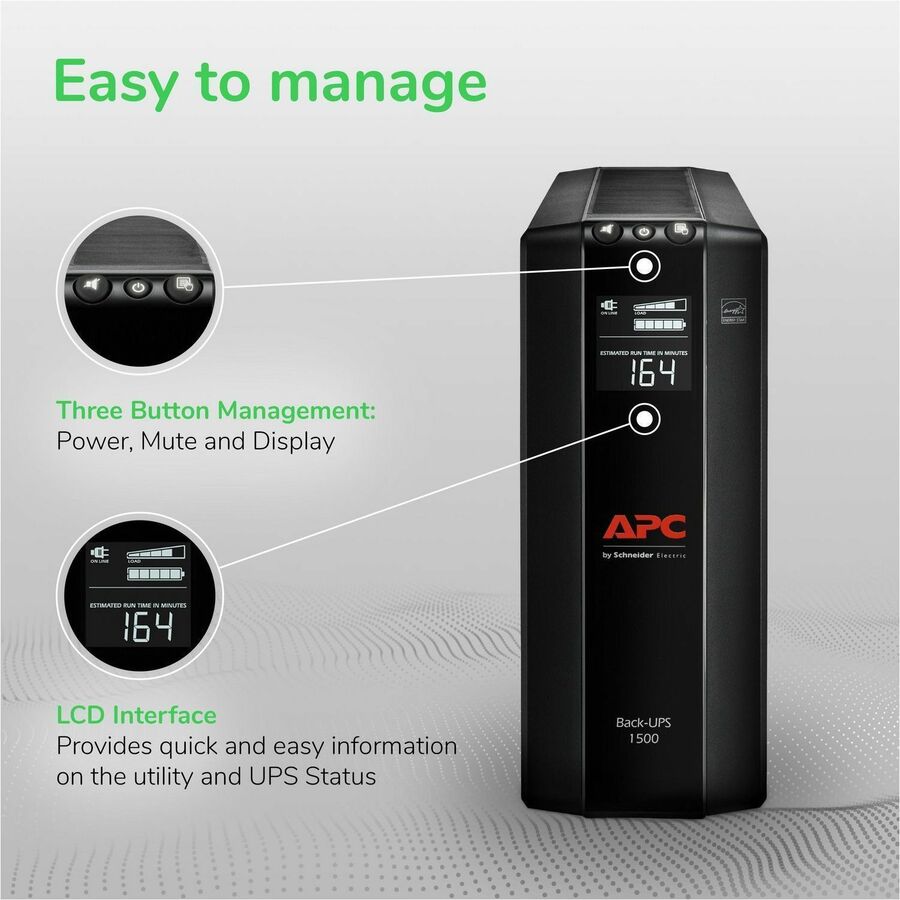

1 UPS management
Power, Mute, and Display buttons.
2 LCD interface
Quick and easy-to-read LCD provides information on the utility and UPS status.

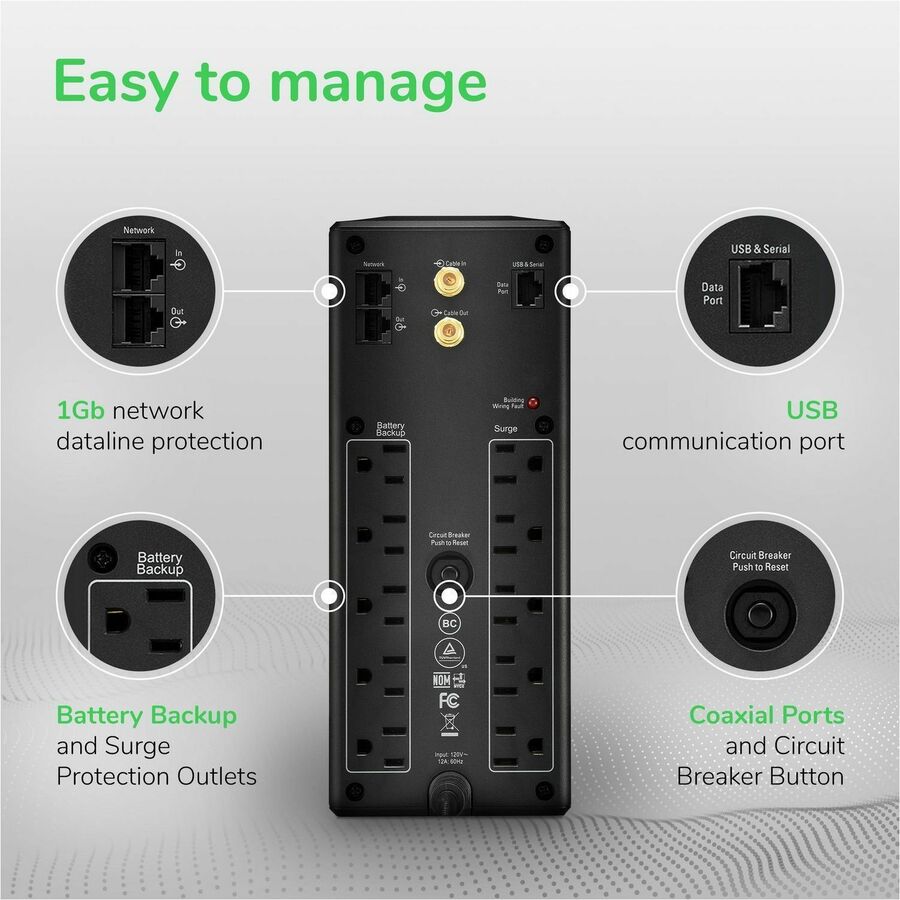

3 In/Out Ethernet surge-protected ports
Use an Ethernet cable to connect a cable modem to the IN
port, and connect a computer to the OUT port.
4 USB and serial data port
Connect to PowerChute Serial Shutdown for UPS management.
5 Circuit breaker button
Enables quick recovery from overloads.
6 Battery Backup and Surge Protected Outlets
10 NEMA 5-15R outlets: 5 with battery backup and surge, 5 surge only.
FAQ
How long will this UPS power my system when the power goes out?
Runtimes of any UPS will vary based on the amount of power required by your connected devices.
Will the UPS automatically switch off from the battery backup when power is restored?
Yes, when adequate power is restored to the UPS and is within the operating voltage range of the UPS, it will revert to passing utility power to connected electronics.
My UPS is on, but my power button is blinking and beeping.
The battery needs to be connected first. Please read the user manual for instructions on connecting the battery.
Can I plug the UPS into an extension cord, or does it have to be plugged into a wall outlet?
To get the best power available, your UPS should be plugged directly into the wall outlet. Plugging your UPS into a surge protector may cause the UPS to go to the battery often when it usually should remain offline.
Is this UPS battery user-replaceable?
Yes, It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Comparison Table
Additional Warranty Information: UPS: 36 month(s)|Battery: 12 month(s) Limited Warranty: 3 Year
| Battery Information | |
|---|---|
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Typical Battery Recharge Time | 16 Hour |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BX1500M |
| Brand Name | APC |
| Product Line | Back-UPS Pro |
| Product Name | Back UPS Pro BX1500M, Compact Tower, 1500VA, AVR, LCD, 120V |
| Product Type | Line-interactive UPS |
| Physical Characteristics | |
| Product Color | Black |
| Height | 9.84" |
| Width | 3.94" |
| Depth | 15.04" |
| Form Factor | Tower |
| Weight (Approximate) | 24.25 lb |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V |
| Input Current | 15 A |
| Output Voltage | 120 V AC |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 789 J |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 5 x NEMA 5-15R, 5 x NEMA 5-15R Surge |
| Number of Battery & Surge Outlets | 10 |
| Cord Length | 6 ft |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 12 month(s) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
