2U Rack-mountable - AVR - 3 Hour Recharge - 8 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - Serial Port - 8 x NEMA 5-15R Receptacle(s) - 8 x Battery/Surge Outlet - SmartConnect
MSRP$1,290.00
$980.09
Save 24%In stock: 28
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. More from the Manufacturer
Key Features
Software and Communication Ports
Hot Spots

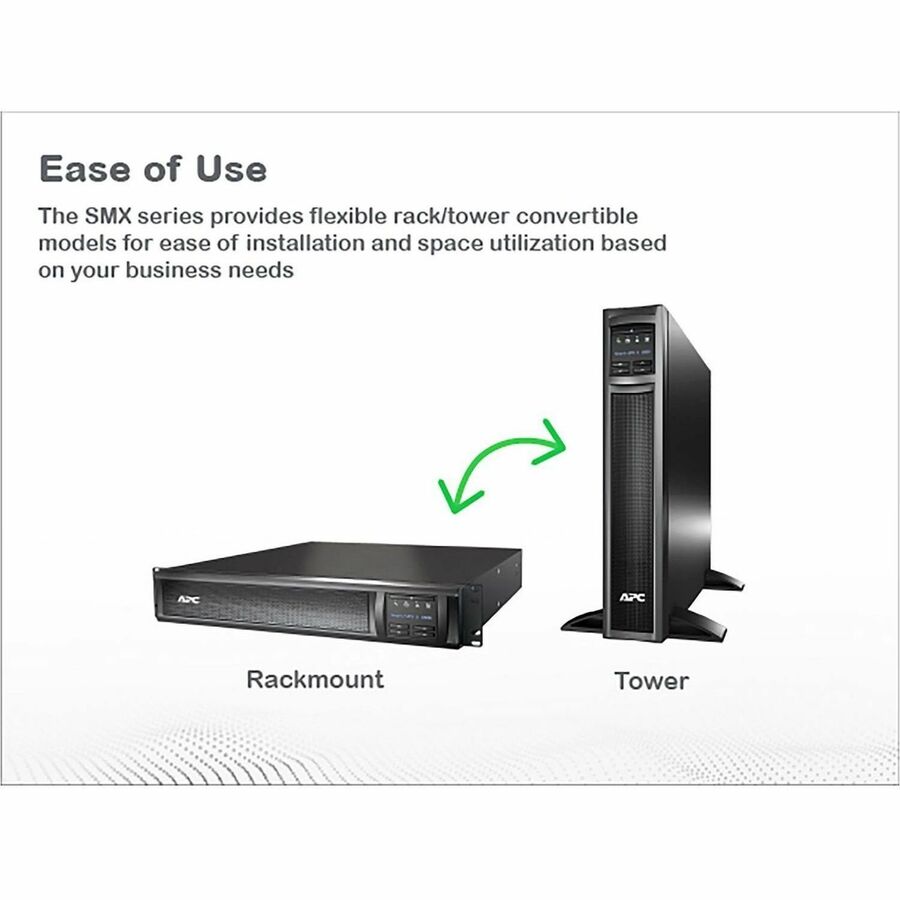

1) 2U design with flexible installation
2U design saves valuable space for IT. Rackmount and tower convertible model.
2) Graphical LCD display
Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.
3) SmartSlot
Add a network management card or purchase an -NC model with a pre-installed network card
4) SmartConnect Ethernet Port
Built-in secure cloud monitoring with the SmartConnect Ethernet Port.
5) 8 outlets in 2U
8 NEMA 5-15R outlets, including 2 switched outlet group
6) Extended runtime option
The UPS can support up to 5 external battery packs.
7) Emergency Power Off
Immediately turns off UPS and disconnects power to all connected equipment
FAQ
Can
I add external battery packs? How many?
Yes, SMX1000C supports up to 5 SMX48RMBP2U battery packs.
What are my options for UPS management and software?
Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.
What do switched outlet groups allow me to do?
Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.
Do all models come with a preinstalled Network Management Card?
Select models with an "NC" suffix come with the network management card preinstalled.
How does the 'green' mode operating mode increase efficiency?
APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.
What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?
PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.
Comparison Table
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year
| Battery Information | |
|---|---|
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 14.80 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | Control Panel: Multi-function LCD Status Control Console |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX1000C |
| Brand Name | APC |
| Product Line | Smart-UPS |
| Product Series | SMX |
| Product Name | Smart-UPS SMX 1000VA Tower/Rack Convertible UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SmartConnect |
| Alarm | On Battery, Low Battery, Overload |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" |
| Width | 3.50" |
| Depth | 19.29" |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 50.40 lb |
| Power Description | |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 600 J |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Mission Critical Equipment, Server Room, Business, IT Infrastructure, Security System, Communication System, Electronic, VoIP, Telecommunication, Workstation, Network Device, POS Terminal, Edge Computing, Data Storage, Mobile Device, Tablet, Computer |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
