Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
SMT1000RMI2UC
Category
General Purpose UPS
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPS are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
Warranty
Limited Warranty: 3 Year
Highlights
Cold-start capable - Provides temporary battery power when the utility power is out.
Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency - Reduces utility costs, generates less heat.
Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect - Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot - Customize UPS capabilities with management cards.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Battery Information
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
8.70 Minute
Hot Swappable
Yes
Typical Battery Recharge Time
3 Hour
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMT1000RMI2UC
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
SMT
Product Name

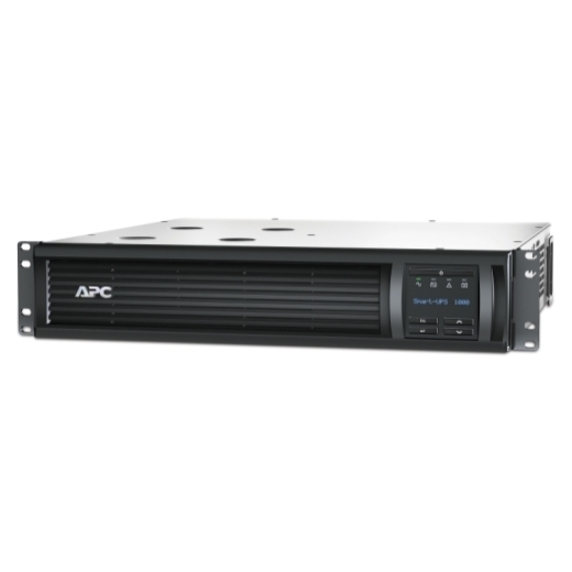

Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect
Product Type
Line-interactive UPS
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Product Color
Black
Height
3.39"
Width
17.01"
Depth
18.78"
Rack Height
2U
Form Factor
Rack-mountable
Weight (Approximate)
62.13 lb
Power Description
Load Capacity (VA)
1000 VA
Load Capacity (Watt)
700 W
Input Voltage Range
160 V AC - 286 V AC
Output Voltage
230 V AC, 240 V AC
Waveform Type
Sine Wave
Technical Information
Number of Battery & Surge Outlets
6
Transfer Time
6 ms
Application/Usage
Router, Switch, Network Hub, Network Device, Server, Computer Room, Data Center, Network
