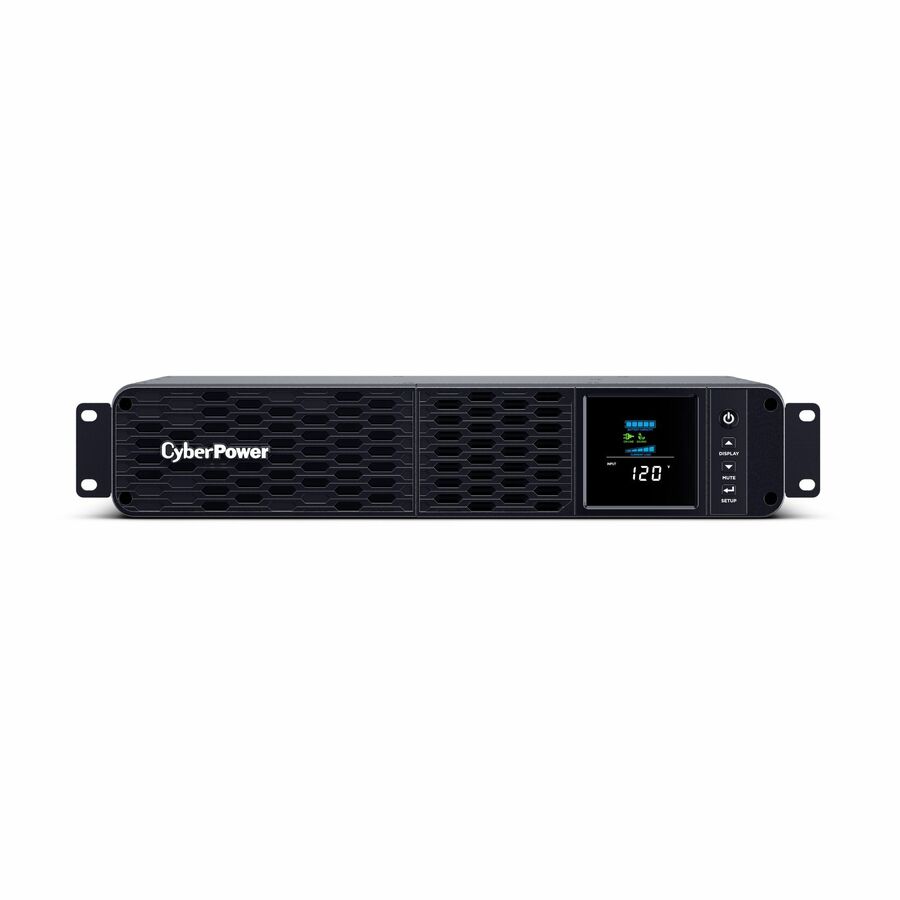

CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems
1500VA/1000W, 120 VAC, NEMA 5-15P, 2U, Rackmount, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $500000 CEG, 3YR Warranty
- SKU
- CP1500PFCRM2U
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CP1500PFCRM2U
- Category
- General Purpose UPS
Overview
The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.
The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
More from the Manufacturer
Highlights
- Capacity: 1500VA / 1000W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120Vac ± 5%
- Runtime (half/full): 10.2 minutes / 3.1 minutes
- Plug type & cord: NEMA 5-15P, 6 ft. cord

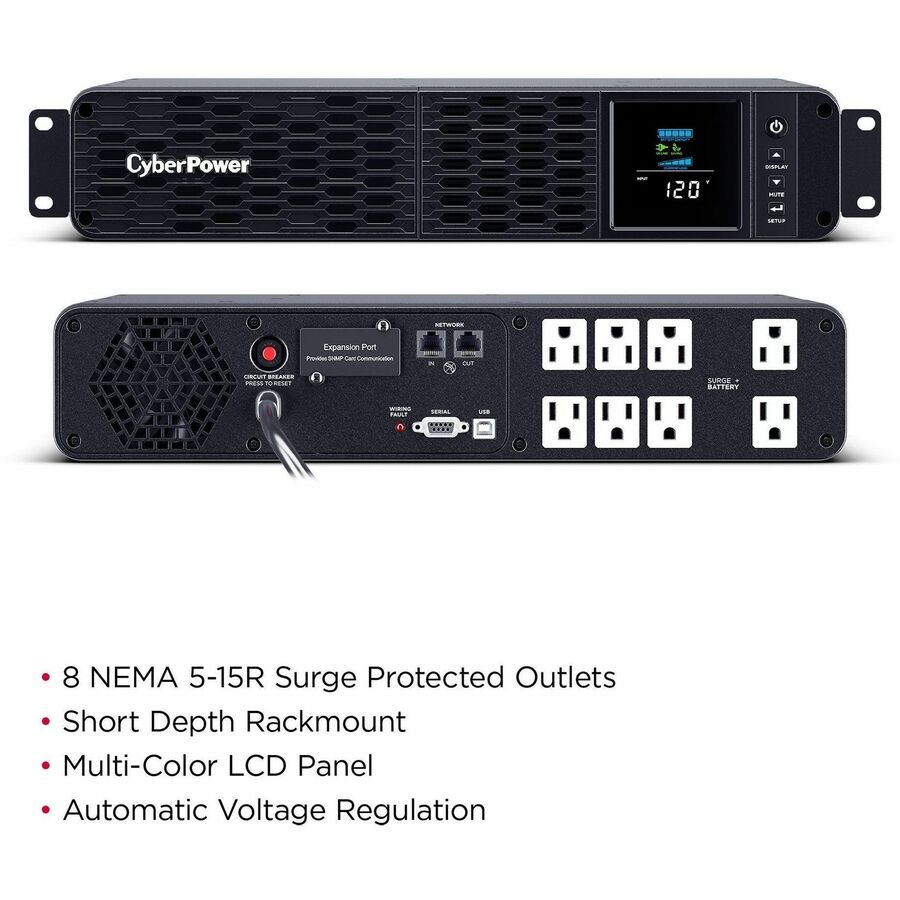

- Outlets: 8 surge + battery backup
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, SNMP
- Data line protection: Network
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
- Warranty: 3 year
- Connected Equipment Guarantee: $500,000
Specifications
| Application/Usage | Surveillance System, Security System, POS, Network Device, Storage Device, Audio System |
|---|---|
| Battery Chemistry | Lead Acid |
| Product Type | Line-interactive UPS |
| Circuit Breaker | Yes |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | CP1500PFCRM2U |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 26.80 lb |
| Dataline Protection | RJ-45 |
| Form Factor | Rack-mountable |
| Status Indicators | Wiring Fault |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CP1500PFCRM2U |
| Product Name | CP1500PFCRM2U PFC Sinewave UPS Systems |
| Network Management | Dry Contact, SNMP/HTTP Remote Monitoring |
| Overload Protection | Yes |
| Product Line | PFC Sinewave |
| Surge Energy Rating | 1500 J |
| Surge Suppression | Yes |
| Thermal Dissipation | 7.71 W |
| Waveform Type | Sine Wave |
| Product Series | PFC Sinewave UPS |
| Rack Height | 2U |
| Brand Name | CyberPower |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Frequency | 60 Hz |
| Alarm | Battery Mode |
| Country of Origin | China |
| Cord Length | 6 ft |

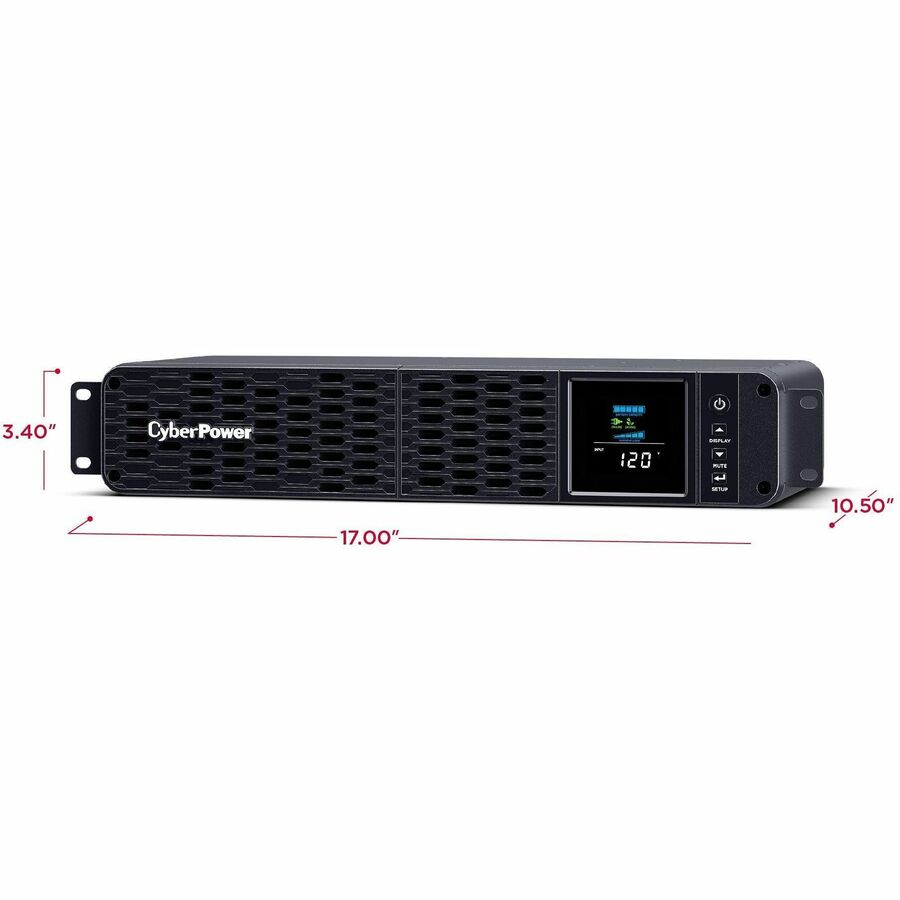

| Height | 3.40" |
| Width | 17" |
| Depth | 10.50" |
| Input Frequency | 50 Hz, 60 Hz |
| Battery Size | 12V |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Battery Capacity | 9000 mAh |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 10.20 Minute |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1000 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| AVR | Yes |
| DC System Voltage | 12 V DC |
| Energy Saving | GreenPower UPS? Bypass Technology |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Operating Humidity | 0% - 95% |
| Number of Battery & Surge Outlets | 8 |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 8 ms |
| Typical Battery Recharge Time | 8 Hour |
| Product Color | Black |
| Output Power Factor | 0.7 |
| Receptacle Detail | 8 x NEMA 5-15R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
