1U Rack/Wall Mountable - 4 Minute Stand-by - 120 V AC, 100 V AC, 125 V AC Input - 120 V AC, 100 V AC, 125 V AC Output - 6 x NEMA 5-15R
$2,659.37
In stock: 319
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

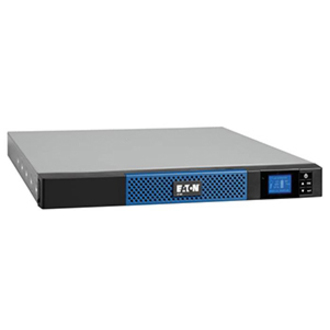

1.44kVA/1.1kW/120V Long-Term Battery Backup for Network Closets and Small Data Centers
This 5P rack-mount line-interactive UPS system is an efficient ""set it and forget it"" solution, providing reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1500R-L protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.
Reliable Battery Backup Keeps You Operational Through Power Outages
The maintenance-free lithium-ion battery modules have a service life up to eight years to align with your IT refresh cycle. They allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. They also recharge in just 6 to 8 hours following power disruptions to reduce vulnerability and improve uptime. On-board battery management system (BMS) monitoring of battery performance, charge cycles and active temperature provides advanced notice when batteries need replacing.
Optional Gigabit Network Interface Offers 24/7 Remote Access
The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.
NEMA 5-15R Outlets Protect Your Connected Components
Five managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Three outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

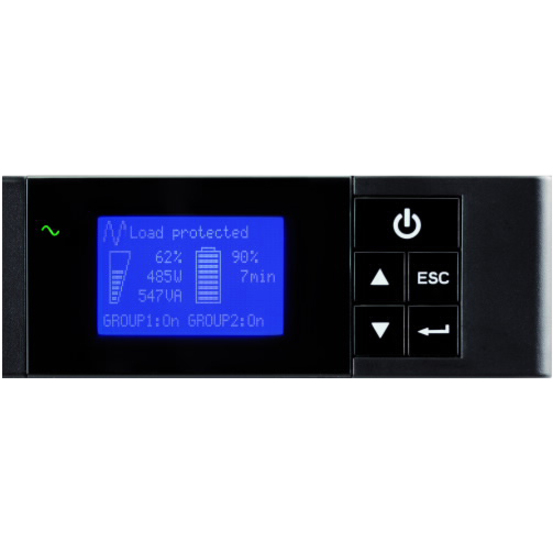

LCD Interface Keeps You Informed at a Glance
The five-button graphical LCD provides useful information about the UPS itself, load status,events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). By adding the optional RELAY-MS interface card (sold separately), a dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components.
Limited Warranty: 5 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| Battery Information | |
|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | LEDs: Load protected On battery Fault |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Storage Relative Humidity | 0% - 90% |
| Sound Emission | 45 dB |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5P1500R-L |
| Brand Name | Eaton |
| Product Series | 5P |
| Product Model | 5P1500R-L |
| Product Name | 5P1500R-L 1500VA Rack/Wall Mountable UPS |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Physical Characteristics | |
| Height | 1.70" |
| Width | 17.24" |
| Depth | 21.81" |
| Rack Height | 1U |
| Form Factor | Rack/Wall Mountable |
| Weight (Approximate) | 36.40 lb |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1100 W |
| Input Voltage | 120 V AC, 100 V AC, 125 V AC |
| Input Voltage Range | 89 V AC - 151 V AC |
| Output Voltage | 120 V AC, 100 V AC, 125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
