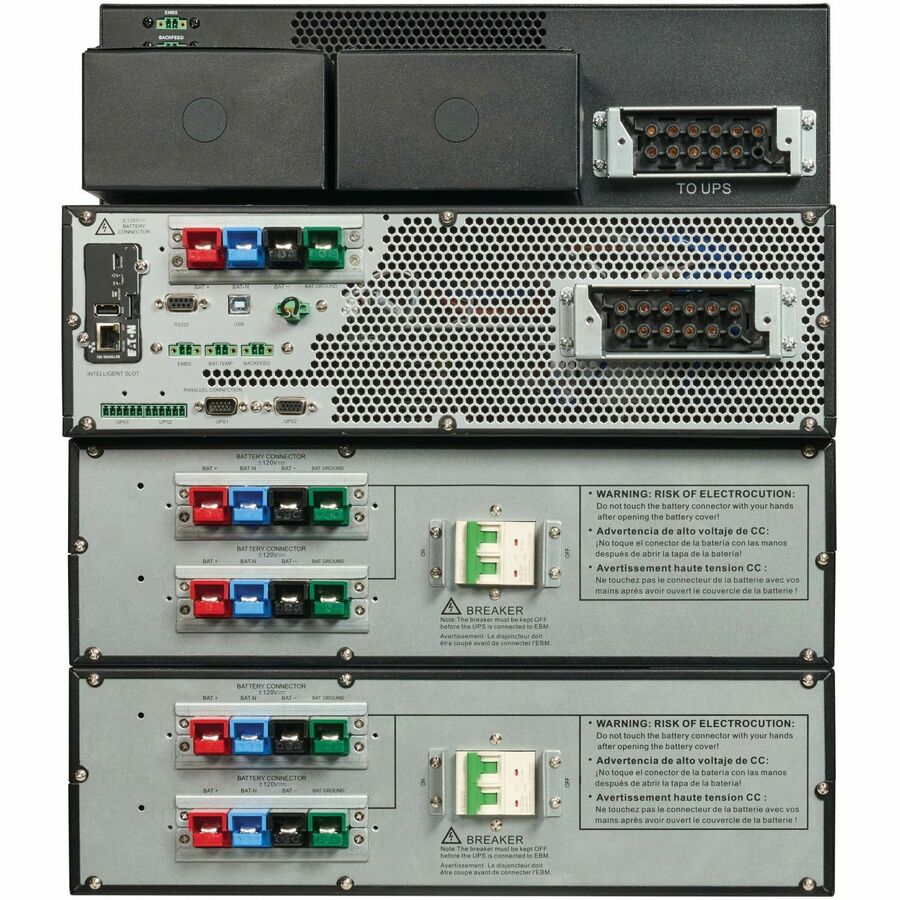

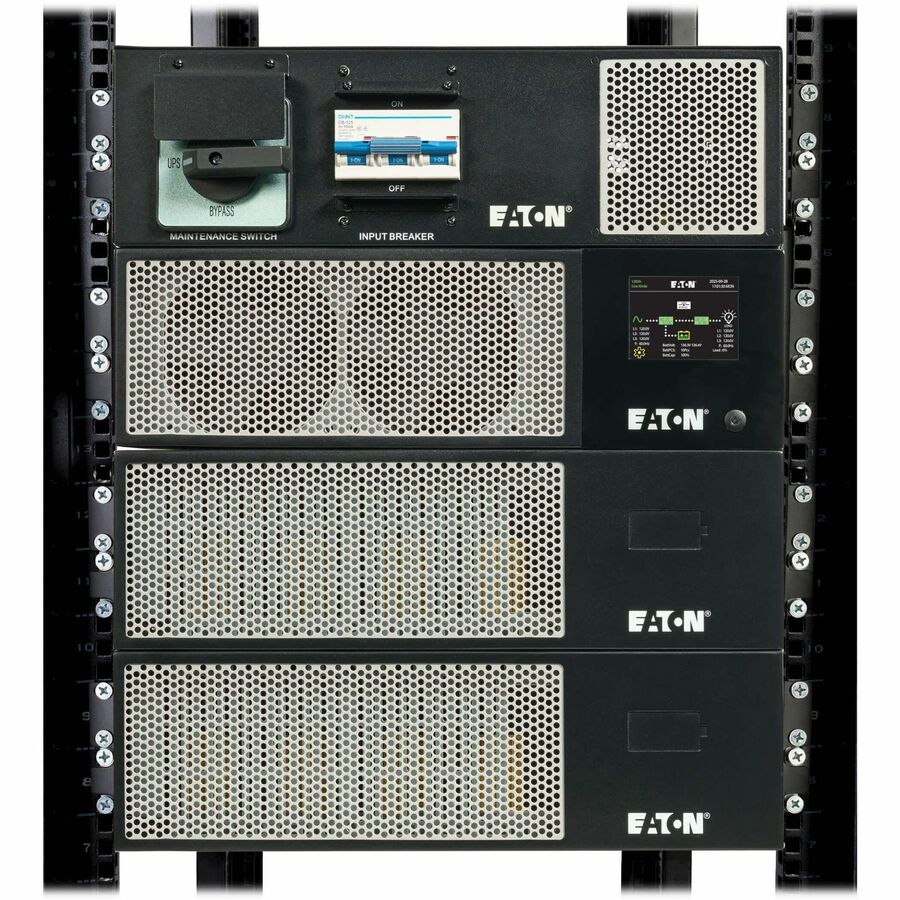

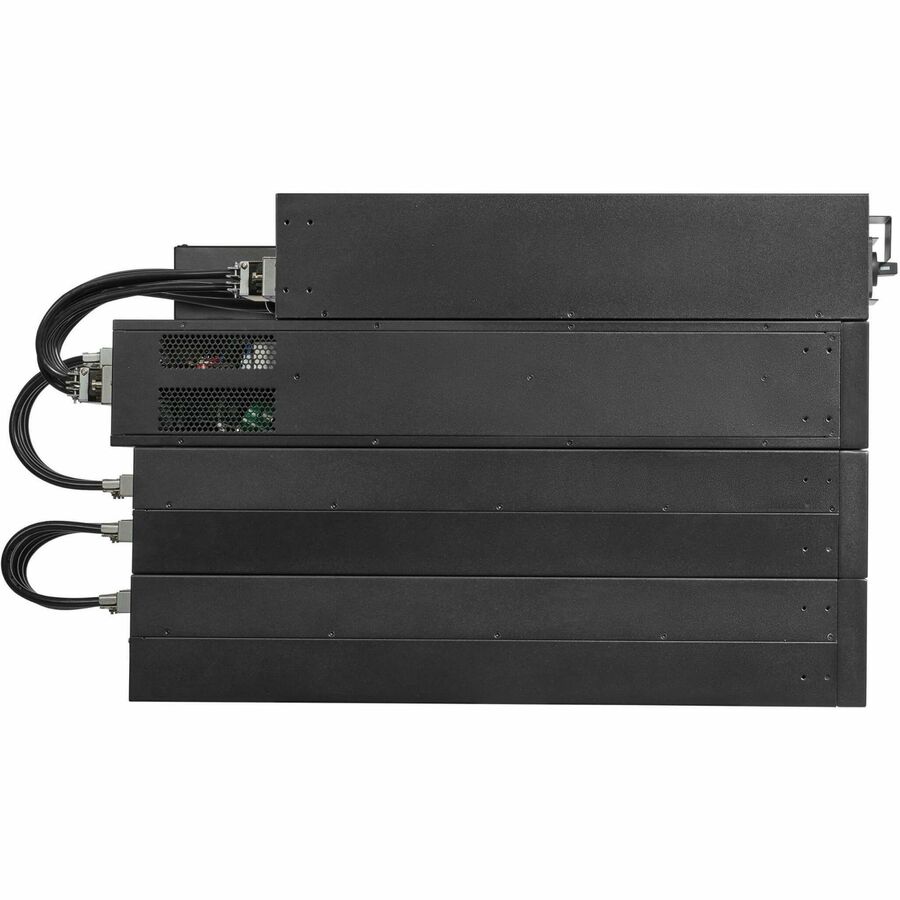

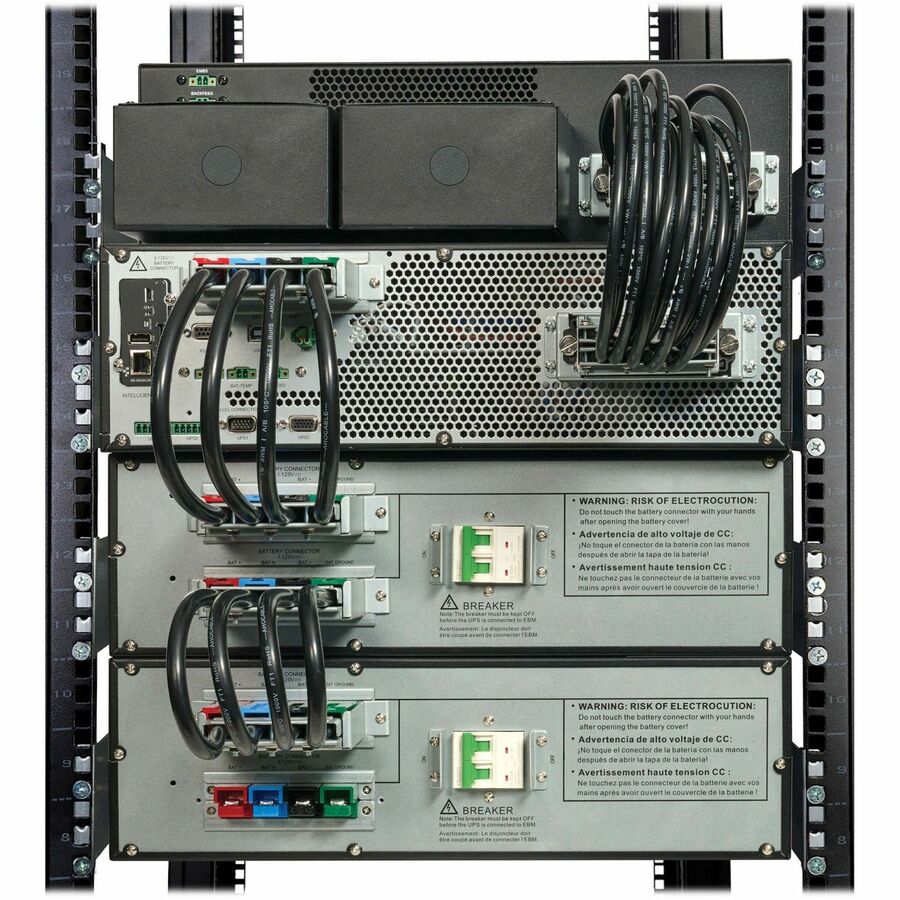

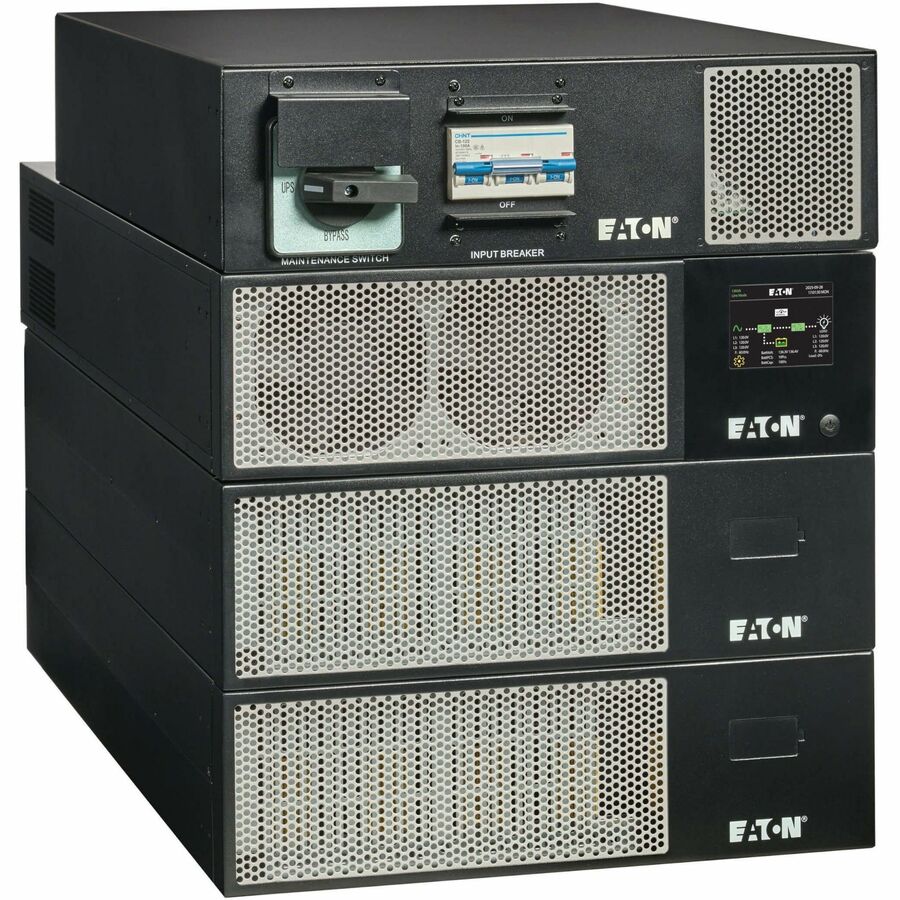

Eaton 5kW UPS bundle/kit model that includes a 5kW Power Module, 5k-MBP, one EBM and NETWORK-M3 card.
9U Rack-mountable - 5.40 Hour Recharge - 230 V AC, 120 V AC Input - 208 V AC, 120 V AC Output - Three Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L21-20R Receptacle(s) - Network-M3 Card, INDGW-M3 Card, RS-232 - TAA Compliant
- SKU
- 93PX5K
- Category
- General Purpose UPS
MSRP$11,229.00
$9,114.07
Save 19%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 93PX5K
- Category
- General Purpose UPS
Overview
The 93PX double-conversion online UPS 208V (5-20kW) and 400V (15kW / 20kW) offers simple, reliable, and cost-effective power for edge and data center environments. With plug-and-play deployment, high-efficiency, 1.0 power factor, advanced cybersecurity, and scalable redundancy, it ensures continuous protection, surge resistance, and auto-restart-ideal for critical applications requiring high performance and operational resilience.
Warranty
Limited Warranty: 2 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- 5000 W load capacity - backup power for your valuable electronics
- 10000 mAh battery capacity for dependable, faster charging to ensure maximum convenience and usability
- 5.40 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- Lead Acid battery chemistry for your convenience and better usability
- NEMA L21-20P plug/connector type for a secure, feasible operation
- NEMA L21-20R receptacle type offers ease of operation with maximum efficiency
- Three Phase phase for better usability and increased efficiency
- Double Conversion Online UPS with data center application/usage to ensure maximum productivity with added feasibility
- 230 V AC input voltage for optimal performance with maximum usability
Specifications
| Application/Usage | Data Center, IT Infrastructure, Switch, Server, IT Rack, Healthcare, Hospital, Medical, Mission Critical Equipment, Edge Computing, Network, Server Room, Network Closet |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Display | LCD |
| Input Voltage | 230 V AC, 120 V AC |
| Manufacturer Part Number | 93PX5K |
| Limited Warranty | 2 Year |
| Output Voltage | 208 V AC, 120 V AC |
| Features | Auto Restart |
| Form Factor | Rack-mountable |
| Input Current | 16 A |
| Manufacturer | Eaton Corporation |
| Product Name | 93PX 5kW Rack-mountable UPS |
| Network Management | Network-M3 Card, INDGW-M3 Card, RS-232 |
| Surge Suppression | Yes |
| Waveform Type | Pure Sine Wave |
| Product Series | 93PX |
| Rack Height | 9U |
| Brand Name | Eaton |
| Plug/Connector Type | NEMA L21-20P |
| Input Voltage Range | 121 V AC - 270 V AC, 53 V AC - 161 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Cord Length | 10 ft |
| Input Frequency | 50 Hz, 60 Hz |
| Phase | Three Phase |
| Receptacle Type | NEMA L21-20R |
| Battery Capacity | 10000 mAh |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Battery Characteristics | Valve-regulated |
| Load Capacity (Watt) | 5000 W |
| TAA Compliant | Yes |
| DC System Voltage | 120 V DC |
| EPO Port | Yes |
| Maximum Operating Elevation | 3280 ft |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Typical Battery Recharge Time | 5.40 Hour |
| Output Power Factor | 1 |
| Number of External Battery Cabinets | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 13 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 31 Minute |
| Receptacle Detail | 2 x NEMA L21-20R |
| Efficiency Detail | 91% (Online Mode), 97% (Eco Mode), 91% (Battery Mode) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
