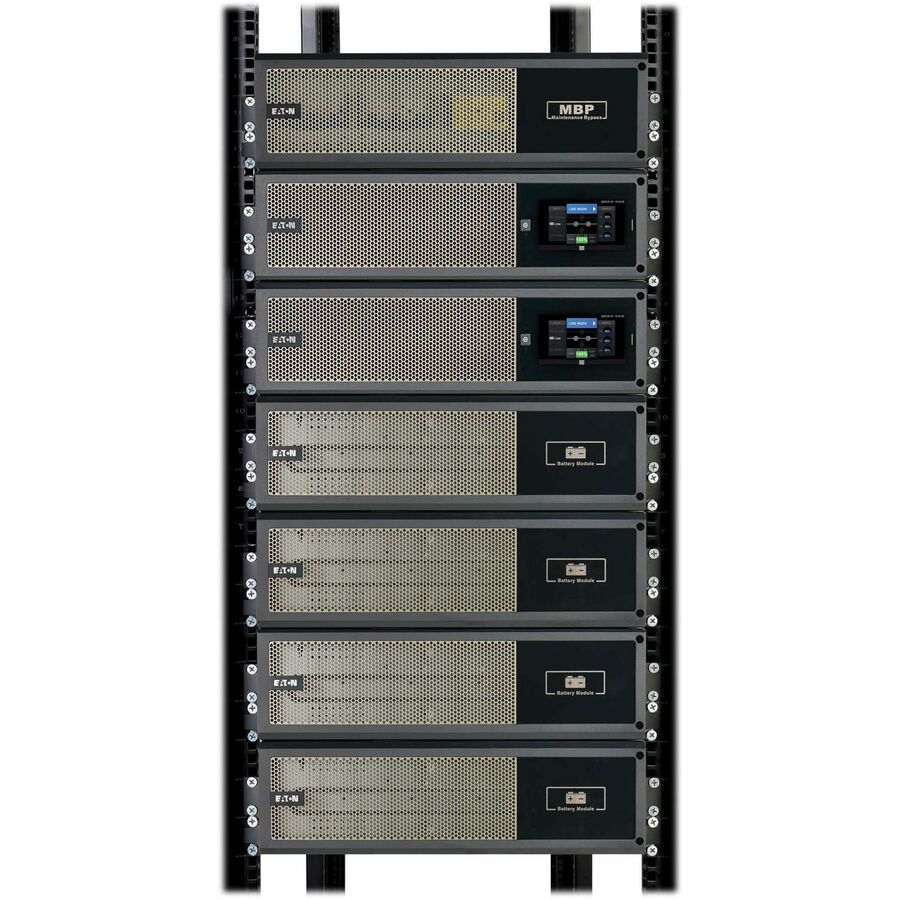

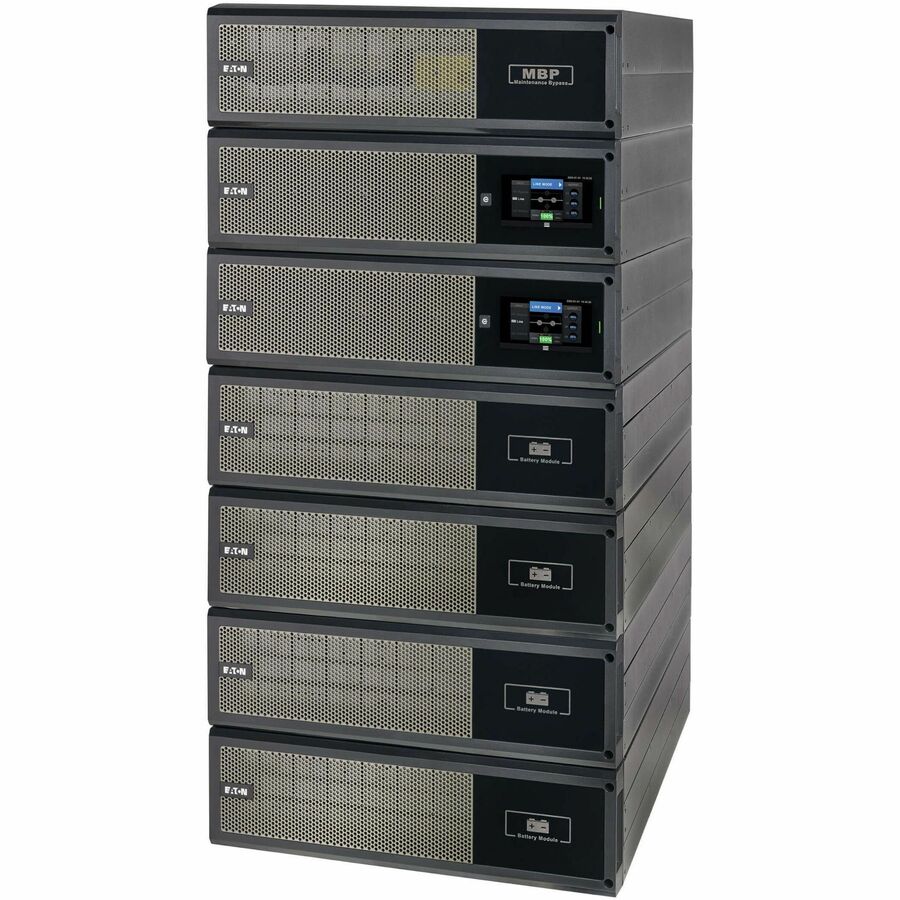

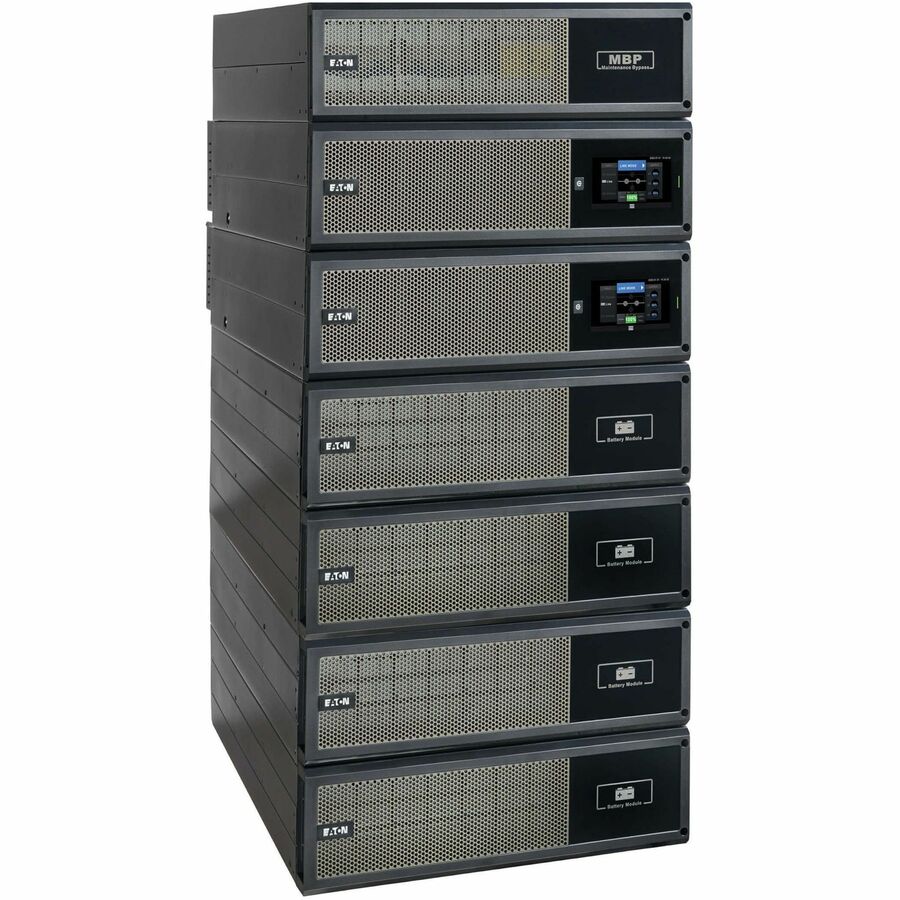

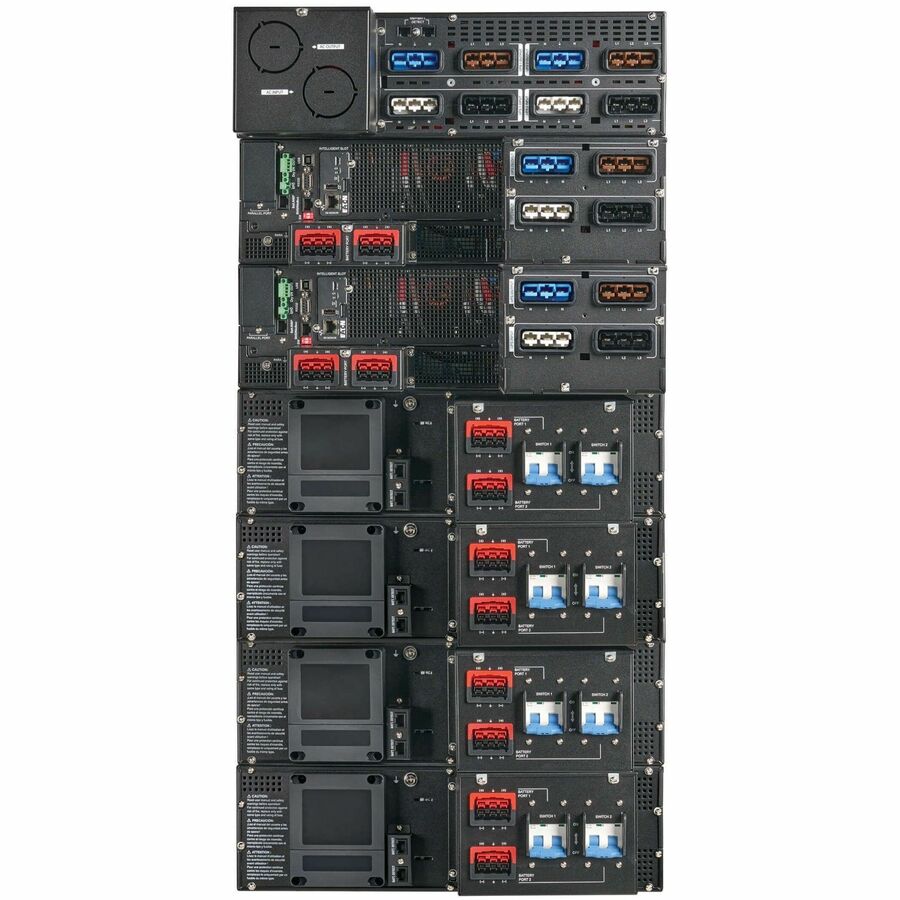

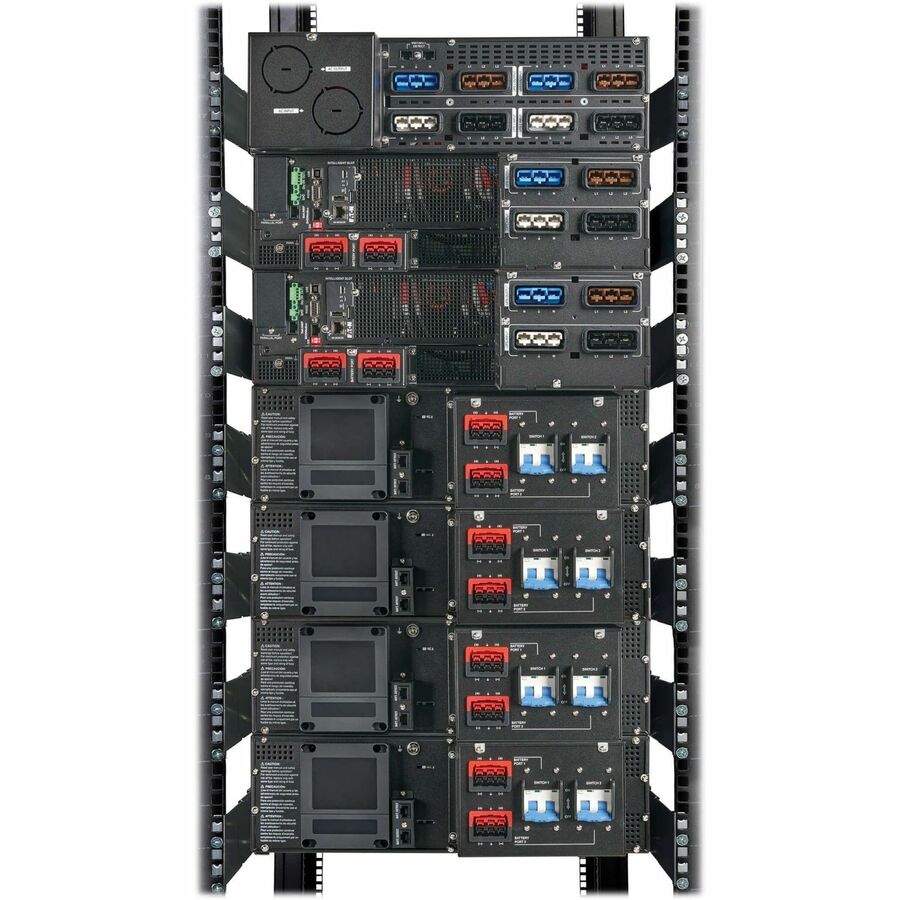

Eaton 5kW UPS bundle/kit model that includes a 5kW Power Module, 5k-MBP, one EBM and INDGW-M3 card.
9U Rack-mountable - 5.40 Hour Recharge - 230 V AC, 120 V AC Input - 208 V AC, 120 V AC Output - Three Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L21-20R Receptacle(s) - Network-M3 Card, INDGW-M3 Card, RS-232 - TAA Compliant
SKU
93PX5KIND
Category
General Purpose UPS
MSRP$11,292.00
$9,050.64
Save 20%
Back-ordered
Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
93PX5KIND
Category
General Purpose UPS
Overview
The 93PX double-conversion online UPS 208V (5-20kW) and 400V (15kW / 20kW) offers simple, reliable, and cost-effective power for edge and data center environments. With plug-and-play deployment, high-efficiency, 1.0 power factor, advanced cybersecurity, and scalable redundancy, it ensures continuous protection, surge resistance, and auto-restart-ideal for critical applications requiring high performance and operational resilience.
Warranty
Limited Warranty: 2 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable.
Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
Innovative quick-connect design for easy plug-and-play deployment and service
Unity power factor (1.0) with 5, 7.5, 13, 15 or 20 kW capacity
High power density with up to 7.5 kW in 9U and up to 20 kW in 12U
Up to 92% energy efficiency (97% in ECO mode)
Network management cards with market-leading cybersecurity
Configurable in parallel for N+1 redundancy (13, 15 or 20 kW)
Auto-restart after extended utility outage
Online, double-conversion UPS
Backfeed and surge protection
TAA compliant
Specifications
Application/Usage
Data Center, IT Infrastructure, Switch, Server, IT Rack, Healthcare, Hospital, Medical, Mission Critical Equipment, Edge Computing, Network, Server Room, Network Closet
Battery Chemistry
Lead Acid
Package Contents
Power Module (PM)
Maintenance Bypass Panel (MBP)
1 x Extended Battery Module (EBM)
INDGW-M3
Product Type
Double Conversion Online UPS
Display
LCD
Input Voltage
230 V AC, 120 V AC
Manufacturer Part Number
93PX5KIND
Limited Warranty
2 Year
Output Voltage
208 V AC, 120 V AC
Features
Auto Restart
Form Factor
Rack-mountable
Input Current
16 A
Manufacturer
Eaton Corporation
Product Name
93PX 5kW Rack-mountable UPS
Network Management
Network-M3 Card, INDGW-M3 Card, RS-232
Surge Suppression
Yes
Waveform Type
Pure Sine Wave
Product Series
93PX
Rack Height
9U
Brand Name
Eaton
Plug/Connector Type
NEMA L21-20P
Input Voltage Range
121 V AC - 270 V AC, 53 V AC - 161 V AC
Output Frequency
50 Hz, 60 Hz
Cord Length
10 ft
Input Frequency
50 Hz, 60 Hz
Phase
Three Phase
Receptacle Type
NEMA L21-20R
Battery Capacity
10000 mAh
USB
Yes
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
104°F (40°C)
Serial Port
Yes
Battery Characteristics
Valve-regulated
Load Capacity (Watt)
5000 W
TAA Compliant
Yes
DC System Voltage
120 V DC
EPO Port
Yes
Maximum Operating Elevation
3280 ft
Storage Temperature
5°F (-15°C) - 140°F (60°C)
Typical Battery Recharge Time
5.40 Hour
Output Power Factor
1
Number of External Battery Cabinets
1
Backup/Run Time With External Battery Cabinet (Full Load)
13 Minute
Backup/Run Time With External Battery Cabinet (Half Load)
