1 x Network (RJ-45) - Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Supply
MSRP$272.66
$214.86
Save 21%In stock: 60
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Customizable media converter extends your copper Gigabit Ethernet network connection over fiber optic cable with the addition of PoE.
• Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
• Customizable SFP port supports both 1G single- and multimode transceivers
• RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
• Supports both full- and half-duplex operation
• Works in tandem with Tripp Lite N785-Series non-PoE converters (sold separately)
More from the Manufacturer
Works in Tandem with Tripp Lite's N785-Series (Non-PoE) Media Converters
The N785-P01-SFP lets you choose a transceiver that suits your system, while also delivering power to your PoE+ device (Tripp Lite's N286-01GSX-MDLC and N286-01GLX-SLX transceivers sold separately). It connects to a Tripp Lite N785-Series non-PoE media converter using your choice of singlemode or multimode cabling. It also delivers data and power to a 10/100/1000 Mbps PoE device up to 328 feet (100 meters) away using Cat5e/6 cabling (such as Tripp Lite’s N001- or N201-Series cables).
Supports Auto-Sensing of Network Speed and Other Advanced Functions

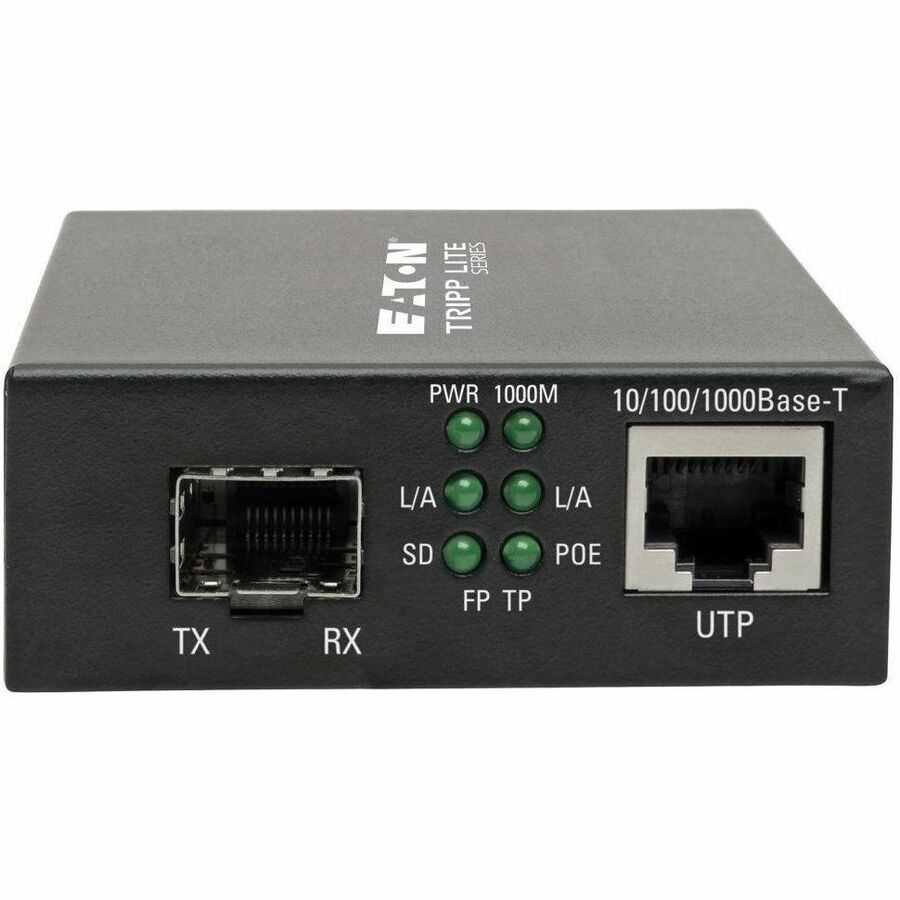

Monitoring and controlling your network nodes is easy with the N785-P01-SFP’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors all ports to ensure link status remains active.
Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal N785-P01-SFP is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N785-P01-SFP |
| Brand Name | Tripp Lite series |
| Product Model | N785-P01-SFP |
| Product Name | Gigabit SFP Fiber to Ethernet Media Converter, POE+ - 10/100/1000 Mbps |
| Product Type | Transceiver/Media Converter |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Physical Characteristics | |
| Height | 1" |
| Width | 3.7" |
| Depth | 2.8" |
| Weight (Approximate) | 7.04 oz |
| Power Description | |
| Power Source | Power Supply |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
