SKU
N785-P01-SC-MM2
Category
Transceivers/Media Converters
Overview
Extends your copper Gigabit Ethernet network connection up to 2 km (1.2 mi.) over SC fiber optic cable with the addition of PoE.
• Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
• Supports multimode fiber optic cable with SC connectors up to 2 km (1.2 mi.)
• RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
• Supports both full- and half-duplex operation
• Works in tandem with Tripp Lite N785-001-SC (sold separately)
More from the Manufacturer
Supports Auto-Sensing of Network Speed and Other Advanced Functions

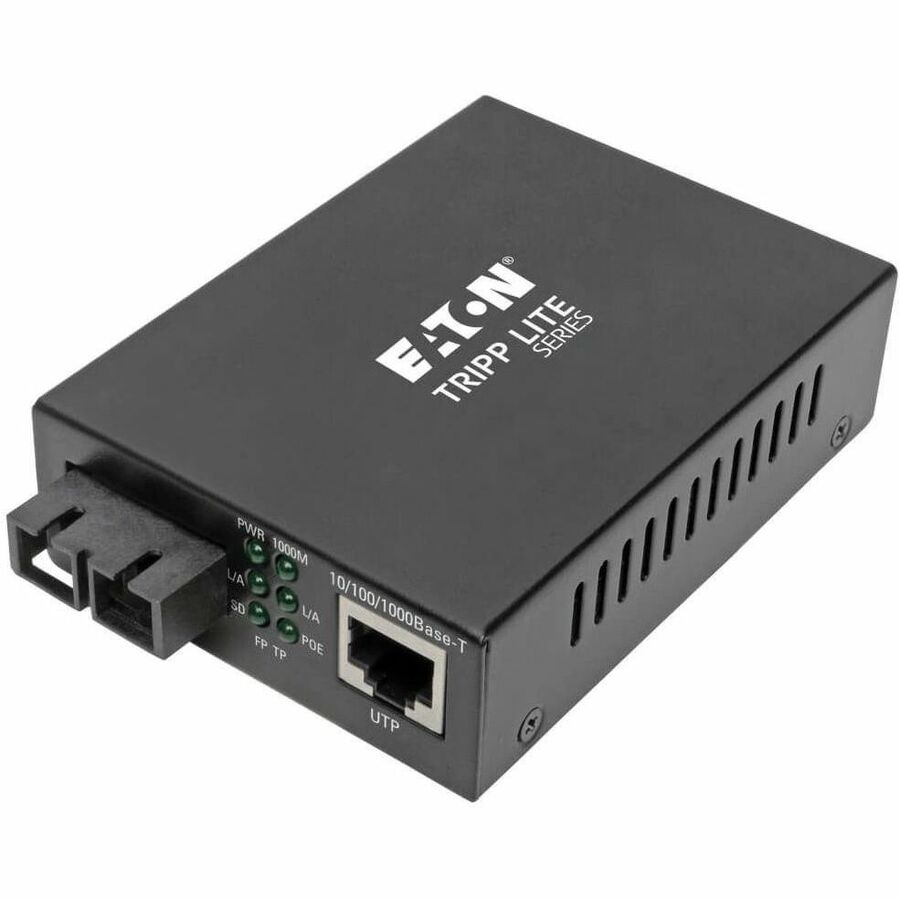

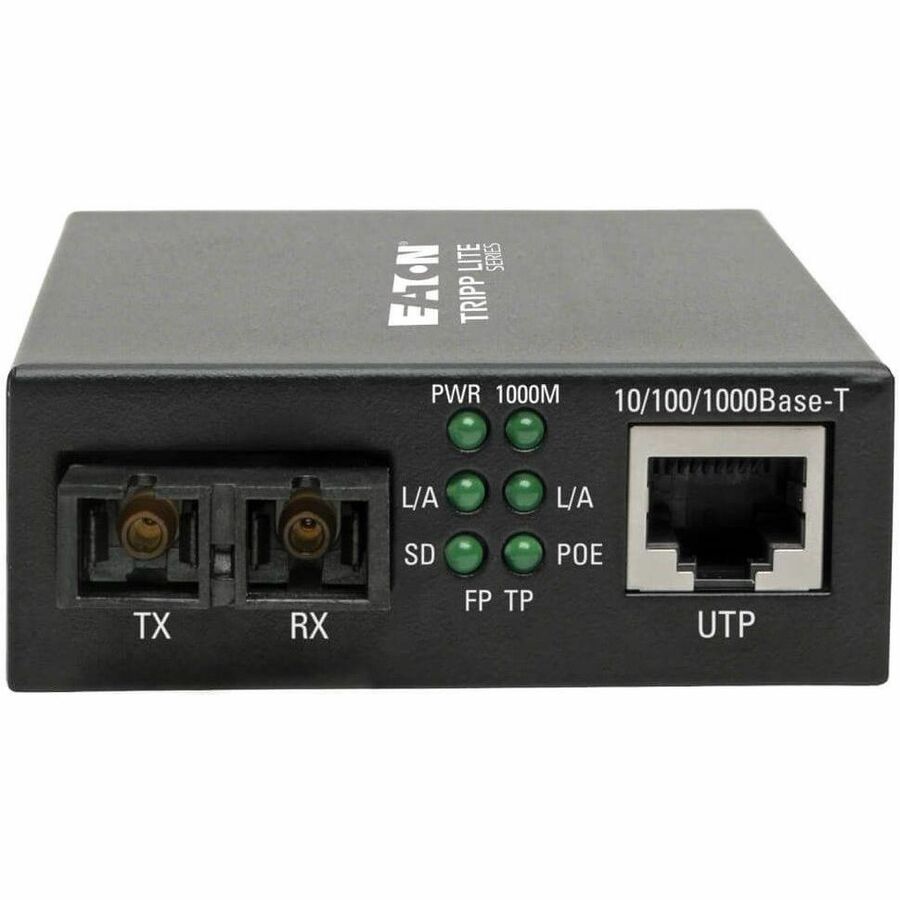

Monitoring and controlling your network nodes is easy with the N785-P01-SC-MM2’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the SC and RJ45 ports to ensure link status remains active.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of buying, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
Works in Tandem with Tripp Lite’s N785-001-SC Media Converter
The N785-P01-SC-MM2 connects to Tripp Lite’s N785-001-SC using multimode fiber optic cabling with SC ends to extend an Ethernet network connection up to 2,000 meters. It also delivers data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) away via Cat5e/6 cabling (such as Tripp Lite’s N001- or N201-Series cables).
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N785-P01-SC-MM2
Brand Name
Tripp Lite series
Product Model
N785-P01-SC-MM2
Product Name
N785-P01-SC-MM2 Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
2
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Number of SC Ports
1
SC Port Type
Duplex
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Wavelength
1310 nm
Maximum Distance Supported
2 km
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T, 1000Base-X
Physical Characteristics
Height
1"
Width
3.7"
Depth
2.8"
Weight (Approximate)
7.04 oz
Power Description
Power Source
Power Supply
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
N785-P01-SC-MM2 Transceiver/Media Converter

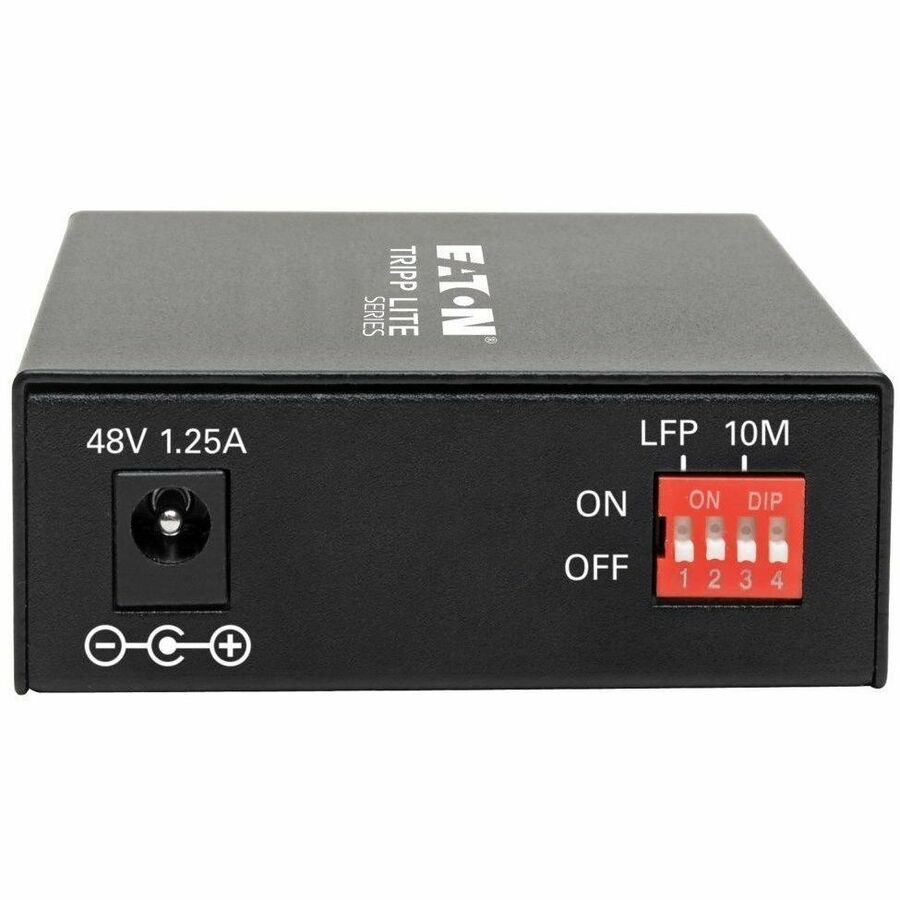

External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
