1 x Network (RJ-45) - Multi-mode, Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - DIN Rail Mountable - TAA Compliant
MSRP$307.48
$242.31
Save 21%In stock: 49
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Features | Customize a Network Extension over Fiber Optic Cable
This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.
Monitor Your Installation with Link Fault Signaling and Loop Back Functions
Determine the health of your network connection via the Link Fault Signaling (LFS) and Line Loop Back (LLB) functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The LLB diagnostic test ensures copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.
LEDs Indicate Installation Performance and Diagnostic Functions

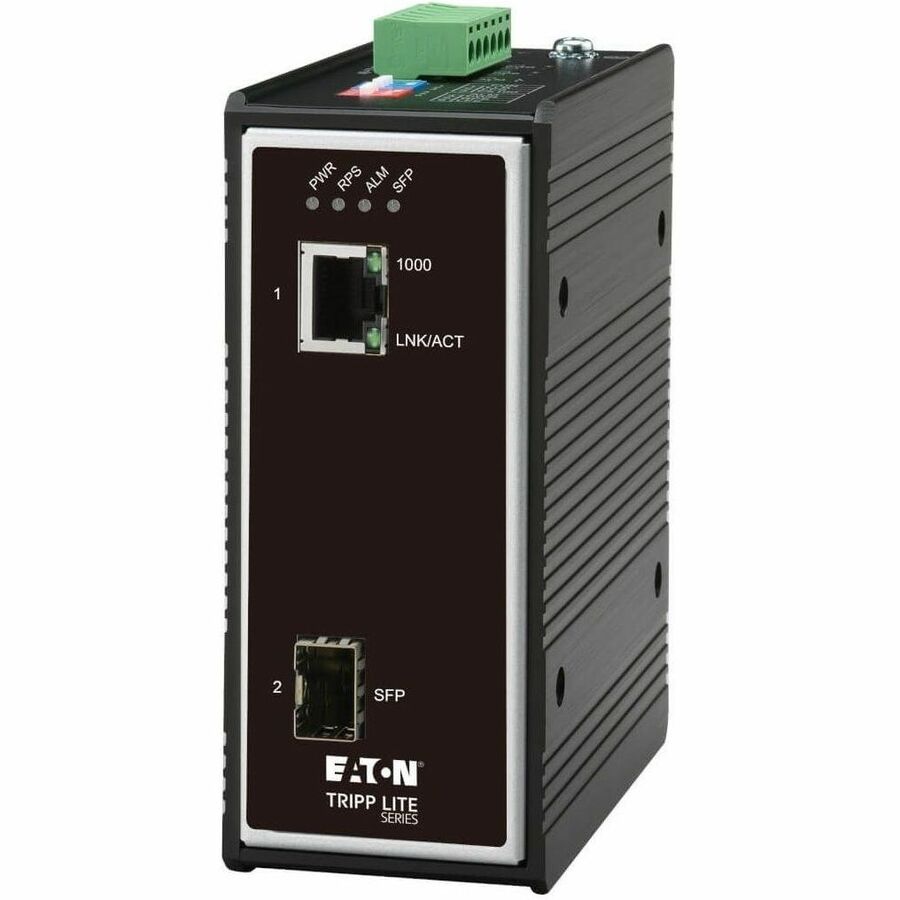

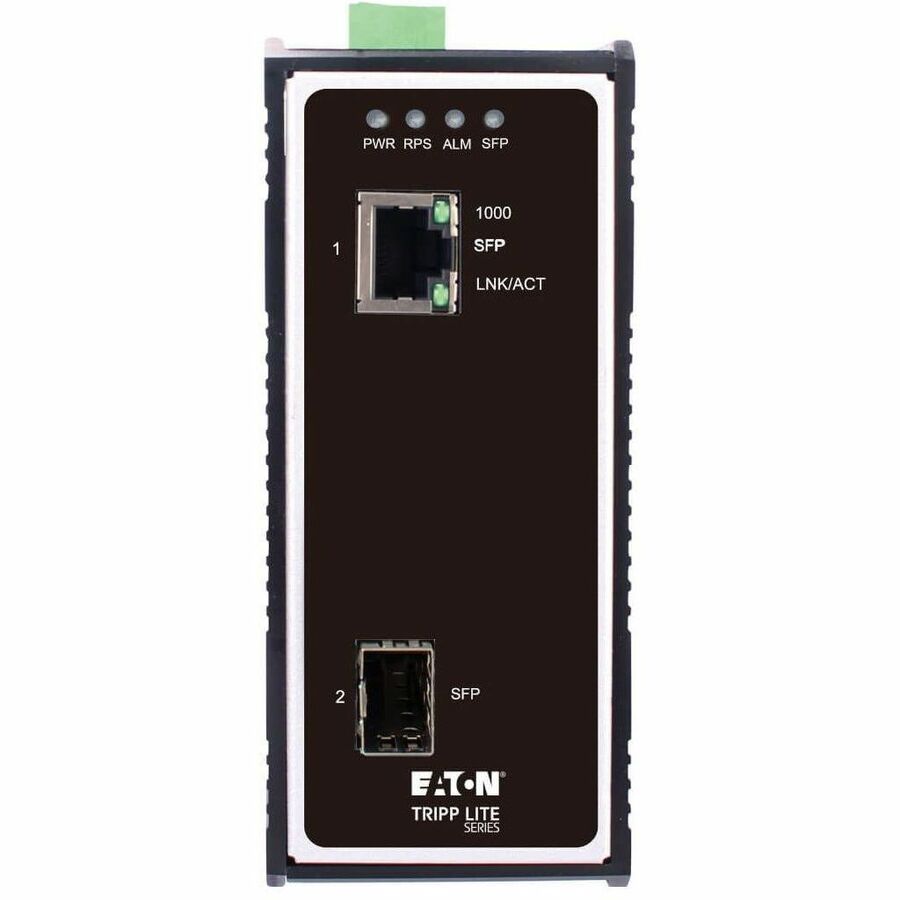

Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. The included 20-57VDC terminal block provides primary and secondary power inputs.
Protective Metal Housing Built to Withstand a Variety of Hazards

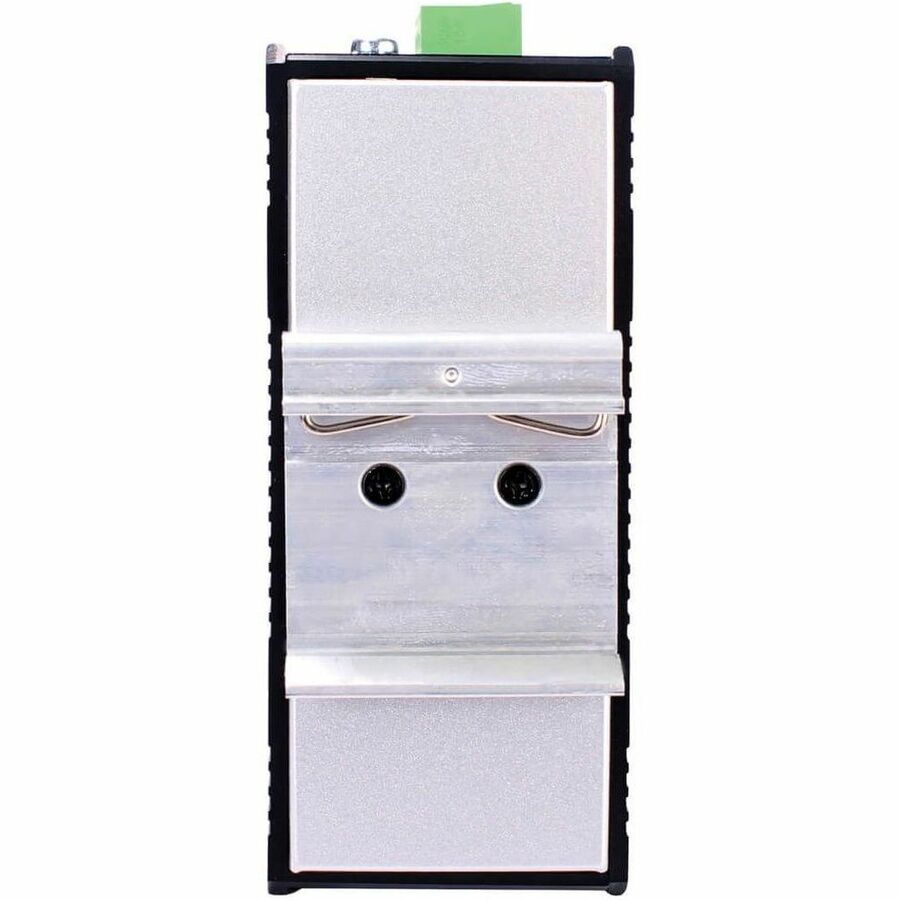

The IP30 industrial-grade aluminum case is protected from entry by tools, wires and other solid objects greater than 2.5 millimeters in diameter. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting.
TAA-Compliant for GSA Schedule Purchases
The N785-I01-SFP-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N785-I01-SFP-D |
| Brand Name | Tripp Lite series |
| Product Model | N785-I01-SFP-D |
| Product Name | N785-I01-SFP-D Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode, Single-mode |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T, 100/1000Base-X |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 0.6" |
| Width | 1.8" |
| Depth | 3.8" |
| Weight (Approximate) | 14.88 oz |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 6 W |
| Plug/Connector Type | Terminal Block |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
