Black Box Pure Networking Fast Ethernet (100-Mbps) Media Converter
Black Box

Black Box Pure Networking Fast Ethernet (100-Mbps) Media Converter

1 x Network (RJ-45) - Single-mode, Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - 60 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC Adapter - Standalone, Rack-mountable

SKU
LHC210A
Category
Transceivers/Media Converters

MSRP$67.54

$53.18

Save 21%

In stock: 2

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LHC210A
Category
Transceivers/Media Converters

Overview

Extend copper via fiber

Get your copper-based network where it needs to go. This media converter lets you extend your copper-based network via fiber to a maximum distance of 60 km through the use of an SFP, providing your deployment with the connectivity it needs.

Support multiple standards

Meets whatever standard you need it to. It's fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX and 100BASE-FX.

Straightforward installation

The media converter can be installed into a standard converter chassis. The installation is quick and easy.

Status updates

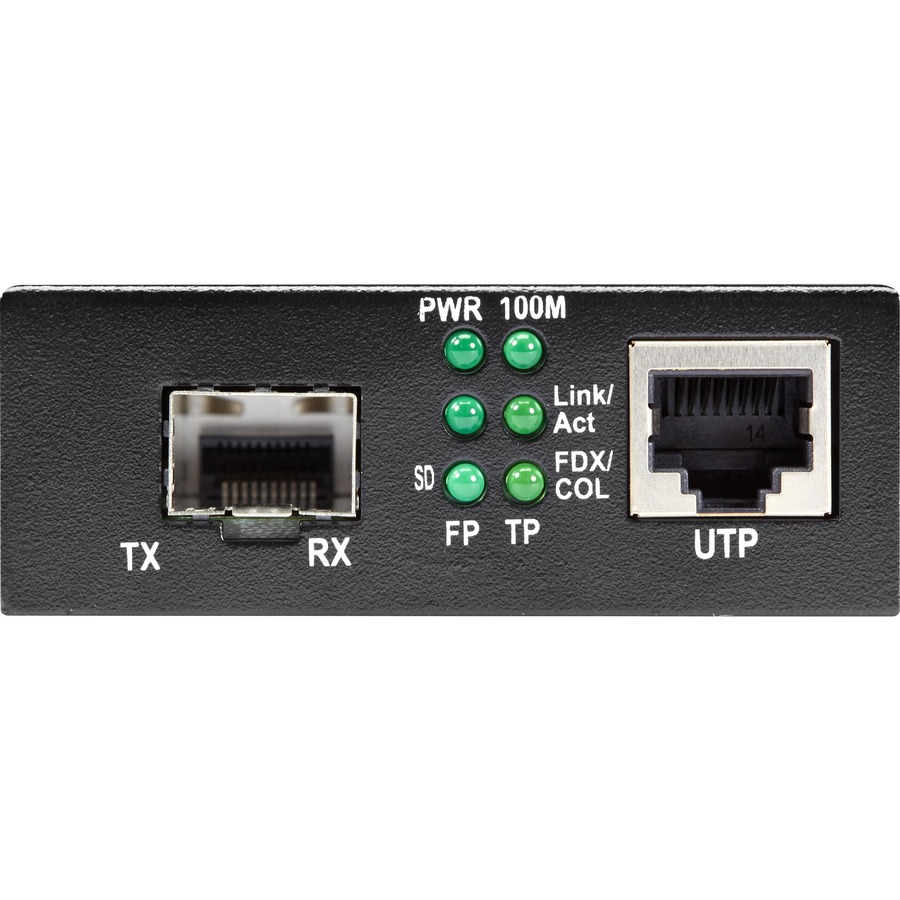

Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel.

Know link media issues immediately

Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.

Highlights

  • Convert copper-based network via fiber up to a maximum distance of 60 km through the use of SFP's
  • Fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX, 100BASE-FX
  • Use as a standalone unit or with the available chassis (LHGC-RACK).
  • Know operation status through LEDs on front panel
  • One RJ45 port and one SFP slot
  • Flow Control: IEEE802.3x flow control for full duplex mode.
  • Link fault pass-through functionality

Specifications

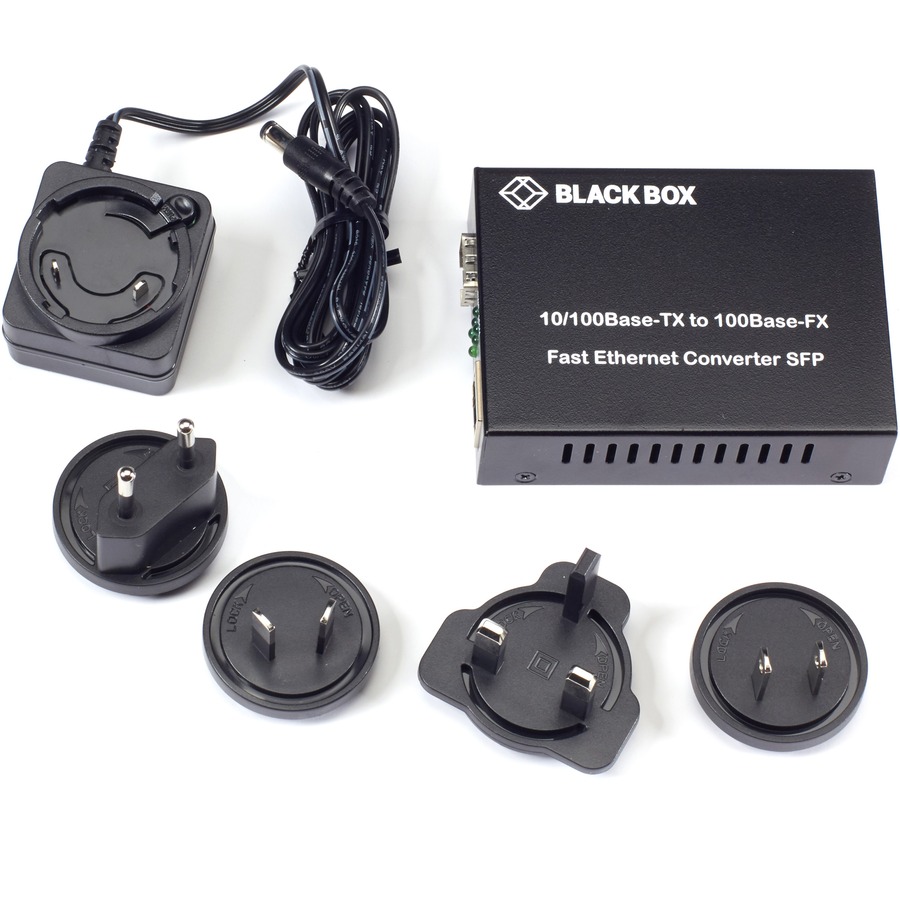

Package Contents
  • Pure Networking Fast Ethernet (100-Mbps) Media Converter
  • 5-VDC Power Adapter
Product TypeTransceiver/Media Converter
Manufacturer Part NumberLHC210A
Maximum Distance Supported60 km
Packaged Quantity1
Power SourceAC Adapter
Limited Warranty3 Year
Weight (Approximate)11.20 oz
Form FactorStandalone, Rack-mountable
ManufacturerBlack Box Corporation
Product NamePure Networking Fast Ethernet (100-Mbps) Media Converter
Network Technology10/100Base-TX, 100Base-FX
Brand NameBlack Box
Plug/Connector TypeBarrel
Expansion Slot TypeSFP
Country of OriginChina
Height1"
Width2.7"
Depth3.7"
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SFP Slots1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedSingle-mode, Multi-mode
Total Number of Ports1
Total Number of Expansion Slots1
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Core/Cladding Specification50/125 µm, 62.5/125 µm, 8.3/125 µm, 9/125 µm, 10/125 µm
