Genuine Black Box through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Transceivers/Media Converters
Country of origin
United States
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
• Fiber links provide EMI/RFI immunity in harsh environments.
• Supports Link Fault Pass-Through (LFPT) for troubleshooting fault conditions on the interfaces.
• Autonegotiates line speed (100- or 1000-Mbps).
• Auto-cross enables you to use either a straight-through or crossover pinned cable.
• Supports jumbo frames for multimedia applications.
• Choose from models with an SFP slot, or fixed SC dual-strand multimode fiber or SC dual-strand single-mode fiber connectors.
Applications include:
• LAN extension.
• Connect aggregation switches to core switches over fiber.
• Take fiber to the desktop for PC and VoIP phone connections.
• Connect network nodes via fiber in high EMI/RFI environments.
Warranty
Limited Warranty: 6 Year
Highlights
Supports Link Fault Pass-Through (LFPT) for troubleshooting fault conditions on the interfaces.
Autonegotiates line speed (10-, 100- or 1000-Mbps).
Auto-cross enables you to use either a straight-through or crossover pinned cable.
Supports jumbo frames for multimedia applications.
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
LGC5152A
Brand Name
Black Box
Product Name

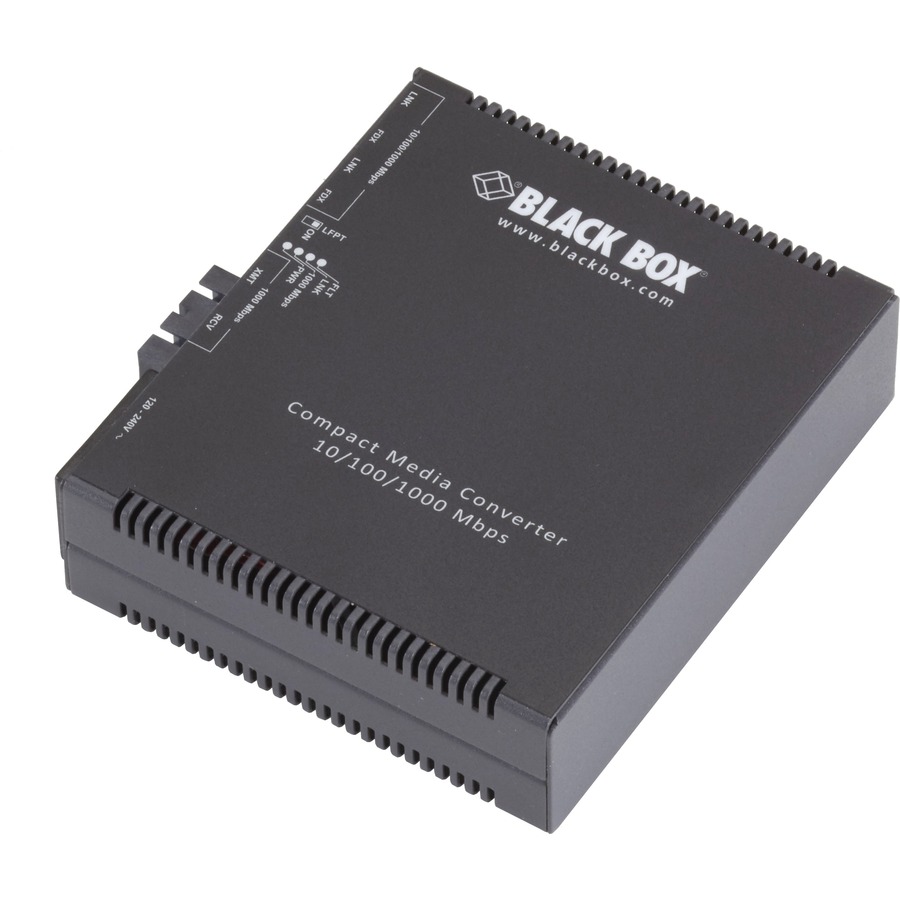

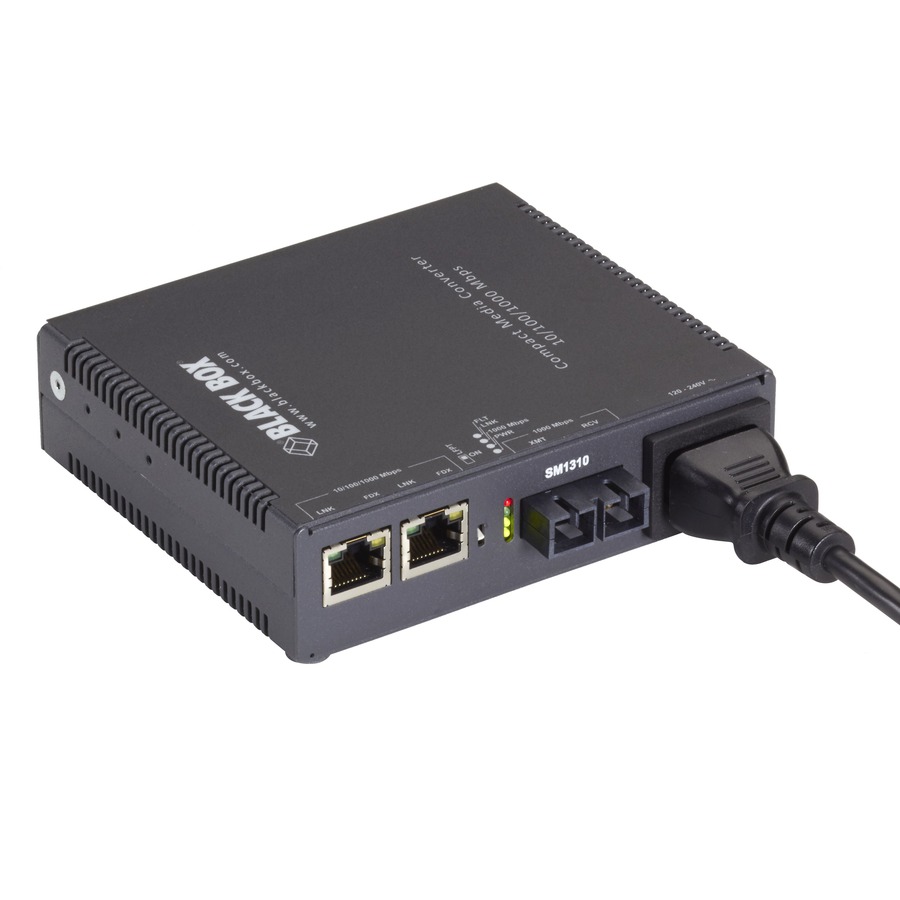

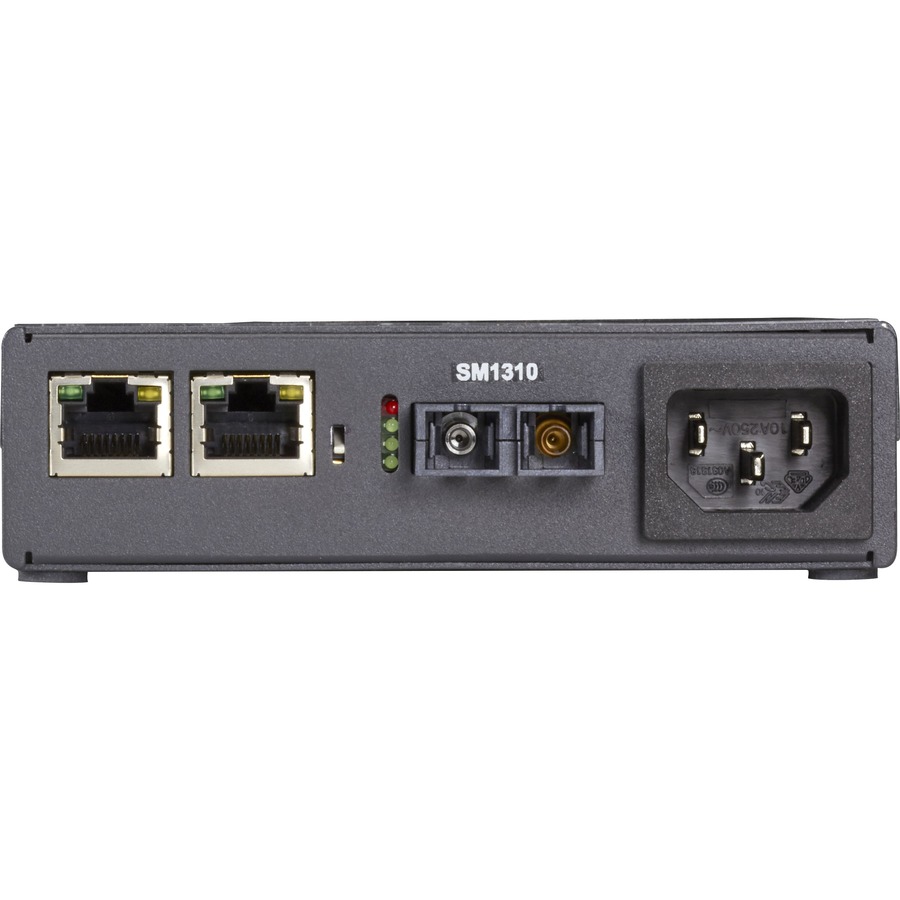

Compact Media Converter Gigabit Ethernet Single Mode 1310nm 10km SC
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
3
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Number of SC Ports
1
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Single-mode
Fiber Optic Cable Wavelength
1310 nm
Maximum Distance Supported
10 km
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Physical Characteristics
Form Factor
Wall Mountable
Height
1.4"
Width
4.8"
Depth
4.5"
Power Description
Power Source
Power Supply
Warranty
Limited Warranty
6 Year
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
