Black Box Gb ETH MED CONV 2-10/100/1000 COP 100/1000 MM FBR 850nm 0.5km SC
Black Box

Black Box Gb ETH MED CONV 2-10/100/1000 COP 100/1000 MM FBR 850nm 0.5km SC

2 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T - 0.55 km - AC - TAA Compliant

SKU
LGC5151A
Category
Transceivers/Media Converters

MSRP$737.52

$577.47

Save 22%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LGC5151A
Category
Transceivers/Media Converters

Overview

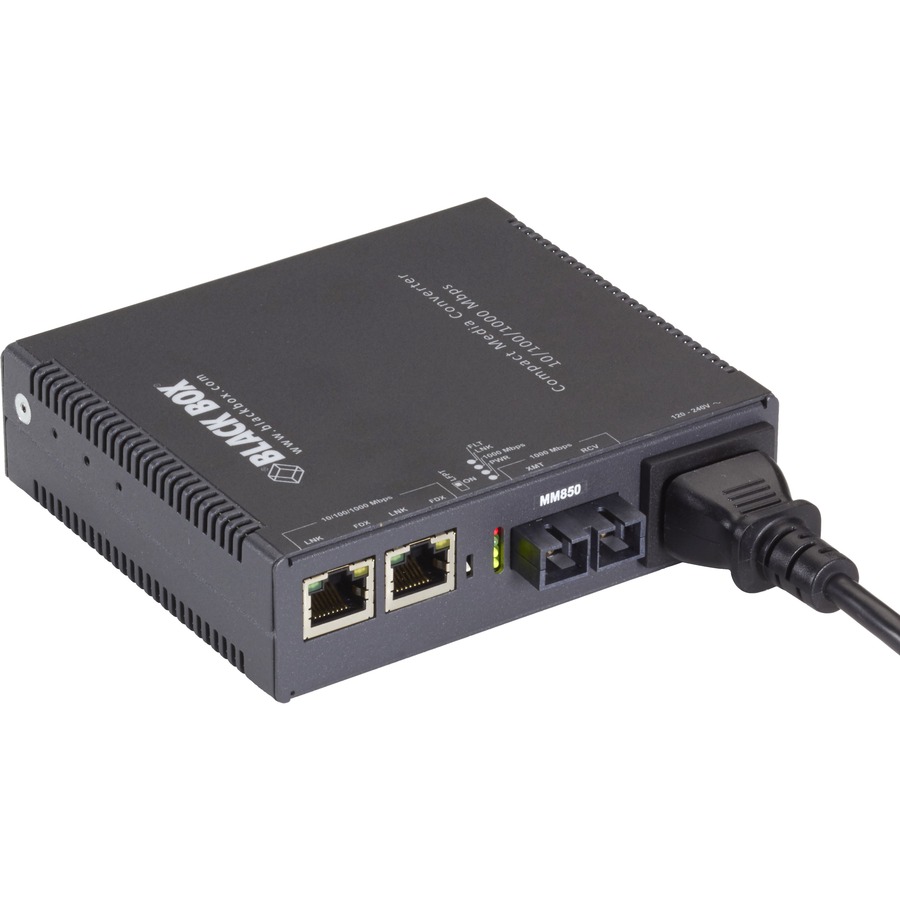

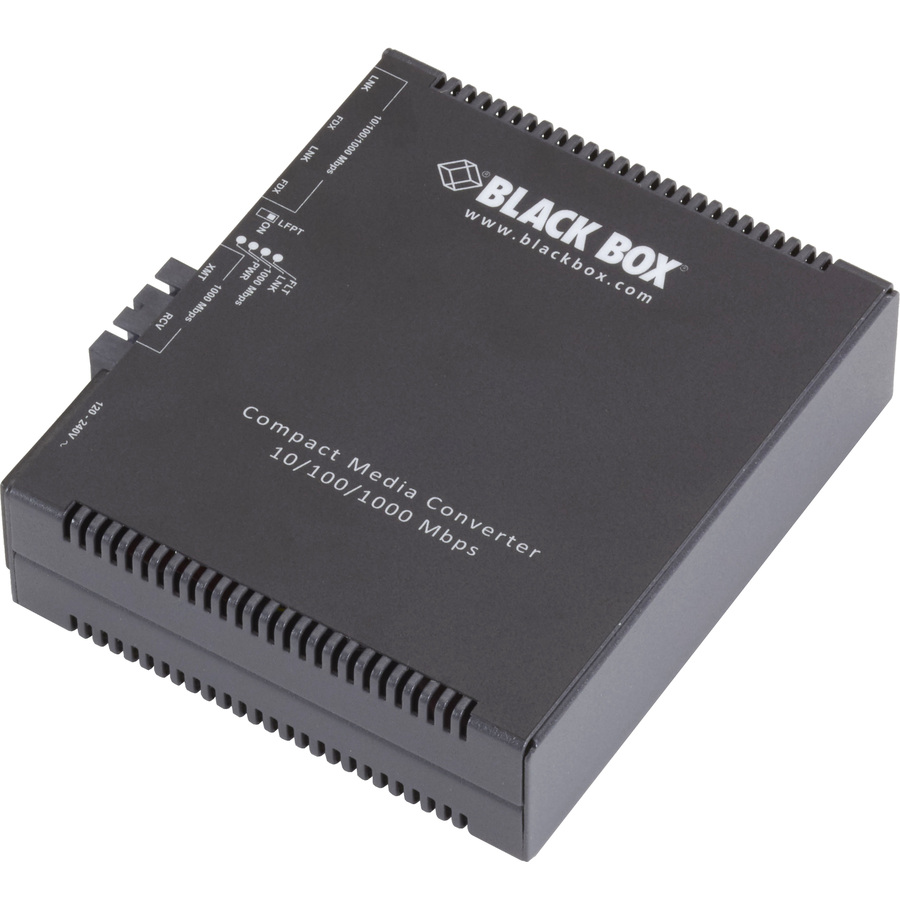

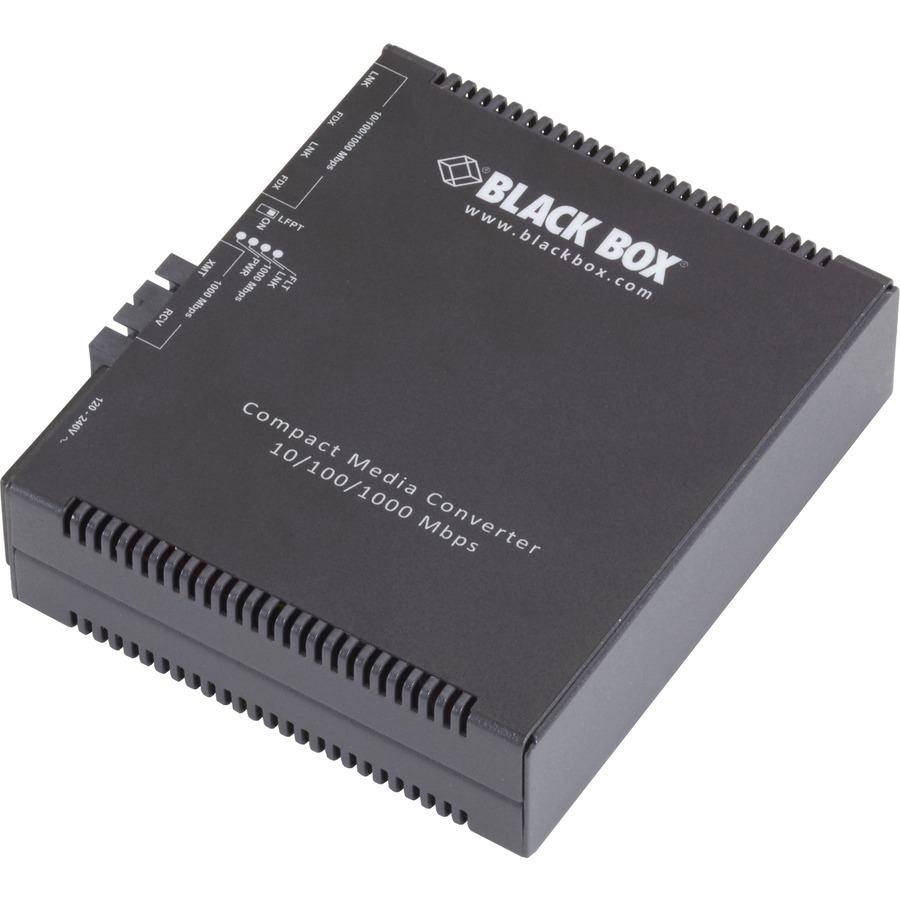

Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Compact Media Converters make it easy to bring fiber to the desktop. Just connect a Media Converter to your PC's with a cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.

This Compact Media Converter allows you to choose from models with an SFP slot, or fixed SC dual-strand multimode fiber or SC dual-strand single-mode fiber connectors.

Applications Include:

• LAN extension.

• Connect aggregation switches to core switches over fiber.

• Take fiber to the desktop for PC and VoIP phone connections.

• Connect network nodes via fiber in high EMI/RFI environments.

Highlights

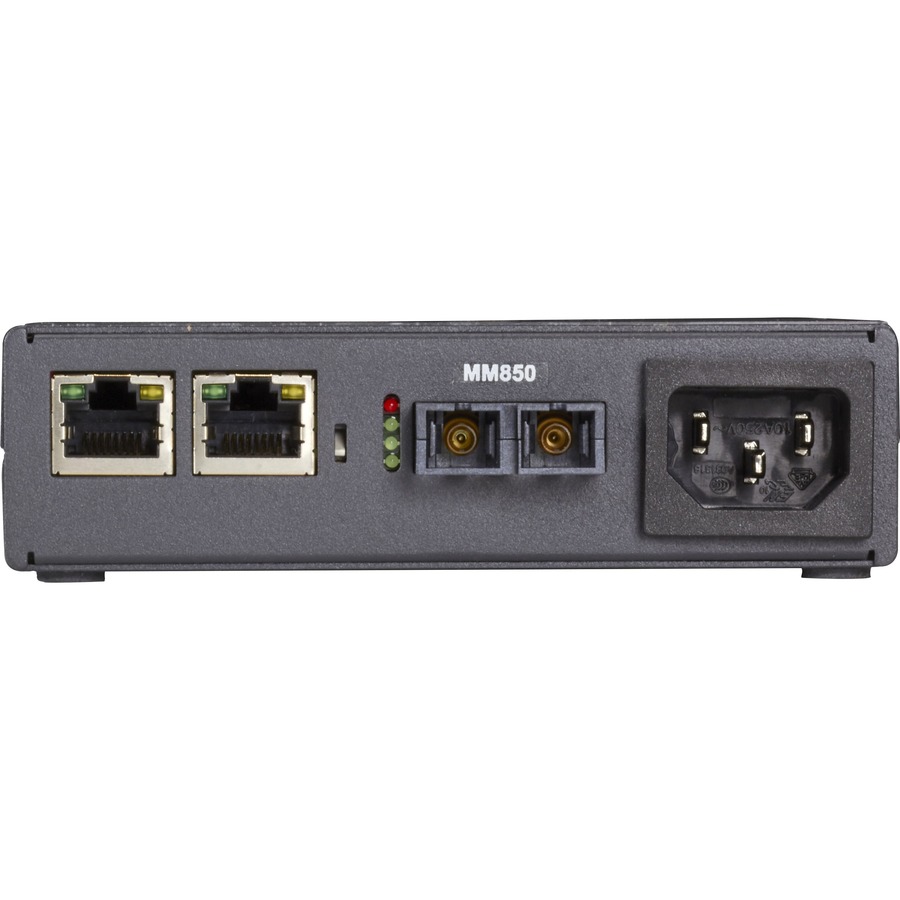

  • Provides two 10/100/1000-Mbps Copper to 100/1000-Mbps multimode fiber ports
  • Link fault detection enables quickly to isolate any breaks
  • Autosensing 10/100/1000-Mbps for speed
  • Auto-cross enables you to use either a straight-through or crossover pinned cable
  • Supports jumbo frames for multimedia applications
  • Fiber links provide EMI/RFI immunity in harsh environments

Specifications

Product TypeTransceiver/Media Converter
Manufacturer Part NumberLGC5151A
Maximum Distance Supported0.55 km
Power SourceAC
Limited Warranty6 Year
ManufacturerBlack Box Corporation
Product NameGb ETH MED CONV 2-10/100/1000 COP 100/1000 MM FBR 850nm 0.5km SC
Network Technology10/100/1000Base-T
Product LineCompact
Brand NameBlack Box
Country of OriginTaiwan
Height1.4"
Width4.8"
Depth4.5"
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports3
SC Port TypeDuplex
TAA CompliantYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
Fiber Optic Cable Wavelength850 nm
