SKU
N48LSM-16X16
Category
Patch Panels
Overview
1U network panel replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO Elite ports to eliminate rack clutter.
1U Spine-Leaf Panel Simplifies Your Rack Connections and Helps You Keep Costs Down
This network patch panel is designed for spine-and-leaf architecture, which replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports and helps eliminate significant rack clutter. This data center network technology provides high-bandwidth, low-latency, non-blocking server-to-server connectivity, which saves you money, simplifies your rack cabling and improves network performance.
All-in-One Solution Consists of 2 Switch Layers: Spine and Leaf

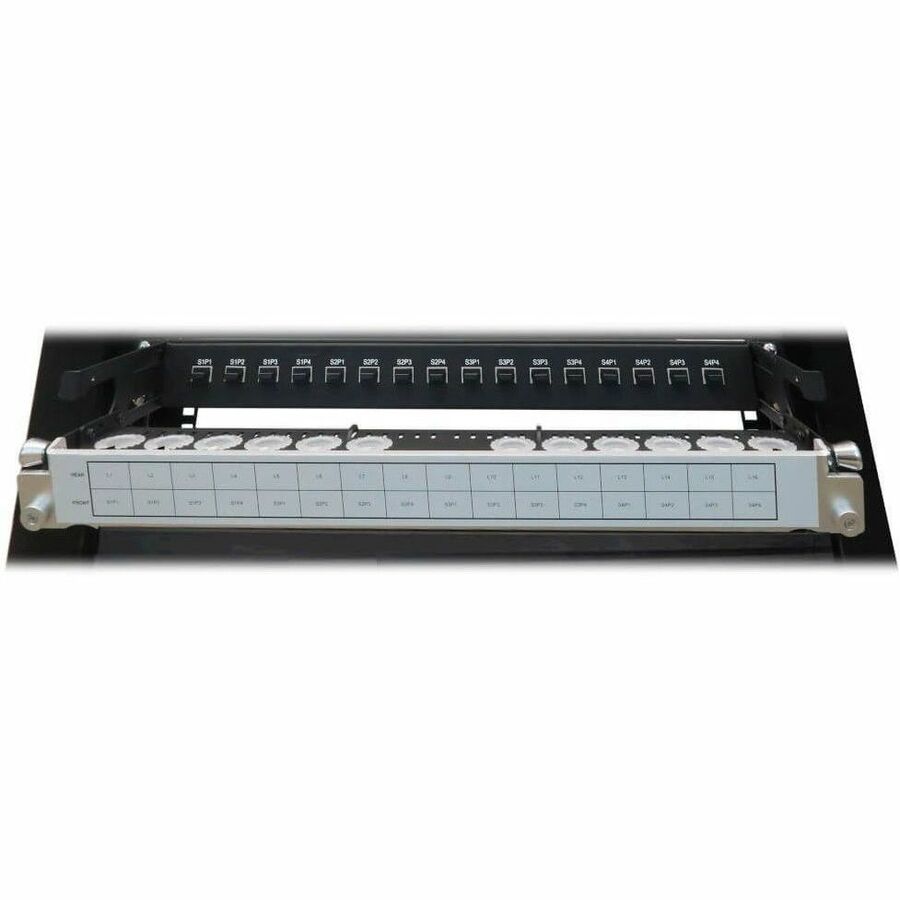

The groundbreaking N48LSM-16X16 contains a complete spine-and-leaf mesh topology, resulting in less labor, less troubleshooting and fewer errors. It features spine ports in the front that mate with a spine switch, as well as leaf ports in the rear that mate with a leaf switch. No LC-to-LC patching, double cassette or user cable shuffling is required with spine-and-leaf architecture, which improves link performance.
Easy to Mount in Just 1U of Rack Space

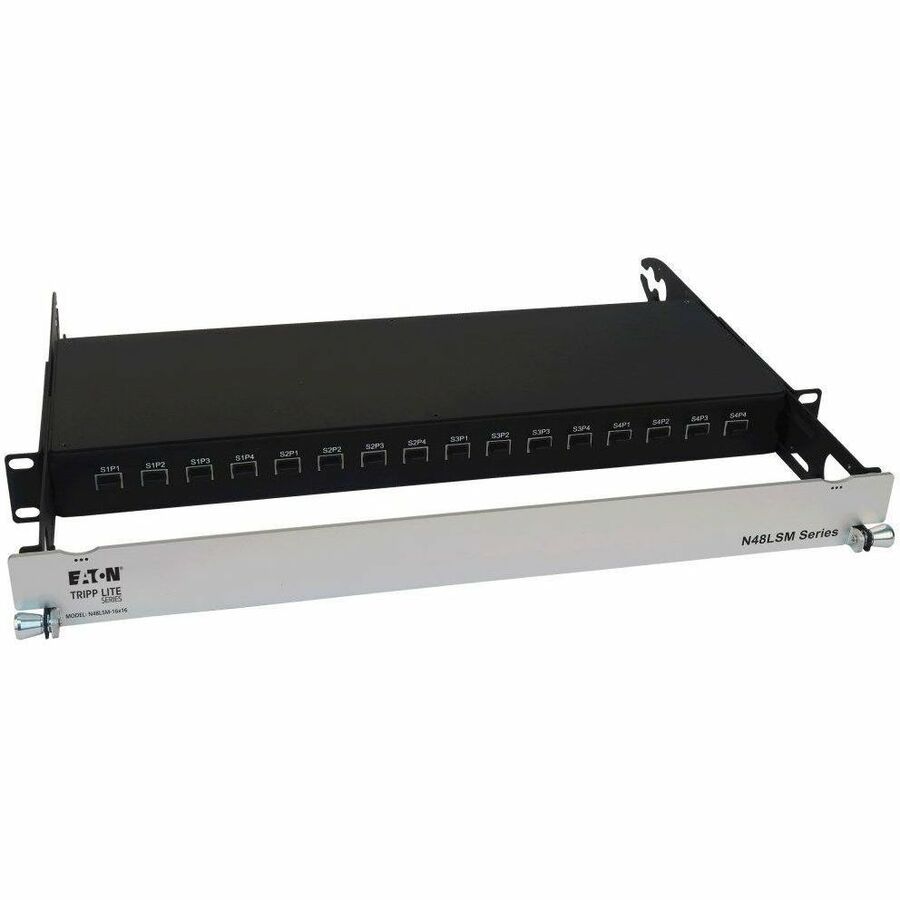

This aluminum panel with key-up to key-up MTP/MPO adapter features 32 12-fiber Elite MTP/MPO-PC male ports: 16 front spine ports and 16 rear leaf ports. The N48LSM-16X16 mounts into 1U of space in an EIA-standard 19-inch rack. Cable managers in both front and rear help organize cabling and eliminate unsightly clutter.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
1U patch panel designed for cost-effective spine-and-leaf network cabling
Replaces standard MTP/MPO-to-LC cross-connect to reduce troubleshooting and labor
All-in-one solution for 50/125 multimode OM4 8-fiber network cabling

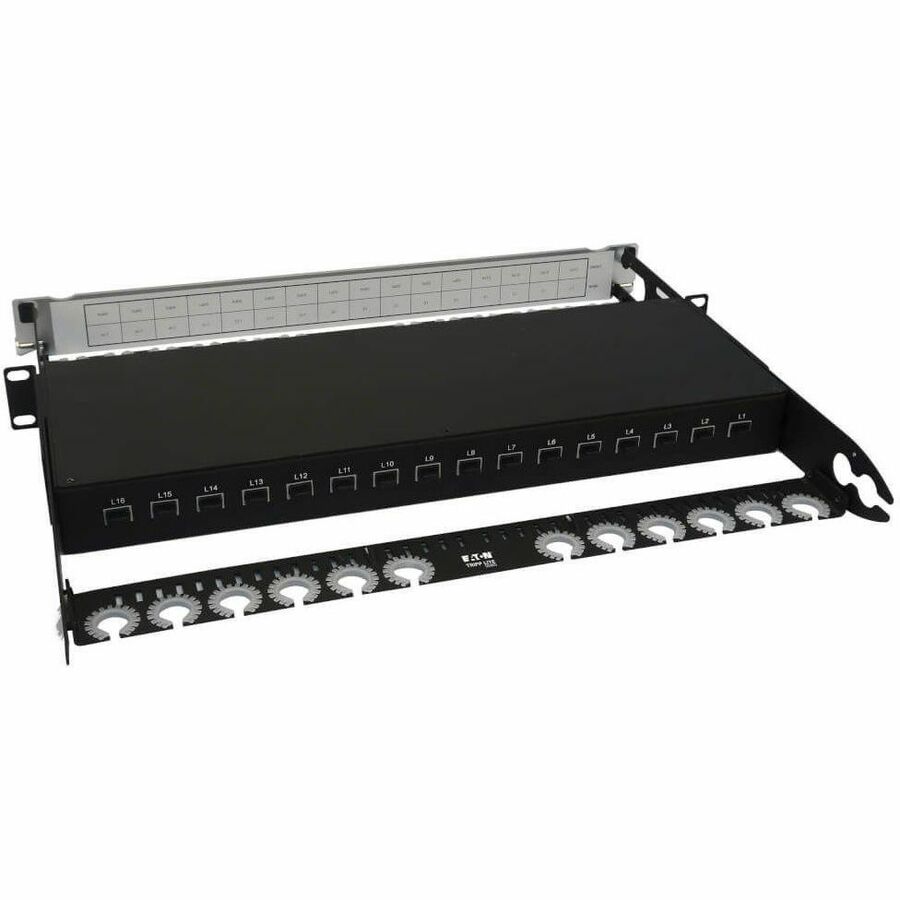

Front and rear wire managers help organize cables and eliminate clutter
Mounts easily into 1U of space in your EIA-standard 19 in. rack or cabinet
This product is covered by a Lifetime Limited Warranty (coverage details)
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N48LSM-16X16
Brand Name
Tripp Lite series
Product Line
Spine-Leaf
Product Model
N48LSM-16X16
Product Name
N48LSM-16X16 Spine-Leaf MPO Panel, 16 x 16 Ports, 1U
Product Type
Network Patch Panel
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Aluminum
Form Factor
Rack-mountable
Compatible Rack Unit
1U
Compatible Rack Width
19"
Height
1.7"
Width
17.6"
Depth
14.8"
Warranty
Limited Warranty
Lifetime
Interfaces/Ports
Total Number of Ports
32
Miscellaneous
Package Contents
N48LSM-16X16 Spine-Leaf MPO Panel, 16 x 16 Ports, 1U
Owner's Manual
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
