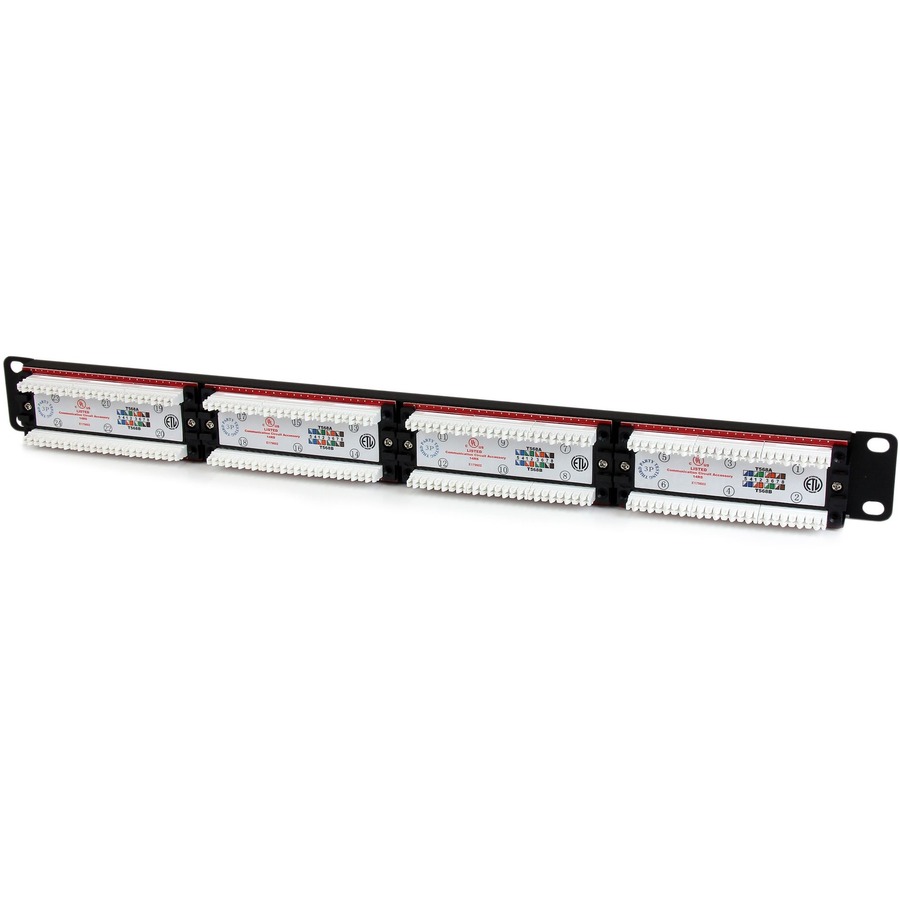

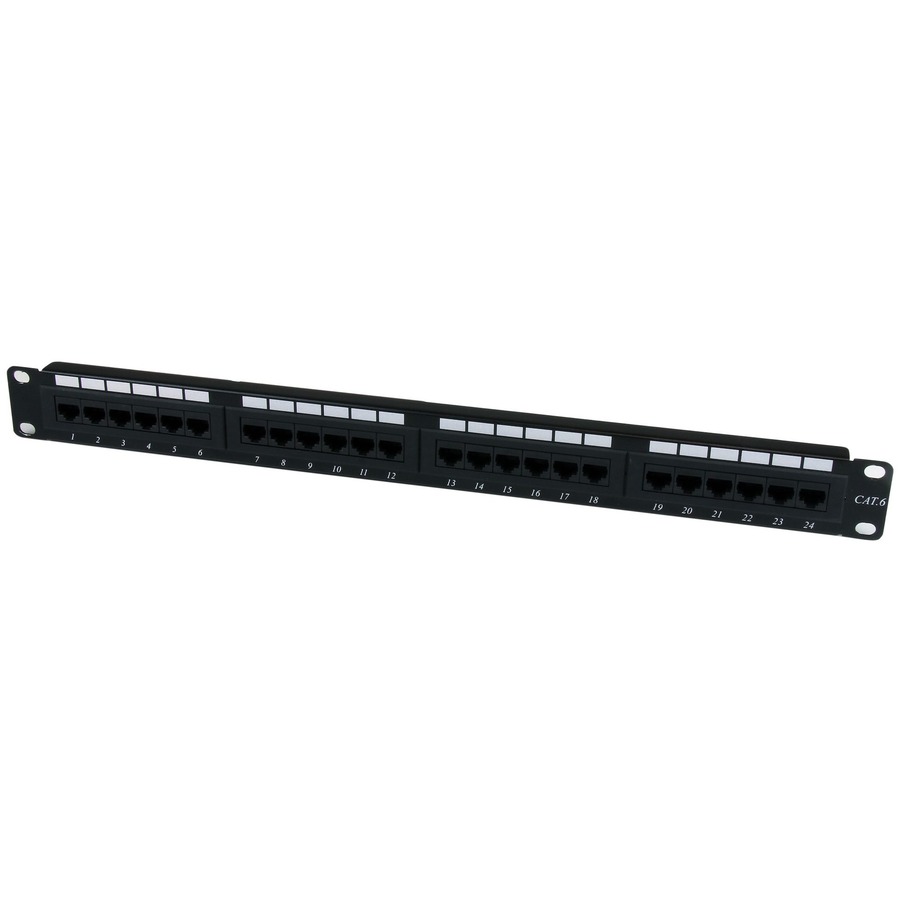

StarTech 24 Port 1U Rackmount Cat 6 110 Patch Panel
Organize up to 24 Cat6 patch cables - 110 Type Patch Panel - 1U 24 port Cat6 RackMount Patch Panel - Cat6 Patch Panel - 1U 24 port Network Patch Panel - 24 Port 1U Rackmount Cat 6 110 Patch Panel - Color coded for both T568A and T568B installations
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
C6PANEL24
Category
Patch Panels
Overview
The C6PANEL2424-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application. For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables.The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management. Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com's 2-year warranty. More from the Manufacturer More from the Manufacturer
Highlights

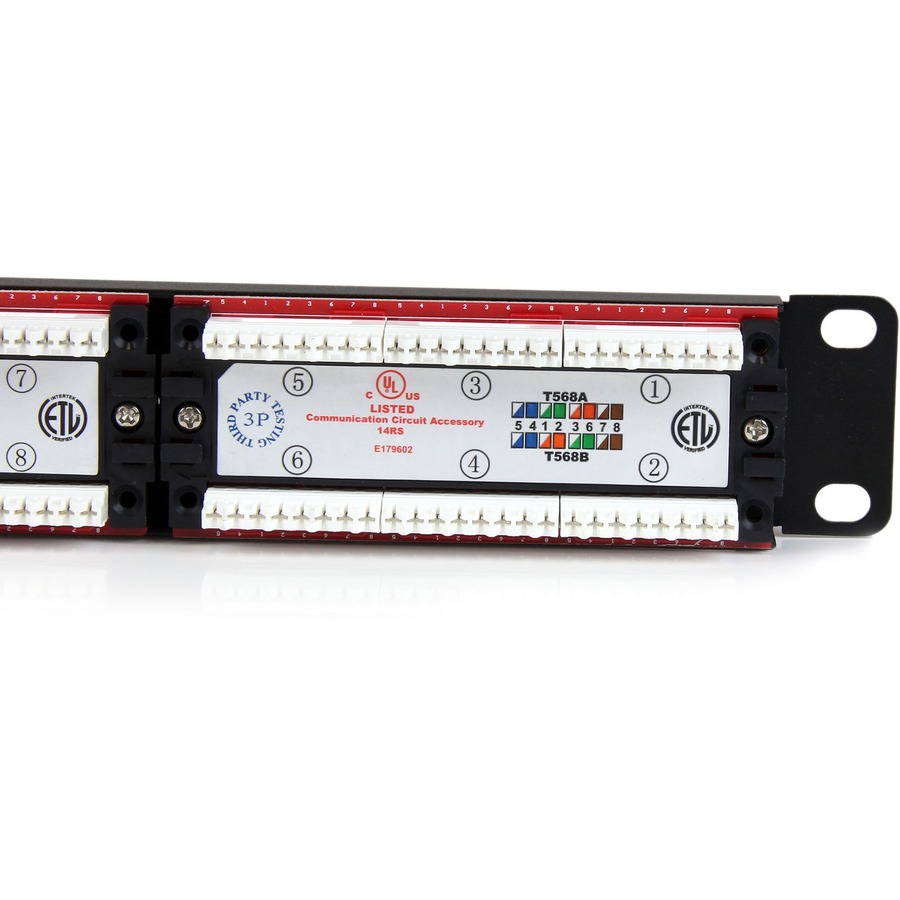

Color coded for both T568A and T568B installations
Terminated using 110-type punch tool
Supports both Cat5e and Cat6 cables

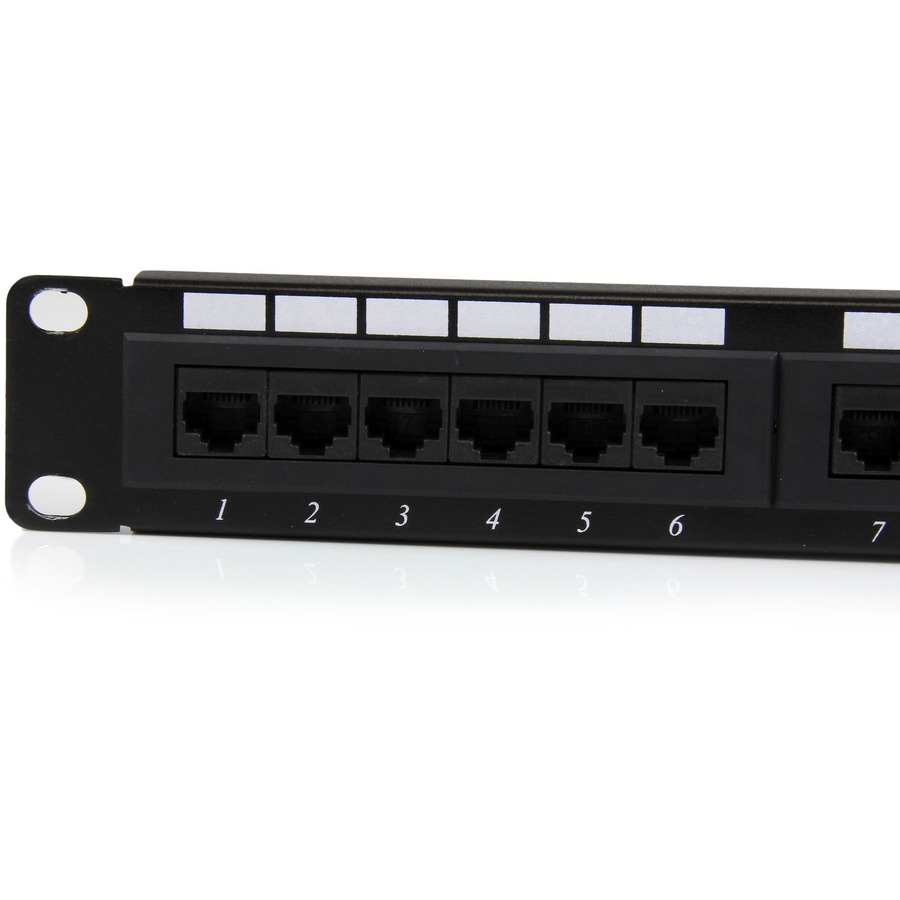

Writable and erasable marking surfaces for each port
Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
Specifications
Package Contents
24 Port 1U Rackmount Cat 6 110 Patch Panel
4 x M6 Screws
4 x M5 Screws
Product Type
Network Patch Panel
Manufacturer Part Number
C6PANEL24
Packaged Quantity
1 Each
Limited Warranty
2 Year
Weight (Approximate)
1.28 lb
Form Factor
Rack-mountable
Manufacturer
StarTech.com
Product Name
24 Port 1U Rackmount Cat 6 110 Patch Panel
Brand Name
StarTech.com
Country of Origin
China
Height
1.7"
Width
19"
Depth
1.3"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Compatible Rack Unit
1U
Compatible Rack Width
19"
Number of Network (RJ-45) Ports
24
Number of RJ-11 Ports
24
Total Number of Ports
24
Product Color
Black
Color Family
Black
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
