StarTech 24 Port 0.5U Cat5e Patch Panel - RJ45 Ethernet Rackmount Cat 5e 110 Patch Panel
Organize up to 24 Cat5e patch cables using only 0.5U of rack space - 24 port Cat5e patch panel - 0.5u patch panel - rj45 patch panel - ethernet patch panel - network patch panel
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
PANELHU24
Category
Patch Panels
Overview

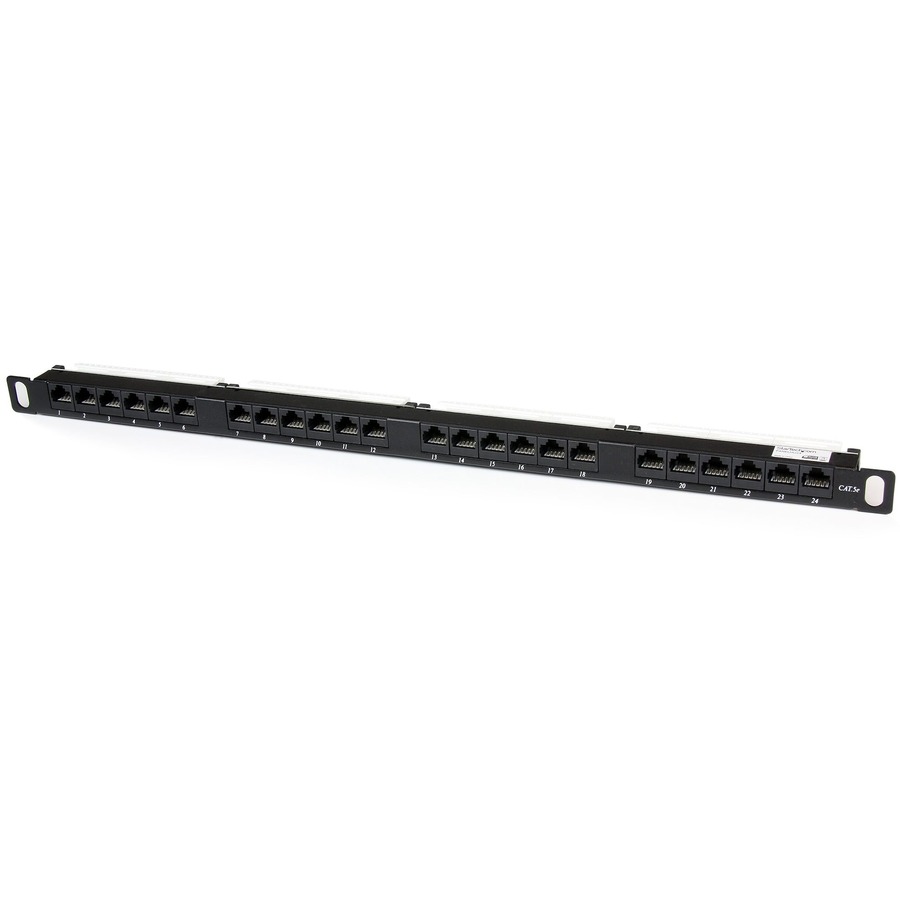

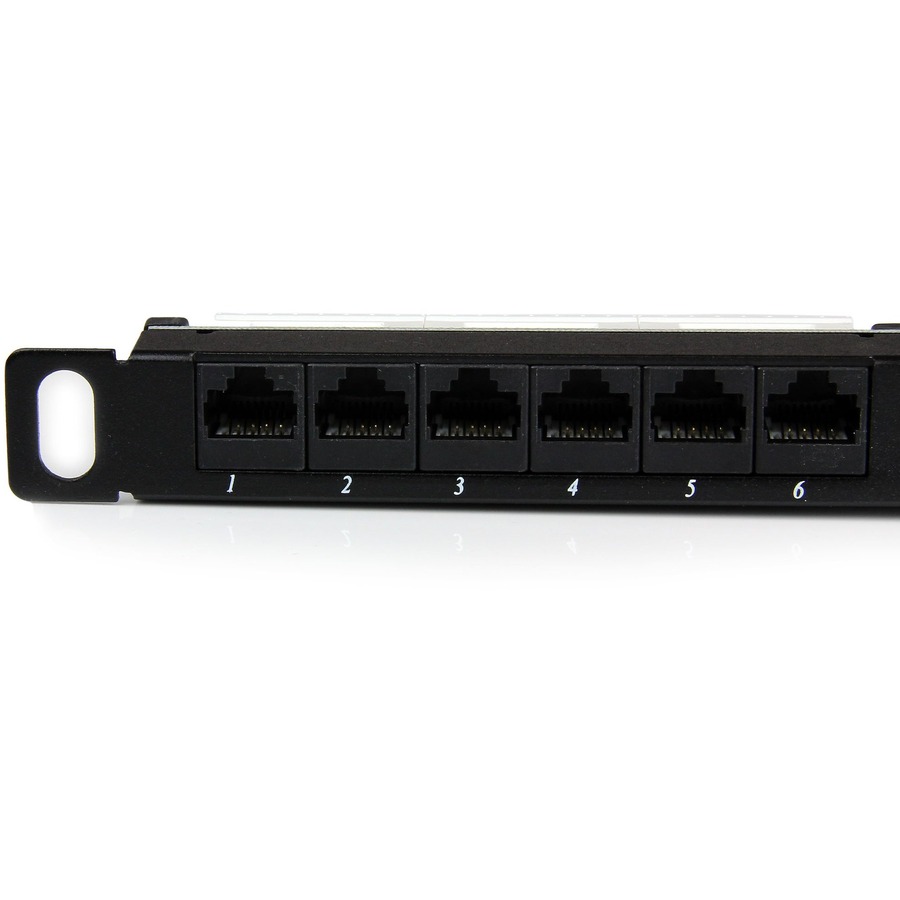

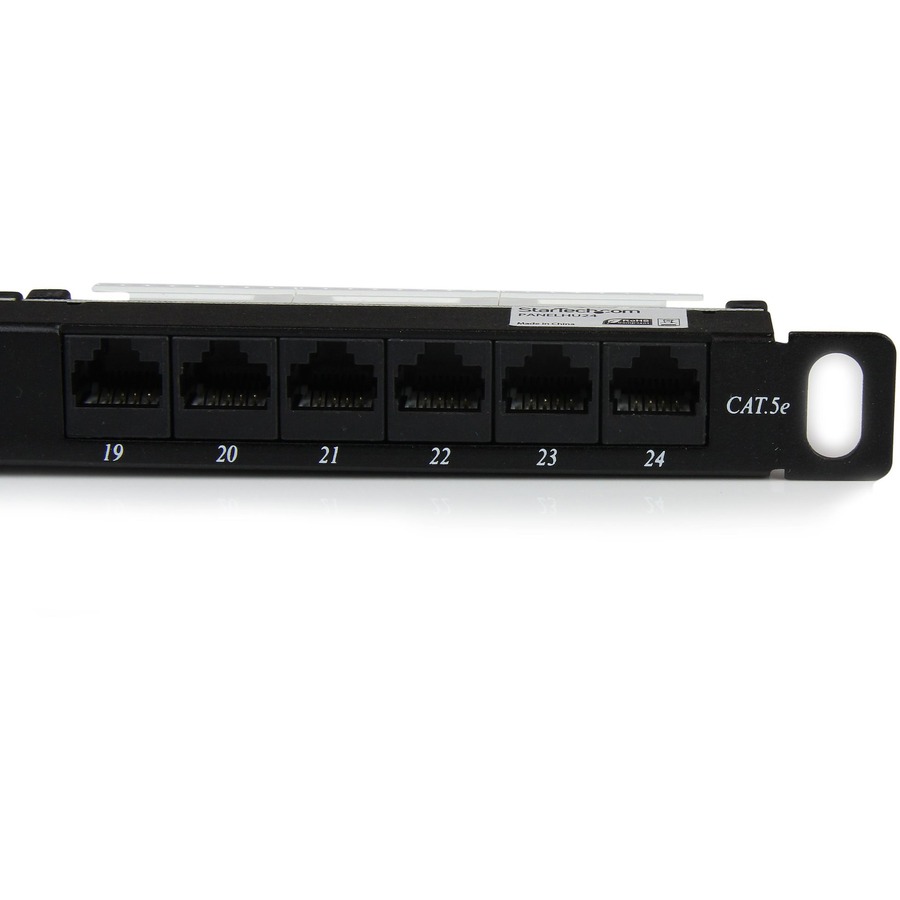

The PANELHU24 Rack Mount Cat5e patch panel condenses 24 ports into a 0.5U panel, making it an ideal solution for smaller installations. Color coded for both T568A and T568B wiring, this network patch panel provides the perfect solution for any voice or LAN application and offers dual type IDC termination. For convenience, the port numbers are clearly marked on the front of each RJ45 port, offering a quick and easy way to identify cable runs. Durably constructed of only top quality materials, this 24-port Ethernet patch panel is backed by StarTech.com's 2 year warranty. More from the Manufacturer More from the Manufacturer
Highlights
High impact plastic housing, flame retardant UL 94V-0
Meets and exceeds ANSI/TIA-568-C.2, ISO/IEC 11801 and EN 50173-1 specifications

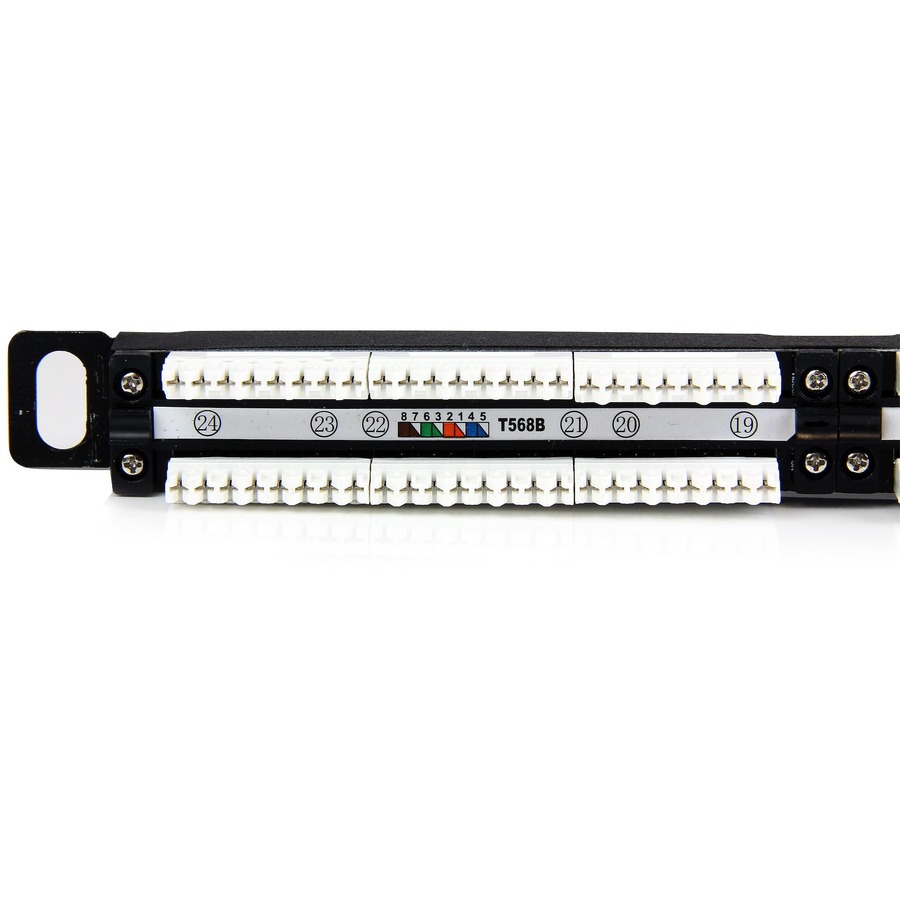

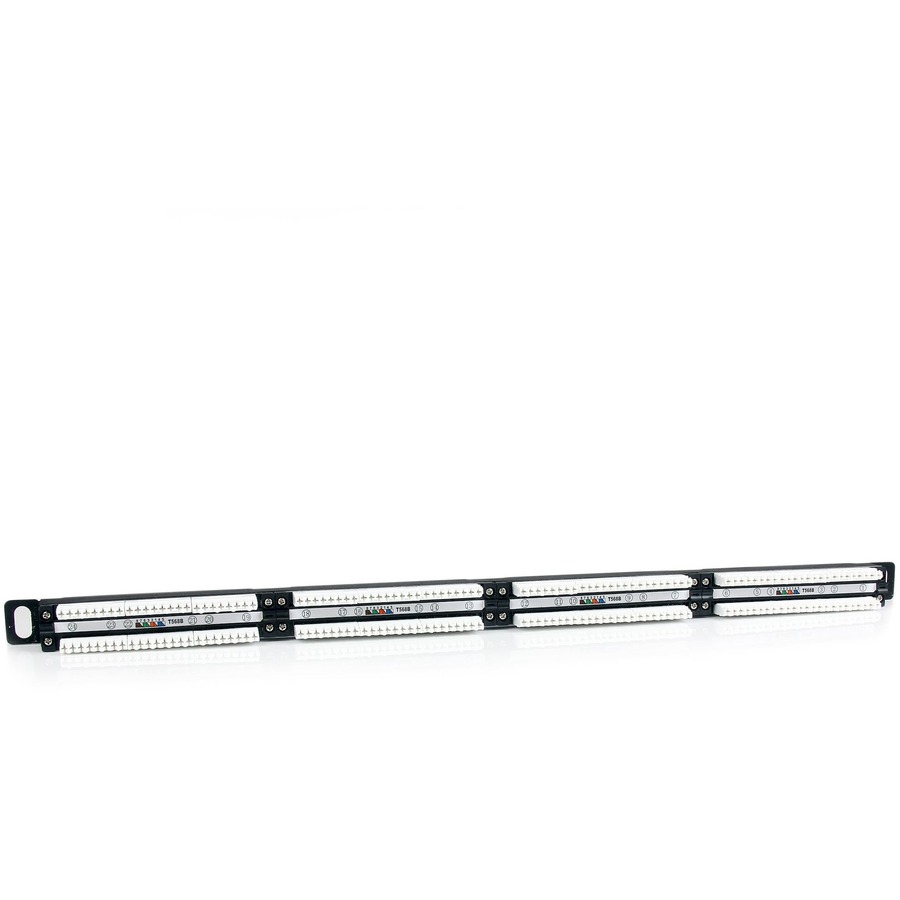

Dual-type IDC headers, situated 180° relative to the RJ45 ports, terminated using 110-type punch tool
Color coded for both T568A and T568B installations
Specifications
Package Contents
24 Port 0.5U Cat5e Patch Panel - RJ45 Ethernet Rackmount Cat 5e 110 Patch Panel
M5 Screws
M6 Screws
Zip Ties
1 x Instruction Manual
Product Type
Network Patch Panel
Manufacturer Part Number
PANELHU24
Packaged Quantity
1 Each
Limited Warranty
2 Year
Weight (Approximate)
14.40 oz
Form Factor
Rack-mountable
Manufacturer
StarTech.com
Product Name
24 Port 0.5U Cat5e Patch Panel - RJ45 Ethernet Rackmount Cat 5e 110 Patch Panel
Brand Name
StarTech.com
Country of Origin
China
Width
19"
Environmentally Friendly
Yes
Compatible Rack Unit
0.5U
Number of Network (RJ-45) Ports
24
Number of RJ-11 Ports
24
Total Number of Ports
24
Product Color
Black
Color Family
Black
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
