Eaton Tripp Lite Series 100Gb/120Gb to 10Gb Breakout Cassette - 24-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC

Tripp Lite's N482-1M24-LC12 is a High Density 100/120Gb to 10Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with Tripp Lite's N482-01U and N482-02U High Density Fiber Enclosure Panels; up to 5 cassettes per N482-01U, or up to 14 cassettes per N482-02U. 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of More from the Manufacturer

High-Density Fiber Cassette an Elegant, Simple Solution for 10Gb to 100/120Gb LC Cable Connections

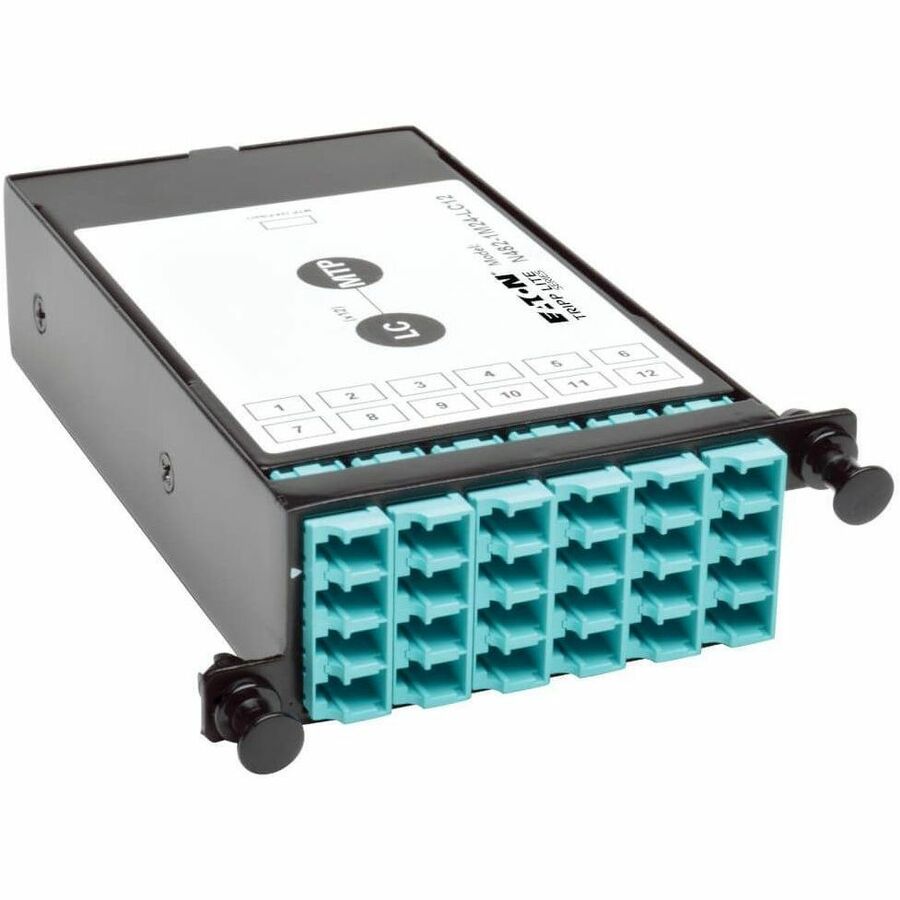

Tripp Lite’s N482-1M24-LC12 High-Density Fiber Cassette offers a simple, elegant solution for connecting 12 LC fiber cables with a 24-Fiber MTP/MPO connection. The N482-1M24-LC12 works with Tripp Lite’s N482-01U and N482-02U High-Density Fiber Enclosures (sold separately) and is able to interconnect with any combination of 10Gb, 40Gb and 100/120Gb network equipment. Installations are easier, and the N482-1M24-LC12’s modular design offers the highest level of scalability and density to save both time and money. For peace of mind, the N482-1M24-LC12 comes backed by a lifetime product warranty and has a green, RoHS-compliant design.

Save Time and Money with Simplified Fiber Cable Installations

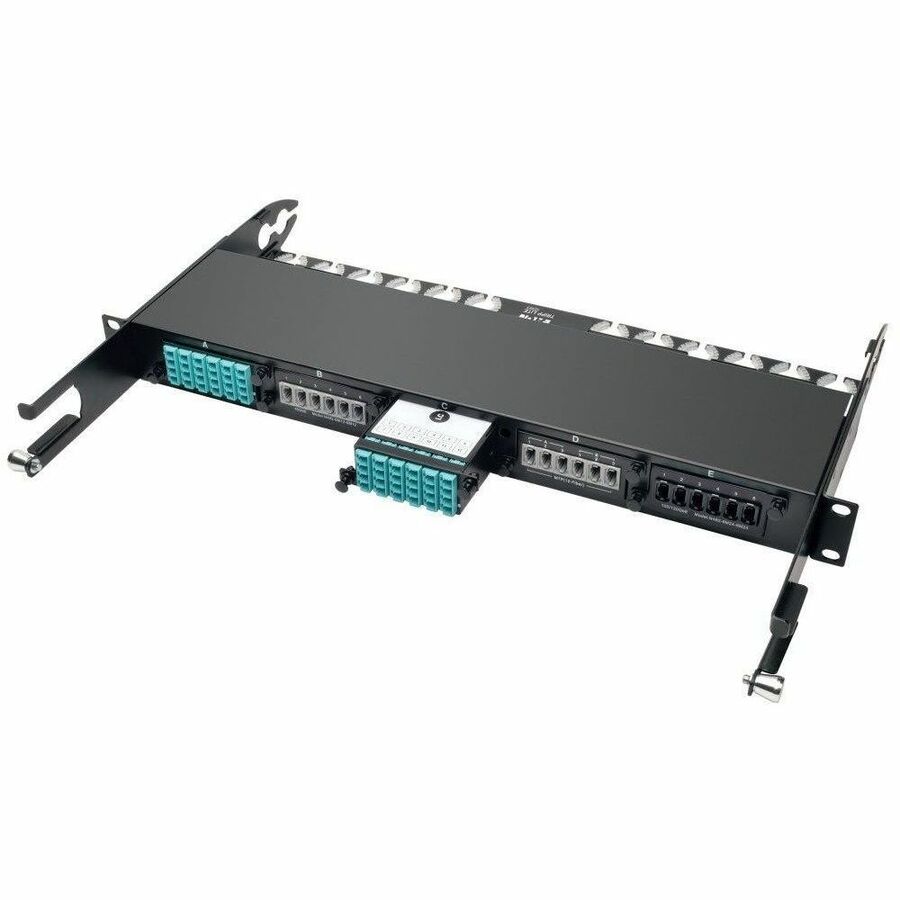

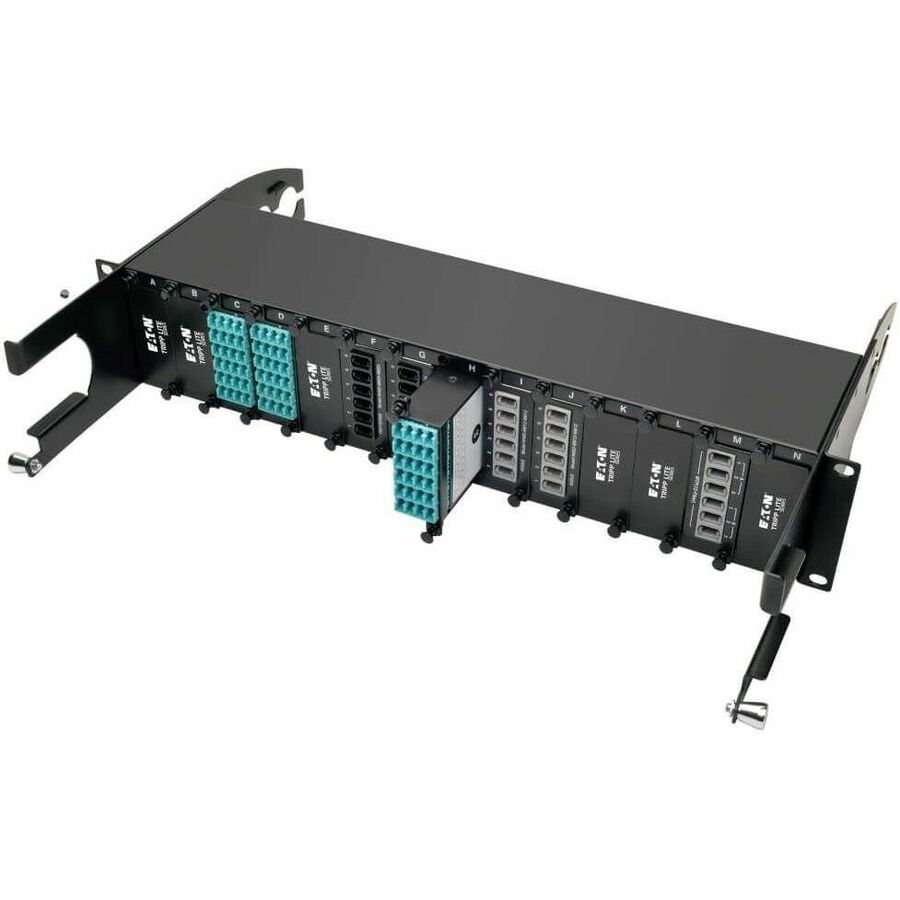

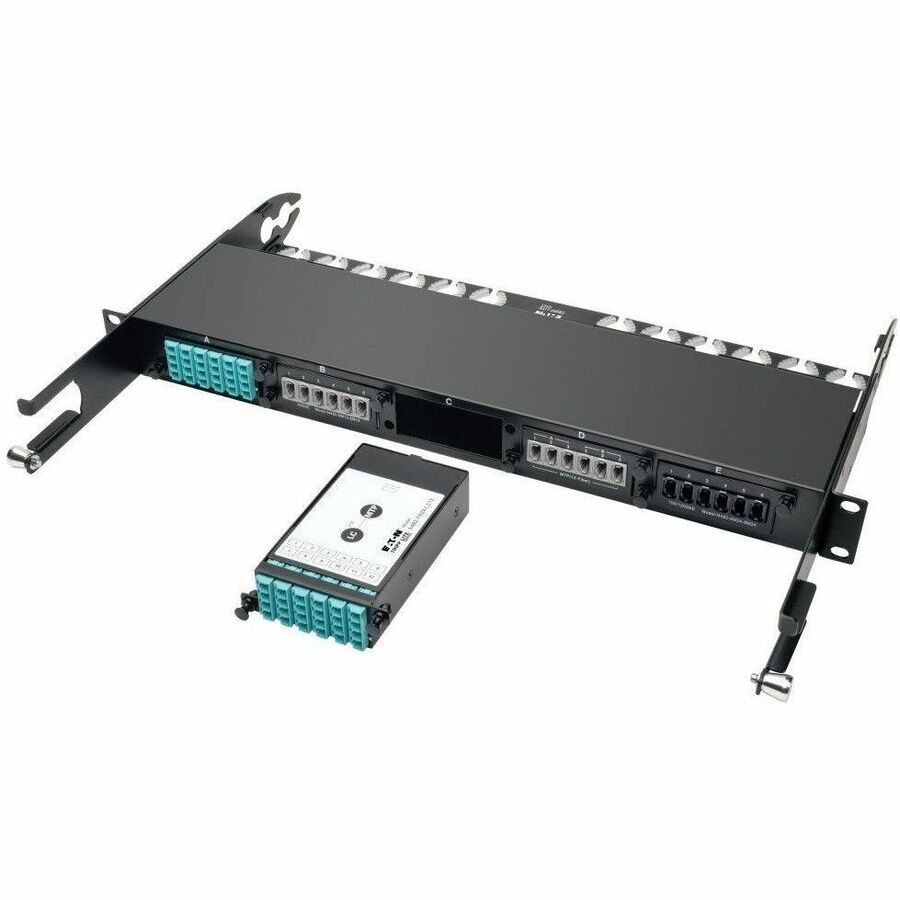

Configuring the N482-1M24-LC12 couldn’t be easier; simply insert the N482-1M24-LC12 cassette into an N482-01U or N482-02U enclosure panel and push in its retention clips to secure the cassette. Then plug the LC cables into the cassette using the LC cable’s convenient push/pull tabs and you’re ready to go. Up to five N482-1M24-LC12 cassettes can fit in the N482-01U 1U enclosure panel for a total of 60 servers, and up to 14 cassettes can fit in the N482-02U 2U panel for a total of 168 10Gb servers (more than 10 racks!).

Backward Compatible with Legacy Devices

When evolving standards or organizational needs require network changes, the N482-1M24-LC12 allows you to modify, upgrade or expand the fiber infrastructure by simply adding or swapping cassettes. The N482-1M24-LC12 complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements, and also supports devices of varying speeds, including 10Gb, 40Gb and 100/120Gb network equipment.

Constructed from Premium Components

With a heavy-duty steel construction and factory terminated connectors that reduce time and labor, the N482-1M24-LC12 is made from only the finest materials to ensure fast installations, optimal performance and a lifetime of intensive use.

Lifetime Product Warranty and Environmentally Responsible Design

The N482-1M24-LC12 comes backed by a lifetime warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Tripp Lite N482-1M24-LC12 Product Summary

High Density Fiber Cassette for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels

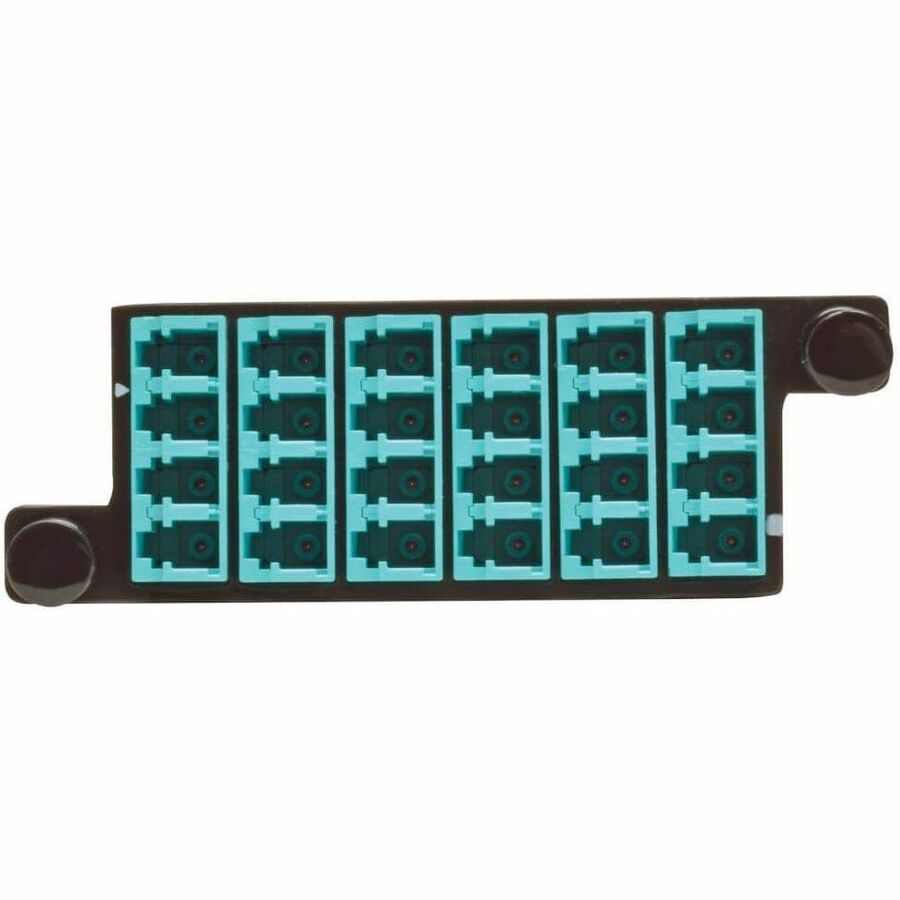

100/120Gb to 10Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber MTP/MPO connection

Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required

Factory terminated connectors reduce the time and labor required of field connector terminations

Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements

Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB

Heavy-duty steel housing

Lifetime product warranty

What’s in the Box

N482-1M24-LC12 100/120Gb to 10Gb Breakout Cassette - 24-Fiber MTP/MPO to (x12) LC

Quick Start Guide
