12 x LC Duplex, 24 x MTP/MPO - 36 Port(s) - 36 x RJ-11 - 12 x Duplex"
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

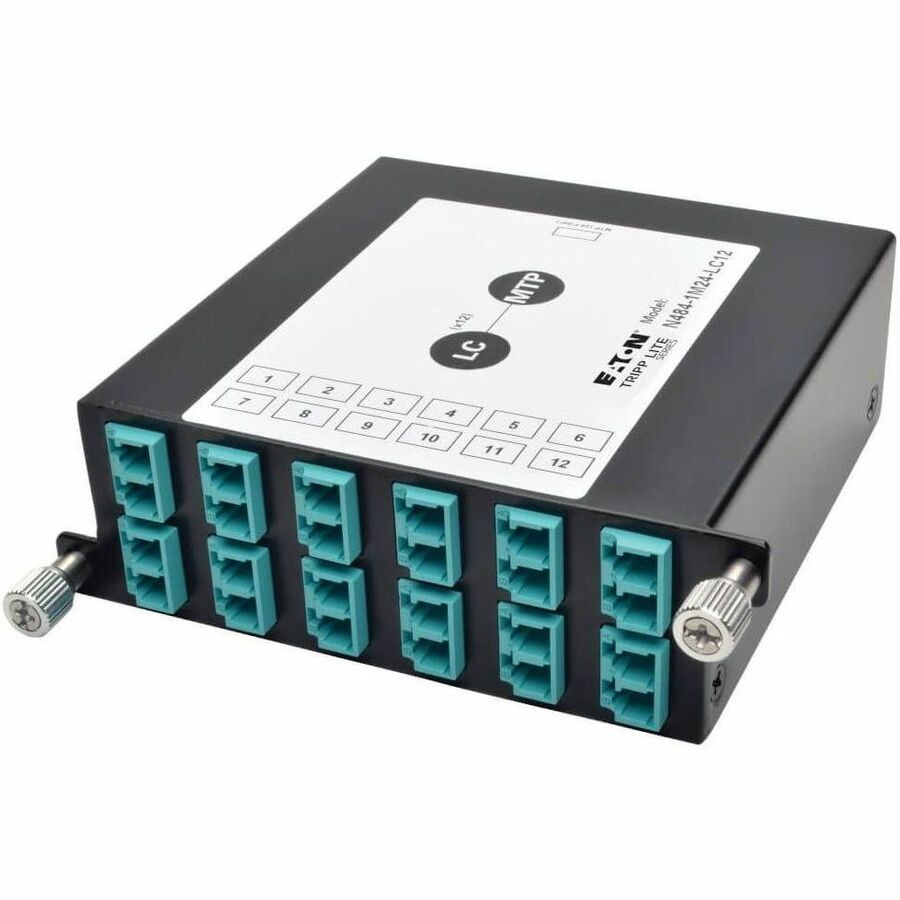

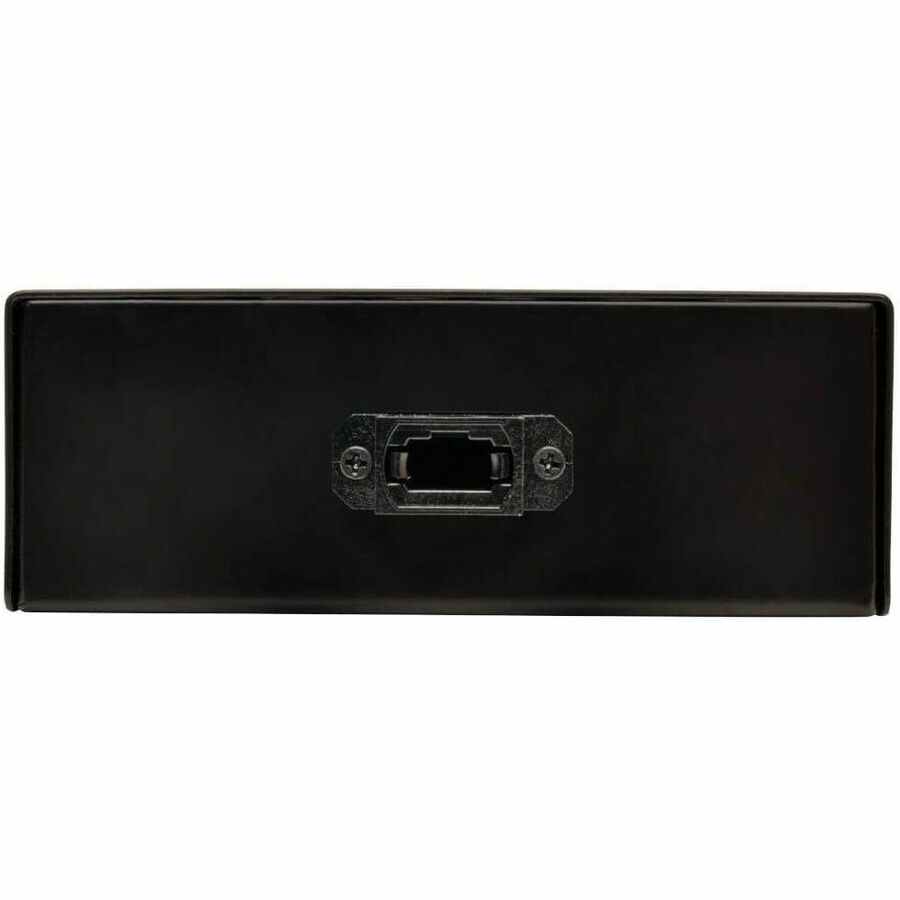

Tripp Lite's N484-1M24-LC12 is a High Density 100/120Gb to 10Gb Breakout Cassette with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with Tripp Lite's N484-00U and N484-01U chassis, you can connect up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 100/120GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of More from the Manufacturer
Simplified Fiber Cable Installation Saves Time and Money

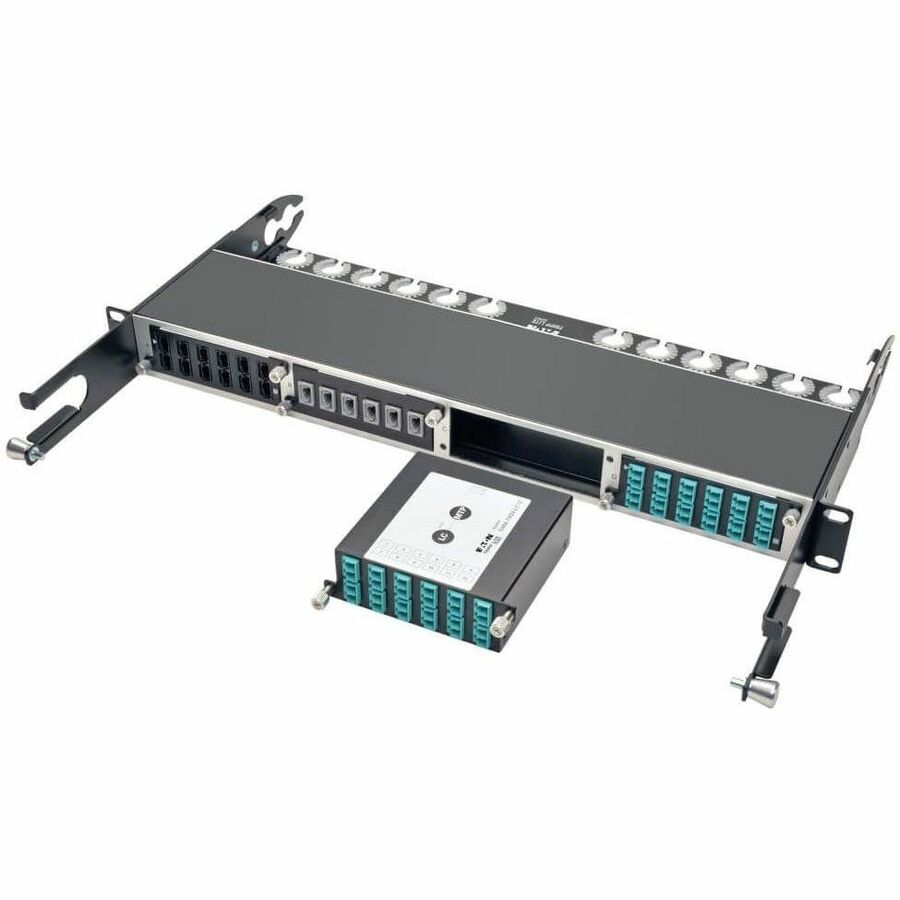

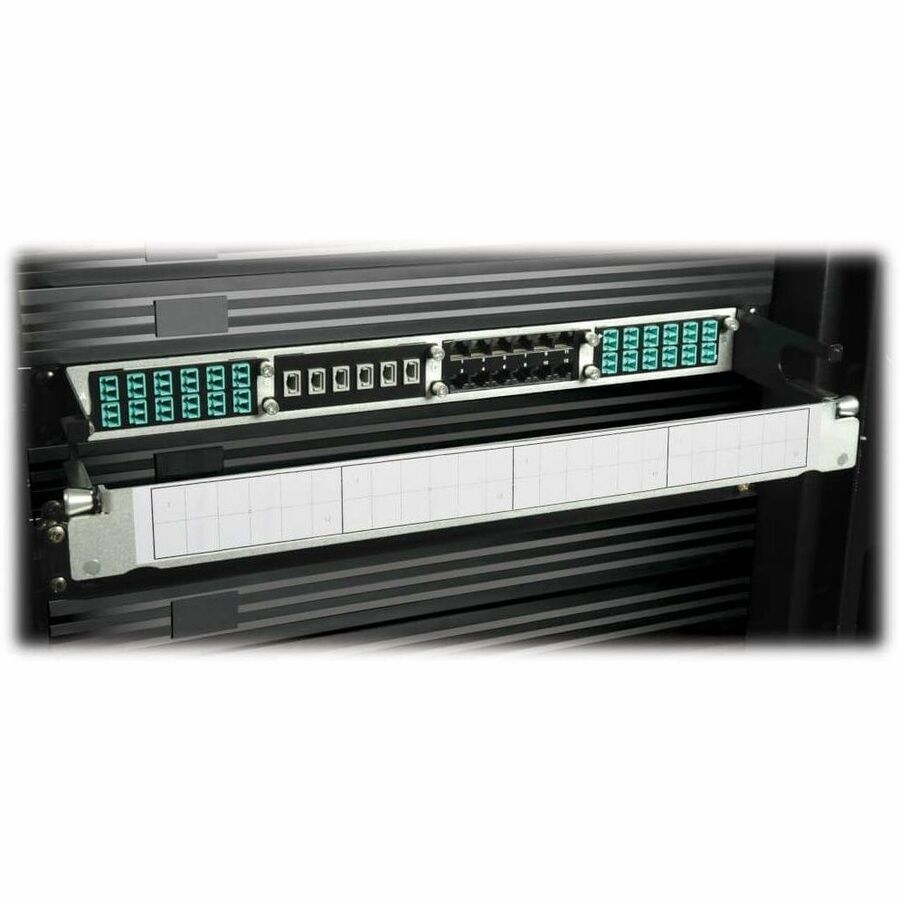

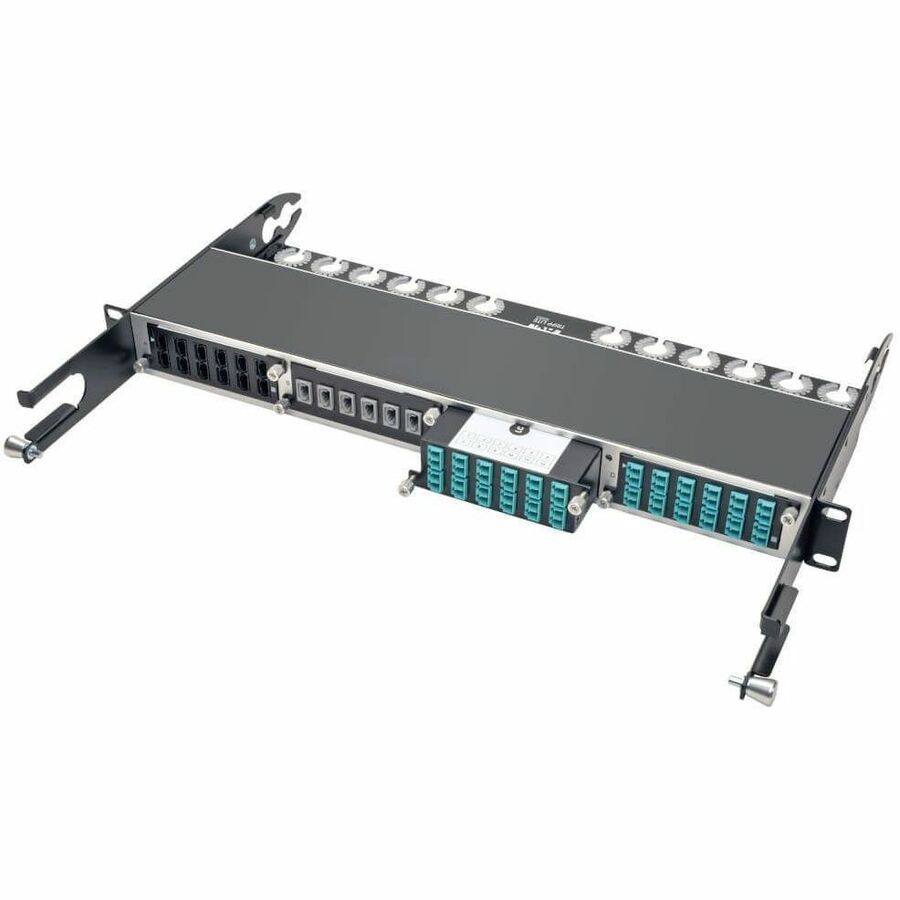

The N484-1M24-LC12 cassette is easy to install into a Tripp Lite N484-00U sleeve or N484-01U 1U enclosure panel. Insert the cassette and tighten the screw tabs to secure it to the sleeve or panel. Loosen the screw tabs for removal. No tools are required. Once the cassette is installed, you can connect your cables. One N484-1M24-LC12 cassette fits in the N484-00U sleeve and up to four cassettes fit in the N484-01U 1U panel. The connectors are factory terminated to reduce time and labor during field installations.
Meets or Exceeds the Latest Standards and Lifetime Warranty
The N484-1M24-LC12 complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements. It has a max insertion loss of 0.35 dB, which is far below the IEEE 802.3ae maximum channel loss spec of <25 dB.
The N484-1M24-LC12 comes with a lifetime warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Limited Warranty: Lifetime
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Package Contents |
|
|---|---|
| Product Type | Network Patch Panel |
| Manufacturer Part Number | N484-1M24-LC12 |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 11.20 oz |
| Manufacturer | Eaton Corporation |
| Product Model | N484-1M24-LC12 |
| Product Name | 100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber MTP/MPO to ( x12 ) LC Duplex |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Height | 1.4" |
| Width | 4.4" |
| Depth | 3.8" |
| Environmentally Friendly | Yes |
| Number of LC Ports | 12 |
| Number of RJ-11 Ports | 36 |
| Total Number of Ports | 36 |
| LC Port Type | Duplex |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
